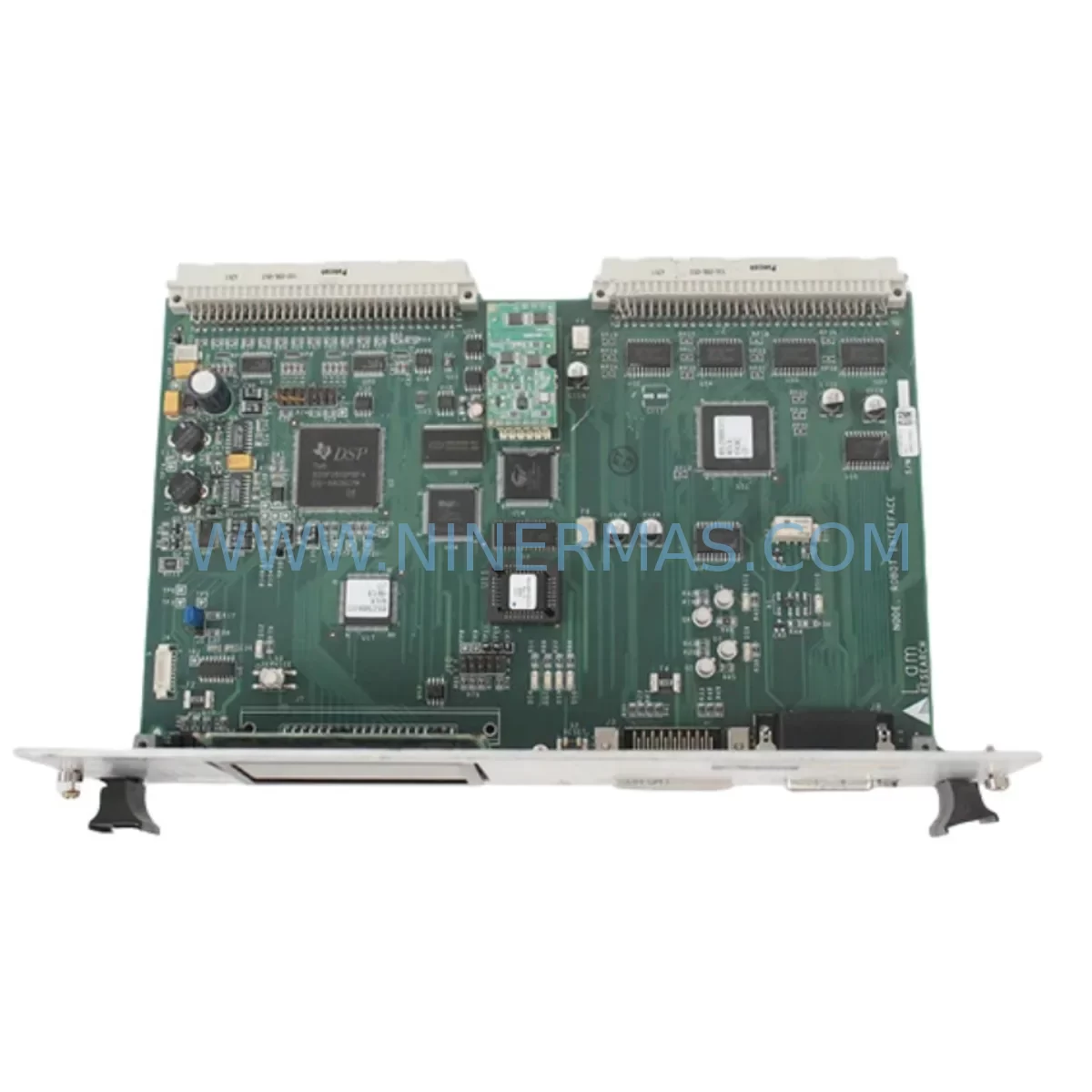

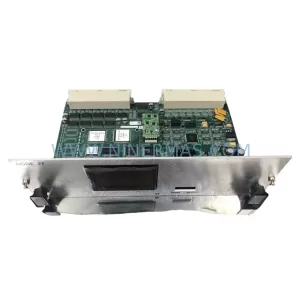

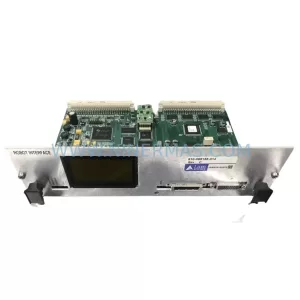

The Lam Research 810-068158-014 is a Ruggedized Node Robot Interface Module engineered for harsh industrial and semiconductor processing environments. As a critical interface component within Lam Research etch and deposition systems, this module manages communication and control signals between the robot arm controller and the process chamber node. When this component fails or degrades, it can trigger immediate production halts, unscheduled downtime, and cascading faults across the wafer handling subsystem. Maintaining a verified, service-ready spare of the 810-068158-014 in your on-site inventory is a fundamental requirement for any maintenance team operating Lam Research equipment at scale.

At NINERMAS, every unit of the 810-068158-014 is sourced, inspected, and dispatched with full traceability. Our supply chain covers original and equivalent-grade components for Lam Research Kiyo, Flex, Versys, and 2300 series platforms. Whether you are managing a planned annual overhaul, responding to an emergency fault isolation event, or building a strategic spare parts buffer for your control cabinet, the 810-068158-014 is available for immediate quotation and rapid dispatch.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 810-068158-014 Robot Interface Module is rarely an isolated task. In a Lam Research system, the robot interface module sits at the intersection of motion control, process sequencing, and chamber communication. A thorough maintenance engineer will treat any RIM replacement as an opportunity to audit the surrounding subsystems and reduce the risk of a secondary fault triggering another unplanned outage.

When servicing the 810-068158-014, maintenance teams should simultaneously inspect the robot arm controller board and its associated servo drive module, as signal degradation in the RIM is frequently accompanied by intermittent faults in the motion control loop. The chamber node communication cable assembly — including shielded signal cables and connector terminations — should be checked for insulation breakdown, pin corrosion, and impedance mismatch, particularly in high-cycle environments where mechanical fatigue is common.

The 24VDC control power supply module feeding the robot interface section should be load-tested and its output ripple measured; a marginal power supply is a leading cause of RIM communication errors that are often misdiagnosed as module failure. Alongside this, the I/O expansion module connected to the same node bus should be verified for correct addressing and signal integrity, as a faulty I/O card can corrupt the communication frame and cause the RIM to report false faults.

For systems using a Lam Research Node Controller or equivalent backplane communication card, the backplane connector seating and bus termination resistors should be inspected during the same maintenance window. Loose backplane connections are a known source of intermittent RIM faults in aging equipment. If the system includes a signal isolation module between the robot controller and the chamber interlock circuit, its isolation barrier should be tested with a megohmmeter to confirm it has not degraded.

Maintenance planners building a comprehensive spare parts kit for Lam Research systems should also consider stocking the relay output module used in the robot safety interlock chain, the fuse block assembly for the 24VDC control rail, and the HMI interface panel or operator terminal associated with the robot station. These components share the same maintenance cycle as the 810-068158-014 and are frequently replaced together during major overhauls. For facilities running legacy Lam Research platforms, the SCSI or fiber-optic communication adapter connecting the robot controller to the host system should also be included in the annual inspection checklist.

NINERMAS maintains long-term supply capability for all of these associated components, enabling procurement engineers to consolidate spare parts orders, reduce per-unit logistics costs, and maintain a single-source supplier relationship for Lam Research system maintenance.

Site Replacement Workflow

Step 1 — Fault Isolation: When a robot interface fault is logged by the system controller, isolate the 810-068158-014 as the root cause by reviewing the node communication error log and performing a loopback test on the interface port. Confirm that the fault is not originating from the cable assembly or the downstream node controller before removing the module.

Step 2 — Safe Removal: Follow Lam Research lockout/tagout (LOTO) procedures for the robot subsystem. Power down the 24VDC control rail, discharge any residual capacitance on the node bus, and document the existing wiring configuration with photographs before disconnecting any cables from the 810-068158-014.

Step 3 — Compatibility Verification: Before installing the replacement 810-068158-014, verify the revision suffix (in this case, -014) matches the system’s current hardware revision. Check the system’s engineering change order (ECO) log for any revision-specific firmware or configuration requirements. If the replacement unit requires a firmware update, complete this before installation.

Step 4 — Installation and Configuration: Install the replacement module into the backplane or rack position, reconnect all cable assemblies in the documented sequence, and restore control power. Perform a node communication test from the system controller to confirm the module is recognized and responding correctly on the node bus.

Step 5 — Functional Verification: Execute a robot homing sequence and a full wafer transfer cycle in manual mode to verify that the interface module is operating correctly under load. Monitor the node communication error counter for a minimum of 30 minutes before returning the system to automated production.

Step 6 — Documentation and Spare Replenishment: Update the equipment maintenance log with the replacement date, part number, and revision. Immediately initiate a purchase order for a replacement 810-068158-014 to restore your on-site spare inventory to the minimum buffer level. Contact NINERMAS at sale@ninermas.com to confirm availability and lead time.
