KYLAND KIEN3016BGE-16T Service-Ready Spare Part

KYLAND KIEN3016BGE-16T Service-Ready Spare Part for Industrial Maintenance

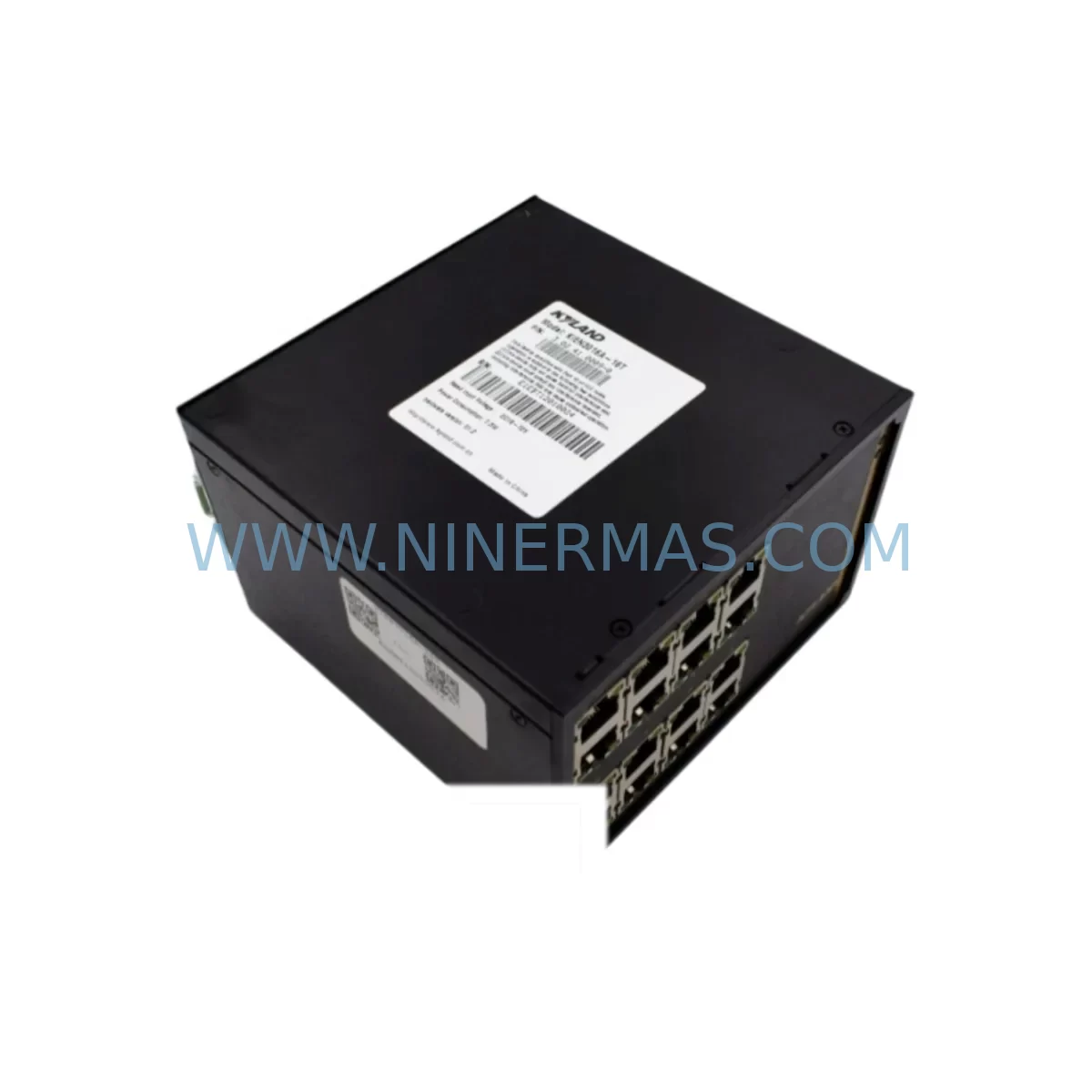

The KYLAND KIEN3016BGE-16T is an original industrial-grade managed Ethernet switch designed for demanding automation environments. As a service-ready spare part, it is engineered to deliver immediate drop-in replacement capability for aging or failed units within SCADA systems, DCS control networks, PLC communication backbones, and distributed I/O architectures. Whether you are managing a scheduled annual overhaul, responding to an unplanned line stoppage, or building a proactive spare parts inventory, the KIEN3016BGE-16T provides the reliability and compatibility assurance that maintenance engineers and procurement teams require.

Industrial Ethernet switches such as the KIEN3016BGE-16T serve as the communication backbone of modern control cabinets. A failed switch can cascade into complete loss of communication between PLCs, remote I/O stations, HMI panels, and supervisory systems — resulting in unplanned downtime that costs far more than the component itself. Stocking a verified original replacement unit eliminates the diagnostic uncertainty and lead-time risk associated with sourcing during an emergency.

At NINERMAS, every unit undergoes pre-shipment functional verification, including port-level link testing, power input validation, and firmware integrity checks. Each KIEN3016BGE-16T ships with a 12-month warranty, backed by long-term supply commitment to support legacy system maintenance programs.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a KIEN3016BGE-16T fails or is flagged during a routine control cabinet inspection, the replacement workflow should extend beyond the switch itself. Industrial Ethernet switches sit at the intersection of power distribution, signal routing, and communication integrity — meaning a single failure event often reveals adjacent vulnerabilities that, if left unaddressed, will generate the next unplanned stoppage.

Maintenance engineers should simultaneously inspect the 24 VDC or 48 VDC DIN-rail power supply feeding the switch, as voltage ripple or supply degradation is a common root cause of intermittent switch faults. If the control cabinet uses a KYLAND KPS series redundant power module, verify that both power paths are delivering within specification before commissioning the replacement unit.

The communication ports on the KIEN3016BGE-16T connect directly to PLC Ethernet modules — in KYLAND-integrated systems, this often includes KYLAND’s own controller communication cards or third-party Siemens, Rockwell, or Mitsubishi Ethernet I/O adapters. Inspect all RJ45 patch cables and industrial Ethernet connectors for corrosion, bent pins, or strain relief failure. Industrial-rated Cat5e or Cat6 shielded cables should be used in environments with high EMI exposure.

For systems using PROFINET, EtherNet/IP, or Modbus TCP over the KIEN3016BGE-16T backbone, verify that VLAN configurations and QoS priority settings are correctly restored after replacement. Configuration backup files should be maintained as part of the site’s spare parts documentation package.

If the cabinet also houses a KYLAND SICOM series ring switch or a KPS redundant power controller, these should be included in the same inspection cycle. Ring topology switches are particularly sensitive to port failures that can break the redundancy loop and expose the entire network segment to single-point-of-failure risk.

Procurement engineers building annual MRO (Maintenance, Repair & Operations) budgets should consider stocking the following alongside the KIEN3016BGE-16T: DIN-rail terminal blocks for power distribution wiring, signal isolators for analog I/O channels adjacent to the network cabinet, 24 VDC miniature circuit breakers protecting the switch power feed, and industrial surge protection devices (SPDs) on Ethernet ports exposed to outdoor or long-cable runs. For cabinets with HMI integration, a spare KYLAND or compatible industrial HMI communication module should also be maintained on-site.

Facilities running older KYLAND KIEN or SICOM series switches should evaluate whether the KIEN3016BGE-16T can serve as a unified replacement platform across multiple legacy models — reducing SKU complexity in the spare parts room and simplifying procurement cycles.

Site Replacement Workflow

Step 1 — Pre-Replacement Verification: Before removing the failed unit, document the existing port assignments, VLAN configuration, and IP management address using a laptop connected to the management port. Export the configuration file if the switch firmware supports it.

Step 2 — Power Isolation: De-energize the switch by opening the dedicated MCB on the 24 VDC distribution rail. Confirm zero voltage at the power input terminals using a calibrated multimeter before disconnecting any cables.

Step 3 — Cable Labeling and Disconnection: Label all Ethernet patch cables by port number before removal. In high-density cabinets, photograph the wiring layout as a reference. Disconnect cables in reverse order of criticality — start with uplink/trunk ports last.

Step 4 — DIN-Rail Removal and Replacement: Release the DIN-rail locking tab and slide the failed KIEN3016BGE-16T out of position. Mount the replacement unit, ensuring the DIN-rail clip is fully engaged. Reconnect power terminals first, then Ethernet cables in documented port order.

Step 5 — Configuration Restore and Commissioning: Apply power and access the management interface. Restore the saved configuration file or manually re-enter VLAN, QoS, and IP settings. Verify all port link indicators are active and confirm end-to-end communication with connected PLCs, I/O stations, and HMI systems before returning the line to production.

Step 6 — Documentation Update: Record the replacement date, unit serial number, and technician name in the site maintenance log. Update the spare parts inventory to trigger reorder of a replacement stock unit.

Spare Parts Support FAQ

Q1: Is the KIEN3016BGE-16T an original KYLAND unit or a compatible replacement?
All units supplied by NINERMAS are original KYLAND-manufactured components sourced through verified industrial supply channels. Each unit is pre-shipment tested and ships with a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions. We do not supply counterfeit, refurbished-without-disclosure, or third-party compatible substitutes.

Q2: How do I confirm compatibility with my existing KYLAND network infrastructure before ordering?
The KIEN3016BGE-16T is designed as a direct replacement within the KIEN3016 series and is compatible with KYLAND’s broader SICOM and KPS series network architecture. To confirm compatibility, provide your existing switch model number, firmware version, and network topology (ring/star/daisy-chain) when contacting our technical team at sale@ninermas.com. We will validate fit before shipment.

Q3: What is your lead time and can you support emergency spare parts orders?
Standard orders ship within 3–7 business days with full pre-shipment testing documentation. For emergency downtime recovery situations, contact us directly at +0086 187 5021 5667 to discuss expedited dispatch options. We maintain buffer stock of high-demand KYLAND components specifically to support unplanned maintenance events.

Q4: Do you offer long-term supply agreements for MRO procurement programs?
Yes. NINERMAS supports annual blanket purchase orders and long-term supply agreements for maintenance teams managing large installed bases of KYLAND equipment. This includes price-lock arrangements, reserved stock allocation, and priority fulfillment for contracted customers. Contact sale@ninermas.com to discuss your site’s annual spare parts requirements.
