Krauss Maffei SE502 Safety-Reliable Control Board for MC4/MC5

Krauss Maffei SE502 Safety-Reliable Control Board for MC4/MC5 Critical Control Sites

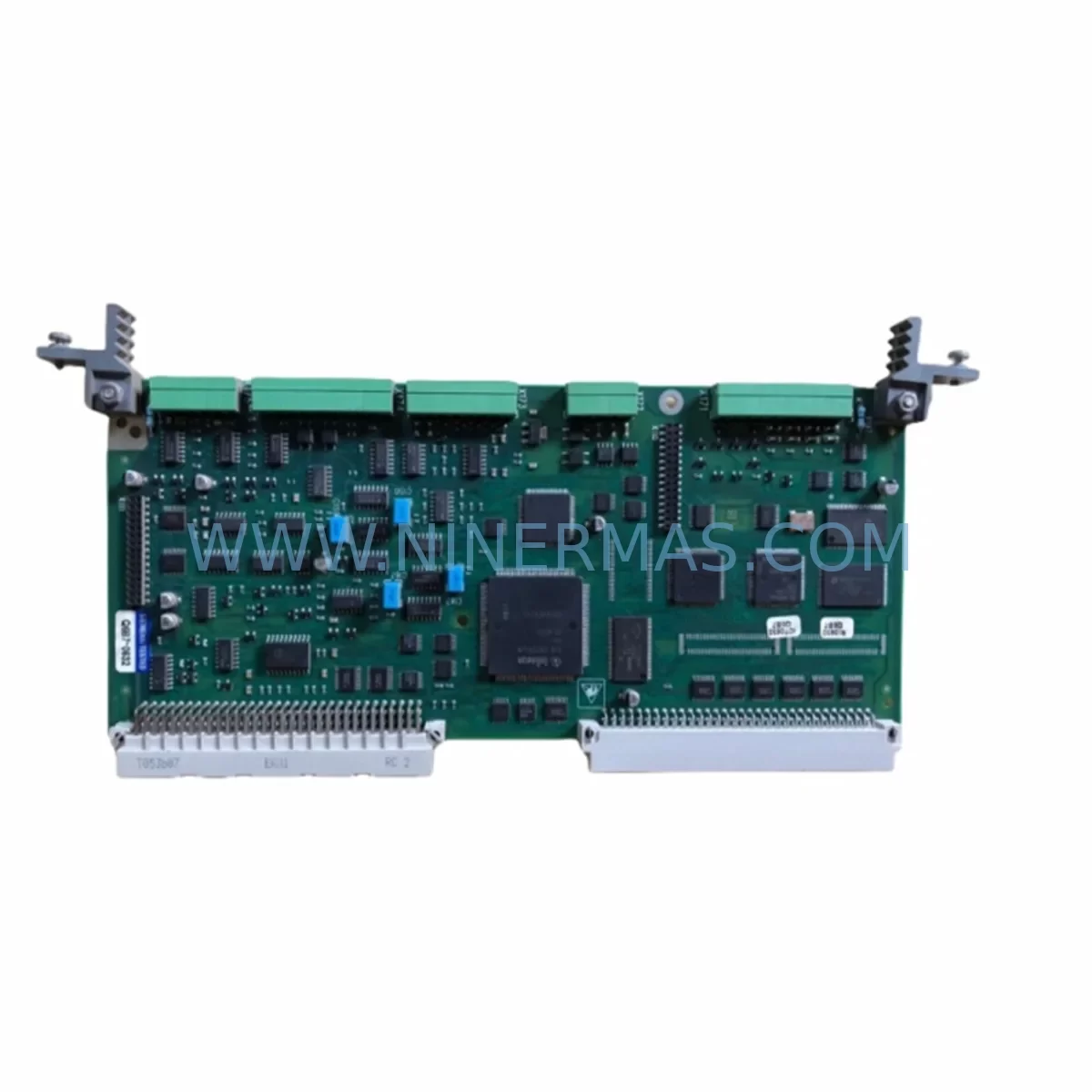

The Krauss Maffei SE502 is a precision-engineered control board designed as a direct replacement and upgrade solution for Krauss Maffei MC4 and MC5 series injection molding machines. In continuous production environments where unplanned downtime translates directly into production loss and safety risk, the SE502 delivers the signal integrity, thermal stability, and electrical resilience that critical control cabinets demand. Every SE502 unit shipped by NINERMAS undergoes full outgoing inspection and is backed by a 12-month warranty, ensuring your procurement team can plan spare-parts programs with confidence.

Industrial injection molding facilities — from automotive component plants to precision plastics manufacturers — rely on the MC4 and MC5 control architecture for coordinating hydraulic pressure, barrel temperature zones, screw rotation, and mold clamping sequences. A failing SE502 board can cascade into complete machine shutdown, mold damage, or — in worst cases — uncontrolled actuator movement that creates personnel safety hazards. Sourcing a verified, tested replacement board from a stocked supplier is therefore not merely a maintenance decision; it is a critical safety and business continuity measure.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

A robust control cabinet risk reduction strategy for MC4/MC5-based injection molding lines goes well beyond replacing a single board. The SE502 operates within a tightly integrated electrical and control architecture, and its reliability is directly influenced by the health of surrounding components. The 24 VDC control power supply feeding the SE502 logic rail must maintain stable output under load transients; a degraded or undersized power supply unit — such as an aging Siemens SITOP or Phoenix Contact QUINT series module — can introduce voltage sag that causes the SE502 to generate spurious fault signals or reset unexpectedly during injection cycles.

Upstream of the power supply, surge protection devices (SPDs) and EMC line filters are essential. Hydraulic pump motor starts, servo drive switching, and solenoid valve actuation all generate high-frequency transients that propagate through the cabinet’s power distribution bus. Without adequate surge suppression — for example, a DEHN or OBO Bettermann Type 2 SPD on the incoming supply — these transients can corrupt the SE502’s memory registers or damage its communication interface circuitry.

The SE502 communicates with the MC4/MC5 operator panel and peripheral I/O modules via the machine’s internal data bus. Ensuring the integrity of bus termination resistors, ribbon cable assemblies, and I/O expansion boards within the same cabinet is critical. A degraded ribbon cable or a loose bus connector can produce intermittent communication errors that are misdiagnosed as SE502 board failure, leading to unnecessary replacement cycles. NINERMAS recommends inspecting the MC4/MC5 I/O interface board and analog input conditioning modules concurrently when replacing the SE502.

Temperature management within the control cabinet is another key risk factor. The SE502 is rated for operation up to 55 °C ambient, but cabinets located near injection barrel heater zones or in poorly ventilated machine rooms can exceed this threshold during summer production peaks. Pairing the SE502 replacement with an audit of the cabinet’s cooling fan units, thermostat-controlled ventilation modules, or — in severe environments — a cabinet air conditioner unit (such as a Rittal SK or TopTherm series) ensures the new board operates within its thermal design envelope.

For facilities running multiple MC4 or MC5 machines, maintaining a structured spare-parts inventory that includes the SE502 board alongside the MC4/MC5 CPU module, servo amplifier boards, temperature controller modules, and safety relay units is a proven strategy for minimizing mean time to repair (MTTR). NINERMAS supports long-term procurement planning with committed stock programs, allowing maintenance engineers to pre-position critical spares without capital exposure risk.

Critical Industrial Safety Applications

The Krauss Maffei SE502 board finds its most demanding applications in industries where injection molding is embedded within continuous or semi-continuous production lines, and where machine downtime has direct safety and regulatory consequences.

Automotive Component Manufacturing: Tier 1 and Tier 2 automotive suppliers operating MC4/MC5 machines for dashboard components, connector housings, and structural plastic parts operate under strict IATF 16949 quality management requirements. An uncontrolled machine stop caused by a failed SE502 can trigger a line stoppage that affects downstream assembly operations, potentially impacting vehicle delivery schedules and triggering customer penalty clauses. The SE502’s role in maintaining precise injection pressure and hold-time control is directly linked to part dimensional consistency and safety-critical weld-line integrity.

Medical Device and Pharmaceutical Packaging: Clean-room injection molding facilities producing syringe barrels, IV connectors, or blister pack components operate under ISO 13485 and GMP frameworks. In these environments, any unplanned machine stop must be documented and investigated as a potential product quality event. The SE502’s stable control of barrel temperature zones and injection velocity profiles is essential for maintaining process validation status. A verified replacement board with full outgoing test documentation supports the change-control records required by regulatory auditors.

Electrical and Electronics Enclosure Manufacturing: Producers of industrial switchgear housings, DIN rail enclosures, and terminal block bodies rely on MC4/MC5 machines for high-volume, tight-tolerance production. In these facilities, the control cabinet housing the SE502 is often located in areas with elevated electromagnetic interference from nearby CNC machining centers, welding stations, or high-current bus bars. The SE502’s EMI-tolerant design and proper cabinet grounding are essential for preventing signal drift in the machine’s position and pressure feedback loops.

Water Treatment and Infrastructure: Facilities producing pipe fittings, valve bodies, and pump housings in engineering-grade polymers (PA, POM, PEEK) for water infrastructure applications demand consistent melt temperature and injection pressure control. A failed SE502 in this context can result in out-of-specification wall thickness or incomplete fill, producing components that fail pressure testing — a direct safety risk in potable water or wastewater treatment systems.

Safety and Quality FAQ

Q1: What does the 12-month warranty on the SE502 cover?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions consistent with the MC4/MC5 control cabinet environment. If the board fails to perform its specified control functions within the warranty period, NINERMAS will provide a replacement unit. The warranty period begins from the date of shipment. Warranty claims are processed via sale@ninermas.com with reference to the original order documentation.

Q2: What outgoing inspection does each SE502 unit undergo before shipment?
Every SE502 board dispatched by NINERMAS undergoes a 100% functional inspection prior to shipment. This includes power-on verification, communication interface testing, and visual inspection for physical damage, solder joint integrity, and connector condition. Inspection records are retained and can be provided upon request for facilities operating under ISO 9001 or IATF 16949 quality management systems.

Q3: Is the SE502 a direct plug-in replacement for both MC4 and MC5 series machines?
Yes. The SE502 is designed as a direct replacement for the original Krauss Maffei SE502 board used across the MC4 and MC5 control platform generations. The connector pinout, board form factor, and firmware interface are compatible with the OEM specification. No hardware modification to the control cabinet is required. For machines that have undergone non-standard modifications, NINERMAS technical support can assist with compatibility verification prior to order placement.

Q4: Can NINERMAS support long-term or committed stock programs for the SE502?
