K-TEK M7A-MT5 Safety-Reliable HART Module for Critical Control

K-TEK M7A-MT5 Safety-Reliable HART Module for Critical Control Sites

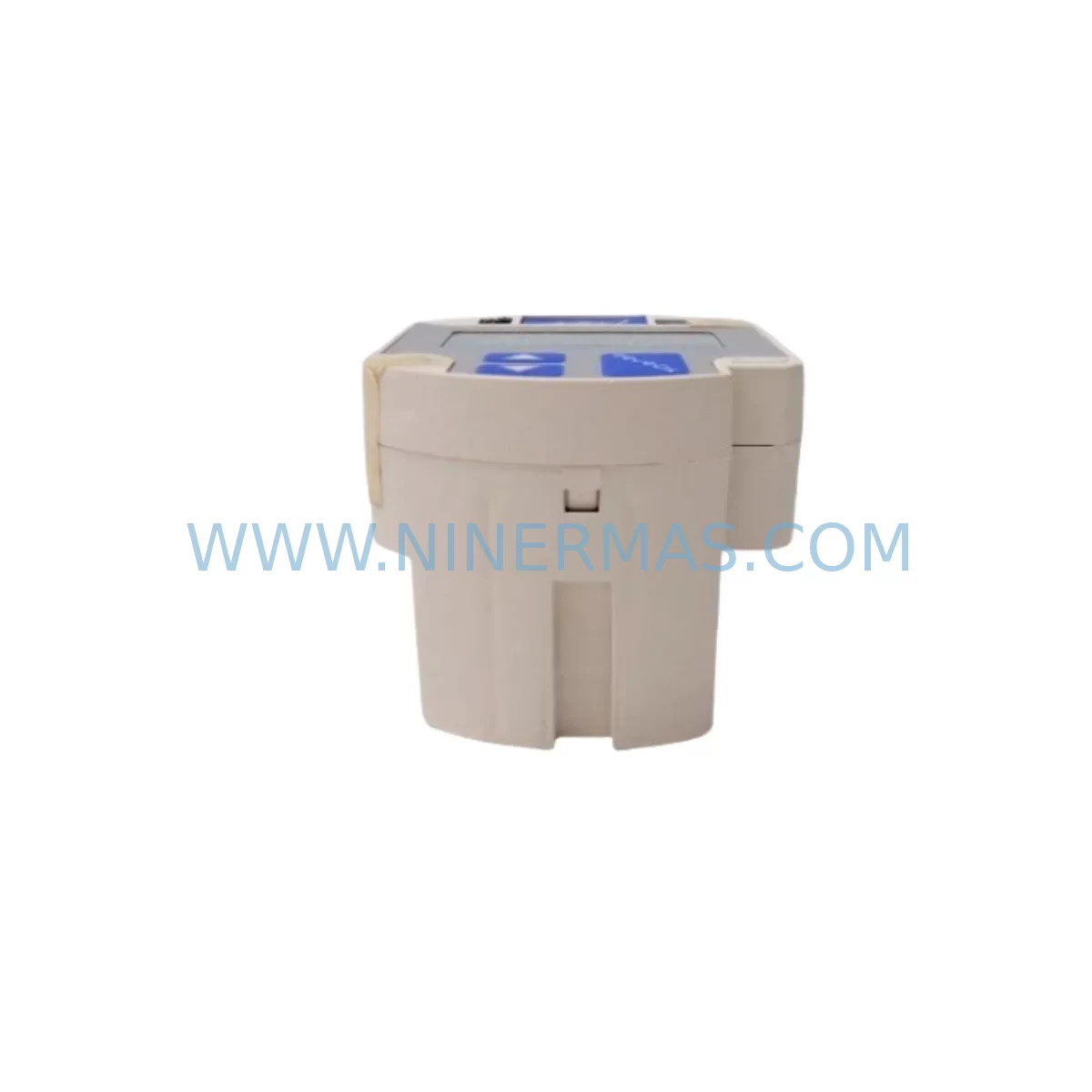

The K-TEK M7A-MT5 is a precision HART communication module engineered for continuous production environments where control loop integrity and signal reliability are non-negotiable. Designed as a direct replacement spare for K-TEK M7A Series level transmitter systems, this module ensures uninterrupted HART protocol communication between field instruments and distributed control systems (DCS) or safety instrumented systems (SIS). In petrochemical plants, power generation facilities, water treatment stations, and metallurgical operations, the M7A-MT5 serves as a critical link in the measurement and control chain — where a single communication failure can trigger unplanned shutdowns, process deviations, or safety interlock activations.

At NINERMAS, every K-TEK M7A-MT5 unit is pre-shipment tested against HART protocol compliance, signal integrity, and electrical isolation parameters before dispatch. Backed by a 12-month warranty, this module is stocked for immediate availability to support emergency replacement and planned maintenance cycles across global industrial sites.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In a well-engineered control cabinet serving a critical process loop, the K-TEK M7A-MT5 HART module is rarely the only component under stress. Signal integrity at the field level depends on the coordinated performance of multiple protection and communication layers. When deploying or replacing the M7A-MT5, site engineers typically review the broader control architecture to eliminate compounding failure risks.

On the power supply side, a reliable 24 VDC DIN-rail power supply — such as those from the Phoenix Contact QUINT series or PULS DIMENSION range — ensures the HART loop receives stable excitation voltage even during grid fluctuations or load switching events. Pairing the M7A-MT5 with a HART loop isolator or signal conditioner (e.g., Pepperl+Fuchs KFD2-STC4-Ex1 or equivalent) protects the module from ground loops and surge transients that are common in heavy industrial environments with large motor drives or welding equipment nearby.

For installations in hazardous areas or high-EMI zones, a HART multiplexer or HART modem interface — such as the ProComSol HM-USB or Emerson 475 Field Communicator — allows technicians to interrogate the M7A-MT5 signal without breaking the live loop, reducing intervention risk during operation. In SIS-integrated architectures, the HART data from the M7A-MT5 is often routed through a safety PLC input module (e.g., Siemens ET 200SP F-DI or Rockwell 1756-IF16 analog input card) to provide redundant process variable monitoring alongside the primary 4–20 mA signal.

Surge protection at the cabinet terminal strip is equally important. A HART-transparent surge arrester — such as the Phoenix Contact TT-HART or Weidmüller VARISTOP series — prevents lightning-induced or switching transients from reaching the M7A-MT5 module and corrupting HART communication frames. In dusty or humid environments, terminal block covers and cable duct sealing systems maintain the integrity of the wiring compartment, reducing the risk of insulation breakdown that could cause signal drift or intermittent HART communication errors.

Finally, for sites operating K-TEK M7A Series transmitters across multiple measurement points, maintaining a small buffer stock of K-TEK M7A-MT5 modules alongside compatible K-TEK M7A sensor assemblies, M7A junction housings, and M7A display modules ensures that any single-point failure can be resolved within one maintenance shift — eliminating the multi-day lead times that often extend unplanned downtime in remote or offshore installations.

Critical Industrial Safety Applications

The K-TEK M7A-MT5 is deployed across a wide range of safety-critical and continuous-process industries where HART communication reliability directly impacts operational safety and regulatory compliance.

Petrochemical and Refinery Operations: In crude distillation columns, reactor vessels, and storage tank farms, the M7A-MT5 enables continuous level measurement data transmission to the DCS and SIS. Accurate, uninterrupted HART communication prevents overfill events, supports high-level safety interlock activation, and provides the diagnostic data required for functional safety audits under IEC 61511.

Power Generation: In coal-fired, gas turbine, and hydroelectric plants, the M7A-MT5 supports boiler drum level monitoring, condenser hotwell measurement, and fuel storage level control. HART diagnostics from the module allow predictive maintenance teams to identify sensor degradation before it causes a forced outage, supporting high-availability generation targets.

Mining and Mineral Processing: Slurry tanks, tailings ponds, and reagent storage vessels in mining operations present extreme challenges — abrasive media, high vibration from crushers and conveyors, and wide temperature swings. The M7A-MT5’s robust construction and EMI resistance make it a reliable communication backbone in these demanding environments.

Water and Wastewater Treatment: Municipal and industrial water treatment facilities rely on continuous level measurement for pump control, chemical dosing, and overflow prevention. The M7A-MT5 supports HART-based remote diagnostics, allowing operators to verify transmitter health from the control room without dispatching field personnel to potentially hazardous confined spaces.

Metallurgy and Steel Production: In electric arc furnace operations, ladle handling, and continuous casting lines, the M7A-MT5 withstands the intense electromagnetic fields generated by high-current equipment. Its galvanic isolation and EMI-hardened design prevent signal corruption that could lead to incorrect level readings and dangerous process deviations.

Port and Marine Applications: Cargo tank level monitoring on bulk carriers, tankers, and offshore platforms requires instrumentation that performs reliably in salt-laden, high-humidity environments with constant mechanical vibration. The M7A-MT5’s industrial-grade temperature and humidity tolerance supports these demanding marine measurement applications.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the K-TEK M7A-MT5?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions. If the M7A-MT5 fails to maintain HART communication integrity or exhibits signal output errors within the warranty period, NINERMAS will provide a replacement unit. The warranty period begins from the date of confirmed shipment and applies to units used within their specified operating parameters.

Q2: What pre-shipment tests are performed on each M7A-MT5 unit?
Every K-TEK M7A-MT5 module undergoes a structured pre-shipment inspection that includes HART protocol communication verification, 4–20 mA signal output accuracy check, electrical isolation resistance measurement, and visual inspection for connector integrity and component seating. Units that do not pass all test criteria are quarantined and not dispatched, ensuring that every module shipped is functionally verified.

Q3: Is the M7A-MT5 compatible with third-party HART hosts and field communicators?
Yes. The K-TEK M7A-MT5 complies with the HART Communication Foundation protocol standard, making it compatible with any HART-compliant host system, including DCS platforms from Emerson, Honeywell, ABB, and Yokogawa, as well as handheld field communicators such as the Emerson 475 and ProComSol HM-USB. Device Description (DD) files for K-TEK M7A Series transmitters are available from K-TEK / Magnetrol for integration with HART-capable asset management systems.

Q4: Can NINERMAS support long-term supply of M7A-MT5 modules for multi-year maintenance contracts?
Yes. NINERMAS maintains stock of K-TEK M7A-MT5 modules to support both emergency replacement orders and planned annual maintenance programs. For sites operating multiple K-TEK M7A transmitters, we can discuss scheduled supply agreements to ensure spare module availability without requiring large upfront inventory investments. Contact our team to discuss volume pricing and delivery scheduling for your site’s maintenance requirements.
