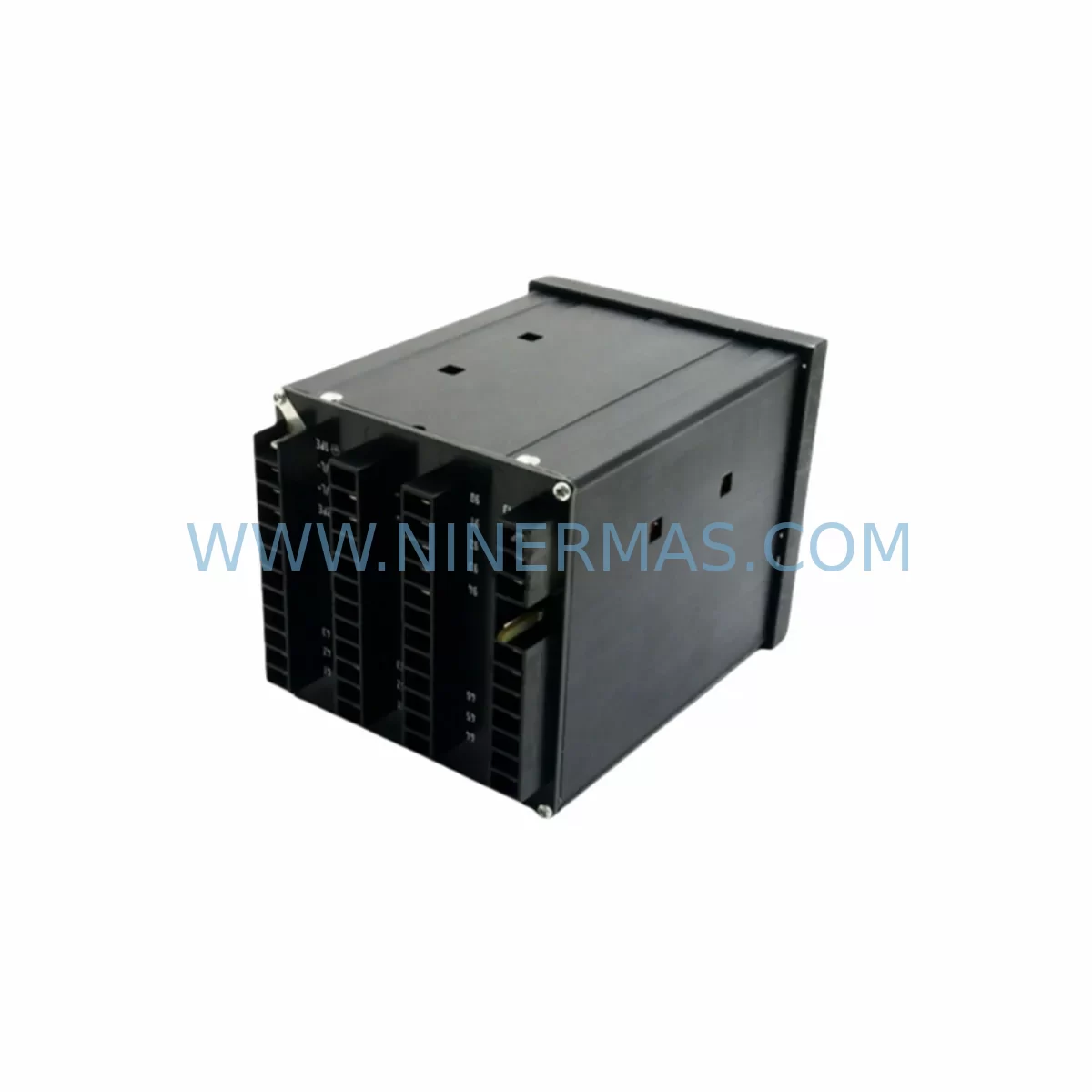

JUMO SRM-96/50-043-00-64.5111 Retrofit Safety Temp Module

JUMO SRM-96/50-043-00-64.5111 Retrofit Safety Temperature Module: Legacy-Compatible Upgrade for Industrial Automation Systems

The JUMO SRM-96/50-043-00-64.5111 is a ruggedized safety temperature module engineered for demanding industrial environments where measurement accuracy, signal integrity, and functional safety are non-negotiable. As legacy automation platforms age out of manufacturer support cycles, the SRM-96/50-043-00-64.5111 has become a critical retrofit component for engineers tasked with modernizing temperature monitoring loops without disrupting existing control architectures.

Whether you are replacing a discontinued JUMO temperature transmitter, upgrading a legacy Siemens S5 or S7-300 control cabinet, or migrating from an older DIN-rail mounted safety relay system, the SRM-96/50-043-00-64.5111 provides a direct-fit solution that minimizes re-engineering effort and reduces total downtime during system changeover. Its ruggedized housing is rated for harsh industrial environments, making it suitable for process industries including chemical, pharmaceutical, food and beverage, and heavy manufacturing.

NINERMAS maintains verified stock of the JUMO SRM-96/50-043-00-64.5111 with a 12-month warranty on all spare parts, supporting long-term procurement planning for maintenance teams and system integrators managing multi-site automation assets.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Integrating the JUMO SRM-96/50-043-00-64.5111 into an existing control system requires a structured pre-installation assessment. Before removing the legacy temperature module, engineers should document the current terminal wiring layout, confirm the sensor type connected (thermocouple or RTD), and record the existing alarm setpoints and output signal range. This prevents configuration drift during the changeover and ensures the replacement module is commissioned to match the original process parameters.

In cabinet environments where the SRM-96/50-043-00-64.5111 operates alongside a JUMO power supply unit or a JUMO DICON touch process controller, verify that the total current draw on the 24 VDC bus remains within the rated capacity of the installed power supply. Overloading the bus during a retrofit — particularly when adding new I/O modules or communication gateways — is a common cause of intermittent faults that are difficult to diagnose post-installation.

For systems using a Siemens ET 200S distributed I/O station or a Siemens IM 151-1 interface module, the SRM-96/50-043-00-64.5111 can be integrated into the temperature monitoring loop feeding analog input channels on the remote I/O rack. Confirm the signal scaling in the PLC program matches the output range of the new module before going live. In PROFIBUS-DP environments, also verify that the GSD file for any adjacent communication modules — such as a Siemens CP 342-5 PROFIBUS master — is current and that the bus address assignments do not conflict after the hardware change.

Where the existing system includes a Phoenix Contact QUINT power supply or a Weidmüller signal conditioner in the same cabinet section, the SRM-96/50-043-00-64.5111 can typically be installed without modifications to the adjacent rail segments, provided the DIN rail load capacity and terminal spacing are confirmed. For older cabinets with 35 mm DIN rail sections that are near capacity, a rail extension or partial cabinet reorganization may be required before the new module can be seated correctly.

If the retrofit involves migrating from a legacy JUMO iTRON 04 temperature controller or a discontinued JUMO dTRON 316 compact controller, the SRM-96/50-043-00-64.5111 can serve as the safety monitoring layer in the upgraded architecture, working in parallel with a new primary controller. This dual-layer approach — where the safety module monitors independently of the main control loop — is increasingly required under IEC 61511 and IEC 62061 functional safety standards for process and machinery applications.

For HMI integration, confirm that the temperature values reported by the SRM-96/50-043-00-64.5111 are correctly mapped in the SCADA or HMI tag database. If the system uses a Siemens SIMATIC HMI TP700 Comfort or a Weintek cMT series HMI, update the tag addresses to reflect any changes in the analog input channel assignment resulting from the module swap. Failure to update HMI screen bindings is a frequent oversight that causes alarm display errors after an otherwise successful hardware retrofit.

Downtime Control During System Migration

Minimizing production downtime during a temperature module replacement requires careful pre-staging and a clearly defined cutover sequence. Before the scheduled maintenance window, pre-configure the JUMO SRM-96/50-043-00-64.5111 on a bench setup using the same sensor type and signal range as the installed unit. Verify the output signal at the module terminals before installation to confirm the unit is functioning correctly and eliminate the risk of a faulty spare causing extended downtime.

During the cutover, follow a structured sequence: isolate the temperature loop at the field junction box, remove the legacy module, install the SRM-96/50-043-00-64.5111, reconnect terminals in the documented order, and restore power to the cabinet section. Avoid powering the entire cabinet down if adjacent control loops can remain active — partial isolation reduces the scope of the restart sequence and limits the risk of unintended process upsets in connected systems.

After installation, perform a live signal check by comparing the module output against a calibrated reference thermometer at the sensor location. Confirm that the PLC analog input channel is reading within the expected range before releasing the loop back to automatic control. Document the as-found and as-left readings for the maintenance record, and update the spare parts register to reflect the installed module’s serial number and installation date.

For sites operating under a planned maintenance schedule, NINERMAS recommends holding a minimum of one spare SRM-96/50-043-00-64.5111 unit in the on-site stores to support rapid replacement in the event of an unplanned failure. Our team can support long-term spare parts programs with committed stock, scheduled delivery, and 12-month warranty coverage on all supplied units.

Retrofit Support FAQ

Q1: Is the JUMO SRM-96/50-043-00-64.5111 a direct replacement for older SRM-96 series modules?
A: The SRM-96/50-043-00-64.5111 is designed within the JUMO SRM-96 series platform. For direct replacement confirmation, compare the terminal assignment, sensor input type, output signal range, and supply voltage of the installed unit against the SRM-96/50-043-00-64.5111 datasheet. NINERMAS can provide technical documentation to support your compatibility assessment prior to ordering.

Q2: What pre-shipment testing is performed on the SRM-96/50-043-00-64.5111?
A: All units supplied by NINERMAS undergo functional verification prior to dispatch, including power-on testing and output signal confirmation. Units are shipped with protective packaging to prevent transit damage. A 12-month warranty is provided from the date of delivery.

Q3: Can the SRM-96/50-043-00-64.5111 be used in a system with an existing PROFIBUS or PROFINET communication backbone?
A: The SRM-96/50-043-00-64.5111 operates as an analog safety temperature module and does not natively participate in PROFIBUS or PROFINET communication. Its analog output connects to the PLC analog input card, which then makes the temperature value available on the communication network. Confirm the analog input card type and channel configuration with your PLC integrator before installation.

Q4: What is the lead time and stock availability for the SRM-96/50-043-00-64.5111?
A: NINERMAS maintains active stock of the JUMO SRM-96/50-043-00-64.5111. Lead time varies by order quantity and destination. Contact our team at sale@ninermas.com or +0086 187 5021 5667 for a confirmed availability and delivery schedule. Long-term supply agreements and reserved stock programs are available for customers with ongoing maintenance requirements.
