IDEC HG1T-SA12UH-MK1363-L10 Safety-Reliable Teaching Pendant

IDEC HG1T-SA12UH-MK1363-L10: Safety-Reliable Teaching Pendant for Critical Industrial Control Sites

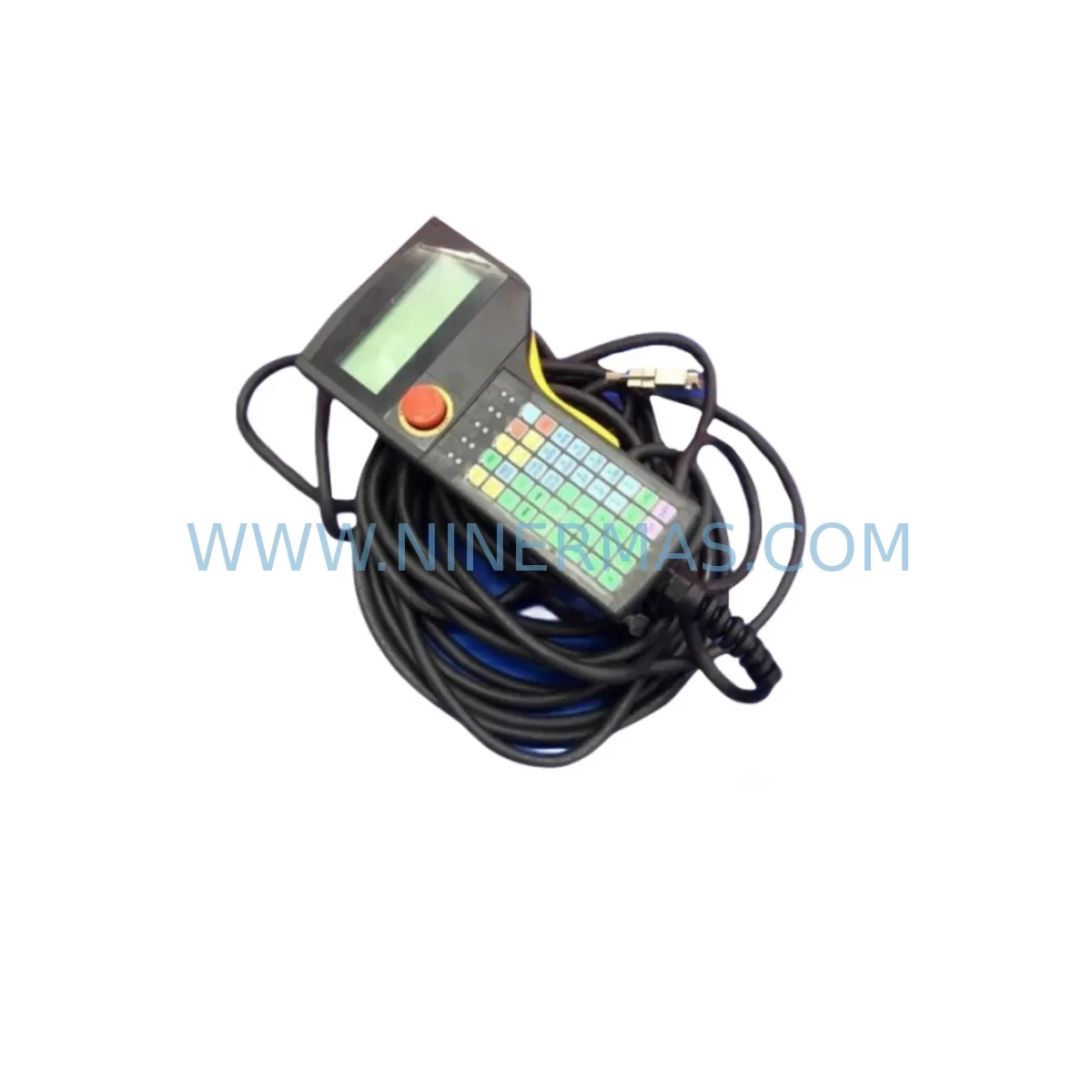

The IDEC HG1T-SA12UH-MK1363-L10 is a precision-engineered teaching pendant designed for demanding industrial automation environments where operator safety and control reliability are non-negotiable. As a key human-machine interface component within the IDEC HG1T Series, this unit delivers robust, ergonomic control for robot programming, motion sequencing, and machine commissioning tasks across continuous production lines, critical interlock circuits, and high-cycle automation cells.

In industrial facilities where unplanned downtime translates directly into production loss and safety risk, the HG1T-SA12UH-MK1363-L10 provides the operational confidence that maintenance engineers and automation technicians demand. Its integrated safety-rated enable switch, emergency stop circuit, and sealed keypad construction are engineered to withstand the mechanical stress, vibration, and contamination exposure typical of heavy manufacturing environments — including automotive assembly, metal fabrication, food processing, and electronics production.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In any safety-critical automation cell, the teaching pendant is only as reliable as the broader control architecture surrounding it. The IDEC HG1T-SA12UH-MK1363-L10 is designed to integrate seamlessly within a layered safety and control strategy that minimizes the risk of control interruption, signal drift, and unplanned machine stops.

At the power supply level, pairing this pendant with a stable IDEC PS5R Series DIN-rail power supply ensures that voltage fluctuations and transient surges from heavy motor loads do not propagate into the pendant’s logic circuits. Surge protection devices such as the IDEC AP series surge absorbers further shield the control cabinet from lightning-induced or switching transients that could corrupt pendant communication signals.

For the safety interlock circuit, the HG1T-SA12UH-MK1363-L10’s integrated E-Stop and 3-position enable switch are designed to interface directly with IDEC HR1S-AF safety relays and IDEC MSW Series safety modules, enabling dual-channel monitoring of the enable and emergency stop functions in compliance with ISO 13849 PLd or SIL 2 requirements. This architecture prevents single-point failures from bypassing the safety function.

Communication integrity between the pendant and the host controller is maintained through the shielded cable assembly of the L10 variant. In environments with high electromagnetic interference — such as those containing IDEC FC9Z Series variable frequency drives or large servo amplifiers — the shielded cable construction suppresses induced noise that could cause erratic cursor movement, keypad misread, or communication timeout errors. Ferrite cores and proper cable routing within the control cabinet further reduce EMI coupling risk.

For cabinet-level protection, IDEC HS Series safety door switches and IDEC HW Series selector switches complement the pendant’s operator interface by providing physical access control and mode selection at the panel face. When combined with IDEC RJ Series relay modules for signal isolation and IDEC BW Series circuit breakers for overcurrent protection, the result is a fully coordinated control cabinet that reduces the probability of nuisance trips, control signal loss, and operator-induced faults during robot teaching and commissioning operations.

Maintaining a spare HG1T-SA12UH-MK1363-L10 in the site’s critical spare parts inventory is a recognized best practice for facilities operating continuous production schedules. Teaching pendant failure during an active production run — particularly in automotive body welding, semiconductor handling, or pharmaceutical packaging lines — can halt an entire cell for hours if a replacement is not immediately available. NINERMAS maintains committed stock of this unit to support rapid replacement without extended lead times.

Critical Industrial Safety Applications

The IDEC HG1T-SA12UH-MK1363-L10 is deployed across a wide range of critical industrial environments where operator safety and machine control precision are paramount.

In petrochemical and refinery facilities, teaching pendants are used during the commissioning and maintenance of robotic inspection arms, valve actuator positioning systems, and automated sampling equipment. The sealed keypad and IP-rated enclosure of the HG1T-SA12UH-MK1363-L10 protect against hydrocarbon vapors, cleaning solvents, and high-humidity process areas. The safety enable switch ensures that robot motion is only possible when the operator maintains deliberate three-position grip — a critical safeguard in confined-space and elevated-risk zones.

In power generation and electrical utility substations, robotic maintenance platforms and automated switchgear testing rigs require precise, safe manual control during setup and calibration. The HG1T-SA12UH-MK1363-L10’s robust E-Stop integration and shielded cable construction make it suitable for high-voltage adjacent environments where EMI levels are elevated and operator safety margins must be maintained at all times.

In mining and mineral processing plants, where dust ingress, mechanical shock, and vibration are constant operational realities, the sealed construction of this teaching pendant provides the durability required for long-term reliable service. Robotic ore sampling, conveyor positioning, and crusher feed control systems benefit from a pendant that can withstand the physical demands of the mining environment without keypad degradation or cable connector failure.

In water and wastewater treatment facilities, automated dosing robots, UV treatment positioning systems, and sludge handling equipment require safe, reliable manual override and programming capability. The HG1T-SA12UH-MK1363-L10 provides this capability in an environment where moisture, chemical exposure, and continuous operation cycles demand the highest levels of component reliability.

In steel mills and metallurgical plants, where radiant heat, metal dust, and high-current switching create extreme EMI and thermal stress, the IDEC HG1T Series pendant’s robust construction and shielded cable assembly provide the signal integrity and physical durability needed for safe robot programming in ladle handling, billet transfer, and rolling mill automation applications.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the HG1T-SA12UH-MK1363-L10?
The 12-month warranty covers all manufacturing defects, functional failures of the keypad, display, enable switch, E-Stop circuit, and cable assembly under normal industrial operating conditions. Units that fail within the warranty period are repaired or replaced at no charge. Warranty documentation is provided with each shipment.

Q2: What pre-shipment testing is performed before dispatch?
Every HG1T-SA12UH-MK1363-L10 unit undergoes a full functional test prior to shipment. This includes keypad response verification, display function check, enable switch three-position operation test, E-Stop circuit continuity and reset function test, and cable assembly integrity inspection. A QA pass record is maintained for each unit dispatched.

Q3: Is this unit compatible with non-IDEC robot controllers or CNC systems?
The HG1T-SA12UH-MK1363-L10 is natively designed for IDEC HG1T Series controller interfaces. Compatibility with third-party robot controllers or CNC systems depends on the connector pinout and communication protocol of the host system. For integration with non-IDEC platforms, connector adaptation and signal mapping should be verified by a qualified automation engineer before installation. NINERMAS technical support can assist with compatibility assessment.

Q4: Can NINERMAS guarantee long-term supply of this part for lifecycle support programs?
Yes. NINERMAS maintains committed stock of the HG1T-SA12UH-MK1363-L10 as part of its long-term spare parts supply program. For facilities operating extended lifecycle automation systems, we offer stock reservation agreements and priority fulfillment to ensure that critical spare parts are available when needed — without dependence on spot-market availability or extended factory lead times.
