Honeywell TC-PCIC01 Safety-Reliable ControlNet Interface

Honeywell TC-PCIC01 Safety-Reliable ControlNet Interface for Critical Industrial Control

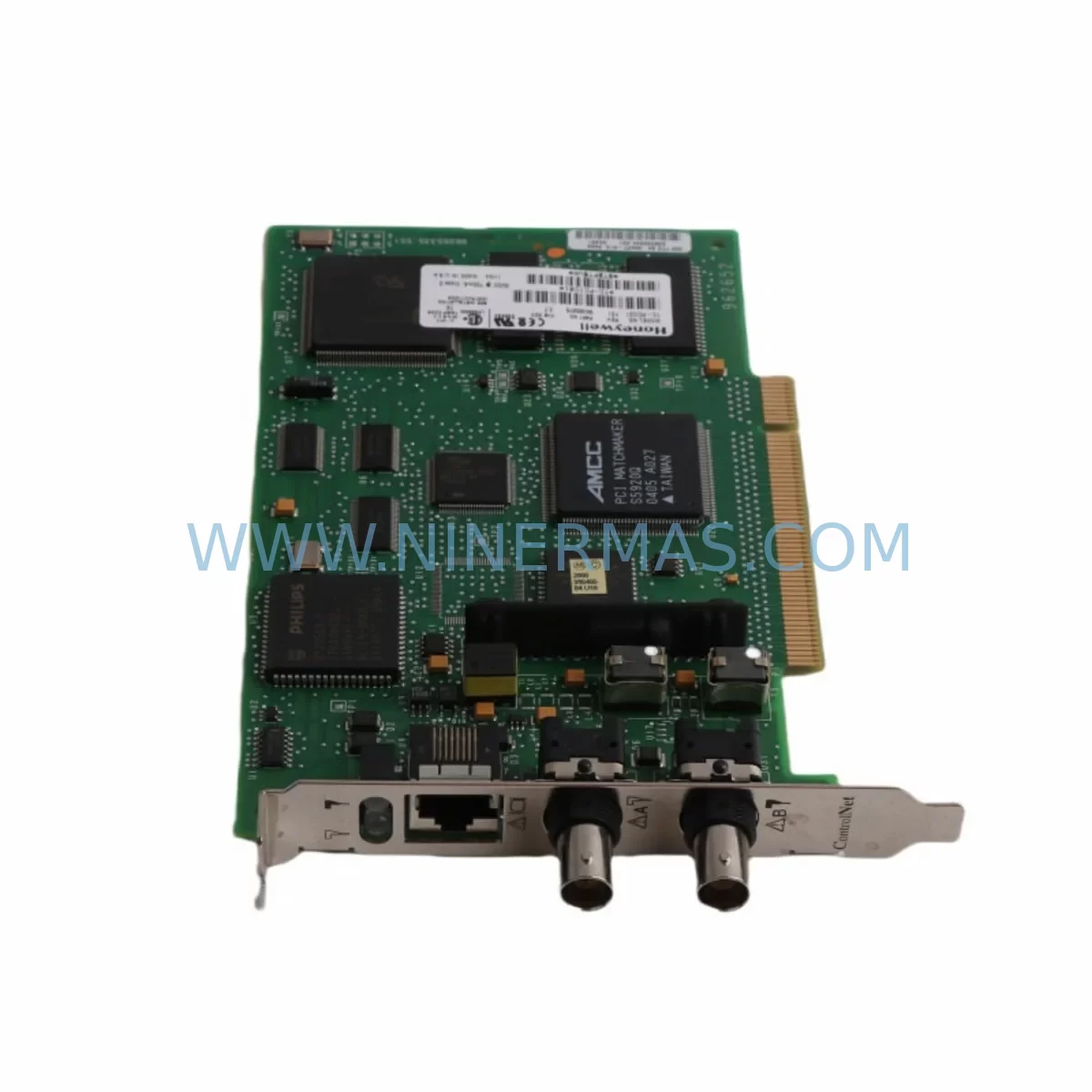

The Honeywell TC-PCIC01 is a ruggedized PCI ControlNet Interface Module engineered for mission-critical industrial automation environments where control continuity, signal integrity, and communication reliability are non-negotiable. Designed to integrate seamlessly within Honeywell’s Experion PKS distributed control architecture, the TC-PCIC01 delivers deterministic ControlNet communication performance across demanding process industries including petrochemical, power generation, mining, water treatment, metallurgy, port logistics, marine, and continuous manufacturing facilities.

In high-stakes control environments, a single communication failure can cascade into unplanned shutdowns, process upsets, or safety system activations. The TC-PCIC01 addresses this risk by providing a hardened, electrically isolated PCI bus interface that maintains stable ControlNet network connectivity even under conditions of high electromagnetic interference (EMI), power line fluctuations, ground potential differences, and mechanical vibration. Its ruggedized design ensures consistent performance in control cabinets exposed to dust ingress, humidity, and elevated ambient temperatures — conditions routinely encountered in field-deployed industrial enclosures.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

Deploying the Honeywell TC-PCIC01 as the ControlNet backbone interface within a critical control cabinet is only one layer of a comprehensive risk reduction strategy. In continuous process plants, the TC-PCIC01 typically operates alongside the Honeywell TC-CCR014 ControlNet coaxial cable repeater, which extends network reach and maintains signal quality across long trunk distances — a common requirement in large petrochemical complexes and power plant distributed I/O architectures.

For power supply stability within the same control enclosure, the Honeywell TC-PRS021 redundant power supply module ensures that voltage fluctuations and momentary power interruptions do not propagate into the ControlNet communication layer. Pairing the TC-PCIC01 with a Honeywell CC-PDOB01 digital output module and a Honeywell CC-PAIX01 analog input module within an Experion PKS C300 controller node creates a tightly integrated, low-latency control loop capable of sustaining safe process states during transient disturbances.

In high-EMI environments such as variable frequency drive (VFD) rooms, arc furnace control rooms, or heavy motor control centers, surge protection devices — such as the Honeywell TC-FPCXX series fiber optic ControlNet interface — are often deployed in parallel to provide galvanic isolation and eliminate ground loop interference that would otherwise cause communication retries, CRC errors, or node dropouts on the TC-PCIC01’s coaxial ControlNet segment.

For safety instrumented system (SIS) integration, the TC-PCIC01 is frequently installed in control cabinets that also house Honeywell FSC (Fail Safe Controller) modules and Honeywell Safety Manager I/O cards, where the ControlNet interface serves as the communication bridge between the basic process control system (BPCS) and the safety layer — enabling coordinated emergency shutdown (ESD) responses without introducing single points of failure.

Redundant ControlNet network configurations using dual TC-PCIC01 modules — one active, one standby — are standard practice in Tier 1 refinery and LNG terminal control systems, where any communication interruption exceeding 500 milliseconds can trigger automatic safety shutdowns. Complementary components such as the Honeywell TC-PCIC02 (where applicable) or redundant ControlNet tap assemblies further reinforce network resilience. Additionally, Honeywell Experion PKS C300 controller firmware updates and ControlNet network scheduling tools (CNB — ControlNet Network Builder) are essential companion resources for commissioning and maintaining the TC-PCIC01 in production environments.

Critical Industrial Safety Applications

Petrochemical & Refinery: In crude distillation units, catalytic cracking plants, and LNG liquefaction trains, the TC-PCIC01 provides the deterministic ControlNet communication link between Experion PKS controllers and distributed I/O racks monitoring critical process variables — pressure, temperature, flow, and level — across explosion-hazardous zones. Its ruggedized design withstands the corrosive atmospheric conditions and high-frequency electrical noise generated by large rotating machinery.

Power Generation: Thermal power plants and combined-cycle gas turbine (CCGT) facilities rely on ControlNet-based DCS architectures for boiler management, turbine control, and grid synchronization. The TC-PCIC01 ensures that real-time control data flows without latency or packet loss between the operator workstation and field I/O, supporting both normal operations and fast-response load-following scenarios.

Mining & Mineral Processing: In underground mining operations and surface ore processing plants, control systems must tolerate extreme vibration, dust, and moisture. The TC-PCIC01’s ruggedized PCI interface maintains reliable ControlNet connectivity for conveyor control, crusher automation, and flotation cell management — environments where communication dropouts translate directly into production losses and safety incidents.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities use Honeywell Experion PKS systems to manage pump stations, chemical dosing, and filtration processes. The TC-PCIC01 supports continuous, uninterrupted ControlNet communication in control rooms subject to high humidity and chemical vapor exposure.

Metallurgy & Steel Production: Electric arc furnace (EAF) and continuous casting control systems generate some of the most severe EMI conditions in industrial automation. The TC-PCIC01’s electrical isolation and ruggedized construction make it a preferred interface module for ControlNet segments serving ladle metallurgy furnace controls, rolling mill automation, and heat treatment line management.

Port Logistics & Marine: Ship-to-shore crane control systems and vessel automation platforms increasingly adopt ControlNet-based architectures for their deterministic performance. The TC-PCIC01 supports reliable communication in marine-grade control panels exposed to salt air, vibration, and wide temperature swings.

Safety and Quality FAQ

Q1: What warranty coverage does the TC-PCIC01 carry?
Every Honeywell TC-PCIC01 supplied by NINERMAS COMPANY LIMITED is backed by a 12-month warranty covering functional defects and premature failure under normal operating conditions. Warranty claims are processed with priority turnaround to minimize control system downtime. Replacement units are dispatched from verified stock upon confirmation of the defect.

Q2: How is the TC-PCIC01 tested before shipment?
All TC-PCIC01 modules undergo a comprehensive pre-shipment functional test protocol that verifies PCI bus communication, ControlNet network initialization, node addressing, and data transfer integrity. Modules that do not pass 100% of the test criteria are quarantined and not released for sale. Each unit ships with a test record confirming its operational status.

Q3: Is the TC-PCIC01 compatible with my existing Honeywell Experion PKS system?
The TC-PCIC01 is designed for use within Honeywell Experion PKS, TotalPlant Solution (TPS), and PlantScape DCS environments that utilize ControlNet as the I/O communication backbone. Compatibility depends on your specific controller firmware version and ControlNet network configuration. Our technical team can assist with compatibility verification based on your system’s C300 controller revision and ControlNet network builder (CNB) schedule file.

Q4: Can NINERMAS guarantee long-term supply and replacement support for the TC-PCIC01?
Yes. NINERMAS maintains dedicated inventory of the TC-PCIC01 and related Honeywell Experion PKS spare parts to support both planned maintenance programs and emergency replacement requirements. We understand that legacy DCS components can have extended lead times through OEM channels; our stock availability ensures that critical control system repairs are not delayed by supply chain constraints. Contact our team for current stock levels and lead time commitments.
