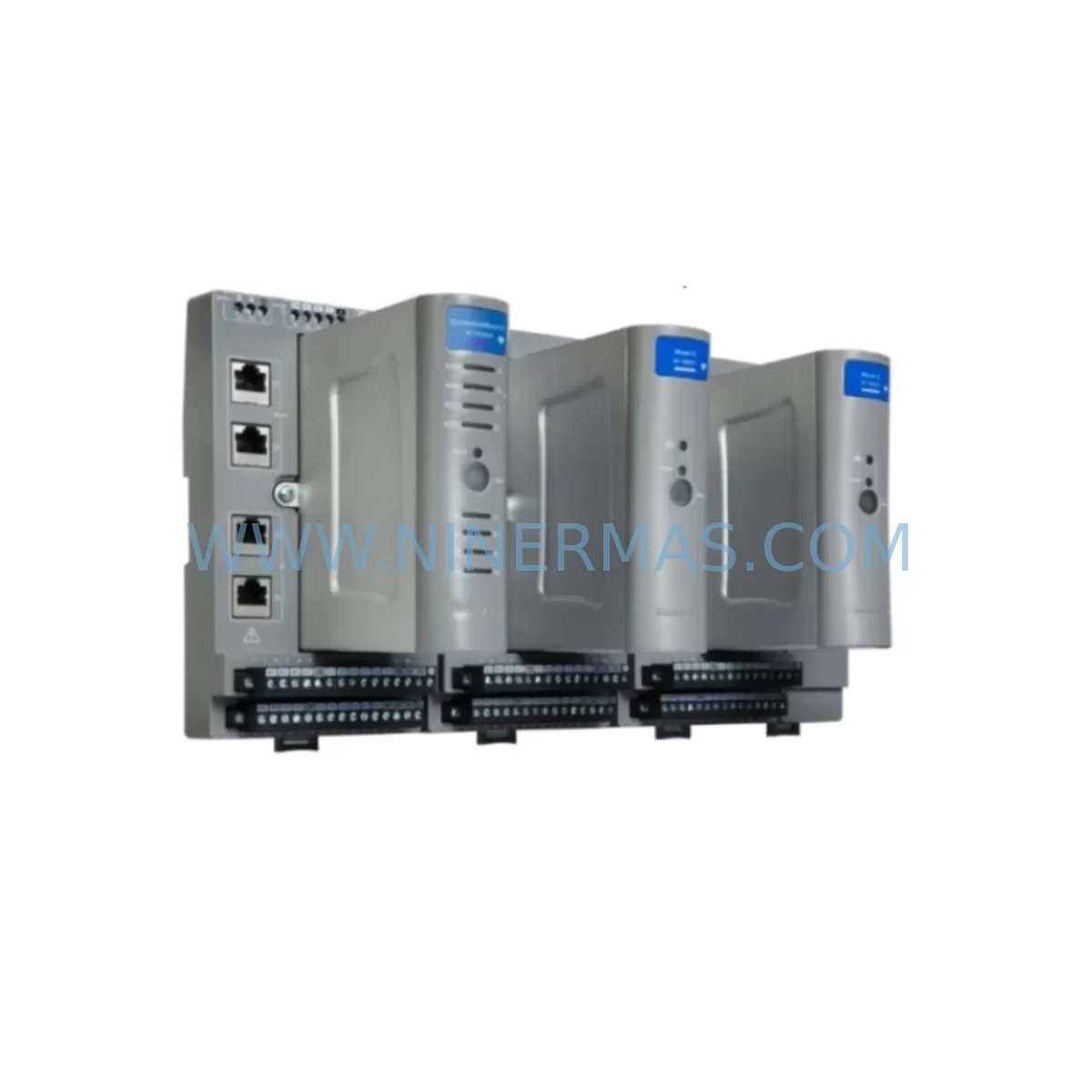

Honeywell SP-EMD171 Retrofit ESD Terminal for Legacy Systems

Honeywell SP-EMD171 Retrofit ESD Terminal for Legacy Systems

The Honeywell SP-EMD171 is a retrofit-compatible Emergency Shutdown (ESD) terminal module engineered for direct integration into legacy Honeywell Safety Manager platforms. As industrial facilities face increasing pressure to extend the operational life of aging safety instrumented systems (SIS) while maintaining IEC 61511 compliance, the SP-EMD171 provides a proven, field-validated path for drop-in replacement without requiring full system redesign. Whether you are managing a brownfield refinery, a chemical processing plant, or an offshore platform running end-of-life Honeywell safety controllers, this module delivers the terminal-level reliability your shutdown logic demands.

NINERMAS maintains verified stock of the SP-EMD171 with pre-shipment functional testing completed on every unit. Each module ships with a 12-month warranty covering manufacturing defects and operational failures under normal industrial service conditions. Lead times are confirmed at order placement, and reserved inventory agreements are available for facilities requiring long-term supply continuity.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the SP-EMD171 into a running safety system begins well before the module arrives on site. Retrofit planning for Honeywell Safety Manager environments requires a structured review of the existing rack architecture, power distribution, and I/O assignment map. The Safety Manager chassis — whether a single-slot or multi-slot configuration — must have a verified available slot with correct backplane addressing before the replacement module is installed.

Field engineers should begin by auditing the current terminal wiring documentation. The SP-EMD171 connects to field instruments through screw-terminal blocks, and any deviation in wire gauge, terminal pitch, or cable shielding from the original installation must be resolved prior to commissioning. In parallel, the engineering team should confirm that the SM-CIU200 communication interface unit is operating within its rated channel capacity, as adding or swapping terminal modules can affect the overall I/O load on the communication bus.

For facilities running redundant safety architectures, the SM-TIU200 termination interface unit and associated field junction boxes must be inspected to ensure that the new SP-EMD171 does not introduce any asymmetry in the redundant I/O path. Where the existing installation includes SM-RIO100 remote I/O modules, the module address map must be updated in the Safety Builder configuration tool to reflect the new terminal assignment before the system is returned to service.

Power budget verification is a critical step that is frequently underestimated during terminal module replacement. The Safety Manager power supply modules — including redundant SM-PSU units where fitted — must be confirmed to have sufficient headroom to support the SP-EMD171 alongside all other active modules in the rack. If the existing power supply is operating near its rated output, a power supply upgrade or load redistribution across multiple racks should be completed before the ESD terminal module is installed.

Where the retrofit scope extends beyond a single module swap to include I/O expansion, facilities may also need to evaluate the FC-SDO-0824 digital output module and FC-SAI-1620m analog input module as part of a broader I/O modernization effort. Signal isolators installed between the field instruments and the Safety Manager I/O should be verified for compatibility with the SP-EMD171 input signal range, particularly in applications involving 4–20 mA HART transmitters or discrete solenoid valve outputs.

HMI screen updates are another consideration when replacing ESD terminal modules. If the existing Honeywell Experion PKS or legacy HMI system displays point-level status from the terminal module being replaced, the HMI tag database and faceplates should be reviewed to confirm that the new module’s diagnostic data is correctly mapped. In some installations, the programming cable 51309276-150 or the configuration adapter 51401642-150 may be required to access the module’s internal diagnostics during commissioning.

Finally, the retrofit plan should include a documented pre-startup safety review (PSSR) that covers wiring verification, module addressing confirmation, loop testing for all connected field instruments, and a functional proof test of the ESD logic paths affected by the terminal module replacement. NINERMAS can provide pre-shipment test reports for the SP-EMD171 upon request, supporting your site’s PSSR documentation requirements.

Downtime Control During System Migration

Minimizing unplanned downtime during ESD terminal module replacement is a primary concern for any facility operating under a safety instrumented system. The SP-EMD171 is designed to support hot-swap replacement procedures where the Safety Manager platform permits online module substitution, allowing maintenance teams to complete the physical swap without initiating a full system shutdown.

Before any module is removed from service, the existing Safety Builder project file — including all function block logic, cause-and-effect matrix assignments, and I/O channel configurations — must be archived and verified against the as-built documentation. This ensures that the replacement module can be brought online with the correct logic loaded and that no unintended changes are introduced to the safety function during the swap procedure.

Field control continuity during the migration window depends on the bypass and inhibit strategy defined in the site’s management of change (MOC) procedure. For ESD applications, this typically involves placing the affected safety function in a defined safe state — such as energizing the shutdown solenoid or activating a hardwired bypass — before the terminal module is physically disconnected. The bypass state must be formally authorized, time-limited, and monitored by the control room operator throughout the replacement procedure.

Once the SP-EMD171 is installed and the backplane connection is confirmed, the Safety Manager engineering station should be used to verify that the module is recognized at the correct rack address and that all I/O channels are reporting healthy diagnostic status before the bypass is lifted. Loop tests on the connected field instruments — including valve position feedback, pressure transmitter signals, and discrete input contacts — should be completed and signed off before the safety function is returned to automatic mode.

For facilities where online module replacement is not permitted under the site’s safety management system, a planned shutdown window should be scheduled during a low-production period. In these cases, the replacement of the SP-EMD171 can be combined with other scheduled maintenance activities — such as proof testing of the 10006/2/1 voting logic module, inspection of the 51309152-175 cable assembly, or firmware updates to the Safety Manager controller — to maximize the value of the available downtime window and reduce the total number of planned outages per year.

Retrofit Support FAQ

Q1: Is the SP-EMD171 a direct drop-in replacement for the original Honeywell Safety Manager ESD terminal module?
A: Yes. The SP-EMD171 is designed as a form-fit-function replacement for the original Honeywell Safety Manager ESD terminal assembly. In most installations, the module can be installed in the existing rack slot without modifications to the backplane wiring or the Safety Builder project configuration. However, NINERMAS recommends verifying the module address assignment and terminal wiring documentation before installation to confirm compatibility with your specific system revision.

Q2: What pre-shipment testing does NINERMAS perform on the SP-EMD171?
A: Every SP-EMD171 unit shipped by NINERMAS undergoes functional testing prior to dispatch. The test procedure verifies power-up behavior, internal diagnostic self-check, and I/O channel continuity. A test report is available upon request and can be included with the shipment documentation to support your site’s incoming inspection and PSSR requirements. All units are covered by a 12-month warranty from the date of shipment.

Q3: Can the SP-EMD171 be used in a redundant Safety Manager architecture?
A: Yes. The SP-EMD171 is compatible with redundant Safety Manager configurations where dual-module or dual-rack redundancy is implemented. When replacing a module in a redundant pair, NINERMAS recommends replacing one module at a time and verifying healthy diagnostic status on the replacement unit before proceeding with the second module, in order to maintain continuous safety function coverage throughout the replacement procedure.

Q4: What is the lead time and stock availability for the SP-EMD171?
A: NINERMAS maintains verified stock of the SP-EMD171 and can confirm lead times at the time of order placement. For facilities requiring long-term supply continuity, reserved inventory agreements are available. Contact our sales team at sale@ninermas.com or +0086 187 5021 5667 to discuss your procurement requirements and confirm current stock levels.
