Honeywell SC-UMX01 Safety Manager SC | Retrofit & SIL 3 Upgrade Solution

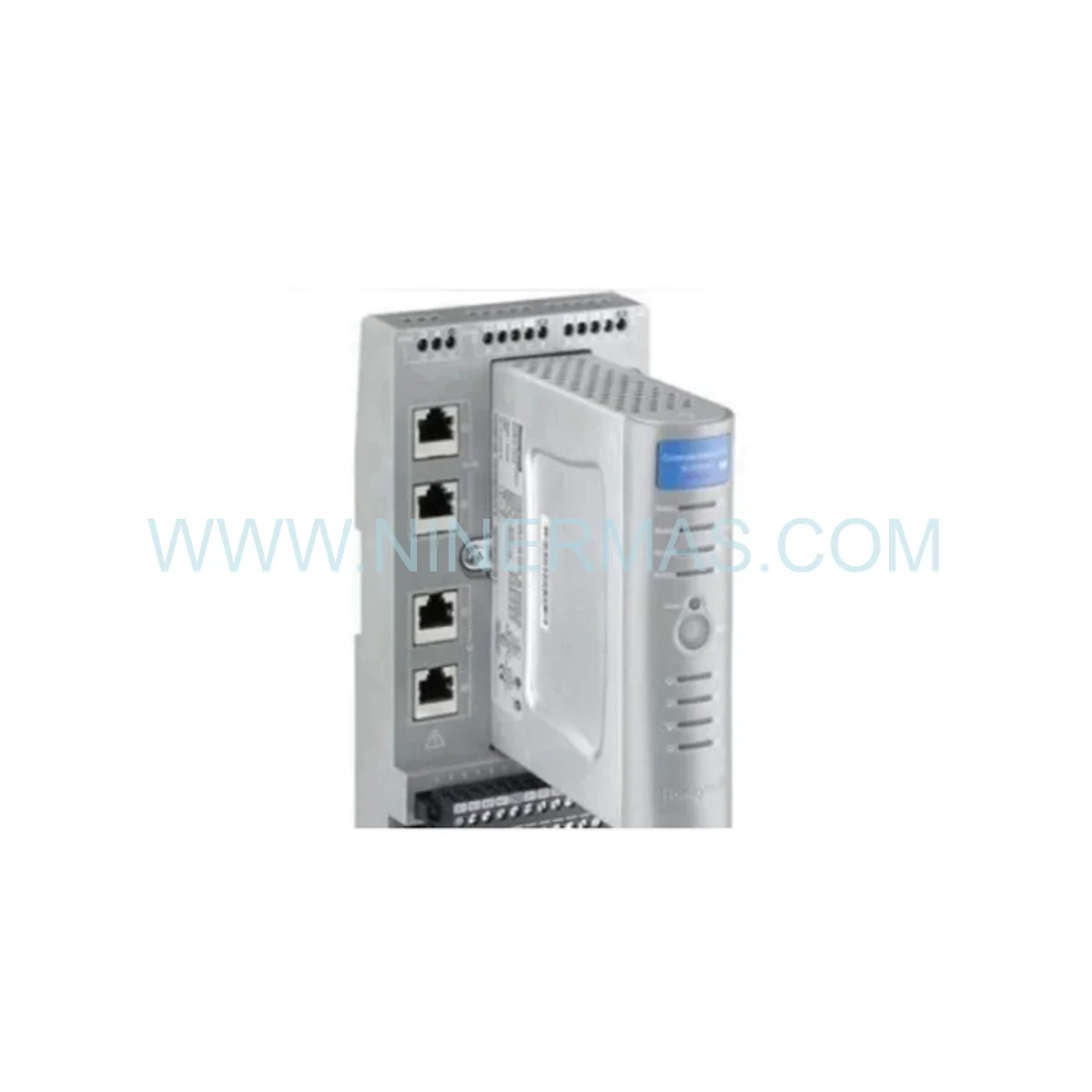

Honeywell SC-UMX01 – Professional Retrofit & System Upgrade Component

System Modernization & Migration Analysis

As a Retrofit Project Lead overseeing safety system transformations across global process industries, the Honeywell SC-UMX01 stands as a cornerstone component in any serious modernization initiative. This third-generation Safety Manager SC platform delivers Quad Modular Redundant (QMR / 2oo4D) architecture certified to SIL 3 under IEC 61508, making the Honeywell SC-UMX01 the definitive hardware upgrade for facilities seeking to extend operational life while dramatically elevating safety performance. Its Universal I/O technology eliminates the rigid channel-type constraints of legacy safety controllers, enabling a single module to be reconfigured as AI, AO, DI, or DO — a flexibility that legacy platforms simply cannot match.

From a legacy compatibility standpoint, the SC-UMX01 is engineered to integrate within existing DCS and Safety Instrumented System (SIS) architectures without requiring a full plant shutdown or complete rewiring. Its modular and scalable design supports phased migration strategies — a critical advantage when managing brownfield retrofit projects where minimizing production downtime is non-negotiable. Engineering teams can leverage offline virtualization capabilities to simulate, validate, and commission the upgraded system in a virtual environment before live deployment, dramatically reducing migration risk.

The financial case for deploying the SC-UMX01 as a retrofit solution is equally compelling. Facilities transitioning from first- or second-generation safety PLCs report capital expenditure reductions of up to 30% compared to full system replacements. By preserving existing field wiring infrastructure and terminal block connections, the SC-UMX01 delivers a hardware upgrade path that maximizes ROI while ensuring full compliance with current global safety standards — including IEC 61511 and OSHA PSM requirements.

Upgrade Highlights & Compatibility

• ✅ Universal I/O Flexibility: Each channel independently configurable as AI, AO, DI, or DO — eliminates legacy fixed-type I/O constraints and accelerates hardware upgrade cycles.
• SIL 3 / QMR Architecture: 2oo4D redundancy delivers the highest functional safety integrity level, future-proofing your safety layer against evolving regulatory demands.
• ✅ Seamless Integration: Compatible with existing DCS/PLC field wiring, terminal blocks, and remote I/O networks — minimizes retrofit scope and cost.
• Offline Virtualization: Full system simulation environment enables pre-deployment validation, reducing live commissioning time and migration risk.
• ✅ Cloud Engineering Support: Modern cloud-based engineering tools accelerate configuration, version control, and multi-site deployment for large-scale system migration projects.
• Modular Scalability: Supports architectures from compact single-node installations to large distributed safety networks — one platform for the full retrofit lifecycle.

Modernization Use Cases & Success Stories

DCS Safety Layer Modernization: In petrochemical complexes operating legacy Triconex or older Honeywell FSC safety controllers, the SC-UMX01 has been deployed as a direct performance upgrade within existing cabinet footprints. Its compact form factor and universal I/O capability allow engineers to replace multiple legacy modules with a single SC-UMX01 unit, achieving a measurable reduction in panel space while simultaneously elevating the safety integrity level from SIL 2 to SIL 3 — a performance enhancement that satisfies both insurance and regulatory requirements without a full DCS overhaul.

Turbine Safety & TSI System Retrofit: Power generation facilities managing aging turbine supervisory instrumentation (TSI) systems have leveraged the SC-UMX01’s QMR architecture to implement Emergency Shutdown (ESD) and overspeed protection upgrades. The platform’s support for remote I/O connectivity enables safety logic to be centralized while field sensors remain in place, delivering a retrofit solution that achieves seamless integration without disrupting existing turbine monitoring wiring.

Fire & Gas System Upgrade: Offshore platforms and onshore LNG terminals have adopted the SC-UMX01 as the backbone of Fire & Gas (F&G) system modernization projects. Its SIL 3 certification and Burner Management System (BMS) application support make it the preferred hardware upgrade for facilities transitioning from obsolete relay-based or first-generation PLC safety architectures to modern, network-integrated safety platforms.

Migration Technical Data Sheet

Supply Chain & Deployment Support

• Original & Factory Sealed: All SC-UMX01 units are sourced as genuine Honeywell OEM hardware — factory sealed, serialized, and traceable to original manufacturing documentation. No refurbished or third-party assemblies.
• Expedited Global Logistics: Priority air freight and express courier options available for urgent retrofit and system migration timelines. Export documentation, customs clearance support, and DDP delivery terms available for international projects.
• Technical Support for Legacy & Obsolete Hardware: Our engineering team provides pre-sales compatibility analysis, migration planning consultation, and post-delivery commissioning guidance — ensuring your retrofit project proceeds without costly delays.
• Warranty & After-Sales: 12-month warranty on all units. Replacement and exchange programs available for legacy hardware trade-in during system upgrade projects.

Retrofit FAQ — Upgrade Guide

Q1: Can the SC-UMX01 physically fit within existing legacy safety controller cabinet enclosures?
A: Yes. The SC-UMX01’s modular design is engineered for brownfield installation compatibility. Its compact form factor and standard DIN-rail mounting allow direct installation within most existing cabinet footprints. Pre-retrofit dimensional analysis is recommended for cabinets with non-standard configurations, and our technical team can provide cabinet layout review as part of the migration planning process.

Q2: How does the SC-UMX01 communicate with existing DCS or PLC systems during a phased migration?
A: The SC-UMX01 supports industry-standard communication protocols and integrates with existing DCS architectures via hardwired I/O, serial interfaces, and network-based remote I/O connections. During phased migration, the platform can operate in parallel with legacy systems, allowing incremental cutover without full production shutdown — a key advantage for seamless integration in live process environments.

Q3: What are the spare part and replacement options if the SC-UMX01 eventually reaches end-of-life?
A: As an Active lifecycle platform, the SC-UMX01 is currently in full production with Honeywell’s committed long-term support roadmap. For facilities managing legacy hardware alongside the SC-UMX01, our supply chain team maintains access to both current-generation and legacy compatible spare parts, ensuring continuity across mixed-generation safety system architectures.

Q4: Does the SC-UMX01 support migration from older Honeywell FSC or TPS safety systems?
A: Yes. The SC-UMX01 is the designated upgrade path for facilities operating legacy Honeywell FSC (Fail-Safe Controller) and TPS-integrated safety systems. Migration toolkits, I/O mapping guides, and application conversion support are available through Honeywell’s Safety Manager SC migration program, significantly reducing engineering hours and retrofit project risk.

Q5: Can the Universal I/O channels be reconfigured after initial installation without hardware changes?
A: Absolutely. The Universal I/O architecture of the SC-UMX01 allows each channel to be software-reconfigured between AI, AO, DI, and DO types without any physical hardware modification. This performance enhancement eliminates the need for spare module inventory across multiple I/O types and dramatically simplifies future system expansion or process change accommodations.

Q6: What certifications does the SC-UMX01 carry for international retrofit projects?
A: The SC-UMX01 holds SIL 3 certification under IEC 61508 from T V Rheinland, and is compliant with IEC 61511 for process industry safety instrumented systems. It meets OSHA PSM requirements and carries CE marking for European deployments. These certifications ensure the hardware upgrade is accepted by international regulatory bodies and insurance underwriters without additional re-certification of the safety function.
