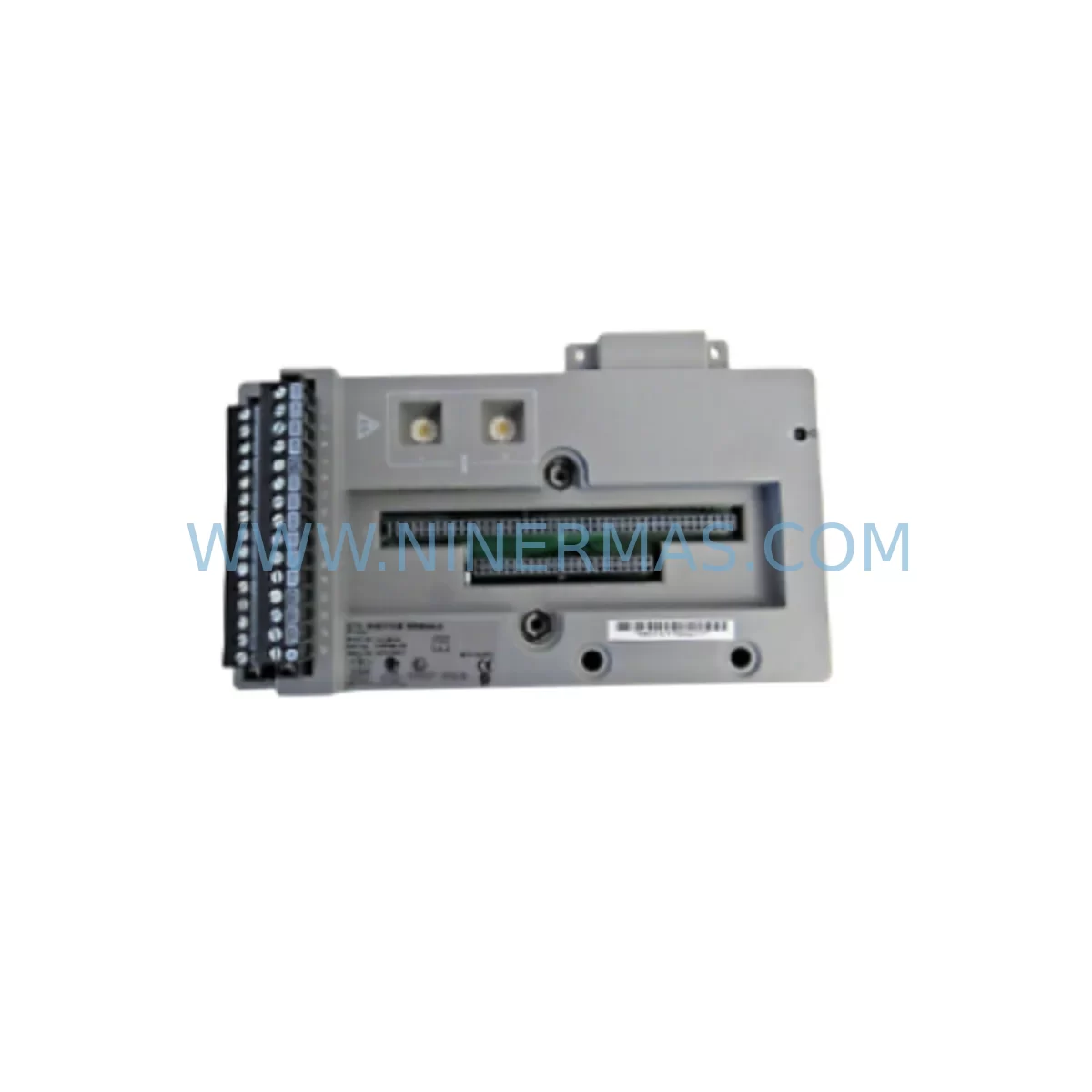

The Honeywell SC-UMIX01 Universal Mixing Module is a critical spare part for Safety Manager systems deployed across oil and gas, petrochemical, power generation, and chemical processing facilities. When this module fails or degrades, the entire safety instrumented system (SIS) may be compromised, triggering unplanned shutdowns, production losses, and regulatory non-compliance. Maintaining a verified, service-ready SC-UMIX01 in your spare parts inventory is not optional — it is a fundamental requirement for any facility operating under IEC 61511 or IEC 61508 safety standards.

NINERMAS supplies original Honeywell SC-UMIX01 modules sourced from authorized channels, pre-shipment tested, and backed by a 12-month warranty. Each unit is verified for firmware compatibility, signal integrity, and physical condition before dispatch. Our global logistics network ensures fast delivery to maintenance teams in Asia, Europe, the Middle East, and the Americas — minimizing the window between fault detection and system restoration.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Effective maintenance planning for a Safety Manager installation requires a systems-level view. The SC-UMIX01 does not operate in isolation — it is embedded within a tightly integrated safety architecture where the failure of any adjacent component can cascade into a full system trip or, worse, a silent failure that goes undetected until a demand occurs.

During annual turnarounds or scheduled control cabinet inspections, maintenance engineers should treat the SC-UMIX01 replacement as part of a broader I/O health audit. Begin by reviewing the diagnostic logs from the Safety Manager controller for any latent channel faults, communication timeouts, or power anomalies that may have been masked during normal operation. If the SC-UMIX01 shows any degraded channel performance, it should be replaced proactively rather than reactively.

When replacing the SC-UMIX01, it is equally important to inspect the SC-SIFB01 Safety Interface Board, which handles the physical signal conditioning between field instruments and the I/O modules. A worn or contaminated SC-SIFB01 can introduce signal noise that mimics module failure, leading to misdiagnosis and unnecessary module swaps. Similarly, the SC-PSFB01 Power Supply Module feeding the chassis should be load-tested — an aging power supply operating near its rated capacity is a common root cause of intermittent I/O faults that are incorrectly attributed to the mixing module itself.

For facilities with thermocouple or RTD inputs routed through the Safety Manager, the SC-TCMS01 Thermocouple Input Module should be inspected alongside the SC-UMIX01, as both share the same backplane bus and power rail. Analog input channels handled by the SC-AIIH01 Analog Input Module should be loop-tested to confirm 4–20 mA signal integrity before and after the SC-UMIX01 replacement to establish a clean baseline. Digital output circuits managed by the SC-DOFB01 Digital Output Module should also be verified — particularly for ESD and F&G applications where output relay health is safety-critical.

On the digital input side, the SC-DIFB01 Digital Input Module handles field switch and valve position feedback. Any intermittent contact or wiring fault on these circuits can generate spurious diagnostic alarms that complicate fault isolation during an SC-UMIX01 replacement. Inspect terminal blocks, cable shields, and field junction boxes as part of the same maintenance window.

Communication integrity is another area that deserves attention. The SC-PCMX01 Communication Module manages data exchange between the Safety Manager and the DCS or SCADA layer. If the SC-UMIX01 replacement is accompanied by a firmware update or configuration reload, verify that the SC-PCMX01 re-establishes its communication sessions correctly and that no watchdog timeouts are generated during the transition. The SC-RPFB01 Repeater Module, if present in the installation, should also be checked for signal attenuation, particularly in large cabinet configurations with extended backplane runs.

Finally, inspect the chassis backplane itself — the 51309276-150 backplane assembly is a passive but critical component. Oxidized or damaged backplane connectors are a frequent source of intermittent faults that are difficult to diagnose without physical inspection. Pair this with a check of the 51401469-100 power supply unit to confirm that input voltage, output ripple, and thermal performance are all within specification. Maintaining a documented spare parts list that includes the SC-UMIX01 alongside these associated components ensures that your team can execute a complete cabinet restoration within a single maintenance shift, rather than discovering secondary failures after the primary repair is complete.

Site Replacement Workflow

Replacing the SC-UMIX01 in a live Safety Manager installation requires careful coordination between the safety engineer, the maintenance technician, and the control room operator. The following workflow is designed to minimize downtime, preserve system compatibility, and ensure that the replacement module is fully validated before the safety function is returned to service.

Step 1 — Pre-Replacement Verification: Confirm the exact firmware revision of the installed SC-UMIX01 using the Safety Manager engineering workstation. Document all channel assignments, I/O configurations, and diagnostic settings. Verify that the replacement unit from NINERMAS matches the required firmware baseline — if a firmware upgrade is required, coordinate with your Honeywell system integrator before proceeding.

Step 2 — Safe State Initiation: Place the affected safety function in bypass or manual mode in accordance with your site’s Management of Change (MOC) and Safety Instrumented System bypass procedures. Notify the control room and obtain the required work permit before opening the cabinet.

Step 3 — Module Removal: Power down the chassis slot using the Safety Manager’s hot-swap capability if supported by your system revision. Remove the SC-UMIX01 by releasing the module locking mechanism and sliding it out of the backplane slot. Inspect the backplane connector for damage or contamination before inserting the replacement unit.

Step 4 — Replacement and Configuration: Insert the new SC-UMIX01 and allow the Safety Manager controller to perform its automatic module recognition and configuration download. Verify that all channel assignments are correctly restored and that no diagnostic faults are present on the engineering workstation.

Step 5 — Functional Test and Return to Service: Perform a loop test on all I/O channels associated with the replaced module. Confirm that analog signals are within calibration tolerance and that digital inputs and outputs respond correctly to field stimuli. Once all channels are verified, remove the bypass, restore the safety function to automatic mode, and document the replacement in the site maintenance log.

This structured approach reduces the risk of introducing new faults during the replacement process and ensures full traceability for audit and compliance purposes.

Spare Parts Support FAQ

Q1: Is the SC-UMIX01 supplied by NINERMAS an original Honeywell part?
Yes. All SC-UMIX01 units supplied by NINERMAS are original Honeywell components sourced from authorized distribution channels. Each unit undergoes pre-shipment functional testing to verify channel integrity, communication performance, and power consumption before dispatch. A test report is available upon request.

Q2: What is the recommended spare parts inventory strategy for the SC-UMIX01?
For facilities with a single Safety Manager chassis, we recommend maintaining at least one SC-UMIX01 as a cold standby spare. For multi-chassis installations or facilities with extended lead times from their primary supplier, a minimum of two units per chassis type is advisable. Given that the Safety Manager platform is approaching end-of-life for some hardware revisions, early procurement and long-term stock reservation agreements are strongly recommended to avoid supply disruptions during critical maintenance windows.

Q3: How do I verify compatibility between the replacement SC-UMIX01 and my existing Safety Manager system?
Compatibility is determined by the Safety Manager system revision, the chassis backplane version, and the firmware baseline running on the controller. Provide NINERMAS with your system revision number and current firmware version, and our technical team will confirm compatibility before shipment. We maintain detailed cross-reference records for all Safety Manager hardware revisions to ensure accurate matching.

Q4: What does the 12-month warranty cover, and what is the process for warranty claims?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions, including channel failure, communication faults, and power regulation issues. It does not cover damage resulting from incorrect installation, overvoltage, or physical impact. To initiate a warranty claim, contact NINERMAS with the original order number, a description of the fault, and the module’s serial number. Our team will arrange return logistics and provide a replacement or repair within an agreed timeframe to minimize your system downtime.
