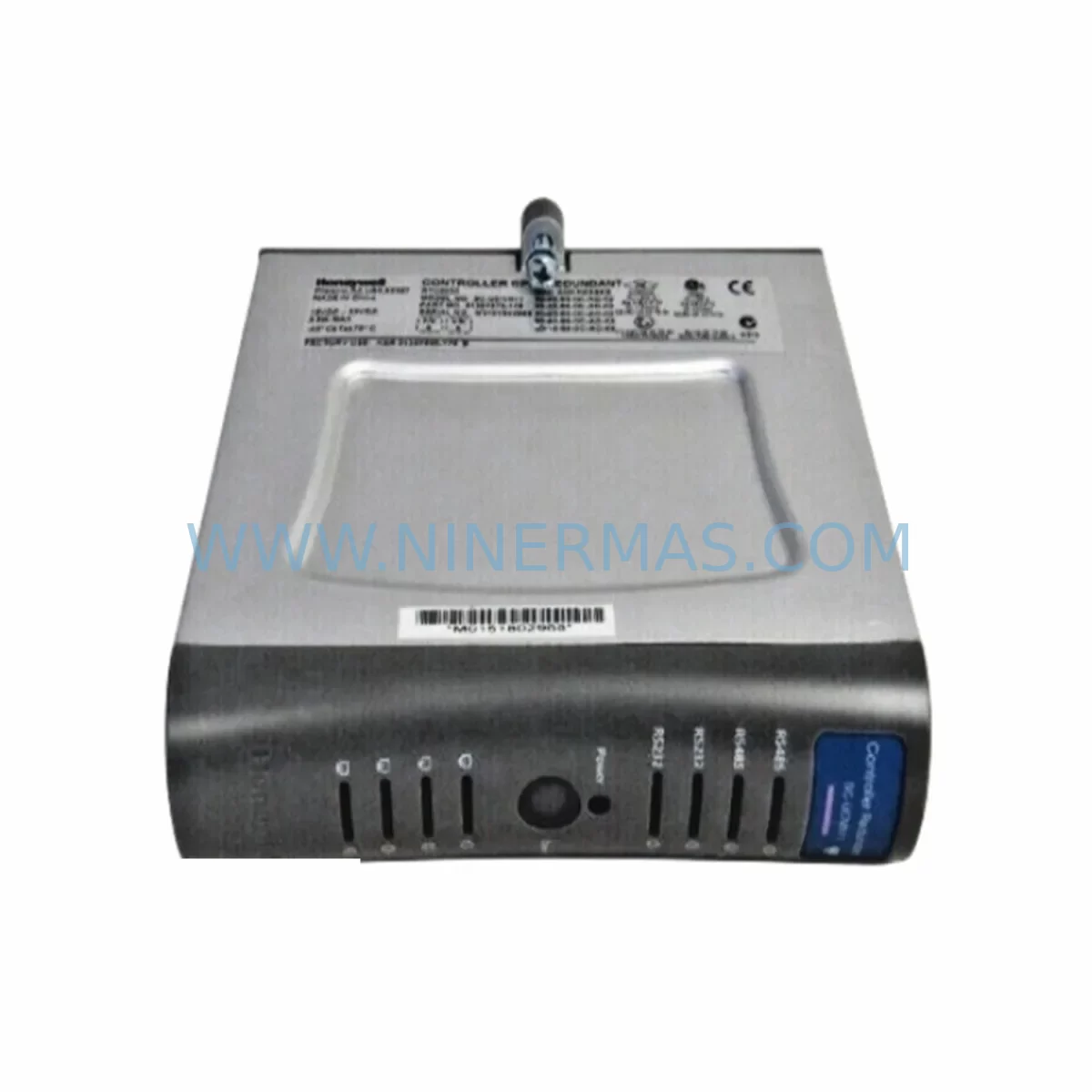

Honeywell SC-UCMX02 51307195-276 Retrofit-Compatible Safety CPU

Honeywell SC-UCMX02 51307195-276 Retrofit-Compatible Safety CPU for Legacy Systems

The Honeywell SC-UCMX02 (part number 51307195-276) is a Universal Controller Module designed for the Honeywell Safety Manager (SM) platform — one of the most widely deployed safety instrumented systems (SIS) in the process automation industry. As legacy Safety Manager installations approach end-of-life or require spare parts replenishment, the SC-UCMX02 remains a critical component for maintaining SIL 2-certified safety loops across oil and gas, petrochemical, power generation, and chemical processing facilities.

At NINERMAS, we supply the SC-UCMX02 51307195-276 as a tested, retrofit-ready spare module with full 12-month warranty coverage. Each unit undergoes pre-shipment functional verification to confirm communication integrity, backplane interface continuity, and CPU initialization behavior before dispatch. Our inventory program supports long-term lifecycle commitments, enabling procurement teams to secure multi-year supply agreements for this and related Safety Manager components.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the SC-UCMX02 within an operational Safety Manager system requires careful pre-work to avoid unplanned shutdowns and to preserve the integrity of the safety instrumented function (SIF). The following planning steps reflect common field requirements encountered during SM retrofit projects.

Power Supply Verification: Before removing the existing controller module, confirm that the installed SC-PSCX01 power supply module (or its equivalent) can sustain the full chassis load during the swap window. Safety Manager chassis typically distribute 24 VDC across all installed modules via the backplane, and any marginal PSU capacity should be addressed before the replacement is initiated. If the power supply itself is aging, it is advisable to replace the SC-PSCX01 concurrently to avoid a secondary failure shortly after the CPU swap.

Backplane and Slot Address Confirmation: The SC-UCMX02 occupies a defined slot within the SM chassis. Before removal, document the physical slot position and cross-reference it against the SM configuration file. Mismatched slot addressing after reinstallation can cause the Safety Manager to reject the module or generate a diagnostic fault. If the chassis also houses SC-XICX01 I/O interface modules or SC-FICX01 fieldbus communication modules, verify that their addresses remain unaffected by the CPU replacement.

Application Logic and Program Backup: Prior to any hardware change, export a full backup of the SM application using the Safety Builder engineering tool. This backup should include the compiled safety application, I/O configuration, cause-and-effect matrix, and all function block definitions. In most like-for-like SC-UCMX02 replacements, the existing program can be downloaded directly to the new module without recompilation, but this must be confirmed against the firmware revision of the replacement unit.

I/O Module Continuity: The SC-UCMX02 communicates with field I/O through the SM backplane and associated I/O modules such as the SC-DIOX01 digital I/O module and SC-AIOX01 analog I/O module. During the replacement window, confirm that all I/O modules remain powered and that field signals are held in a safe state (typically via bypass or inhibit functions within the SM application). This prevents spurious trips or unintended actuator responses during the CPU swap.

Communication Link Preservation: If the Safety Manager communicates with a Honeywell Experion PKS distributed control system or a third-party SCADA platform via OPC or Modbus TCP, the network module — typically an SC-NMXX01 or equivalent — should remain in place during the CPU replacement. After the new SC-UCMX02 is installed and initialized, verify that the communication link re-establishes automatically and that all process variables are correctly reflected in the DCS or SCADA historian.

HMI Screen Validation: Following CPU replacement, operators should perform a structured walkthrough of all HMI screens associated with the safety system. Tag bindings, alarm setpoints, and interlock status displays should be verified against the pre-replacement baseline. Any discrepancies in Experion PKS or third-party HMI displays should be investigated before returning the safety system to normal operation.

Signal Isolation and Grounding: In older control cabinets where the Safety Manager is co-located with legacy DCS I/O or relay logic panels, signal isolation between the SM I/O and adjacent systems should be confirmed. Signal isolators or barriers installed between field instruments and SM I/O modules help prevent ground loops and noise interference that can cause nuisance diagnostics on the SC-UCMX02 after replacement.

Commissioning and Proof Test: After installation, the replacement SC-UCMX02 should be subjected to a partial or full proof test in accordance with the site’s SIS maintenance procedure. This typically includes a functional test of each safety instrumented function (SIF) associated with the controller, confirmation of diagnostic coverage, and sign-off by the site safety engineer. NINERMAS recommends retaining the replaced module as a spare for a defined period pending successful proof test completion.

Downtime Control During System Migration

Minimizing downtime during a Safety Manager CPU replacement is a primary concern for operations and maintenance teams. The SC-UCMX02 replacement can typically be completed within a planned maintenance window of two to four hours when all preparatory steps are completed in advance.

The most effective downtime reduction strategy is to pre-stage the replacement SC-UCMX02 with the correct firmware version and a pre-loaded application backup before the maintenance window begins. This eliminates the need for on-site programming during the outage and reduces the risk of configuration errors under time pressure. NINERMAS can supply the SC-UCMX02 with firmware verification documentation to support this pre-staging approach.

Where the process cannot tolerate a full safety system shutdown, some Safety Manager configurations support a partial bypass mode that allows individual SIFs to be inhibited while the CPU is replaced. This approach requires formal bypass authorization in accordance with the site’s management of change (MOC) procedure and should only be undertaken by qualified SIS engineers. The SC-UCMX02’s diagnostic architecture supports this mode, and the Safety Builder tool provides the necessary inhibit and bypass management functions.

After the replacement module is installed and the application is downloaded, the SM system performs an automatic self-test sequence that verifies CPU integrity, backplane communication, and I/O module status. This sequence typically completes within minutes, after which the safety system can be returned to normal operation. Field teams should be positioned at key process areas during this initialization phase to monitor for any unexpected responses from final elements such as shutdown valves or emergency depressurization systems.

For facilities managing multiple Safety Manager chassis — for example, in large refinery or LNG terminal applications where separate SM systems protect individual process units — NINERMAS recommends maintaining a minimum of one SC-UCMX02 spare per site to eliminate lead-time risk during unplanned failures. Our inventory commitment program allows customers to reserve stock at fixed pricing for 12 to 36 months, supporting both planned maintenance cycles and emergency response requirements.

Retrofit Support FAQ

Q1: Is the SC-UCMX02 51307195-276 a direct replacement for all Safety Manager CPU variants?
The SC-UCMX02 with part number 51307195-276 is designed for specific Safety Manager chassis generations. Before ordering, confirm the SM chassis model and existing CPU part number against Honeywell’s compatibility matrix. NINERMAS technical support can assist with cross-referencing if the original documentation is unavailable.

Q2: What pre-shipment testing does NINERMAS perform on the SC-UCMX02?
Each SC-UCMX02 unit supplied by NINERMAS undergoes functional power-on testing, backplane interface verification, and communication initialization checks before dispatch. A test report is available upon request. All units are shipped with 12-month warranty coverage from the date of shipment.

Q3: Can the existing Safety Builder application be downloaded to the replacement SC-UCMX02 without modification?
In most like-for-like replacement scenarios, the existing compiled application can be downloaded directly to the new SC-UCMX02 without recompilation, provided the firmware revision is compatible. NINERMAS recommends confirming the firmware version of the supplied unit against the Safety Builder project file before the maintenance window to avoid on-site delays.

Q4: What is the typical lead time and inventory availability for the SC-UCMX02 51307195-276?
NINERMAS maintains stock of the SC-UCMX02 51307195-276 to support both planned procurement and emergency replacement requirements. Standard lead time for in-stock units is 3–7 business days for international shipment. For customers requiring guaranteed availability, our long-term inventory commitment program provides reserved stock at fixed pricing for 12 to 36 months. Contact sale@ninermas.com or +0086 187 5021 5667 for current stock status and pricing.
