Honeywell MC-PDIX02 51304485-150 Safety-Reliable I/O for Critical Control

Honeywell MC-PDIX02 51304485-150 Safety-Reliable I/O for Critical Control

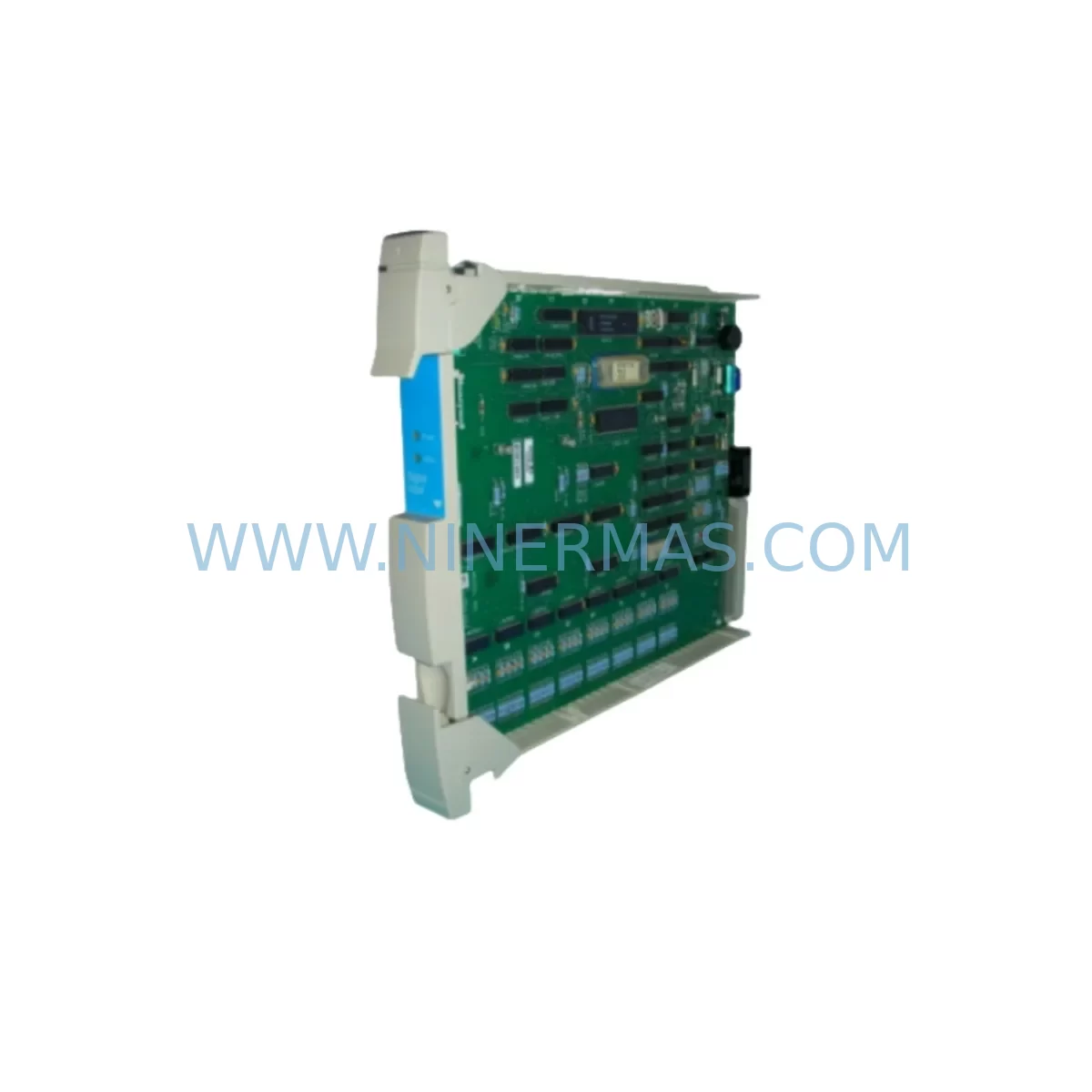

The Honeywell MC-PDIX02 (P/N 51304485-150) is a process data input/output module engineered for the TDC 3000 distributed control system platform — one of the most widely deployed DCS architectures in continuous process industries. Designed to operate reliably in demanding industrial environments, this module serves as a critical interface between field instrumentation and the control network, ensuring accurate signal transmission, stable loop performance, and uninterrupted process visibility across high-stakes production sites.

In petrochemical refineries, power generation facilities, offshore platforms, and metallurgical plants, control interruptions caused by faulty I/O modules can trigger costly unplanned shutdowns, safety interlock activations, or regulatory non-compliance events. The MC-PDIX02 addresses these risks by providing robust, field-proven signal handling with strong immunity to electromagnetic interference (EMI), ground loops, and voltage transients — all common threats in heavy industrial control cabinets.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In a TDC 3000 control architecture, the MC-PDIX02 does not operate in isolation — it functions as part of a tightly integrated system where every component’s reliability directly affects overall process safety. When deploying or replacing this module, engineers typically evaluate the surrounding hardware ecosystem to ensure system-wide integrity.

The Honeywell MC-TAIX22 analog input module and MC-TAOX22 analog output module are commonly installed alongside the MC-PDIX02 in the same I/O card cage, forming a complete field signal interface layer. These modules share the same backplane bus and must maintain synchronized communication to prevent signal drift or loop instability in PID control circuits.

Power integrity is equally critical. The Honeywell MC-PSIM11 power supply module provides regulated DC power to the I/O subsystem, and any degradation in its output voltage can cause erratic behavior in connected I/O modules including the MC-PDIX02. Pairing the power supply with a Honeywell MC-PDOY22 digital output module in the same cabinet ensures that both analog and discrete control signals remain stable under load fluctuations.

For communication-layer protection, the Honeywell MC-COMM03 communication interface module manages data exchange between the I/O subsystem and the Universal Control Network (UCN). A fault in this communication path can isolate entire I/O clusters, making it essential to maintain tested spare units on-site. Similarly, the Honeywell MC-IOLM12 I/O link module bridges local I/O assemblies to the high-level control network, and its failure mode can mimic I/O module faults — making correct diagnosis dependent on having verified spare modules for both components.

In high-vibration or high-dust environments such as mining conveyors, cement plants, or port crane control rooms, the Honeywell 51304516-150 backplane assembly provides the physical and electrical foundation for all I/O modules. A damaged or corroded backplane connector is a frequent root cause of intermittent I/O faults that are often misdiagnosed as module failures. Maintaining a spare backplane alongside spare I/O modules like the MC-PDIX02 significantly reduces mean time to repair (MTTR) during unplanned outages.

Surge protection at the field terminal level — using DIN-rail mounted surge arrestors compatible with TDC 3000 field wiring — further reduces the risk of transient voltage damage to the MC-PDIX02’s input circuits, particularly in outdoor substations or facilities with frequent lightning exposure.

Critical Industrial Safety Applications

The Honeywell MC-PDIX02 51304485-150 is deployed across a broad range of critical process industries where control system reliability is directly linked to personnel safety, environmental compliance, and production continuity:

Petrochemical & Refining: In crude distillation units, hydrotreaters, and catalytic crackers, the MC-PDIX02 interfaces with temperature, pressure, and flow transmitters feeding safety instrumented systems (SIS). Signal integrity from this module is essential to prevent spurious trips or, more critically, missed safety activations.

Power Generation: In coal-fired, gas turbine, and combined-cycle power plants, the TDC 3000 DCS manages boiler combustion control, turbine speed regulation, and emissions monitoring. The MC-PDIX02 supports real-time data acquisition from hundreds of field points, where any I/O failure can trigger load shedding or forced outage events.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities rely on continuous process monitoring for chemical dosing, filtration, and effluent quality control. The MC-PDIX02 ensures uninterrupted data flow from field analyzers and level sensors, supporting regulatory compliance and public safety.

Metallurgy & Steel Production: In electric arc furnaces, rolling mills, and continuous casting lines, extreme electromagnetic interference from high-current equipment demands I/O modules with superior noise immunity. The MC-PDIX02’s robust design maintains signal accuracy even in these electrically hostile environments.

Mining & Mineral Processing: Conveyor systems, crushers, and flotation circuits in mining operations require reliable I/O interfaces that can withstand dust ingress, vibration, and wide temperature swings. The MC-PDIX02’s industrial-grade construction supports long-term operation in these demanding conditions.

Safety and Quality FAQ

Q1: What warranty coverage is provided for the MC-PDIX02 51304485-150?
All units supplied by NINERMAS carry a 12-month warranty from the date of shipment. This covers functional defects identified under normal operating conditions consistent with the TDC 3000 system specifications. Warranty replacement or repair is handled directly by our technical team.

Q2: Is the module tested before shipment?
Yes. Every MC-PDIX02 unit undergoes a full functional pre-shipment test to verify I/O channel integrity, communication bus response, and power consumption within specification. A test report is available upon request for quality-critical procurement processes.

Q3: Is this module compatible with all TDC 3000 configurations?
The MC-PDIX02 (51304485-150) is designed for the Honeywell TDC 3000 platform and is compatible with standard TDC 3000 card cages and backplane assemblies. Customers are advised to confirm their specific system revision and firmware version with our technical team prior to installation to ensure seamless integration.

Q4: Can NINERMAS support long-term supply for lifecycle extension programs?
Yes. NINERMAS maintains dedicated inventory programs for long-lifecycle TDC 3000 components, including the MC-PDIX02 and related I/O modules. We support bulk stock commitments, scheduled delivery programs, and multi-year supply agreements to help facilities extend the operational life of their existing DCS infrastructure without forced migration.
