Honeywell MC-PAOY22 Safety-Reliable Analog Output Module

Honeywell MC-PAOY22 Safety-Reliable Analog Output Module for Critical Control Sites

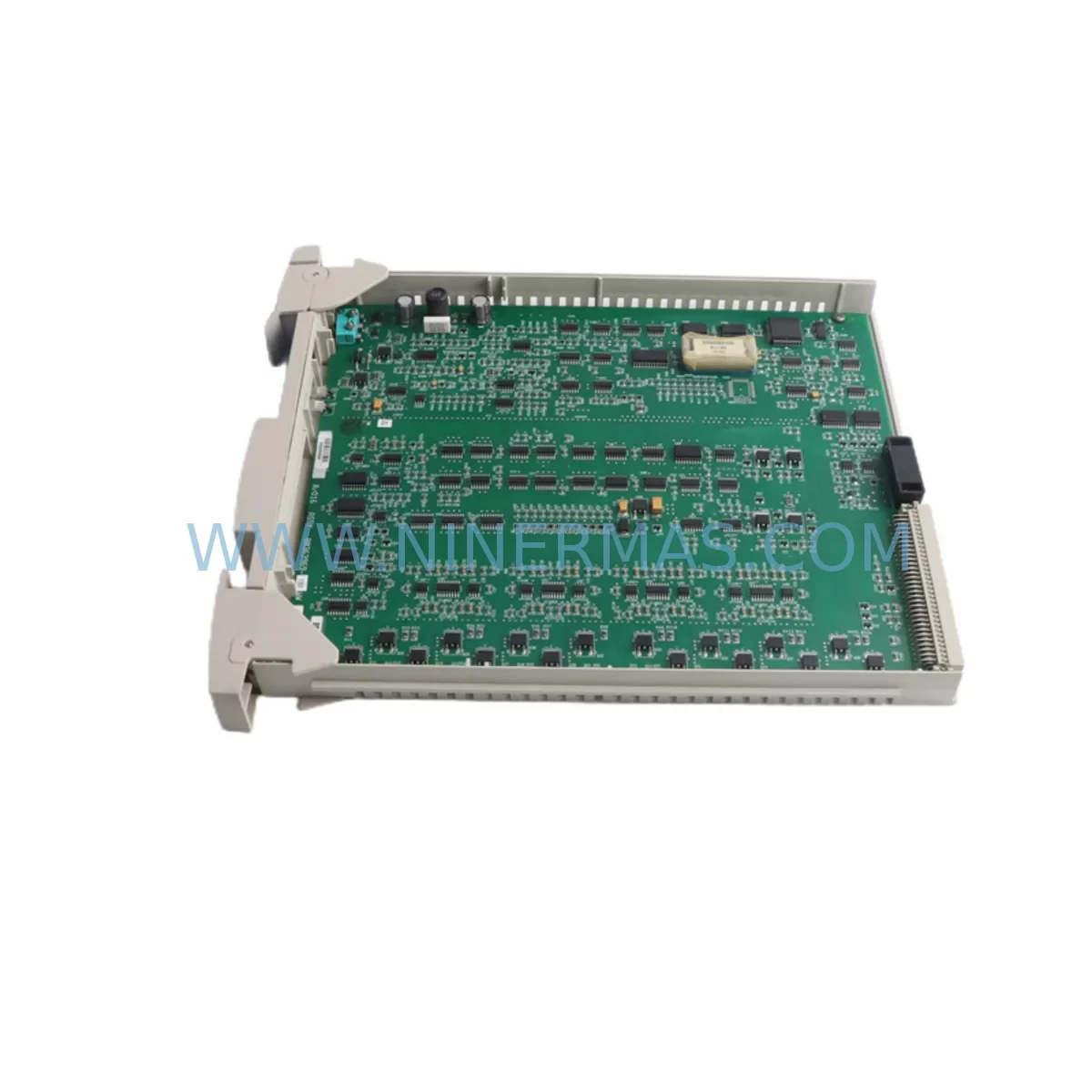

The Honeywell MC-PAOY22 (Part No. 80363969-150) is a precision analog output module engineered for safety-critical industrial control environments. Designed for deployment within the Experion PKS and TDC 3000 distributed control systems, this module delivers stable 4–20 mA analog output signals essential for continuous process regulation in high-demand industrial facilities. Whether your plant operates under extreme electromagnetic interference, elevated ambient temperatures, or persistent vibration loads, the MC-PAOY22 maintains signal integrity and output accuracy that maintenance engineers and process safety teams depend on.

At NINERMAS, every MC-PAOY22 unit is sourced as an original Honeywell component, subjected to rigorous pre-shipment functional testing, and backed by a 12-month quality warranty. Our inventory is maintained to support both emergency replacement orders and long-term planned procurement programs, ensuring your critical control loops are never left exposed to unplanned downtime.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In safety-critical control cabinets — whether in a petrochemical refinery, a power generation facility, or a continuous mining operation — the analog output chain is only as reliable as its weakest component. When replacing the MC-PAOY22, maintenance engineers should conduct a systematic inspection of all interconnected components to eliminate latent failure risks before returning the loop to service.

Begin with the Honeywell MC-PAIM02 analog input module, which feeds process variable data into the same control loop. A degraded input module can cause the output module to respond to erroneous signals, creating dangerous control deviations even after the output hardware is replaced. Similarly, inspect the MC-PDOY22 digital output module installed in adjacent slots — shared backplane power distribution means a failing digital output card can introduce voltage ripple that affects analog signal quality.

The Honeywell CC-PAIM01 CHARM analog input module and associated CHARM I/O cards in Experion PKS architectures should be verified for firmware compatibility and channel calibration. Surge events that damage an analog output module frequently affect neighboring CHARM modules on the same I/O assembly. Check the MC-TAMR03 termination assembly and field wiring terminals for signs of arc damage, insulation breakdown, or loose connections that could introduce ground loops into the 4–20 mA circuit.

Power supply integrity is paramount. The Honeywell MC-PWRJ1 power supply module and its redundant partner should be load-tested to confirm stable 24 VDC output under full cabinet load. Voltage sag during peak demand is a leading cause of analog output drift and spurious trips in DCS environments. Pair this with an inspection of the MC-PSIM11 power supply interface module to confirm proper load sharing between redundant power rails.

For facilities operating in high-EMI environments — near large motor drives, arc furnaces, or high-frequency welding equipment — verify that the Honeywell MC-TAIH02 signal isolator and associated shielding on field cables remain intact. Signal isolation barriers protect the MC-PAOY22 output channels from common-mode noise that can cause output instability and false process alarms. Finally, confirm that the Experion PKS C300 controller module firmware is current and that the I/O link connecting the controller to the MC-PAOY22 backplane is operating without communication errors, as link degradation can cause output freeze or last-value hold conditions that are difficult to diagnose under pressure.

Critical Industrial Safety Applications

The Honeywell MC-PAOY22 80363969-150 is deployed across the most demanding industrial environments where control loop failure carries direct safety and production consequences.

In petrochemical and refining plants, the MC-PAOY22 drives control valve positioners on distillation column reflux loops, reactor feed control valves, and pressure relief bypass systems. A failed analog output in these applications can result in uncontrolled exothermic reactions or pressure excursions that trigger emergency shutdowns. Rapid replacement with a pre-tested spare minimizes exposure time and restores safe operating margins.

In thermal and hydroelectric power generation, the module controls turbine governor valve actuators and boiler feedwater control loops. Output signal instability in these applications directly affects grid frequency regulation and steam drum level control — both of which are monitored by plant safety systems. Utilities operating aging TDC 3000 systems rely on long-term spare availability to extend asset life without costly DCS migrations.

In mining and mineral processing, the MC-PAOY22 manages conveyor speed references, flotation cell reagent dosing, and crusher load control. These environments subject control hardware to continuous vibration, dust ingress, and wide temperature swings. The module’s robust backplane mounting and isolated output channels provide the resilience needed for reliable operation between scheduled maintenance intervals.

In water and wastewater treatment facilities, the module controls chemical dosing pumps, aeration blower speed references, and filter backwash valve sequencing. Regulatory compliance in these facilities depends on precise chemical dosing accuracy, making analog output module reliability a direct environmental and public health concern.

In metallurgical and steel production environments, the MC-PAOY22 drives furnace temperature control loops and rolling mill speed references where output accuracy directly affects product quality and energy efficiency. Port and marine terminal automation systems use the module in crane drive control and ship-to-shore conveyor management, where continuous operation is essential for cargo throughput commitments.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the MC-PAOY22 80363969-150?
The 12-month warranty covers all functional defects identified under normal operating conditions consistent with Honeywell’s published specifications for the Experion PKS and TDC 3000 platforms. If the module fails to perform its specified analog output function within the warranty period, NINERMAS will provide a replacement unit or full refund. The warranty period begins from the date of confirmed delivery.

Q2: How is the MC-PAOY22 tested before shipment?
Every unit undergoes a full pre-shipment functional test that verifies channel-by-channel output accuracy across the 4–20 mA range, isolation integrity between channels, backplane communication handshake, and power consumption within specification. Test records are available upon request for quality-critical procurement programs.

Q3: Is the MC-PAOY22 80363969-150 compatible with both Experion PKS and TDC 3000 systems?
Yes. The MC-PAOY22 with part number 80363969-150 is designed for use in both the Experion PKS C200/C300 I/O subsystem and the TDC 3000 High-Performance Process Manager (HPM) environment. Compatibility should be confirmed against your specific system revision and I/O link configuration before installation. NINERMAS technical support can assist with compatibility verification prior to order.

Q4: Can NINERMAS support long-term supply agreements for the MC-PAOY22?
Yes. NINERMAS maintains standing inventory of the MC-PAOY22 and related Honeywell Experion PKS and TDC 3000 spare parts to support annual maintenance contracts, turnaround procurement programs, and emergency replacement requirements. Long-term supply agreements with guaranteed lead times are available for facilities managing aging DCS infrastructure.
