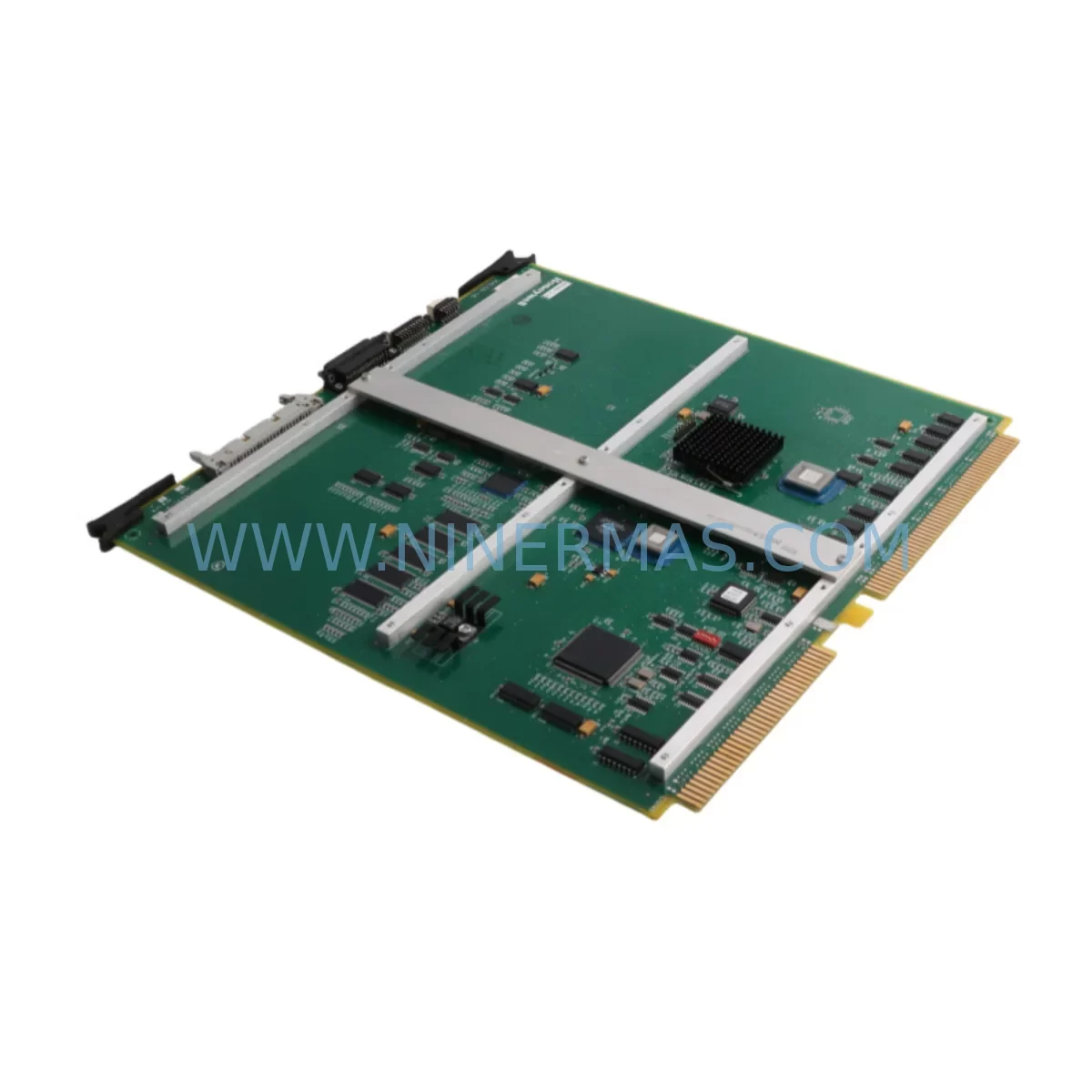

The Honeywell K4LCN-16 (P/N 51403519-160) is an original Local Control Network (LCN) card designed for use in Honeywell TDC 3000 and TotalPlant Solution (TPS) distributed control systems. As a critical communication backbone component, the K4LCN-16 manages high-speed data exchange between process nodes, operator stations, and application modules across the LCN highway. When this card fails or degrades, the consequences extend beyond a single loop — entire process segments can lose visibility, alarming, and control authority, resulting in unplanned shutdowns and costly production losses.

Sourced as an original Honeywell spare, this unit is pre-shipment tested, functionally verified, and backed by a 12-month warranty. It is suitable for emergency replacement, scheduled turnaround restocking, and long-term spare parts inventory programs at refineries, petrochemical plants, power generation facilities, and continuous process industries running legacy Honeywell DCS architectures.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a K4LCN-16 card is identified as a replacement candidate during routine control cabinet inspection or fault diagnostics, maintenance engineers should treat the event as a trigger for a broader LCN node health review. The LCN highway is a shared communication medium — a degraded card can introduce latency or data corruption that affects adjacent nodes before a hard fault is logged.

During the same maintenance window, engineers should inspect the Honeywell 51401288-100 LCN Tap and Cable Assembly for coaxial connector integrity and signal continuity. The 51304453-150 Power Entry Module and associated 51109684-100 backplane power supply should be load-tested, as undervoltage conditions accelerate card failure. If the node chassis houses an AM (Application Module) or HM (History Module), verify that the corresponding 51401642-100 AM card and 51304485-100 HM interface card show no error LEDs.

For I/O integrity, cross-check the 51304754-150 FTA (Field Termination Assembly) wiring and confirm that 51309276-175 analog input cards and 51305907-175 digital output cards in the same HPM chassis are within calibration. Signal isolation barriers — particularly Honeywell STT350 smart temperature transmitters and associated 51196694-100 LLAI cards — should be verified for loop continuity before the replacement card is brought online.

Communication module health checks should extend to the 51401491-100 UCN (Universal Control Network) interface card if the node bridges LCN and UCN segments. Fuse integrity on the 51109288-100 fuse panel within the cabinet should be confirmed, and any 51304516-150 redundant power supply modules should be switched to verify automatic failover. Procurement teams should note that the K4LCN-16 is frequently co-ordered with 51401288-100 LCN tap assemblies and 51304453-150 power entry modules as a standard turnaround kit for TDC 3000 nodes.

Site Replacement Workflow

Step 1 — Pre-replacement verification: Confirm the K4LCN-16 fault via the Honeywell Universal Station (US) or GUS diagnostic display. Log the node address, slot position, and current LCN status before any physical intervention. Capture a system snapshot if the DCS historian (HM) is accessible.

Step 2 — Spare card preparation: Remove the replacement K4LCN-16 from ESD-safe packaging. Verify the part number label reads 51403519-160 and confirm firmware revision compatibility with the target node using the site’s DCS version matrix. Do not power the card outside the chassis.

Step 3 — Safe extraction: Follow the site lockout/tagout (LOTO) procedure if the slot is not hot-swap qualified. For hot-swap capable chassis, inhibit the node in software before physical extraction to prevent LCN highway disruption. Extract the faulty card using the ejector levers; avoid touching the edge connector.

Step 4 — Installation and initialization: Seat the replacement card firmly until both ejector latches engage. Restore the node inhibit in software and monitor the LCN status display for the card to enumerate. Allow 60–90 seconds for full initialization before verifying process data flow at the operator station.

Step 5 — Post-replacement validation: Confirm all associated process variables are updating correctly. Check alarm summary for any residual LCN fault messages. Document the replacement in the site CMMS with the new card serial number and warranty start date. Return the faulty card in ESD packaging for failure analysis if required.

This workflow minimizes downtime to under 30 minutes for experienced DCS maintenance teams and ensures system compatibility is maintained without requiring a full node reload.

Spare Parts Support FAQ

Q1: Is the K4LCN-16 (51403519-160) compatible with both TDC 3000 and TPS systems?
Yes. The K4LCN-16 LCN card is designed for the Honeywell LCN highway architecture used across TDC 3000 and TotalPlant Solution (TPS) platforms. Compatibility depends on the firmware revision of the target node; confirm the revision matrix with your site DCS documentation before installation. All units supplied are original Honeywell parts and are pre-tested against standard LCN communication parameters.

Q2: What pre-shipment testing is performed on this spare part?
Each K4LCN-16 unit undergoes functional verification prior to dispatch, including power-on self-test confirmation, LCN interface continuity check, and visual inspection for connector and component integrity. Units are packed in anti-static ESD bags with foam cushioning to prevent transit damage. A 12-month warranty is provided from the date of shipment, covering manufacturing defects and functional failure under normal operating conditions.

Q3: How should we manage long-term inventory for legacy TDC 3000 LCN cards?
For sites operating TDC 3000 or TPS systems beyond their original support lifecycle, we recommend maintaining a minimum of one K4LCN-16 per active LCN node as a cold standby spare. Given the discontinuation risk for legacy Honeywell DCS components, procurement teams should consider a 2–3 year forward stock strategy. We offer long-term supply agreements and can source associated components including LCN tap assemblies, HPM power supplies, and FTA wiring panels to support comprehensive turnaround kits.

Q4: What is the lead time and can urgent orders be expedited?
Standard lead time is 3–7 business days for in-stock units, with express global shipping available for emergency breakdown situations. For urgent plant shutdowns, contact our team directly to confirm real-time stock availability and arrange same-day dispatch where possible. All expedited orders include full pre-shipment test documentation and ESD-compliant packaging.
