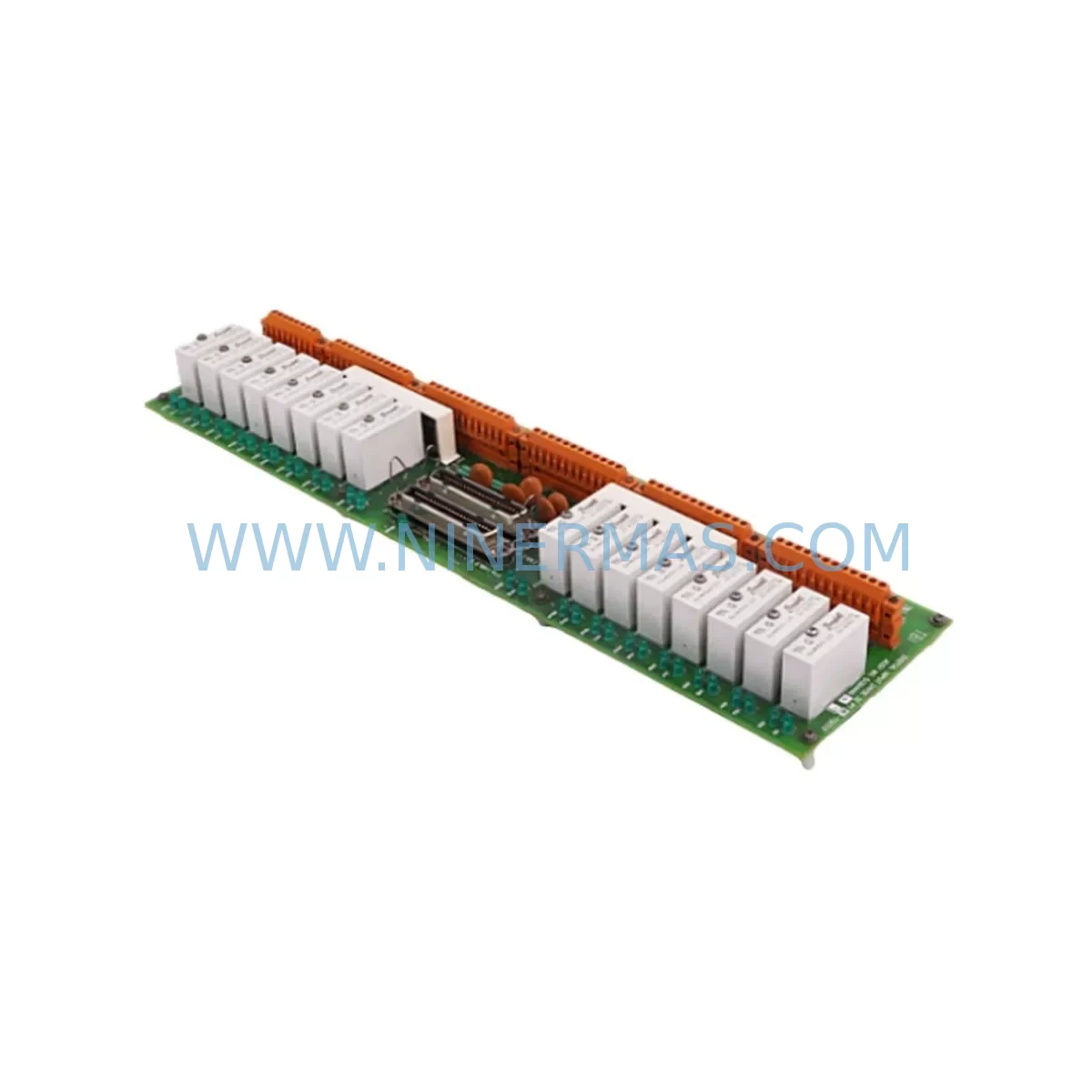

Honeywell FS-TSHART-1620M Retrofit HART Module Legacy Systems

Honeywell FS-TSHART-1620M Retrofit HART Module Legacy Systems

The Honeywell FS-TSHART-1620M is a HART Interface Module designed for integration within the Honeywell Safety Manager platform — one of the most widely deployed Safety Instrumented Systems (SIS) in the global process industry. As aging TPS (Total Plant Solution) and Safety Manager installations approach end-of-life, maintenance engineers and system integrators face the critical challenge of sourcing compatible replacement modules that preserve existing program logic, wiring infrastructure, and safety certification integrity. The FS-TSHART-1620M addresses this challenge directly, offering a retrofit-compatible solution for facilities that cannot afford full system replacement but require continued HART communication capability across their safety loops.

This module supports HART protocol communication between field instruments and the Safety Manager controller, enabling diagnostics, configuration, and status monitoring without interrupting the primary 4–20 mA safety signal. In legacy installations where the original FS-TSHART-1620M has failed or reached end-of-life, a pre-tested replacement unit from verified inventory allows maintenance teams to restore full HART functionality with minimal downtime and without modifying the existing safety program.

NINERMAS maintains ready stock of the FS-TSHART-1620M with full pre-shipment functional testing and a 12-month warranty, supporting global customers in petrochemical, refining, power generation, and offshore platform environments.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the FS-TSHART-1620M within an operational Safety Manager system requires careful pre-planning to protect safety loop integrity and minimize exposure to unplanned shutdowns. Before initiating the replacement, maintenance teams should audit the full I/O rack configuration, confirming the slot position of the failed module and verifying that adjacent modules — such as the FS-SAI-1620M Safety Analog Input module and the FS-SDI-1624 Safety Digital Input module — remain undisturbed during the swap procedure.

Power distribution is a critical checkpoint. The FS-PDC-ASSY power distribution card supplies backplane power to all I/O modules in the rack. Before removing the FS-TSHART-1620M, engineers should confirm that the power budget on the FS-PDC-ASSY is sufficient to support the replacement module and that no other modules in the rack are operating near their power draw limits. If the rack also contains FS-SDO-0824 Safety Digital Output modules or FS-TAH-1010 terminal assemblies, their power consumption should be factored into the overall rack power audit.

Wiring continuity is equally important. The FS-TSHART-1620M connects to field HART instruments via the terminal assembly. In most legacy installations, the FS-TAH-1010 terminal assembly provides the physical wiring interface between the module and the field junction box. Technicians should photograph and document all terminal connections before removal, confirming wire labels, shield grounding points, and cable routing within the control cabinet. This documentation becomes essential if the replacement module requires any terminal re-termination due to corrosion or mechanical damage on the original terminals.

For sites running the Safety Manager on a TC-CCR014 control chassis, the module address assignment must be verified in the Safety Builder engineering tool before the replacement module is powered up. Incorrect address configuration can cause the Safety Manager controller to flag a module mismatch fault, triggering a safety system response. In parallel, the communication link between the Safety Manager and the DCS — often routed through a 51309276-150 communication module or equivalent gateway — should be monitored throughout the replacement procedure to confirm that HART diagnostic data continues to flow correctly to the operator station.

Where the existing installation uses a TC-FPCXX2 power supply module to support the Safety Manager chassis, engineers should confirm that the power supply output voltage and current ratings remain within specification before and after the module swap. Aging power supplies in legacy systems can exhibit voltage droop under load, which may affect the stability of newly installed I/O modules. If the TC-FPCXX2 is approaching its own end-of-life, coordinating its replacement alongside the FS-TSHART-1620M swap can reduce the total number of planned maintenance windows required.

Finally, for sites where HART communication is routed through a multiplexer or HART modem connected via a 10006/2/1 system cable assembly, the cable integrity and connector seating should be verified as part of the retrofit procedure. Loose or corroded cable connections at the backplane interface are a common source of intermittent HART communication faults in legacy installations and can be mistakenly attributed to module failure.

Downtime Control During System Migration

Minimizing downtime during a Safety Manager HART module replacement requires a structured approach that begins well before the maintenance window opens. The most effective strategy is to pre-stage the replacement FS-TSHART-1620M with a verified pre-shipment test report, confirming that the module has been functionally tested against the Safety Manager I/O specification before it arrives on site. This eliminates the risk of discovering a defective replacement unit during the maintenance window itself — a scenario that can extend unplanned downtime significantly in remote or offshore installations.

During the replacement window, the Safety Manager should be placed in the appropriate maintenance mode as defined by the site’s safety management system, ensuring that the safety function associated with the HART loop is either bypassed under a formal management of change procedure or that the process unit is safely isolated. The original program logic in the Safety Manager controller does not need to be modified for a like-for-like FS-TSHART-1620M replacement, which is one of the key advantages of sourcing a direct compatible replacement rather than attempting to migrate to a different module type.

Post-installation, the commissioning sequence should include a full HART communication check from the Safety Manager diagnostic interface, confirming that all configured HART devices on the replaced module are responding correctly. Any HART diagnostic tags that were previously mapped to the HMI or DCS historian should be verified to confirm that data is flowing correctly before the maintenance bypass is lifted and the safety function is returned to service.

Retrofit Support FAQ

Q: Is the FS-TSHART-1620M a direct replacement for the original Honeywell Safety Manager HART module?
A: Yes. The FS-TSHART-1620M is a like-for-like replacement for the original Honeywell Safety Manager HART Interface Module. No program logic changes are required for a direct slot replacement, provided the module address configuration in Safety Builder matches the original assignment.

Q: What pre-shipment testing does NINERMAS perform on the FS-TSHART-1620M?
A: Each FS-TSHART-1620M unit shipped by NINERMAS undergoes functional testing prior to dispatch, including power-on verification, backplane interface check, and HART communication validation. A test report is available upon request. All units are covered by a 12-month warranty from the date of shipment.

Q: Can the FS-TSHART-1620M be installed without modifying existing field wiring?
A: In most cases, yes. The module uses the standard Safety Manager terminal assembly interface. Existing field wiring connected to the FS-TAH-1010 or equivalent terminal assembly can typically be retained without modification. Technicians should inspect terminal condition and confirm wire labeling before completing the installation.

Q: What is the lead time and stock availability for the FS-TSHART-1620M?
A: NINERMAS maintains ready inventory of the FS-TSHART-1620M to support urgent maintenance requirements. Standard lead time for in-stock units is 3–7 business days for international shipments. Contact our team for current stock confirmation and expedited shipping options.
