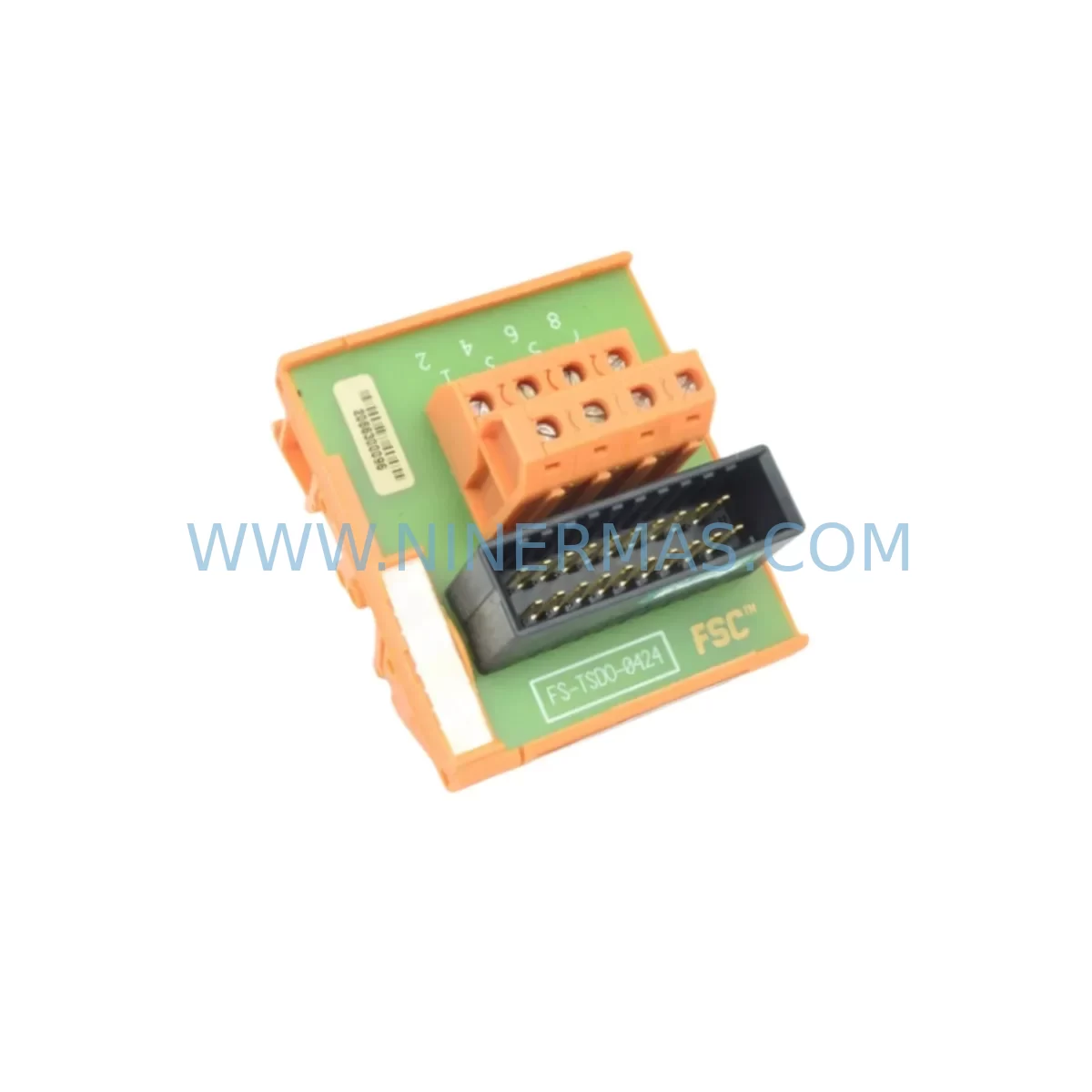

Honeywell FS-TSDO-0824 Retrofit-Compatible Safety Output Module

Honeywell FS-TSDO-0824 Retrofit-Compatible Safety Output Module for Legacy Systems

The Honeywell FS-TSDO-0824 is a Safety Digital Output module engineered for the FSC (Fail-Safe Controller) platform — one of the most widely deployed safety instrumented systems in the process automation industry. As aging FSC installations approach end-of-life and OEM support windows close, the FS-TSDO-0824 has become a critical spare part for maintenance teams managing SIL-rated safety loops across oil and gas, chemical processing, power generation, and refining facilities. This module provides 8-channel digital output capability with full diagnostic coverage, designed to interface directly with the FSC backplane without firmware modification or hardware adaptation.

For facilities operating legacy TDC 3000 or FSC-based safety systems, sourcing a verified replacement FS-TSDO-0824 with documented pre-shipment testing and a 12-month warranty is essential to maintaining system integrity and regulatory compliance. NINERMAS maintains ready inventory of this module to support emergency replacements, planned shutdowns, and phased system upgrades.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the FS-TSDO-0824 within an operational FSC safety system requires careful pre-planning to avoid unintended safety function activation or process trip. Before initiating the swap, maintenance engineers should confirm the current module’s channel assignments against the safety application logic, verify that all associated field devices — including solenoid valves, motor starters, and relay outputs — are in a safe state or bypassed per the site’s management of change (MOC) procedure.

Power supply capacity is a frequent oversight in FSC retrofit projects. The FS-PS-0002 power supply module must be verified to support the combined load of all installed I/O modules, particularly when adding new output channels or replacing a failed module in a fully loaded rack. If the rack is operating near capacity, a power budget review is mandatory before the replacement module is installed.

Terminal block wiring is another critical checkpoint. The FS-TSDO-0824 uses a standard FSC field termination assembly; engineers should confirm that the existing field wiring is correctly mapped to the replacement module’s terminal layout. Any deviation in terminal numbering between module revisions must be identified and corrected before energizing the outputs.

For systems where the FSC communicates with a DCS or SCADA platform via a gateway or communication module such as the TC-CCR014, the output module replacement should be coordinated with the control room to prevent false alarms or spurious trips triggered by the momentary loss of output status during the swap. The communication link between the FSC and the host system should be monitored throughout the procedure.

In installations where the FSC rack also houses Safety Digital Input modules such as the FS-TSDI-0824, Safety Analog Input modules such as the FS-TSAI-1620M or FS-SAI-1620M, and Safety Analog Output modules such as the FS-TSAO-0420, the replacement of a single output module must not disturb adjacent modules sharing the same backplane segment. The FS-BKM-0001 backplane module governs bus communication across the rack; any physical disturbance to the backplane during module extraction should be followed by a bus integrity check before returning the system to automatic mode.

Where I/O expansion is required as part of a broader upgrade — for example, adding new interlock loops or extending the safety system to cover additional process units — the FS-PDC-IOEP1 I/O expansion pack provides additional rack capacity without requiring a new FSC CPU. The FS-CPCM-0001 communication and processor module should be reviewed for firmware compatibility if the expansion involves new I/O module types not previously configured in the safety application.

For legacy installations where the FSC interfaces with a Honeywell TDC 3000 platform via the 51309276-150 HPM I/O link, engineers should confirm that the output module replacement does not affect the data highway communication status. A brief communication interruption during module swap is normal, but the DCS historian and alarm management system should be notified in advance to suppress nuisance alarms during the maintenance window.

Downtime Control During System Migration

Minimizing unplanned downtime during an FSC output module replacement begins with a structured pre-shutdown checklist. The original program logic — including all I/O assignments, forcing tables, and interlock configurations — should be backed up from the FSC engineering workstation before any hardware is touched. This backup serves as the reference for post-replacement validation and provides a recovery baseline if the new module requires re-addressing.

Where the process cannot be fully shut down, partial bypass procedures allow the affected output channel to be placed in a defined safe state while the module is exchanged. Bypass management must follow the site’s safety management system requirements, with a time-limited bypass authorization and a dedicated technician assigned to monitor the bypassed function throughout the replacement window.

After the FS-TSDO-0824 is installed and the rack is powered, the commissioning sequence should include a channel-by-channel output test using the FSC engineering tool to confirm that each of the 8 output channels responds correctly to commanded states. Field verification at the terminal block — using a calibrated multimeter or loop tester — confirms that the output signal reaches the field device as expected. Any discrepancy between the commanded state and the field measurement must be resolved before the bypass is lifted and the safety function is returned to automatic operation.

Pre-shipment testing performed by NINERMAS on every FS-TSDO-0824 unit includes a full functional test of all output channels, insulation resistance measurement, and a burn-in cycle to screen for early-life failures. The test report is available upon request and supports the site’s safety case documentation requirements.

Retrofit Support FAQ

Q: Is the FS-TSDO-0824 a direct replacement for the original Honeywell module without program changes?
A: Yes, for a like-for-like replacement in the same rack slot, no changes to the FSC safety application are required. The module address is determined by the rack slot position, not by the module itself. Engineers should confirm the slot address in the safety application before installation and verify that I/O forcing is disabled on the affected channels.

Q: What wiring checks are required before installing the replacement module?
A: Verify that the field termination assembly is correctly connected to the replacement module’s terminal block. Confirm terminal polarity for each of the 8 output channels, check that field device supply voltage matches the module’s 24 VDC output rating, and inspect the wiring for insulation damage or loose connections before energizing.

Q: Has the FS-TSDO-0824 been tested before shipment?
A: Every unit shipped by NINERMAS undergoes pre-shipment functional testing covering all output channels, insulation resistance measurement, and a burn-in cycle. A test report is available upon request. All units are covered by a 12-month warranty from the date of shipment.

Q: What is the lead time and stock availability for the FS-TSDO-0824?
A: NINERMAS maintains ready inventory of the FS-TSDO-0824 to support emergency and planned replacement requirements. Standard lead time for in-stock units is 3–7 business days for international shipments. Contact our team for current stock status and expedited shipping options.
