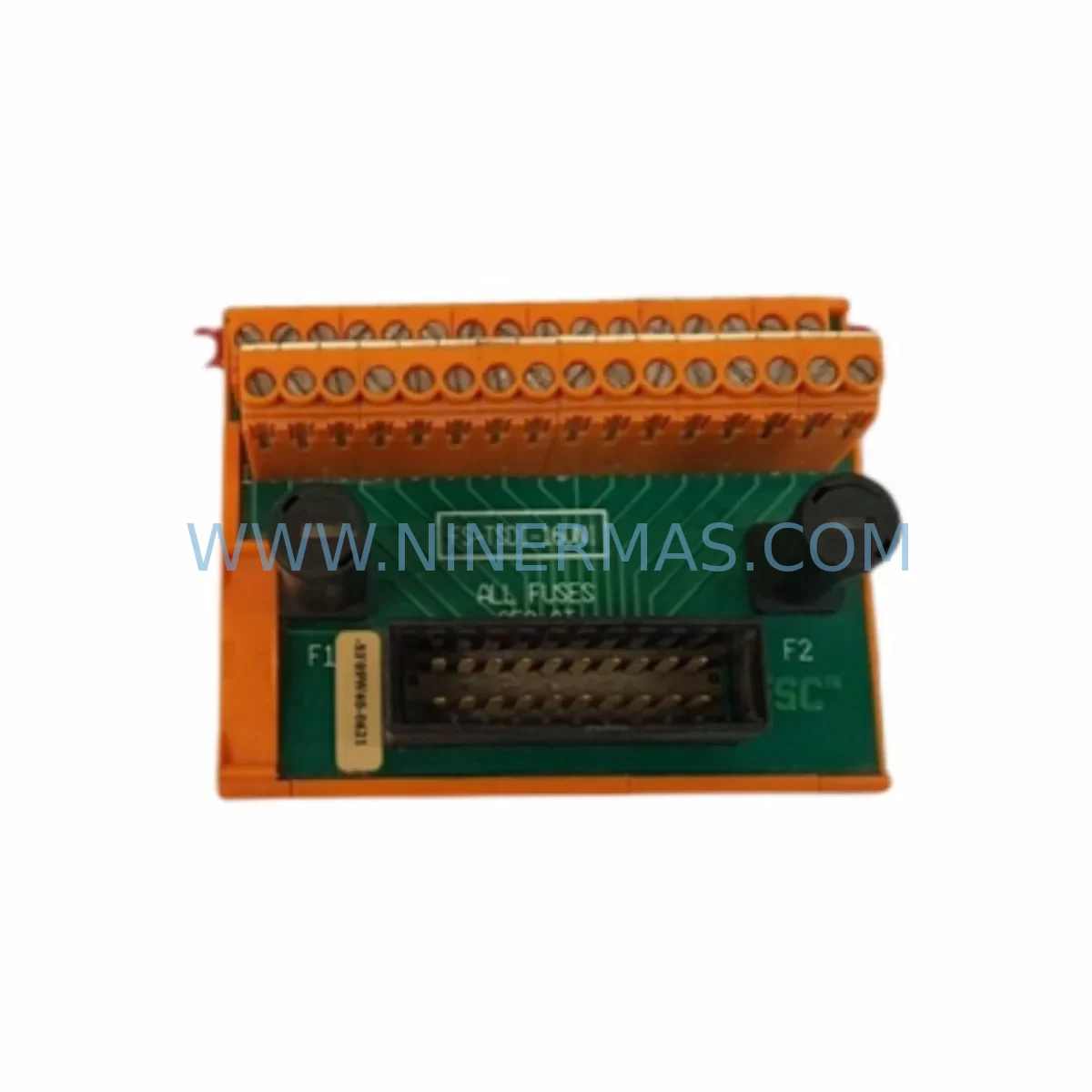

The Honeywell FS-TSDI-1624 is a 16-channel safety-rated digital input module designed for the Honeywell Trusted Safety Manager platform. As industrial facilities face the challenge of maintaining aging distributed control and safety instrumented systems, the FS-TSDI-1624 has become a critical spare part for plants that cannot afford unplanned downtime or full system replacement. This module supports direct retrofit into existing Trusted platform racks, preserving original program logic, field wiring, and safety loop integrity without requiring a complete control system overhaul.

Originally deployed across petrochemical, oil and gas, power generation, and chemical processing facilities, the FS-TSDI-1624 reads discrete field signals from emergency shutdown devices, pressure switches, level switches, and flame detectors. Its 24-channel architecture and SIL-rated design make it a cornerstone of safety instrumented functions (SIFs) that must remain operational during any retrofit or upgrade campaign. Facilities that have standardized on the Honeywell Trusted platform will find the FS-TSDI-1624 to be a direct plug-in replacement for failed or end-of-life modules, with no firmware changes required when the module revision is matched correctly.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the FS-TSDI-1624 into an existing Trusted Safety Manager installation requires a structured pre-replacement assessment. Engineers should begin by reviewing the current rack configuration, confirming that the target slot is addressed correctly in the safety controller’s I/O map. The Trusted platform uses a deterministic slot-based addressing scheme, so any mismatch between the physical slot and the configured I/O address will result in a diagnostic fault that must be cleared before the safety function can be validated.

Field wiring termination is a critical step. The FS-TSDI-1624 uses a marshalling terminal block arrangement common to the Trusted series. Before disconnecting the existing module, technicians should photograph or document all field wiring connections, particularly for multi-conductor cables serving emergency shutdown loops. In facilities where the FS-TSAI-1620 analog input module is installed in adjacent slots, care must be taken to avoid cross-wiring during the swap, as both modules share similar terminal block layouts but serve fundamentally different signal types.

Power budget verification is essential when adding or replacing modules in a Trusted rack. The rack’s power supply module — such as the TC-FPCXX2 series — must have sufficient headroom to support the FS-TSDI-1624’s current draw alongside other installed modules including digital output modules like the FS-TSDO-0824 and analog output modules such as the FS-TAO-0824. Overloading the rack power supply is a common cause of intermittent faults in retrofitted systems and should be ruled out before commissioning.

The backplane itself, typically a 51309276-150 series rack assembly, should be inspected for corrosion, bent connector pins, or mechanical damage before the new module is seated. A damaged backplane connector can cause communication errors that are difficult to distinguish from module faults during initial commissioning. If the rack has been in service for more than ten years, a full backplane inspection is recommended as part of the retrofit scope.

For facilities migrating from older Honeywell TDC 3000 or HPM-based architectures toward the Trusted Safety Manager platform, the retrofit scope expands significantly. In these cases, the FS-TSDI-1624 is typically introduced alongside a TC-PRR021 processor module and TC-CCR014 redundant communication module to establish the new safety controller backbone. Field signal routing may require the addition of signal isolators or marshalling panels to bridge legacy wiring standards with the Trusted module’s input specifications. Programming cable interfaces such as the 51401583-100 are used during commissioning to upload and verify the safety application program, confirm I/O mapping, and validate diagnostic response times against the original functional safety assessment.

HMI screen updates are often overlooked during digital input module replacements. If the FS-TSDI-1624 is replacing a module with a different channel count or diagnostic structure, the HMI tag database and alarm configuration must be reviewed to ensure that all field signals are correctly displayed and that no spurious alarms are generated during normal operation. System interconnection cables such as the FS-SICC-0001/L1 should also be inspected for continuity and insulation integrity as part of the pre-commissioning checklist.

Downtime Control During System Migration

Minimizing production downtime during a digital input module replacement on a live safety system requires careful coordination between the control system engineer, the safety officer, and the operations team. The preferred approach is to perform the replacement during a planned maintenance window, with the affected safety loop placed in bypass or manual override in accordance with the facility’s Management of Change (MOC) procedure.

Before the module is removed, the current safety application program should be backed up from the Trusted controller using the engineering workstation. This backup preserves the original program logic, I/O configuration, and diagnostic parameters, and serves as the reference for post-replacement validation. If the replacement module is a different hardware revision than the original, the engineering team must confirm that the new revision is backward-compatible with the existing application program version.

Once the FS-TSDI-1624 is seated and the rack is powered, the controller will perform an automatic module recognition sequence. Any configuration mismatch will be reported as a fault on the engineering workstation. These faults must be resolved before the safety loop is returned to automatic control. Typical resolution steps include re-downloading the I/O configuration, clearing latched diagnostics, and performing a channel-by-channel input verification using a field signal simulator.

For facilities with redundant safety controllers, the replacement can often be performed on one controller at a time while the redundant controller maintains safety coverage, further reducing the risk of a full safety system outage. This approach requires careful coordination with the Trusted platform’s redundancy management software to ensure that the active controller does not attempt to synchronize with the controller undergoing maintenance.

Retrofit Support FAQ

Q: Is the FS-TSDI-1624 a direct drop-in replacement for all Trusted platform digital input modules?
A: The FS-TSDI-1624 is compatible with Trusted platform racks that support 16-channel digital input modules. Compatibility depends on the rack revision, backplane connector type, and the firmware version of the safety controller. NINERMAS recommends providing your existing module’s part number and hardware revision when ordering to confirm direct interchangeability.

Q: What pre-shipment testing is performed on the FS-TSDI-1624?
A: Every FS-TSDI-1624 unit supplied by NINERMAS undergoes functional testing prior to shipment. Testing includes power-on self-test verification, channel-by-channel input signal simulation, and diagnostic fault injection to confirm that the module’s internal diagnostics are operating correctly. A test report is available upon request.

Q: What is the warranty coverage for the FS-TSDI-1624?
A: NINERMAS provides a 12-month warranty from the date of shipment for the FS-TSDI-1624. The warranty covers manufacturing defects and functional failures under normal operating conditions. Warranty claims are supported by NINERMAS’s technical team, and replacement units can be dispatched on an advance exchange basis to minimize downtime.

Q: Can NINERMAS guarantee stock availability for long-term supply commitments?
A: NINERMAS maintains reserved inventory of the FS-TSDI-1624 to support customers with long-term maintenance contracts and multi-year spare parts programs. Customers operating large fleets of Trusted Safety Manager systems are encouraged to contact NINERMAS to discuss reserved stock arrangements, which can provide guaranteed lead times and price stability over a defined contract period.
