Honeywell FS-TERM-0002 Retrofit Bus Terminator Legacy Systems

Honeywell FS-TERM-0002 Retrofit Bus Terminator Legacy Systems: Seamless Legacy System Compatibility and Smooth Upgrade

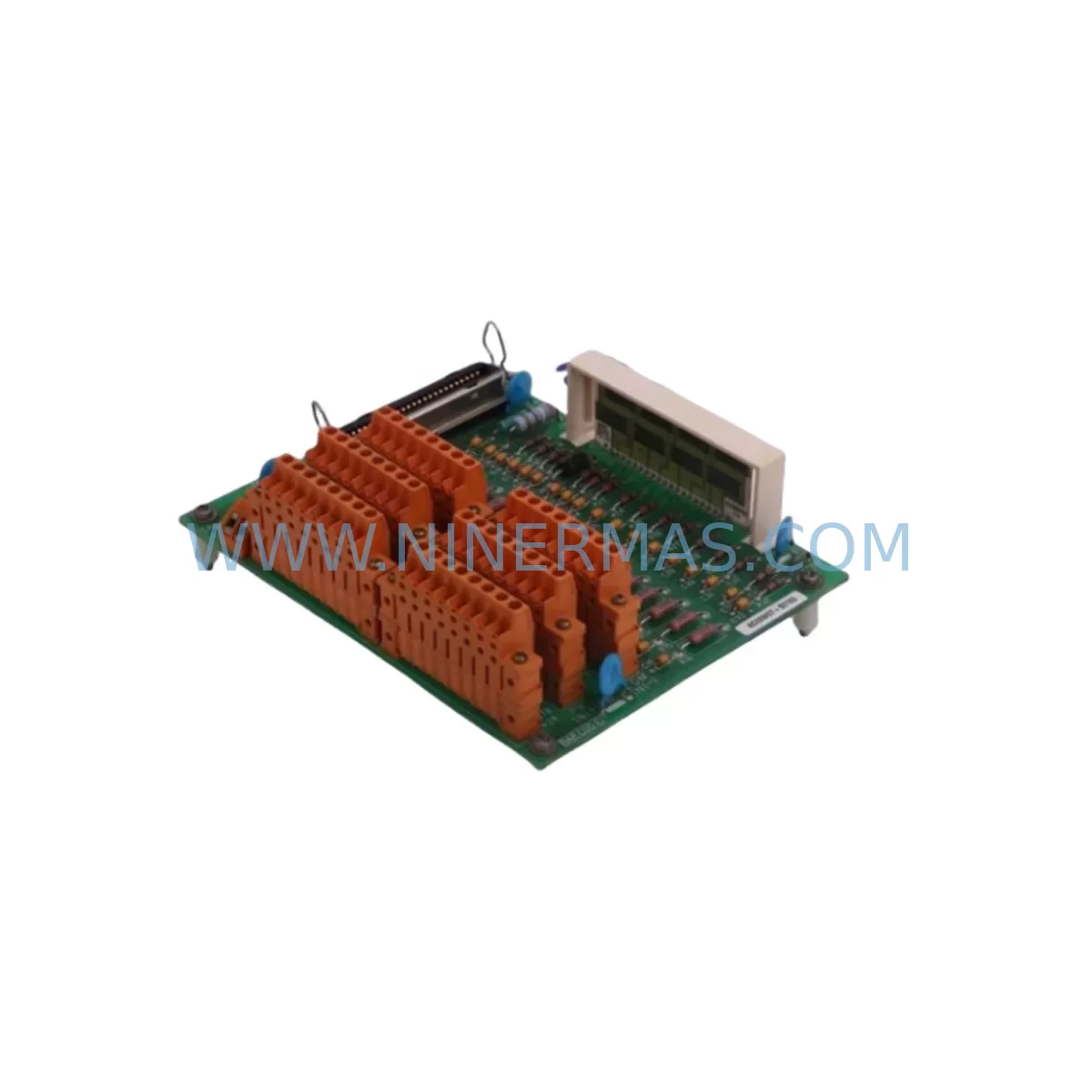

The Honeywell FS-TERM-0002 is a bus terminator module designed for use within the Honeywell FSC (Fail-Safe Controller) and Safety Manager platform — one of the most widely deployed safety-rated control architectures in the process automation industry. As legacy FSC installations approach end-of-life and original spare parts become increasingly scarce, the FS-TERM-0002 plays a critical role in maintaining signal integrity across the FSC backplane bus. Proper bus termination is non-negotiable: without it, reflected signals on the internal communication bus can cause erratic module behavior, spurious trips, or complete system faults in safety-critical environments such as oil and gas, chemical processing, and power generation.

NINERMAS maintains verified stock of the FS-TERM-0002 sourced from decommissioned systems and authorized surplus channels. Each unit undergoes pre-shipment functional testing to confirm bus impedance matching, connector integrity, and physical condition before dispatch. A 12-month warranty is included as standard, covering manufacturing defects and functional failures under normal operating conditions.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

When planning a retrofit or spare parts replacement within an FSC-based safety system, the FS-TERM-0002 is rarely the only component under consideration. A complete retrofit assessment typically begins with a rack-level audit of the FSC chassis, identifying which modules are still serviceable and which require immediate replacement. In most aging installations, the FS-PS-0002 power supply module is evaluated alongside the bus terminator, as power delivery degradation and bus signal issues often occur together in systems that have been running continuously for over a decade.

Safety I/O modules such as the FS-SDI-1624 (Safety Digital Input) and FS-SDO-0824 (Safety Digital Output) are frequently flagged during the same maintenance window. These modules share the same FSC backplane bus that the FS-TERM-0002 terminates, meaning that a compromised terminator can mask underlying I/O faults or generate false diagnostics. Replacing the FS-TERM-0002 as part of a broader I/O module refresh — rather than in isolation — reduces the risk of repeat callouts and unplanned shutdowns.

Analog signal chains also warrant attention. The FS-SAI-1620m Safety Analog Input module, commonly used for pressure transmitter and temperature sensor inputs in FSC-controlled processes, is sensitive to bus noise. Engineers performing loop checks after a bus terminator replacement should re-verify analog input accuracy and confirm that 4–20 mA signal ranges remain within calibrated tolerances. Terminal wiring at the field junction box should be inspected for corrosion or loose connections that may have been masked by bus-level noise prior to the terminator swap.

For systems where communication redundancy is a concern, the FS-CNET-0002 communication module handles Ethernet-based supervisory links between the FSC and the DCS or SCADA layer. During a retrofit, engineers should document the existing network topology and confirm that IP addressing, subnet masks, and communication watchdog timers are preserved after any rack reconfiguration. The FS-SICC-0001 system interface cable, which connects FSC racks in multi-rack configurations, should also be inspected for insulation integrity and connector seating — a loose inter-rack cable can produce symptoms that mimic a faulty bus terminator.

Backplane and rack infrastructure components including the FS-BKM-0001 backplane module and the FS-PDC-ASSY power distribution card are often overlooked during spare parts planning but are equally critical to long-term system stability. In installations where the FSC coexists with Honeywell TotalPlant Solution (TPS) or Experion PKS environments, legacy interface cards such as the TC-CCR014 redundant network interface and the 51309276-150 HPM communication link may also be part of the broader upgrade scope. Coordinating the replacement of these components within a single planned outage window minimizes total downtime and reduces the number of separate maintenance interventions required over the system’s remaining service life.

Downtime Control During System Migration

Minimizing downtime during an FSC bus terminator replacement requires careful pre-outage preparation. Before the maintenance window opens, engineers should export a full backup of the FSC application program, including all function block configurations, safety logic matrices, cause-and-effect tables, and alarm setpoints. This backup serves as the restoration baseline if any unexpected behavior is observed after the terminator swap.

During the physical replacement, the FSC should be placed in a controlled maintenance mode where possible, with field outputs held at their last known safe state. The FS-TERM-0002 is a passive module with no stored configuration, so the swap itself is straightforward — remove the old terminator from the rightmost rack slot, insert the replacement, and confirm mechanical seating. However, the post-installation bus health check is where most of the commissioning time is spent. FSC diagnostic software should be used to verify bus continuity, confirm that all modules on the segment are communicating correctly, and clear any latched fault codes that accumulated during the swap.

For multi-rack FSC systems, it is advisable to replace bus terminators one rack segment at a time, restoring and verifying each segment before proceeding to the next. This staged approach preserves partial system functionality during the maintenance window and allows the control room team to maintain supervisory visibility over unaffected process areas. Where hot-standby redundancy is available, the redundant FSC controller can be kept online during the maintenance activity, further reducing the risk of a full process shutdown.

Field control continuity should be maintained through close coordination between the instrument engineer performing the swap and the control room operator monitoring process variables. Any deviation from expected process behavior during or immediately after the terminator replacement should trigger an immediate hold on further maintenance activities until the root cause is identified and resolved.

Retrofit Support FAQ

Q: Is the FS-TERM-0002 a direct drop-in replacement for all FSC rack generations?
A: The FS-TERM-0002 is compatible with the standard FSC rack form factor used across most FSC and Safety Manager installations. However, customers should confirm the chassis revision and backplane connector type before ordering, particularly for very early FSC rack generations that may use a slightly different bus connector pinout. NINERMAS can assist with compatibility verification based on your rack serial number or system documentation.

Q: What pre-shipment testing is performed on each FS-TERM-0002 unit?
A: Each unit is tested for bus impedance matching, connector pin continuity, and physical condition including housing integrity and locking tab function. Units that do not meet functional criteria are quarantined and not dispatched. A test report is available upon request for customers with documentation requirements.

Q: How quickly can the FS-TERM-0002 be dispatched, and what warranty is included?
A: In-stock units are typically dispatched within 1–3 business days of order confirmation. A 12-month warranty is included as standard, covering functional failures under normal operating conditions. Expedited shipping options are available for urgent maintenance situations.

Q: Can NINERMAS support broader FSC system audits beyond the FS-TERM-0002?
A: Yes. NINERMAS maintains inventory across the FSC and Safety Manager module range, including I/O modules, power supplies, communication modules, and backplane components. Customers planning a comprehensive FSC retrofit or spare parts replenishment program are encouraged to contact our technical team with a full bill of materials for availability confirmation and consolidated quotation.
