Honeywell FS-TDOL-07120 Retrofit-Compatible DO for Legacy Systems

Honeywell FS-TDOL-07120 Retrofit-Compatible DO for Legacy Systems: Seamless Safety Output Upgrade for Aging FSC Platforms

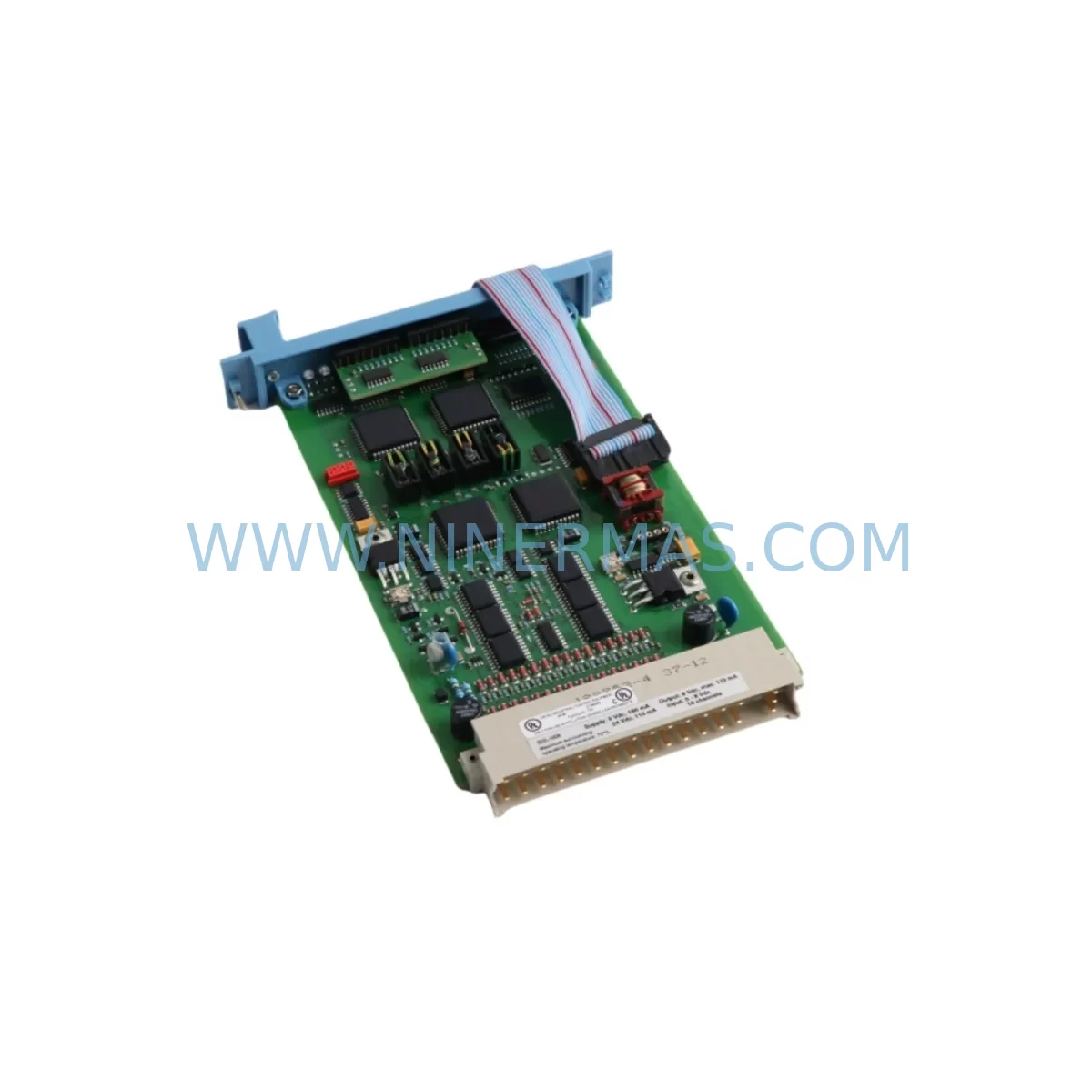

The Honeywell FS-TDOL-07120 is a Trusted Digital Output Logic module engineered for Honeywell’s Fail-Safe Controller (FSC) safety system platform — a proven architecture widely deployed across oil and gas, petrochemical, power generation, and chemical processing facilities. As FSC-series hardware approaches end-of-life and original spare parts become increasingly scarce, the FS-TDOL-07120 remains one of the most sought-after retrofit-compatible output modules for engineers tasked with sustaining legacy safety instrumented systems (SIS) without triggering a full system replacement.

Whether you are managing a planned turnaround, responding to an unplanned module failure, or executing a phased safety system modernization, the FS-TDOL-07120 provides a direct-fit replacement path that preserves your existing backplane architecture, terminal wiring, and validated safety logic — minimizing engineering rework and reducing overall project risk.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing an FS-TDOL-07120 in an operational FSC safety system requires careful pre-engineering to avoid unintended safety function activation or process trip. The following planning framework reflects best practices for FSC-platform retrofit projects across refinery, LNG terminal, and chemical plant environments.

Power Capacity Verification: Before inserting a replacement FS-TDOL-07120, audit the power budget of the FSC rack. The FSC power supply module — such as the FS-PDC-07120 — distributes 24 VDC across all installed modules via the backplane. If the existing power supply is already operating near capacity due to a fully populated rack, adding or replacing a module without verifying the load budget can cause undervoltage conditions that affect the entire safety loop. Always confirm available headroom against the FSC system manual before proceeding.

Terminal Wiring and I/O Drawing Reconciliation: The FS-TDOL-07120 connects to field devices — typically solenoid valves, motor starters, or shutdown actuators — through the FSC terminal assembly. Before disconnecting the legacy module, photograph and document all terminal connections against the as-built I/O drawing. Cross-reference with the FS-TSDO-07120 (Trusted Solenoid Driver Output) if your application involves solenoid-driven final elements, as wiring polarity and load specifications differ between module types. Confirm that the replacement module’s terminal block pinout matches the original before re-energizing.

Backplane and Rack Slot Confirmation: The FSC backplane — housed within the FS-BKM-0001 base unit or equivalent rack assembly — uses slot-based module addressing. The FS-TDOL-07120 must be installed in the same physical slot as the module it replaces to preserve the address mapping defined in the FSC application program. Swapping to a different slot without updating the FSC Engineering Tool (FET) configuration will result in a module mismatch fault and prevent the safety system from entering the RUN state.

Program Compatibility and Logic Verification: The FSC application program compiled for the original FS-TDOL-07120 remains valid for a like-for-like replacement, provided the firmware revision of the new module is compatible with the installed FSC controller version. After module insertion, re-download the validated application program using the FSC Engineering Tool and perform a full I/O checkout. If your project also involves upgrading the FSC controller module — for example, migrating from an older processor to a current-generation FSC CPU — coordinate the program re-compilation with your safety system integrator to ensure SIL compliance is maintained.

HMI Screen and Alarm Mapping: In facilities where the FSC safety system interfaces with a Honeywell Experion PKS DCS or a third-party SCADA platform via Modbus or OPC, confirm that the DO channel tags mapped to the FS-TDOL-07120 outputs are correctly reflected in the HMI faceplates. A module swap does not alter the tag database, but a forced output or diagnostic alarm generated during the swap procedure may trigger HMI alerts that require operator acknowledgment before the system returns to normal operation.

Communication Link Integrity: If your FSC system uses the FS-SAI-1620m (Safety Analog Input) or FS-TSAI-07120 (Trusted Safety Analog Input) modules on the same rack, verify that the internal FSC safety bus communication is not interrupted during the module replacement. Hot-swap capability varies by FSC configuration and safety integrity level; in SIL 2 or SIL 3 applications, a bypass or inhibit procedure may be required before removing the FS-TDOL-07120 to prevent a spurious trip.

Signal Isolation and Grounding: For applications where the FS-TDOL-07120 drives high-current loads or interfaces with equipment in hazardous areas, confirm that signal isolation requirements are met. In some retrofit scenarios, a signal isolator or safety barrier is installed between the FSC output terminal and the field device. These isolators must be verified for compatibility with the output drive capability of the FS-TDOL-07120 before commissioning.

Installation Space and Cabinet Layout: The FS-TDOL-07120 occupies a standard FSC single-slot form factor. In congested control cabinets where the FSC rack shares space with Honeywell HC900 process controllers, Modbus RTU communication modules, or third-party relay output panels, confirm that adequate clearance exists for module extraction and insertion without disturbing adjacent wiring harnesses or terminal blocks.

Pre-Shipment Testing and Inventory Supply: All FS-TDOL-07120 units supplied by NINERMAS are functionally tested under operational load conditions prior to shipment. Testing includes output channel activation verification, backplane communication handshake, and diagnostic self-test confirmation. Units are supplied with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. For projects requiring multiple units or long-term spare parts agreements, NINERMAS maintains reserved inventory to support planned maintenance schedules and emergency replacement requirements.

Downtime Control During System Migration

Minimizing unplanned downtime during an FSC module replacement is a primary concern for process safety engineers. The following approach is recommended to protect original program logic, maintain field control continuity, and reduce retrofit risk.

Pre-Swap Preparation: Before initiating the replacement, place the affected safety function in bypass or inhibit mode in accordance with your site’s Management of Change (MOC) and Safety Instrumented System (SIS) bypass procedures. Document the bypass activation time and notify the control room operator. Back up the current FSC application program from the controller using the FSC Engineering Tool and store the backup on a secure engineering workstation.

Controlled Module Exchange: With the affected output channel inhibited, remove the legacy FS-TDOL-07120 from the backplane slot. Insert the replacement module and allow the FSC controller to complete its self-diagnostic cycle — typically 30 to 60 seconds depending on the FSC firmware version. If the controller does not automatically recognize the new module, re-download the application program and perform a cold restart of the affected rack section only, avoiding a full system shutdown where possible.

I/O Checkout and Loop Test: After program download, perform a point-to-point loop test on each output channel of the FS-TDOL-07120. Confirm that each solenoid valve, motor starter, or shutdown actuator responds correctly to a forced output command from the FSC Engineering Tool. Remove all forced outputs before releasing the bypass and returning the safety function to automatic mode.

Return to Service: Once the loop test is complete and all diagnostic indicators on the FS-TDOL-07120 show healthy status, release the bypass in accordance with your site SIS procedures. Confirm with the control room operator that all HMI alarms related to the module swap have been acknowledged and cleared. Document the completed replacement in your site’s maintenance management system, including the new module serial number and the date of installation.

Retrofit Support FAQ

Q1: Is the FS-TDOL-07120 a direct drop-in replacement for the original Honeywell FSC digital output logic module?
A: Yes, the FS-TDOL-07120 is designed as a direct slot-compatible replacement for the original FSC TDOL module. No backplane modification, terminal rewiring, or application program recompilation is required for a like-for-like swap, provided the replacement module firmware is compatible with the installed FSC controller version. NINERMAS recommends confirming the firmware revision before shipment to ensure compatibility with your specific FSC system configuration.

Q2: What pre-shipment testing is performed on the FS-TDOL-07120 before delivery?
A: Every FS-TDOL-07120 unit supplied by NINERMAS undergoes functional testing that includes output channel activation, backplane communication verification, and FSC diagnostic self-test confirmation. Units are tested under operational load conditions to simulate real-world installation environments. A 12-month warranty is provided from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions.

Q3: Can the FS-TDOL-07120 be used in a SIL 2 or SIL 3 rated safety instrumented system?
A: The FS-TDOL-07120 is part of Honeywell’s Trusted safety system product family, which is certified for use in SIL 2 and SIL 3 applications in accordance with IEC 61508. However, the overall SIL rating of the safety function depends on the complete safety loop design, including the sensor, logic solver, and final element. Consult your safety system integrator and the FSC system safety manual to confirm that the replacement module meets the SIL requirements of your specific application.

Q4: What is the lead time and inventory availability for the FS-TDOL-07120?
A: NINERMAS maintains stock of the FS-TDOL-07120 to support both planned maintenance and emergency replacement requirements. Standard lead time for in-stock units is 3 to 7 business days for international shipment. For projects requiring multiple units or long-term supply agreements, contact our sales team to discuss reserved inventory arrangements and volume pricing. All units are shipped with full documentation and a 12-month warranty certificate.
