Honeywell FS-SMSB-ST-110 Service-Ready Industrial Spare Part

Honeywell FS-SMSB-ST-110 Service-Ready Industrial Spare Part: Spare Replacement and Downtime Risk Control

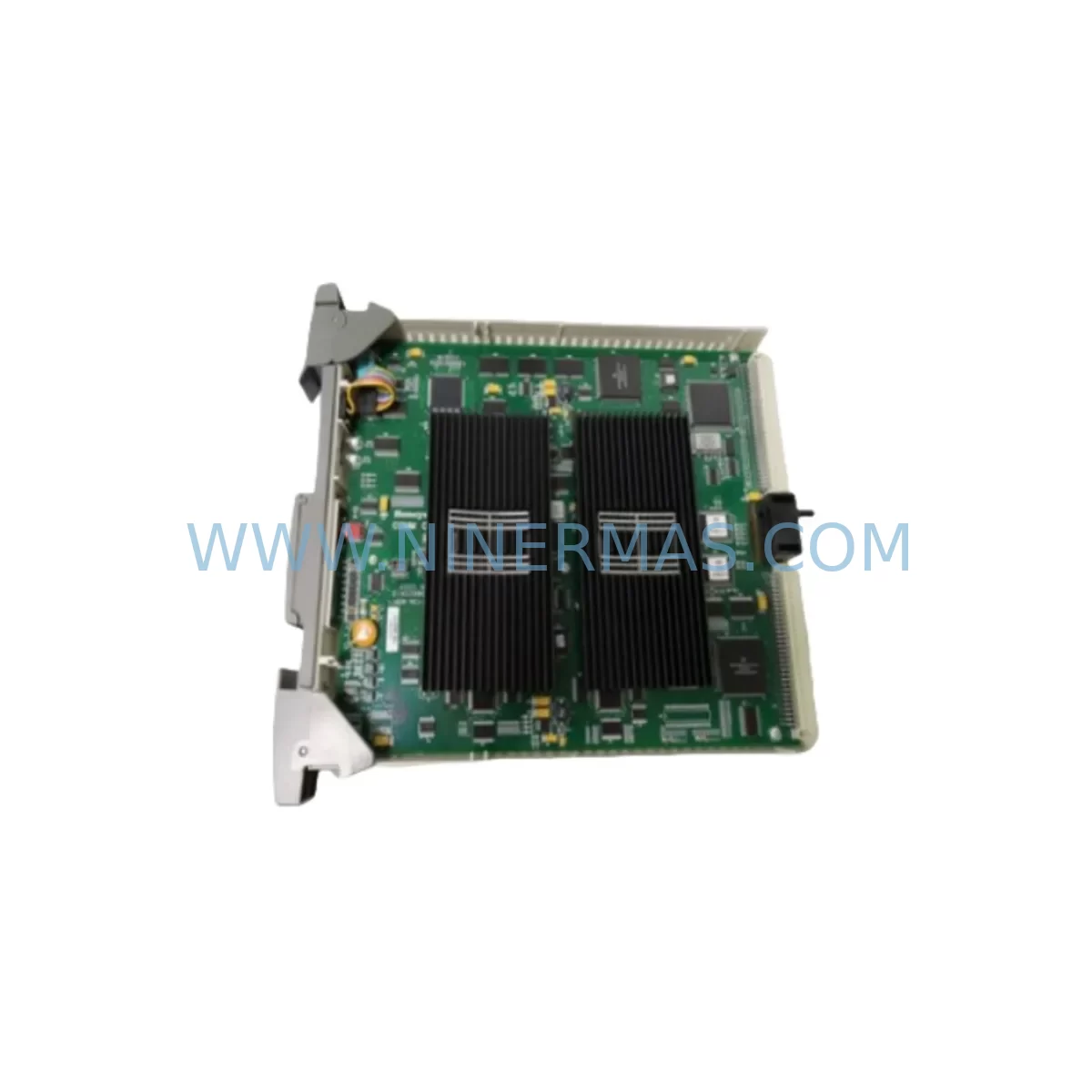

The Honeywell FS-SMSB-ST-110 is a Safety Manager System Board module designed for use within Honeywell’s FSC (Fail-Safe Controller) and Safety Manager platform — a widely deployed safety instrumented system (SIS) across oil and gas, petrochemical, power generation, and heavy manufacturing facilities. As a critical component within the safety logic solver architecture, the FS-SMSB-ST-110 plays a central role in maintaining SIL-rated process safety loops. When this module fails or reaches end-of-life, the consequences extend beyond a single card replacement: the entire safety function may be impaired, triggering mandatory plant shutdown protocols and regulatory compliance reviews.

At NINERMAS, we maintain service-ready stock of the FS-SMSB-ST-110 to support maintenance engineers and procurement teams who cannot afford extended lead times on safety-critical spares. Every unit is pre-shipment tested, verified against original Honeywell specifications, and covered by a 12-month warranty. Our inventory strategy is built around long-term supply continuity — ensuring that even as Honeywell transitions product lines, your installed base remains protected.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the FS-SMSB-ST-110 in a live Safety Manager cabinet is rarely an isolated task. Experienced maintenance engineers understand that a system board failure often signals broader stress across the safety logic solver infrastructure. Before returning the system to service, a structured inspection of adjacent components is essential to prevent repeat failures and ensure the integrity of the entire safety loop.

Begin with the backplane and power distribution layer. The FS-PDC-IOEP1 power distribution card and the associated 51309276-150 power supply module should be inspected for voltage ripple, thermal stress, and connector wear. A degraded power rail is one of the most common root causes of premature system board failure in long-running FSC installations. If the cabinet has been in service for more than five years without a power audit, this is the moment to perform one.

Next, review the I/O modules connected to the safety loop. The FS-SAI-1620m safety analog input module and the FS-SDI-1624 safety digital input module should be checked for channel drift, wiring integrity, and field device calibration. On the output side, the FS-SDO-0824 safety digital output module warrants inspection for contact wear and load compatibility. For applications requiring triple modular redundancy, the FS-TSAI-1620m triple safety analog input module should be verified for voting logic consistency across all three channels.

Communication integrity is equally important. The TC-CCR014 communication module, which handles data exchange between the Safety Manager and the DCS or SCADA layer, should be tested for latency and packet loss. Fiber optic interconnects such as the TC-FPCXX2 cable assembly are often overlooked during routine maintenance but are a frequent source of intermittent communication faults in older installations. Inspect connectors for contamination and verify signal levels against baseline records.

Finally, review the terminal blocks, fuse holders, and signal isolators within the cabinet. Loose terminations and blown fuses are common contributors to nuisance trips and diagnostic alarms that can mask genuine module faults. A complete cabinet inspection — not just a module swap — is the professional standard for restoring a safety system to full operational confidence.

Site Replacement Workflow

Replacing the FS-SMSB-ST-110 on-site requires careful preparation to minimize downtime and maintain system compatibility. The following workflow reflects best practices for safety system maintenance in regulated industrial environments.

Step 1 — Pre-Replacement Verification: Confirm the replacement unit’s part number matches the installed module exactly. The FS-SMSB-ST-110 designation includes hardware revision information; verify compatibility with your Safety Manager firmware version before proceeding. NINERMAS provides compatibility confirmation as part of the pre-shipment process.

Step 2 — Safety Bypass and Permit: Coordinate with the process safety engineer to implement an approved safety bypass for the affected loop. Document the bypass in the plant’s management of change (MOC) system. Never replace a safety module without an authorized bypass in place.

Step 3 — Module Removal: Power down the affected slot per the FSC maintenance manual. Disconnect field wiring carefully, labeling each connection. Remove the FS-SMSB-ST-110 from the backplane slot and inspect the slot connector for damage or contamination.

Step 4 — Installation and Configuration: Insert the replacement module and restore field wiring. Apply any required configuration parameters via the Safety Manager engineering workstation. Perform a functional test of all I/O channels associated with the module before releasing the bypass.

Step 5 — Return to Service: Remove the safety bypass in accordance with the plant’s reinstatement procedure. Document the replacement in the equipment maintenance record and update the spare parts inventory accordingly.

This structured approach reduces mean time to repair (MTTR), maintains regulatory compliance, and ensures that the replaced module performs to its original SIL rating from day one.

Spare Parts Support FAQ

Q1: Is the FS-SMSB-ST-110 still available as a new original part, or is it end-of-life?
The FS-SMSB-ST-110 is part of the Honeywell Safety Manager legacy product family. While Honeywell has transitioned newer installations to updated platforms, the FS-SMSB-ST-110 remains in active demand for installed base maintenance. NINERMAS maintains dedicated stock of this module to support long-term spare parts availability for facilities that cannot justify a full system upgrade. Contact us to confirm current stock levels and lead times.

Q2: How do I verify compatibility between the FS-SMSB-ST-110 and my existing Safety Manager cabinet?
Compatibility depends on your cabinet’s backplane revision, firmware version, and hardware configuration. Provide your Safety Manager system serial number or cabinet configuration report to our technical team, and we will confirm compatibility before shipment. We do not ship without compatibility verification for safety-critical modules.

Q3: What does the 12-month warranty from NINERMAS cover?
Our 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Each FS-SMSB-ST-110 unit is tested prior to shipment using functional test procedures aligned with Honeywell’s original acceptance criteria. In the event of a warranty claim, we provide a replacement unit with priority shipping to minimize your downtime exposure.

Q4: Can NINERMAS support long-term supply agreements for the FS-SMSB-ST-110?
Yes. For facilities with multiple Safety Manager installations or annual maintenance programs, NINERMAS offers reserved inventory agreements that guarantee stock availability over a defined period. This is particularly valuable for end-of-life components where open-market availability is unpredictable. Contact our procurement team to discuss a long-term supply arrangement tailored to your maintenance schedule.
