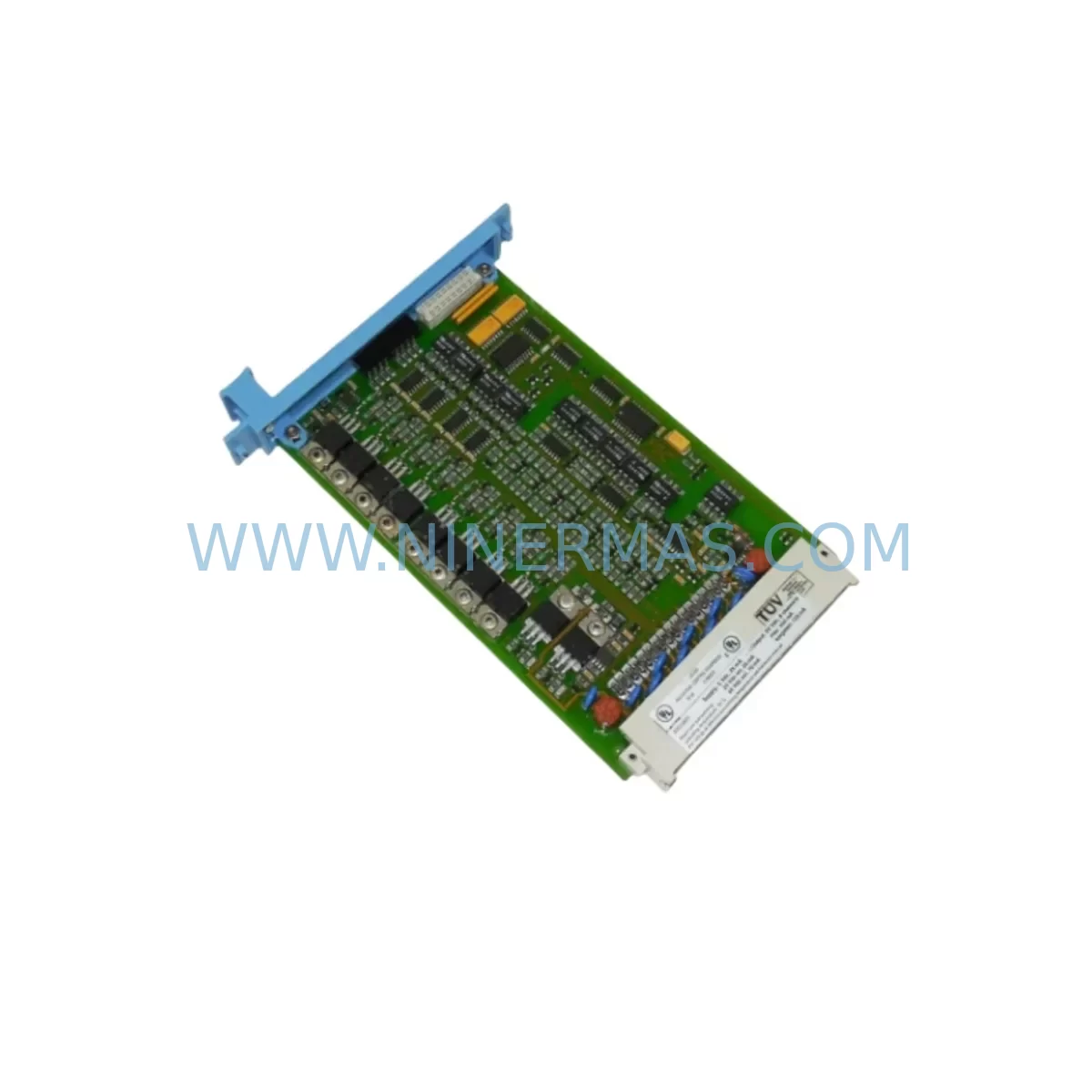

The Honeywell FS-SDO-0824 is a safety-certified digital output module engineered for deployment within Honeywell Safety Manager (FSC) safety instrumented systems. Designed to meet the rigorous demands of SIL 2 and SIL 3 process safety applications, this module delivers deterministic, fail-safe output switching across 8 channels at 24 VDC — making it a cornerstone component in critical control cabinets where unplanned shutdowns, signal drift, or output misfire carry unacceptable operational and safety consequences.

In continuous production environments — petrochemical reactors, power generation turbine control, offshore platform emergency shutdown systems, and high-voltage substation protection — the FS-SDO-0824 provides the output integrity that safety logic demands. Its architecture supports diagnostic coverage rates consistent with IEC 61508 and IEC 61511 requirements, ensuring that every output channel is continuously monitored for short-circuit, open-load, and cross-wiring faults before they can propagate into a dangerous undetected failure.

NINERMAS maintains verified stock of the FS-SDO-0824 with pre-shipment functional testing and a 12-month warranty, supporting both planned maintenance cycles and emergency spare part replacement for live safety systems.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

A safety control cabinet built around the Honeywell Safety Manager platform is only as reliable as its weakest output path. The FS-SDO-0824 addresses this directly by providing hardened, diagnostically supervised digital output switching that eliminates the silent failure modes common in standard I/O modules operating in safety-critical roles.

In a typical FSC safety cabinet, the FS-SDO-0824 works in close coordination with the FS-SDI-0824 safety digital input module, which handles field sensor signals from emergency stop buttons, pressure switches, and position detectors. Together, these two modules form the core I/O layer of the safety loop. For analog process variables — flow, temperature, and pressure transmitters — the FS-SAI-1620m safety analog input module provides the signal conditioning layer, feeding validated process values into the FSC safety logic solver.

Where output redundancy is required for SIL 3 applications or critical valve actuation, the FS-TSDO-0824 triple-redundant safety digital output module can be deployed alongside the FS-SDO-0824 to achieve voted output architectures (2oo3 or 1oo2D) that eliminate single-point output failures. The 10024/H/F Safety Manager CPU module serves as the central logic processor, executing the safety application program and managing all I/O module communication across the FSC backplane.

Power integrity is equally critical. The 51309276-150 power supply module provides regulated 24 VDC to the FSC rack, and in high-availability installations, the TC-FPCXX2 redundant power conditioner ensures that power supply faults do not propagate into output channel de-energization. Communication between the FSC controller and the distributed control system (DCS) or SCADA layer is maintained through the TC-CCR014 redundant communication module, which supports Modbus and proprietary Honeywell protocols without introducing latency that could delay safety response.

For multi-rack FSC configurations — common in large petrochemical or power plant safety systems — the FS-SICC-0001/L1L2 system interconnect cable maintains deterministic backplane communication between expansion racks, ensuring that the FS-SDO-0824 modules in remote I/O cabinets respond to safety commands within the required process safety time. The 10006/2/1 Safety Manager controller module and the FS-SAI-0420m safety analog input module round out the typical FSC cabinet architecture, providing the full signal chain from field sensor to final element actuation.

Together, this ecosystem of Honeywell Safety Manager components — with the FS-SDO-0824 at the output stage — creates a control cabinet architecture that systematically reduces the risk of control interruption, spurious trips, signal drift, power fluctuation, communication anomalies, surge impact, and unplanned shutdown events.

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: The FS-SDO-0824 is widely deployed in emergency shutdown (ESD) systems for reactor feed isolation, compressor trip, and fired heater fuel gas cutoff. In these environments, the module’s high diagnostic coverage and fail-safe output behavior ensure that safety valves and actuators receive correct de-energize-to-trip signals even under extreme electromagnetic interference from variable frequency drives, high-voltage switchgear, and radio frequency sources common in refinery control rooms.

Power Generation and Substation Control: Turbine protection systems, boiler management systems (BMS), and high-voltage substation interlocking rely on the FS-SDO-0824 for reliable trip output to circuit breakers, solenoid valves, and motor starters. The module’s ability to maintain output integrity under voltage fluctuation and surge conditions — typical in power plant environments — makes it a preferred choice for generator protection and grid-tie safety interlock applications.

Mining and Mineral Processing: In underground mining and surface mineral processing, the FS-SDO-0824 supports conveyor belt emergency stop systems, crusher protection interlocks, and ventilation fan safety controls. Dust-laden, high-humidity environments with significant vibration demand the module’s robust construction and sealed panel-mount installation capability.

Water and Wastewater Treatment: Municipal and industrial water treatment facilities use the FS-SDO-0824 in chemical dosing interlock systems, pump protection circuits, and overflow prevention safety loops. The module’s continuous fault detection prevents silent output failures that could result in chemical overdose or tank overflow incidents.

Metallurgy and Steel Production: Electric arc furnace (EAF) safety systems, rolling mill emergency stops, and ladle transfer interlock systems in steel plants benefit from the FS-SDO-0824’s ability to operate reliably in high-temperature, high-vibration, and high-EMI environments characteristic of heavy metallurgical processes.

Port, Marine, and Offshore Installations: Offshore platform emergency shutdown systems, ship engine room safety controls, and port crane overload protection systems deploy the FS-SDO-0824 for its compact form factor, wide operating temperature range, and compliance with marine and offshore safety standards.

Safety and Quality FAQ

Q1: Does the FS-SDO-0824 come with a warranty, and what does it cover?
Yes. Every FS-SDO-0824 unit supplied by NINERMAS carries a 12-month warranty from the date of shipment. The warranty covers manufacturing defects, functional failures under normal operating conditions, and component-level faults identified during the warranty period. Warranty claims are supported with direct technical assistance and replacement unit dispatch to minimize safety system downtime.

Q2: What pre-shipment testing is performed on the FS-SDO-0824?
Each unit undergoes a full functional test before dispatch. This includes per-channel output switching verification, diagnostic self-test confirmation, power-on initialization check, and visual inspection for physical damage or connector integrity issues. Test records are maintained and available upon request for traceability in safety-critical procurement processes.

Q3: Is the FS-SDO-0824 compatible with existing Honeywell Safety Manager FSC systems?
Yes. The FS-SDO-0824 is designed for direct installation into Honeywell Safety Manager (FSC) racks and is compatible with the full range of FSC I/O modules, including the FS-SDI-0824, FS-SAI-1620m, and FS-TSDO-0824. It is also compatible with the 10024/H/F CPU module and the FSC backplane communication architecture. Customers are advised to verify firmware revision compatibility with their specific FSC system configuration before installation.

Q4: Can NINERMAS support long-term supply of the FS-SDO-0824 for ongoing maintenance programs?
Yes. NINERMAS specializes in long-term spare parts supply for end-of-life and legacy industrial automation systems, including the Honeywell Safety Manager platform. We maintain reserved inventory agreements and can support scheduled procurement programs for maintenance engineers and system integrators managing multi-site FSC installations. Contact our team to discuss volume pricing, lead time commitments, and long-term supply contracts.
