Honeywell FS-IOCHAS-0001S Service-Ready Industrial Spare Part

Honeywell FS-IOCHAS-0001S Service-Ready Industrial Spare Part: Spare Replacement and Downtime Risk Control

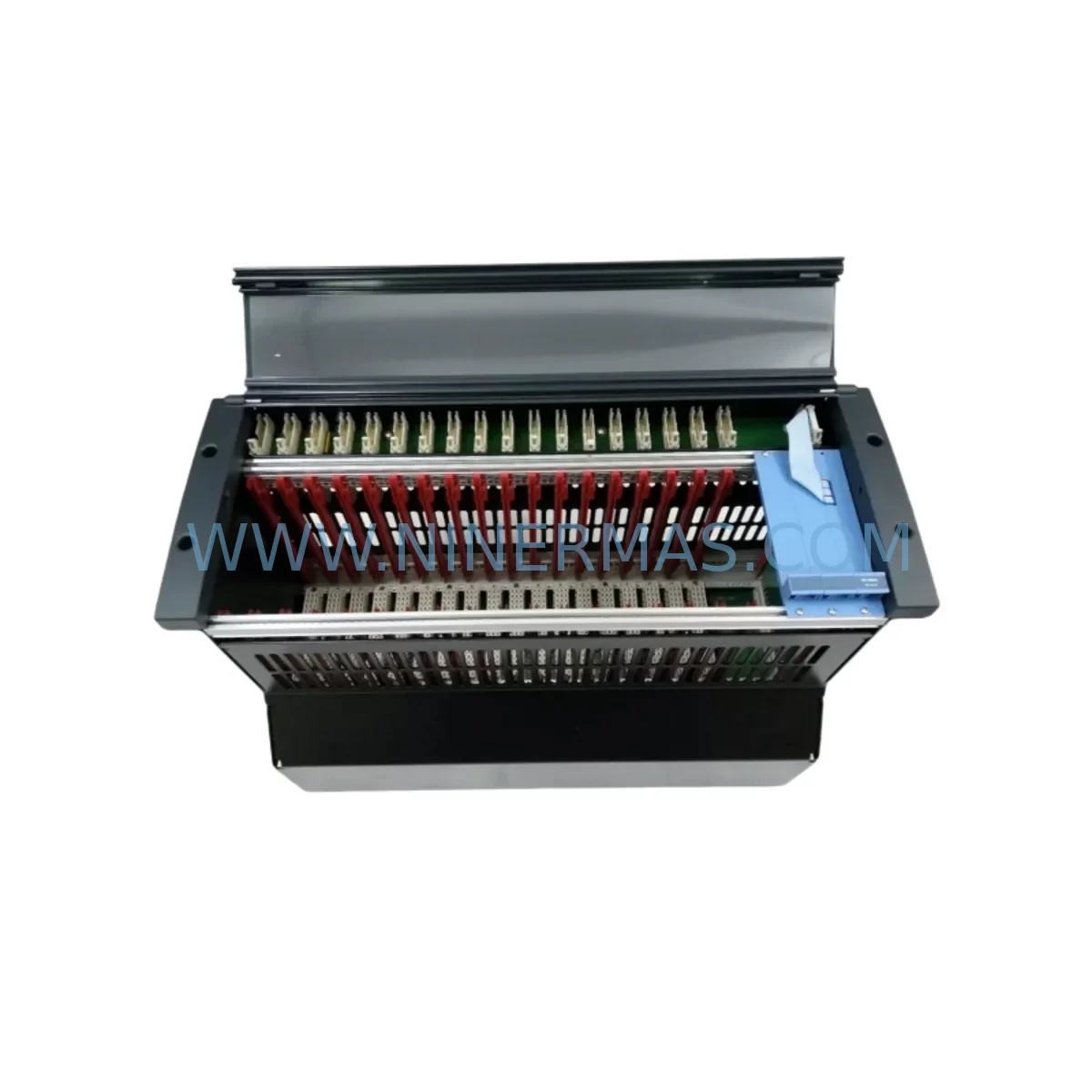

The Honeywell FS-IOCHAS-0001S is a ruggedized I/O chassis designed for deployment within Honeywell’s Safety Manager and Fail-Safe Controller (FSC) safety instrumented systems. As a critical structural and electrical backbone for field I/O modules, this chassis directly supports the integrity of safety loops in process plants, refineries, chemical facilities, and offshore platforms. When this component reaches end-of-life or sustains damage, the risk of unplanned shutdown escalates rapidly. Maintaining a verified, service-ready spare of the FS-IOCHAS-0001S in your on-site inventory is a fundamental element of any robust maintenance strategy for safety-critical control infrastructure.

Sourced as an original Honeywell spare part, the FS-IOCHAS-0001S is pre-tested prior to shipment and backed by a 12-month warranty. Each unit undergoes functional verification to confirm backplane integrity, slot alignment, and power rail continuity before leaving our facility. This ensures that when your maintenance team installs the replacement chassis, the system returns to full operational status without secondary fault investigation delays.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the FS-IOCHAS-0001S chassis in a live Safety Manager cabinet requires a structured approach that goes beyond the chassis itself. Maintenance engineers and procurement teams should treat this replacement as an opportunity to audit the entire I/O sub-system and adjacent components to prevent repeat failures and reduce future downtime exposure.

Begin with the power distribution layer. The FS-PDC-IOEP1 power distribution card feeds the I/O chassis slots; inspect it for signs of thermal stress, connector oxidation, or voltage irregularities before reinstalling modules into the new chassis. Simultaneously, verify the condition of the FS-CPCHAS-0001 CPU chassis if it shares the same cabinet, as backplane communication faults can be misdiagnosed as I/O chassis failures.

On the module side, check each installed I/O card. The FS-SAI-1620m safety analog input module and FS-SDI-1624 safety digital input module should be inspected for contact wear and firmware version alignment. The FS-SDO-0824 safety digital output module, which drives final control elements, must be tested for output relay integrity before the system is returned to service. Any module showing marginal performance should be flagged for replacement from your spare parts buffer.

Interconnection cabling is a frequent source of latent faults. The FS-SICC-0001/L8 system interconnection cable links chassis segments and should be visually inspected and continuity-tested during every chassis swap. Damaged or aged cables can introduce intermittent communication errors that are difficult to trace after reassembly.

For battery-backed configurations, the FS-BAT-1 battery module should be tested for charge retention. A chassis replacement event is an ideal time to replace batteries that are approaching their service interval, avoiding a separate maintenance window. If your system includes gas detection integration, the FS-TSGAS-0001 triple-safe gas module should be verified for loop integrity and calibration status.

Communication infrastructure also warrants attention. The TC-CCR014 redundant communication module, if installed, should be checked for active/standby switchover function. Finally, inspect all terminal blocks, fuse holders, and signal isolators within the cabinet. Loose terminations and degraded fuses are common contributors to nuisance trips following a chassis replacement, and addressing them proactively eliminates unnecessary callbacks.

Site Replacement Workflow

A structured site replacement workflow minimizes downtime and ensures system compatibility when installing the FS-IOCHAS-0001S as a direct replacement for a failed or end-of-life chassis.

Step 1 — Pre-Replacement Verification: Confirm the replacement chassis part number matches the installed unit exactly. Cross-reference the firmware revision of all I/O modules to be reinstalled against the compatibility matrix for the FS-IOCHAS-0001S. Document the current slot configuration with photographs before disassembly.

Step 2 — Safe Isolation: Follow your site’s safety instrumented system bypass and inhibit procedures. Engage the appropriate safety function bypass in the Safety Manager HMI before de-energizing the I/O chassis. Notify the control room and obtain a permit to work.

Step 3 — Module Extraction and Labeling: Remove I/O modules in sequence, labeling each with its slot position. Inspect each module’s connector pins and edge contacts. Set aside any modules showing physical damage for bench testing.

Step 4 — Chassis Installation: Mount the new FS-IOCHAS-0001S in the cabinet, secure all mechanical fasteners, and reconnect the power distribution and backplane cables. Verify torque on all terminal connections.

Step 5 — Module Reinsertion and System Restart: Reinstall I/O modules in their original slot positions. Power up the chassis and observe the Safety Manager diagnostic display for fault codes. Confirm all I/O channels report healthy status before releasing the safety function bypass.

Step 6 — Functional Test and Documentation: Perform a loop test on critical safety functions. Update the maintenance log with the replacement date, part serial number, and technician sign-off. File the 12-month warranty documentation for the new chassis.

Spare Parts Support FAQ

Q1: Is the FS-IOCHAS-0001S compatible with all Honeywell Safety Manager and FSC configurations?
The FS-IOCHAS-0001S is designed for use within the Honeywell FSC and Safety Manager I/O sub-system architecture. Compatibility depends on your specific system revision and the I/O modules installed. We recommend providing your system configuration details at the time of inquiry so our technical team can confirm direct interchangeability before shipment.

Q2: What testing is performed before the unit ships?
Every FS-IOCHAS-0001S unit undergoes pre-shipment functional testing covering backplane continuity, slot integrity, and power rail verification. A test report is available upon request. The unit ships with a 12-month warranty from the date of delivery, covering manufacturing defects and functional failures under normal operating conditions.

Q3: How should I manage long-term spare parts inventory for end-of-life FSC components?
For end-of-life and last-time-buy components like the FS-IOCHAS-0001S, we recommend securing a minimum of one to two chassis units per production line as a strategic buffer. Coordinate with your procurement team to establish a reserved inventory agreement, particularly for facilities with extended annual maintenance cycles or remote locations where expedited sourcing is not feasible.

Q4: Can you support long-term supply for multiple units across a multi-site maintenance program?
Yes. We maintain service-ready inventory of the FS-IOCHAS-0001S and related FSC system components to support multi-site procurement programs. Volume orders, staged delivery schedules, and consignment arrangements can be discussed directly with our sales team. Contact us at sale@ninermas.com or +0086 187 5021 5667 to discuss your site’s requirements.
