Honeywell FS-IOB-0001S Service-Ready Industrial Spare Part

Honeywell FS-IOB-0001S Service-Ready Industrial Spare Part: Spare Replacement and Downtime Risk Control

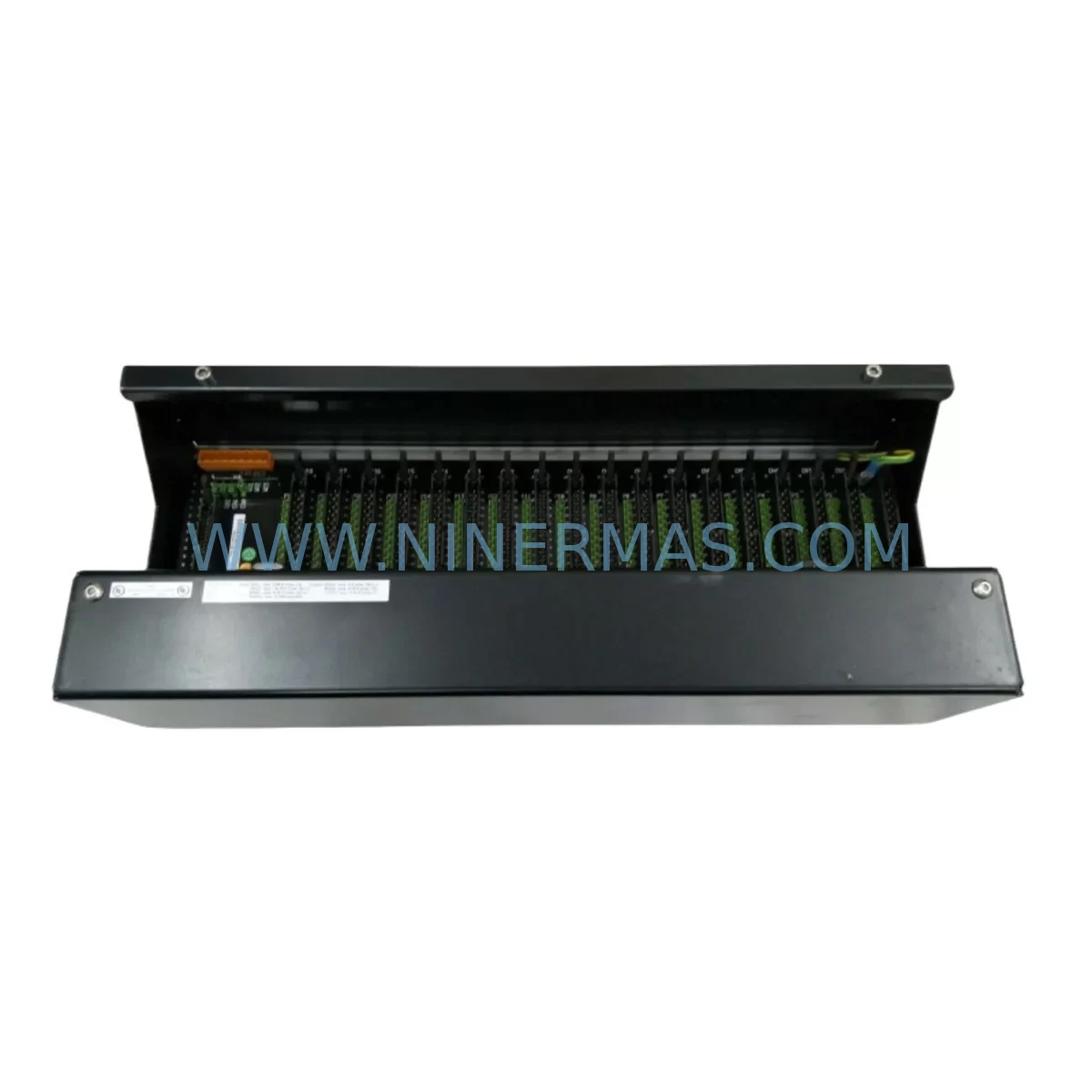

The Honeywell FS-IOB-0001S is a critical I/O board designed for use within the Honeywell FSC (Fail-Safe Controller) safety system platform — one of the most widely deployed safety-rated control architectures in process industries including oil & gas, petrochemical, power generation, and chemical manufacturing. As an original spare part sourced and pre-shipment tested by NINERMAS, the FS-IOB-0001S is maintained in service-ready condition to support emergency replacement, planned annual maintenance, and long-term system life extension for aging FSC installations.

Maintenance engineers and procurement teams managing FSC-based safety systems understand the operational risk of holding zero stock on I/O board assemblies. The FS-IOB-0001S interfaces directly with the FSC backplane and handles field-level signal routing between the process instrumentation and the safety logic solver. A failed or degraded I/O board can trigger a partial or full safety system shutdown, resulting in unplanned production loss. Holding a verified, tested spare on-site or through a trusted distributor like NINERMAS is the most effective strategy to minimize mean time to repair (MTTR) and maintain SIL-rated system integrity.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the FS-IOB-0001S during a scheduled or emergency maintenance event, a thorough inspection of the surrounding FSC cabinet components is essential to prevent repeat failures and ensure the safety system returns to full operational status. Maintenance engineers should treat the I/O board replacement as an opportunity to audit the entire I/O loop and power distribution chain.

Begin by verifying the integrity of the FSC power supply module — typically the FS-PS-0002 or equivalent — which provides regulated 24 VDC to the backplane. A degraded power supply is a common root cause of I/O board failures and should be load-tested before the replacement board is installed. Inspect the FS-BKM-0001 backplane module for signs of corrosion, loose connector pins, or thermal stress, as backplane faults can cause intermittent I/O board communication errors that are difficult to diagnose without physical inspection.

On the digital I/O side, cross-check the associated FS-SDI-1624 digital input module and FS-SDO-0824 digital output module for alarm history and channel-level diagnostics. These modules share the same FSC bus and are frequently stressed by the same electrical transients that damage the I/O board. If the site uses analog process signals, the FS-TSAI-1620M analog input module should be verified for signal drift and calibration status during the same maintenance window.

Communication integrity between the FSC and the DCS or SCADA layer should be confirmed via the FS-CNET-0505 communication module. A board swap without verifying communication module health can result in a system that passes local diagnostics but fails to report correctly to the control room. For sites using relay-based output circuits, inspect the FS-REL-0001 relay output module for contact wear and coil resistance, particularly in high-cycle ESD applications.

Signal isolation is a frequently overlooked element of FSC maintenance. Where field wiring passes through signal isolators before reaching the I/O board, verify that the isolators — such as the FS-SICC-0001 signal conditioning card — are within specification. Degraded isolation can introduce ground loops that corrupt I/O readings and accelerate board wear. Terminal assemblies such as the 10024/I/F field termination assembly should be inspected for loose terminations, oxidized contacts, and correct torque on all field wiring connections.

Finally, review the FSC rack’s overall thermal management. Blocked ventilation slots, failed cooling fans, or elevated ambient temperatures in the control cabinet are leading contributors to premature I/O board failure. Documenting all findings in the site maintenance log ensures traceability and supports future procurement decisions for long-term spare parts inventory planning.

Site Replacement Workflow

The FS-IOB-0001S is a direct replacement for the original Honeywell FSC I/O board assembly. No firmware modification or hardware reconfiguration is required when replacing a like-for-like board within the same FSC rack slot. The following workflow is recommended to minimize downtime and maintain system compatibility:

Step 1 — Pre-replacement verification: Confirm the replacement board part number matches the installed unit. Verify the FSC system is in a safe state (bypassed or in maintenance mode per site safety procedures) before removing the faulty board. Document the current system status and any active alarms.

Step 2 — Board removal: Power down the affected I/O slot per the FSC maintenance manual. Carefully disconnect field wiring from the terminal assembly. Remove the board using the extraction handles, avoiding contact with PCB components. Inspect the backplane connector for damage before installing the replacement.

Step 3 — Replacement installation: Insert the FS-IOB-0001S into the correct rack slot. Reconnect field wiring per the original termination schedule. Restore power to the slot and verify the board initializes correctly via the FSC diagnostic interface.

Step 4 — System validation: Perform a channel-by-channel I/O check against the loop drawings. Confirm all field signals are reading correctly and no new alarms are present. Remove the maintenance bypass and return the safety function to service. Update the maintenance record with the replacement date, board serial number, and test results.

This workflow supports a typical board swap in under two hours for a prepared maintenance team, significantly reducing the production impact of an unplanned FSC I/O failure.

Spare Parts Support FAQ

Q1: Is the FS-IOB-0001S still available as a new original part, or is it end-of-life?
The FS-IOB-0001S is sourced from authorized channels and verified original stock. Honeywell FSC components are classified as end-of-life or limited availability in many markets, making specialist distributors like NINERMAS a critical supply source. NINERMAS maintains long-term stock agreements to support ongoing availability for FSC users extending system life beyond OEM support windows.

Q2: How do I verify compatibility with my existing FSC rack before ordering?
Compatibility is confirmed by matching the board part number to your FSC rack assembly drawing and the installed module list in your FSC configuration documentation. NINERMAS technical support can assist with compatibility verification using your rack model number and existing module list. Contact sale@ninermas.com with your system details for pre-order confirmation.

Q3: What pre-shipment testing is performed on the FS-IOB-0001S?
Every FS-IOB-0001S unit shipped by NINERMAS undergoes functional verification including power-on self-test, I/O channel continuity check, and visual inspection for physical damage. Units that do not pass testing are not shipped. A test report is available upon request for quality-critical procurement processes.

Q4: What does the 12-month warranty cover, and how is a warranty claim processed?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. It does not cover damage caused by incorrect installation, overvoltage events, or physical mishandling. To initiate a warranty claim, contact NINERMAS at sale@ninermas.com with the order reference, failure description, and photographic evidence. Replacement or repair will be arranged within the warranty terms.
