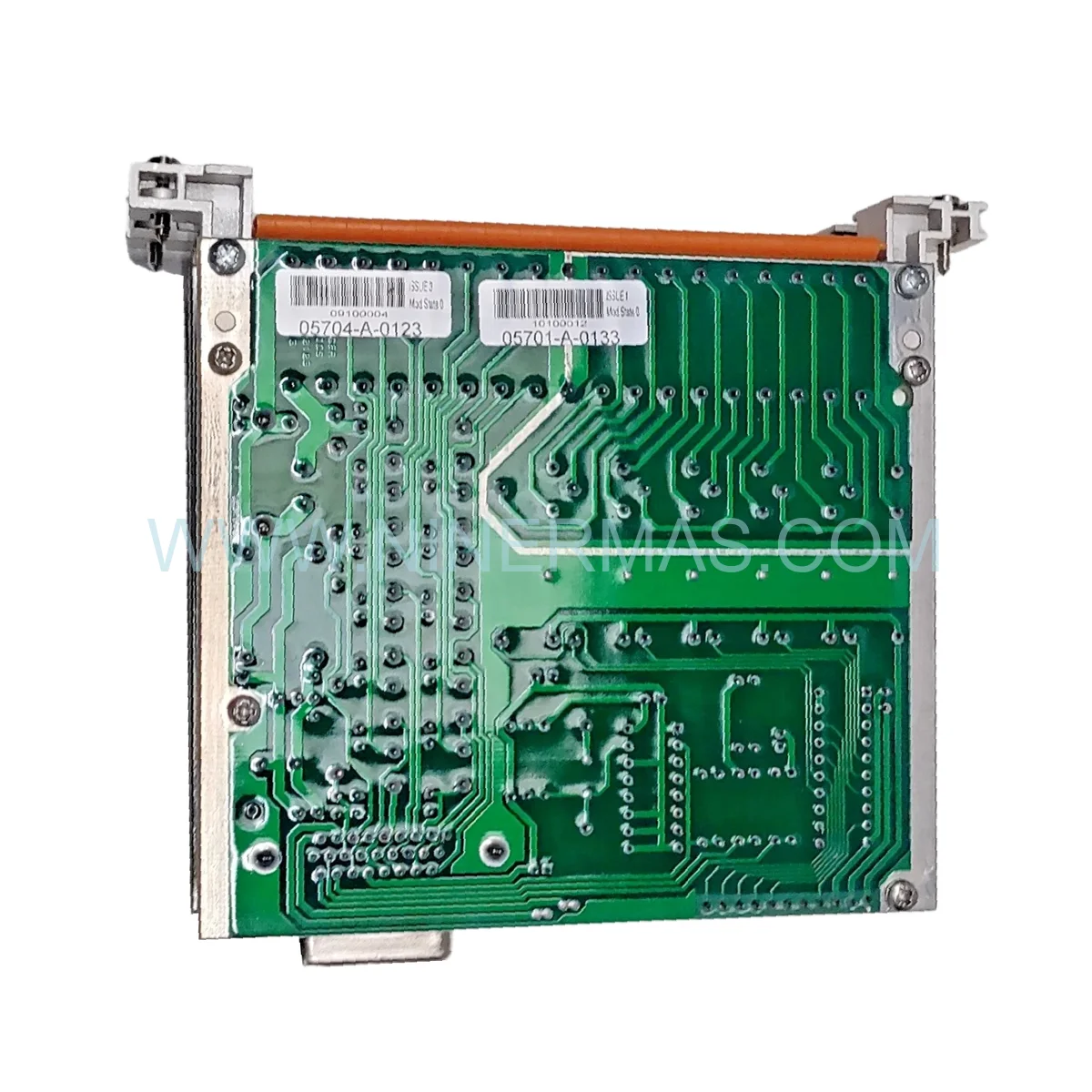

Honeywell Fire Relay Interface Assembly 05704-A-0123 Original Spare Part

Honeywell Fire Relay Interface Assembly 05704-A-0123 | Reliable Automation Component

Field Application & Operational Analysis

From the perspective of a Site Reliability Engineer managing mission-critical fire suppression and detection infrastructure, the Honeywell 05704-A-0123 stands as a cornerstone I/O module for process optimization within the System 57 platform. The 05704-A-0123 directly enhances system availability by expanding relay output capacity to 16 configurable single-pole changeover (SPCO) channels — enabling simultaneous fire zone signaling, fault annunciation, and auxiliary device control without additional hardware overhead. Its role in system integration is indispensable for facilities where operational excellence is non-negotiable.

Engineered for durability in demanding industrial environments, the 05704-A-0123 operates reliably across an 18-32 V DC supply range sourced directly from the System 57 rack, eliminating external power dependencies. Installation requires careful attention to EOL resistor placement (22 kΩ recommended for remote inputs) and correct slot alignment within the two-slot rack footprint. Screw terminals supporting both front and rear access simplify field wiring in confined panel spaces, reducing commissioning time and minimizing human error during maintenance windows.

As a legacy yet actively deployed automation component within Honeywell’s fire control ecosystem, maintaining a certified spare unit of the 05704-A-0123 is a fundamental SRE practice. Production line stoppages caused by relay module failure in fire-rated zones carry significant regulatory and financial consequences — proactive inventory of this module is a low-cost insurance policy against high-impact downtime events.

Key Operational Features

16 Configurable SPCO Relay Outputs — Supports latching/non-latching and energized/de-energized modes for flexible zone mapping
High Contact Rating — 5 A at 250 V AC / 30 V DC, suitable for driving sounders, beacons, and auxiliary control circuits
Seamless Integration with Honeywell 5704F Four Channel Control Card (05704-A-0146) for redundant fire control architectures
Fault Monitoring via EOL Resistor — Continuous line supervision ensures high availability and rapid fault isolation
Compact 1-Inch Module Form Factor — Fits standard System 57 rack slots; minimal footprint for dense panel installations
Multi-Standard Certification — CE, EN54-2, UL, CSA compliance ensures global regulatory acceptance

Maintenance & Performance Benchmarks

The 05704-A-0123 is architected to slot into both small-scale commercial fire systems and large multi-zone industrial networks without firmware reconfiguration. Its rack-powered design (1.7 W typical consumption) means it draws negligible load from the System 57 bus, preserving headroom for additional I/O modules in high-density configurations.

For maintenance engineers, the module’s selectable relay operation modes allow in-field reconfiguration without panel shutdown — a critical advantage in 24/7 operational environments such as petrochemical plants, data centers, and manufacturing facilities. Periodic testing of relay contact integrity (recommended every 6 months per EN54-2 guidelines) can be performed using the System 57 diagnostic interface, ensuring continuous compliance with fire safety regulations.

In legacy system integration scenarios — where EOL (End-of-Life) module sourcing is a persistent challenge — the 05704-A-0123 remains available through certified industrial automation component distributors, supporting long-term asset management strategies without costly full-system upgrades.

Comprehensive Data Sheet

Professional Logistics & Sourcing Excellence

Every Honeywell 05704-A-0123 unit shipped by NINERMAS COMPANY LIMITED is sourced directly from authorized distribution channels and dispatched in Original Factory Packaging to preserve ESD protection and mechanical integrity during transit. Same-day dispatch is available for in-stock units upon order confirmation before the daily cut-off time.

We maintain a dedicated global supply pipeline for EOL and legacy automation components — ensuring that facilities running long-lifecycle Honeywell System 57 installations are never left without critical spare parts. Worldwide express logistics via DHL, FedEx, and UPS ensures delivery to any industrial site globally, with full tracking and customs documentation support provided as standard.

Engineering Support & FAQ

Q1: How do I install the 05704-A-0123 into an existing System 57 rack?
A: Power down the System 57 rack before insertion. Align the module with two adjacent rack slots and slide firmly until the rear connector seats fully. Restore power and verify relay status via the 5704F control card diagnostic display. No tools are required for module seating.

Q2: Is the 05704-A-0123 compatible with all firmware versions of the 5704F control card?
A: The 05704-A-0123 is a hardware relay interface with no onboard firmware. Compatibility is determined by the 5704F control card firmware version. Consult Honeywell’s System 57 release notes to confirm relay mapping support for your specific firmware revision.

Q3: Can relay operation modes be changed without taking the system offline?
A: Yes. Relay latching/non-latching and energized/de-energized modes are configurable via the 5704F software interface without requiring module removal or system shutdown, minimizing disruption to live fire detection circuits.

Q4: What is the warranty process for a defective unit?
A: All units carry a 1-year warranty from the date of shipment. To initiate a warranty claim, contact sale@ninermas.com with your order number, a description of the fault, and photographic evidence. Replacement or refund is processed within 5-7 business days upon fault verification.

Q5: How should EOL resistors be configured for remote input supervision?
A: A 22 kΩ end-of-line resistor is recommended for remote input circuits to enable continuous line fault detection. Install the resistor at the furthest field device in the loop. Refer to the System 57 wiring guide for zone-specific EOL configuration diagrams.

Q6: Do you supply documentation and test certificates with the module?
A: Yes. Upon request, NINERMAS provides available factory test certificates, datasheet copies, and compliance documentation (CE, EN54-2, UL, CSA) to support your site commissioning and audit requirements.

—
