Honeywell FC-TSAI-0410 Retrofit Analog Input for Legacy Systems

Honeywell FC-TSAI-0410 Retrofit Analog Input for Legacy Systems

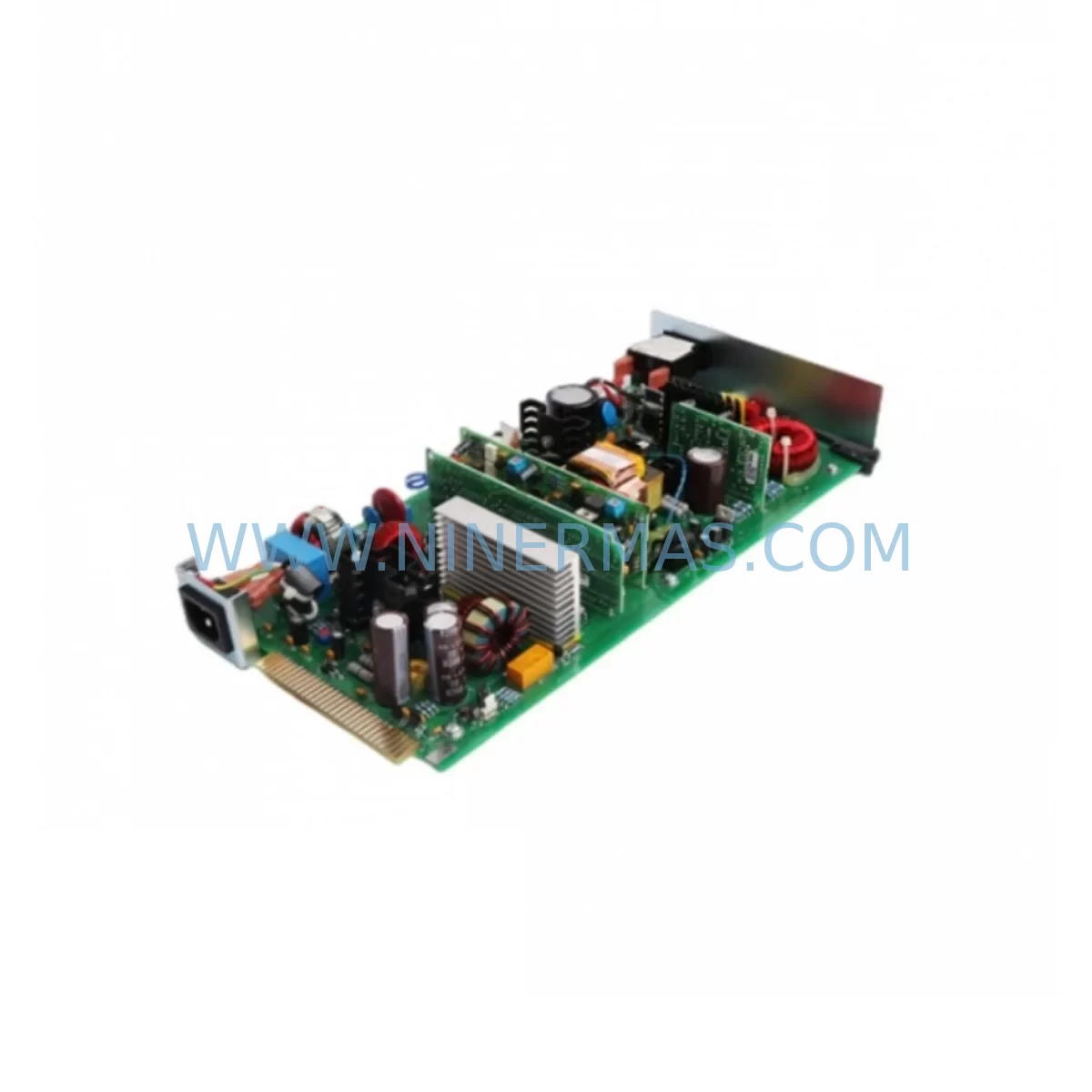

The Honeywell FC-TSAI-0410 is a ruggedized, fail-safe analog input module designed for the Honeywell Safety Manager platform — one of the most widely deployed Safety Instrumented Systems (SIS) in the global process automation industry. As original equipment manufacturers discontinue legacy SIS hardware and reduce spare parts availability, the FC-TSAI-0410 has become a critical retrofit component for facilities operating aging safety loops across oil and gas, petrochemical, power generation, and chemical processing plants.

This module supports up to 10 analog input channels with HART pass-through capability, enabling direct integration into existing field wiring without rewiring or signal conditioning changes. Its ruggedized design meets IEC 61508 SIL 2 requirements, making it a validated drop-in replacement for end-of-life analog input cards in legacy FSC and Safety Manager cabinets. For maintenance engineers managing long-term spare parts strategies, the FC-TSAI-0410 represents a reliable, tested, and immediately available solution backed by a 12-month warranty from NINERMAS.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the FC-TSAI-0410 into an existing Safety Manager installation requires a structured retrofit plan that addresses hardware compatibility, software configuration, and field commissioning in sequence. Before removing the legacy analog input card, maintenance teams should document all existing HART device tags, loop calibration records, and module address assignments stored in the Safety Manager Engineering Tool. This prevents configuration loss during the hot-swap window and reduces the risk of spurious trips on adjacent safety loops.

The FC-TSAI-0410 mounts directly into the FC-IOCHAS-0002 I/O chassis, which supports up to 16 I/O module slots in a standard 19-inch rack. When planning the retrofit, engineers should verify that the chassis backplane firmware is compatible with the module revision being installed. In systems where the FC-IOCHAS-0002 chassis is also approaching end-of-life, it is advisable to schedule chassis replacement concurrently to avoid a second planned outage within the same maintenance cycle.

Power budget verification is a mandatory pre-retrofit step. The FC-TPSU-2430 power supply module, which provides 24 VDC to the I/O chassis, must have sufficient headroom to support the FC-TSAI-0410 alongside other installed modules such as the FC-TSDI-0424 digital input module and the FC-TSDO-0824 digital output module. If the existing power supply is operating above 75% capacity, a redundant FC-TPSU-2430 should be added before the analog input module is replaced.

Field wiring termination is handled through the module’s front-face terminal block. Engineers should confirm that existing cable lengths, shielding practices, and terminal torque specifications match the FC-TSAI-0410 installation requirements. In installations where the legacy module used a different terminal pitch or connector type, a terminal adapter plate may be required to avoid rewiring the entire marshalling cabinet. For HART-enabled field devices, the HART pass-through function of the FC-TSAI-0410 allows asset management software to continue communicating with transmitters such as pressure, temperature, and flow devices without any changes to the field instrument configuration.

Where the Safety Manager system interfaces with a Honeywell Experion PKS DCS, the FC-USI-0002 universal safety interface module manages the data exchange between the SIS and the process control network. After replacing the FC-TSAI-0410, engineers should verify that all analog input values are correctly reflected in the Experion operator station and that any HMI faceplates linked to the affected loops display accurate engineering unit values. In facilities using third-party SCADA or HMI platforms, the same verification applies — loop values must be confirmed at the HMI level before the safety loop is returned to service.

For systems that include the FC-SDO-0824 safety digital output module controlling shutdown valves or motor starters on the same safety loop, the analog input replacement must be coordinated with the output module’s bypass status. Placing the affected safety function in manual bypass during the swap window prevents nuisance trips while allowing the field device to remain energized. The bypass duration should be logged in the plant’s Management of Change (MOC) system and approved by the process safety engineer before work begins.

Programming cable connectivity during commissioning typically uses the 10006/2/1 Honeywell serial programming cable or its USB equivalent to connect a laptop running the Safety Manager Engineering Tool directly to the controller. After the FC-TSAI-0410 is installed and the module address is confirmed, a partial download of the I/O configuration is sufficient — a full program download is not required and should be avoided to minimize the risk of unintended logic changes. Signal isolators may be required in installations where ground loops or high common-mode voltage are present on the analog input wiring, particularly in older plants where cable routing passes through electrically noisy environments near variable frequency drives or large motor starters.

Downtime Control During System Migration

Minimizing planned downtime during an FC-TSAI-0410 replacement requires preparation that begins well before the maintenance window opens. The most effective approach is to pre-configure the replacement module offline using the Safety Manager Engineering Tool, loading the correct module address, channel configuration, and HART device descriptors before the module is brought to the field. This reduces the in-cabinet commissioning time to a physical swap, address verification, and loop check — a sequence that experienced technicians can complete in under two hours per module.

To protect the original program logic, the Safety Manager controller should be placed in a defined maintenance state that holds all output commands at their last known safe position before the analog input module is removed. This prevents the controller from generating spurious output commands based on invalid input readings during the swap interval. The controller’s diagnostic log should be reviewed after the new module is inserted to confirm that no fault codes are generated and that all 10 input channels are reading within expected ranges before the maintenance bypass is lifted.

Field control continuity is maintained by coordinating the analog input replacement with the plant’s distributed control system operator. The DCS operator should acknowledge all alarms generated by the Safety Manager during the swap window and confirm that no process upsets are occurring on adjacent units that could require emergency SIS intervention. In multi-loop safety systems, replacing one analog input module at a time — rather than multiple modules simultaneously — limits the exposure window and reduces the complexity of the post-maintenance verification checklist.

Retrofit risk is further reduced by sourcing the FC-TSAI-0410 from a supplier that performs pre-shipment functional testing. NINERMAS conducts bench-level power-on testing and channel verification on all Safety Manager modules before dispatch, providing a test report with each unit. This eliminates the risk of receiving a module that fails on first installation — a scenario that can extend an unplanned outage by days if a replacement unit is not immediately available. Combined with in-stock inventory and same-week shipping capability, NINERMAS supports the tight timelines that process safety maintenance schedules demand.

Retrofit Support FAQ

Q: Is the FC-TSAI-0410 a direct replacement for the FC-SAI-1620m?
A: The FC-TSAI-0410 and FC-SAI-1620m serve similar analog input functions within the Honeywell Safety Manager platform but differ in channel count and form factor. The FC-TSAI-0410 provides 10 channels versus the FC-SAI-1620m’s 16-channel configuration. Before substituting one for the other, engineers must verify that the channel count reduction does not affect any safety loop assignments and that the module address can be re-mapped in the Safety Manager Engineering Tool without requiring a full program revision.

Q: What commissioning steps are required after installing the FC-TSAI-0410?
A: After physical installation, the module address must be confirmed using the Safety Manager Engineering Tool. Each of the 10 analog input channels should be loop-checked against the field instrument to verify 4–20 mA signal integrity. HART device descriptors must be re-imported if HART communication was active on the legacy module. Finally, the Safety Manager diagnostic display should be checked to confirm that no module fault codes are present before the safety loop is returned to automatic mode.

Q: Does NINERMAS provide pre-shipment testing for the FC-TSAI-0410?
A: Yes. All FC-TSAI-0410 units supplied by NINERMAS undergo bench-level power-on testing and channel verification before dispatch. A functional test report is included with each shipment. Units are covered by a 12-month warranty from the date of delivery, covering manufacturing defects and early-life failures under normal operating conditions.

Q: What is the typical lead time and inventory availability?
A: NINERMAS maintains in-stock inventory of the FC-TSAI-0410 to support urgent maintenance and planned retrofit projects. Standard orders ship within the same week of order confirmation. For large-quantity requirements or long-term supply agreements covering multi-year spare parts programs, contact NINERMAS directly to discuss reserved inventory arrangements and volume pricing.
