Honeywell FC-SDIL-1608 V1.1 Retrofit-Compatible Digital Input Module

Honeywell FC-SDIL-1608 V1.1 Retrofit-Compatible Digital Input Module for Legacy Systems

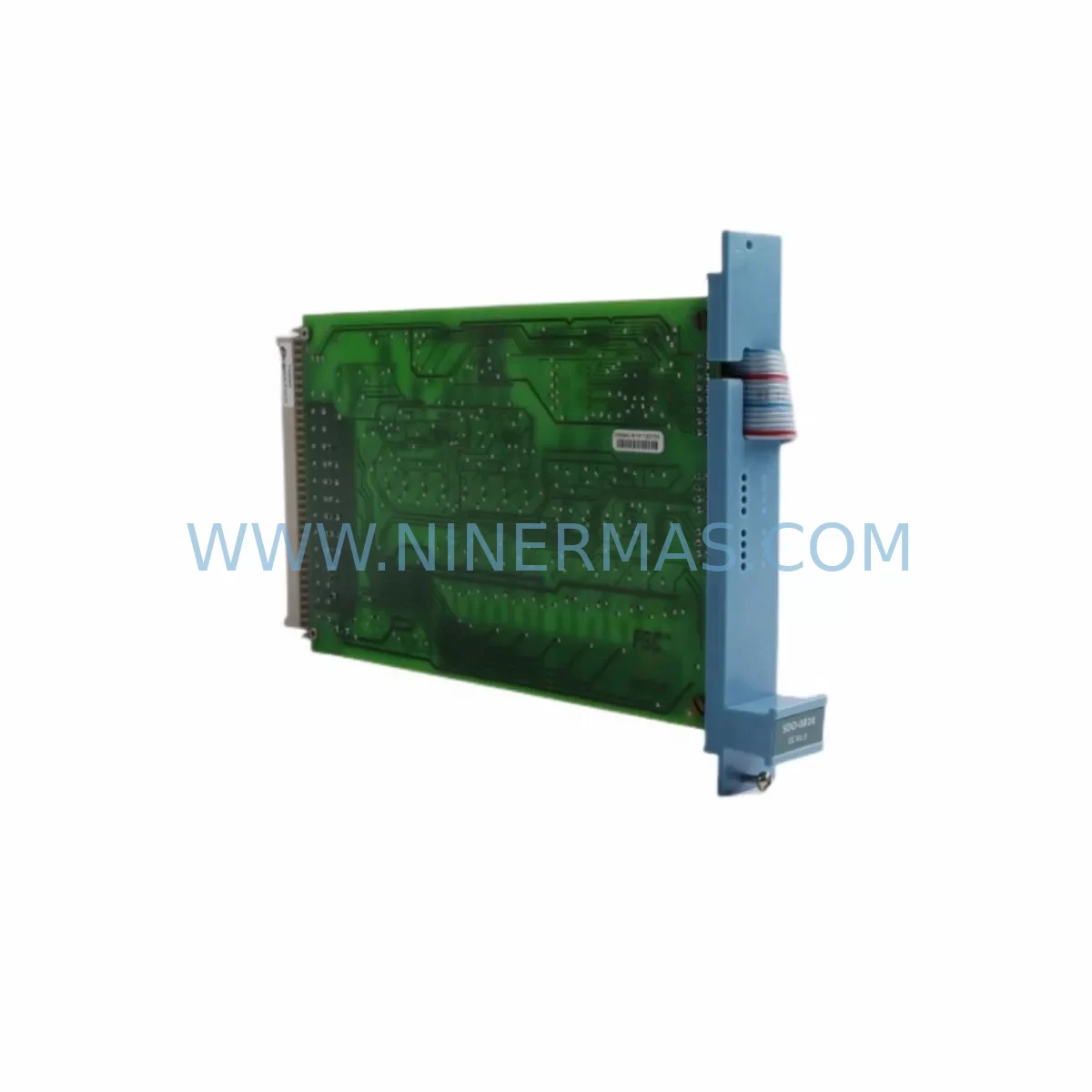

The Honeywell FC-SDIL-1608 V1.1 is a 16-channel digital input module designed for use within Honeywell’s Safety Manager (SM) platform — a widely deployed safety instrumented system (SIS) found across petrochemical, refining, power generation, and process manufacturing facilities. As the FC-SDIL-1608 approaches or has reached end-of-life status in many installed bases, plant engineers and automation teams are increasingly sourcing verified replacement units to sustain operational continuity without committing to a full system overhaul. NINERMAS maintains tested inventory of this module to support retrofit projects, emergency spare requirements, and planned system life extension programs.

When integrating the FC-SDIL-1608 V1.1 into an existing Safety Manager cabinet, engineers must confirm several critical parameters before installation. Power supply capacity within the existing rack must be verified — the SM backplane distributes both logic-side and field-side power, and adding or replacing a digital input module requires confirming that the FC-PSU (power supply unit) in the chassis can sustain the additional load without triggering undervoltage faults. Terminal wiring must be reviewed against the original I/O schedule: the FC-SDIL-1608 uses a 40-pin field termination assembly, and any replacement must match the existing field wiring connector type to avoid rewiring the marshalling cabinet.

Backplane slot addressing is another key consideration. The Safety Manager system assigns module addresses based on physical slot position within the FC-RACK chassis. When replacing a failed FC-SDIL-1608, the replacement unit must be installed in the identical slot to preserve the I/O address mapping already configured in the Safety Manager application logic. If the slot position changes for any reason — such as a chassis reconfiguration or rack expansion — the application program must be updated accordingly, and a full functional safety validation cycle may be required before returning the system to service.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit involving the FC-SDIL-1608 V1.1 typically begins well before the physical module swap. Automation engineers should pull the existing I/O list and cross-reference each of the 16 digital input channels against the field instrument schedule — confirming signal types (dry contact, wet contact, NAMUR), cable routing, and any signal conditioning requirements. In many legacy Safety Manager installations, the field termination assemblies are wired through dedicated marshalling panels, and the FTA connector on the module side must be confirmed to match the installed cable harness.

For sites running older SM configurations, it is common to find associated modules in the same chassis that also require attention during a retrofit window. The FC-SDOL-0808 digital output module, often installed alongside the FC-SDIL-1608 in mixed I/O racks, should be inspected for wear or firmware currency. Similarly, the FC-SAIM-0808 analog input module — used for 4–20 mA process signals in the same control cabinet — may benefit from replacement during the same planned outage to reduce future unplanned downtime.

Communication continuity is critical in SIS environments. The Safety Manager controller — typically an FC-RCON or equivalent redundant controller module — must remain in service throughout the I/O module swap. In redundant SM configurations, the system can often tolerate a single module removal without triggering a safety shutdown, provided the redundancy architecture is intact and the replacement is completed within the allowed maintenance window. Engineers should confirm the SM system’s redundancy mode and consult the site’s functional safety management plan before proceeding.

Where the retrofit extends beyond a single module replacement into a broader control system upgrade, teams may also need to address the FC-SCOM communication module if the site is migrating from legacy serial links to modern Ethernet-based supervisory connections. Integration with Honeywell Experion PKS or a third-party SCADA via OPC requires verifying that the SM communication configuration aligns with the updated network topology. Signal isolators — such as those used between the SM I/O and field instruments in hazardous areas — should also be reviewed, as aging isolators can introduce signal degradation that masks true field device status on the digital input channels.

For facilities managing a broader PLC or DCS environment alongside the Safety Manager, the retrofit window may also present an opportunity to audit related hardware: FC-TSDI-1600 termination assemblies, spare FC-RACK chassis units, and programming cables used for SM configuration uploads should all be confirmed as available and functional before the maintenance window opens. Having a pre-tested FC-SDIL-1608 V1.1 on-site prior to the scheduled outage is the single most effective way to compress the replacement timeline.

Downtime Control During System Migration

In safety-critical process environments, minimizing downtime during a digital input module replacement is not simply a cost consideration — it is a safety and operational integrity requirement. The FC-SDIL-1608 V1.1 replacement process, when properly planned, can typically be completed within a single shift maintenance window. The key to achieving this is pre-staging: the replacement module should be bench-tested, firmware-verified, and physically confirmed against the original unit’s label and revision markings before the process unit is taken offline.

Protecting the original application logic is equally important. Before any hardware is disturbed, the Safety Manager application program should be uploaded from the controller and archived. This backup preserves the I/O configuration, logic blocks, cause-and-effect matrix, and safety function definitions that represent years of engineering and validation effort. If the replacement module requires any configuration download — for example, if the SM controller does not automatically recognize the new module — the archived program provides the authoritative source for restoration.

Field control continuity during the swap can be maintained by placing the affected safety functions in bypass mode in accordance with the site’s Management of Change (MOC) and safety bypass procedures. This approach keeps the process running under manual supervision while the digital input channels are temporarily unavailable. The bypass period should be logged, time-limited, and reviewed by the site safety authority before implementation. Once the FC-SDIL-1608 V1.1 is installed and the system has completed its self-diagnostic cycle, each input channel should be individually verified against the field instrument before the bypass is lifted and the safety function is returned to automatic mode.

Post-installation commissioning should include a point-to-point loop check for all 16 digital input channels, confirmation of correct status display on the Honeywell Experion operator station or equivalent HMI, and a review of the SM system event log to confirm no unexpected faults were generated during the module insertion. Where the site’s safety validation plan requires a partial proof test following any hardware change, this should be scheduled and completed before the next planned maintenance interval.

Retrofit Support FAQ

Q1: Is the FC-SDIL-1608 V1.1 a direct replacement for earlier V1.0 revisions installed in my Safety Manager system?
In most cases, yes. The V1.1 revision of the FC-SDIL-1608 is generally backward compatible with V1.0 installations within the same FC-Series Safety Manager platform. However, customers should confirm the SM controller firmware version and consult the Honeywell Safety Manager compatibility matrix for their specific system revision. NINERMAS can provide the module’s hardware revision label and any available documentation to support your compatibility review before purchase.

Q2: What pre-shipment testing is performed on the FC-SDIL-1608 V1.1?
All FC-SDIL-1608 V1.1 units supplied by NINERMAS are functionally tested prior to dispatch. Testing includes power-on self-diagnostic verification, channel continuity checks, and visual inspection for physical damage, connector integrity, and component condition. Each unit is shipped with a test record. The module is covered by a 12-month warranty from the date of shipment.

Q3: Do I need to modify my Safety Manager application program when replacing the FC-SDIL-1608?
For a like-for-like replacement in the same backplane slot, no application program changes are required. The SM controller will recognize the replacement module at the same slot address and resume normal operation following its initialization sequence. If the module is being installed in a different slot, or if the replacement is part of a broader system reconfiguration, the application program will need to be updated and re-validated in accordance with your site’s functional safety management procedures.

Q4: What is the typical lead time and stock availability for the FC-SDIL-1608 V1.1?
NINERMAS maintains stock of the FC-SDIL-1608 V1.1 to support urgent replacement and planned retrofit projects. Standard lead time for in-stock units is 3–7 business days depending on destination. For emergency requirements, expedited shipping options are available. Contact our team at sale@ninermas.com or +0086 187 5021 5667 to confirm current stock levels and arrange dispatch.
