Honeywell FC-SDIL-1608 Service-Ready Spare Part: Spare Replacement & Downtime Risk Control

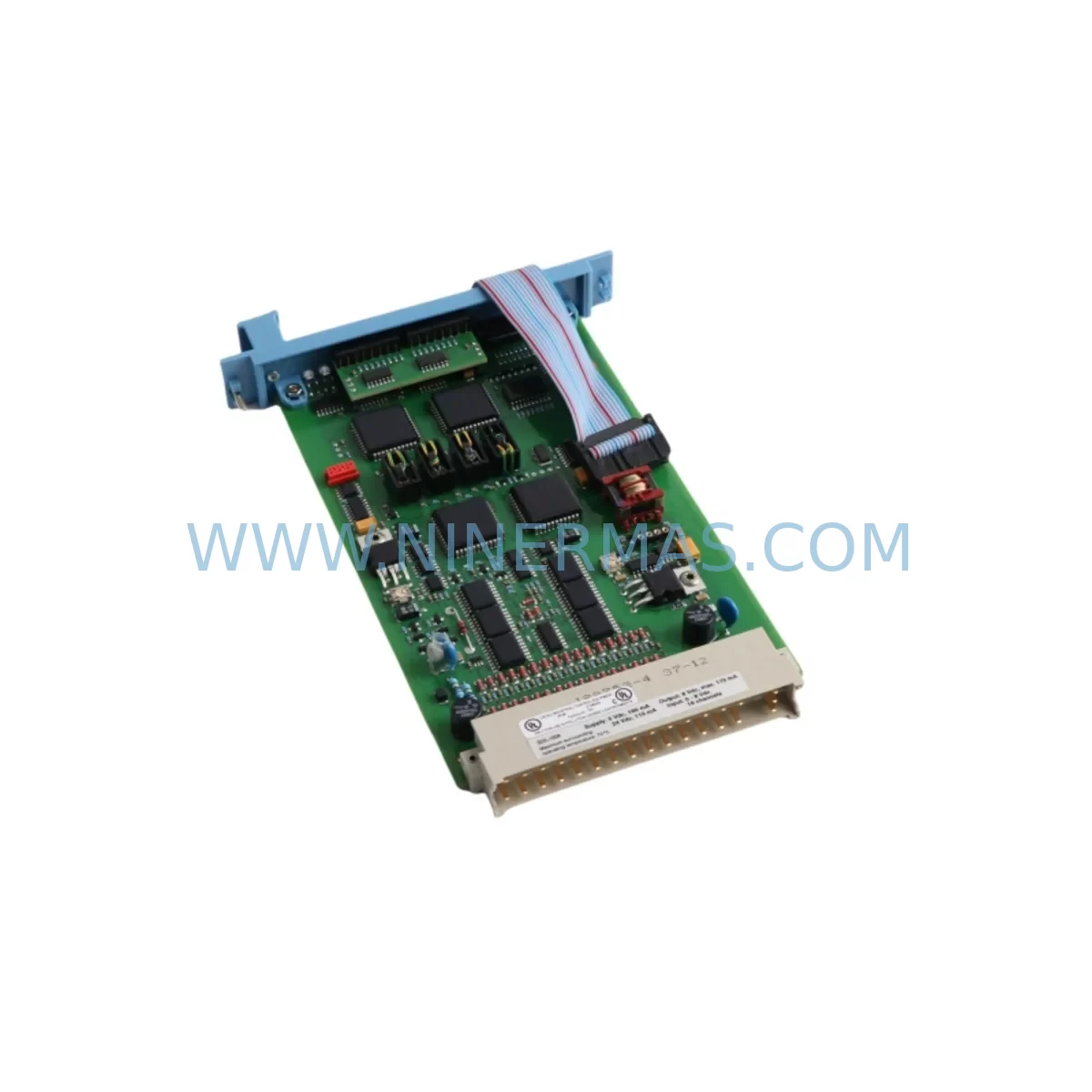

The Honeywell FC-SDIL-1608 is a ruggedized 16-channel digital input module designed for use within the Honeywell Safety Manager (SM) series — a safety instrumented system (SIS) platform widely deployed in oil & gas, petrochemical, power generation, and continuous process industries. As a critical I/O component within the SM controller chassis, the FC-SDIL-1608 acquires discrete field signals from sensors, switches, and interlock devices, converting them into digital data processed by the safety logic solver. When this module fails or degrades, the entire safety loop it serves is compromised, creating both a process safety risk and a potential unplanned shutdown scenario.

Maintaining a verified, tested spare of the FC-SDIL-1608 in your on-site MRO inventory is one of the most effective strategies for reducing mean time to repair (MTTR) and protecting production continuity. NINERMAS supplies this module as a service-ready original spare part, fully tested prior to shipment, with a 12-month warranty and long-term supply commitment — ensuring your maintenance team can act immediately when a fault is detected.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance or reliability engineer identifies a fault on the FC-SDIL-1608 — whether through a channel diagnostic alarm, a failed proof test, or a field signal discrepancy — the replacement workflow must be fast and systematic. The FC-SDIL-1608 does not operate in isolation; it is part of an integrated safety instrumented system where multiple components share the same chassis, power rail, and communication backbone. A thorough replacement plan should therefore extend beyond the module itself.

Begin by verifying the FC-SDIL-1608‘s power supply integrity. The Safety Manager chassis is typically powered by redundant FC-PSU power supply modules — confirm both are operating within specification and that the 24 VDC field supply feeding the input channels is stable. A degraded power supply can cause intermittent input faults that mimic module failure, so the FC-PSU should be inspected or replaced concurrently if any voltage anomaly is detected.

Next, inspect the FC-SDIL-1608‘s field wiring terminations. In Safety Manager installations, field signals are typically routed through marshalling cabinets and terminal blocks before reaching the I/O module. Loose terminations, corroded contacts, or damaged cable shields can introduce signal noise or open-circuit conditions that trigger false diagnostics. Inspect all associated terminal strips and cable entries as part of the replacement procedure.

For systems using signal isolators or galvanic barriers between field devices and the SM chassis, verify that these components — such as Zener barriers or active isolators — are functioning correctly. A failed isolator can block or distort the digital signal before it even reaches the FC-SDIL-1608, making the module appear faulty when the root cause lies upstream.

If the affected safety loop includes solenoid valves, pressure switches, or limit switches as field input devices, these should be proof-tested as part of the maintenance event. Replacing the FC-SDIL-1608 without verifying the field device integrity leaves the safety function unvalidated.

Within the SM chassis, also inspect adjacent modules. The FC-SDOL-0824 digital output module and FC-SAIL-0808 analog input module share the same backplane and power distribution. If the FC-SDIL-1608 failure was caused by a backplane fault or a power transient, neighboring modules may have been affected. A visual inspection and diagnostic read of all chassis-resident modules is recommended.

For systems with FC-RPSM redundant processor or communication modules, confirm that the redundancy switchover function is intact after the I/O module replacement. Some SM configurations require a manual re-synchronization step after hot-swap I/O replacement to restore full redundancy status.

Procurement engineers should note that the FC-SDIL-1608 is a long-lifecycle component, but Honeywell’s Safety Manager platform has entered a mature phase. Sourcing from a reliable MRO supplier with verified stock — rather than spot-market channels — reduces the risk of receiving counterfeit or refurbished modules without traceability. NINERMAS maintains tested inventory of FC-SDIL-1608 and related SM series components, including FC-SDIL-0808 (8-channel digital input variant), FC-SDOL-0824 (digital output), and FC-SAIL-0808 (analog input), supporting both emergency replacement and planned annual maintenance kits.

Site Replacement Workflow

Replacing the FC-SDIL-1608 on a live Safety Manager system requires coordination between the maintenance engineer, the control room operator, and — in SIL-rated applications — the safety authority or permit-to-work system. The following workflow is recommended for minimizing downtime and maintaining system integrity:

Step 1 — Permit & Bypass: Obtain a maintenance permit and initiate a safety bypass for the affected input channels through the SM engineering workstation. Document the bypass start time and affected safety functions per your site’s Management of Change (MOC) procedure.

Step 2 — Diagnostic Confirmation: Use the Honeywell Safety Manager engineering tool (SM Config or equivalent) to confirm which channels on the FC-SDIL-1608 are reporting faults. Record the diagnostic codes for post-replacement comparison.

Step 3 — Module Removal: With the bypass active, carefully extract the FC-SDIL-1608 from its chassis slot. In redundant configurations, the system may continue operating on the redundant I/O path — confirm this before proceeding. Label the removed module with the fault date and diagnostic code for RMA or failure analysis.

Step 4 — Spare Installation: Insert the service-ready replacement FC-SDIL-1608. The module should be recognized automatically by the SM controller. Verify that all 16 channels return to healthy status in the diagnostic display within the expected initialization time.

Step 5 — Field Verification: Perform a channel-by-channel signal verification against the field device list. Confirm that each input channel reflects the correct field state before releasing the bypass.

Step 6 — Bypass Release & Documentation: Release the safety bypass, confirm full system health in the SM workstation, and close the maintenance permit. Update the equipment history record with the replacement date, spare part serial number, and post-replacement test results.

This structured approach ensures that the replacement of the FC-SDIL-1608 does not introduce new risks and that the safety function is fully restored and documented — a requirement for IEC 61511 compliance in functional safety management.

Spare Parts Support FAQ

Q1: Is the FC-SDIL-1608 supplied by NINERMAS an original Honeywell module?
Yes. NINERMAS sources FC-SDIL-1608 modules from authorized distribution channels and verified surplus inventories. Each unit undergoes functional testing prior to shipment. A test report and traceability documentation are available upon request. We do not supply rebranded, counterfeit, or unverified refurbished modules.

Q2: What is the warranty coverage and what does it include?
All FC-SDIL-1608 modules supplied by NINERMAS carry a 12-month warranty from the date of shipment. The warranty covers manufacturing defects and functional failures under normal operating conditions. In the event of a warranty claim, NINERMAS will provide a replacement unit or full refund after fault verification. Warranty claims caused by incorrect installation, overvoltage, or physical damage are excluded.

Q3: Can the FC-SDIL-1608 be used as a direct replacement for older SM series digital input modules?
The FC-SDIL-1608 is designed for the Honeywell Safety Manager SM chassis platform. Compatibility with specific chassis revisions and firmware versions should be confirmed against your system’s hardware compatibility matrix. NINERMAS technical support can assist with compatibility verification based on your SM system version and existing I/O configuration before purchase.

Q4: How does NINERMAS support long-term supply for legacy Safety Manager systems?
NINERMAS maintains a dedicated inventory of Safety Manager series spare parts, including I/O modules, power supplies, and communication components, to support customers operating legacy SM systems beyond Honeywell’s standard product lifecycle. We offer blanket purchase agreements and annual maintenance kit sourcing to ensure your site is never caught without a critical spare. Contact our team to discuss a long-term supply arrangement tailored to your maintenance schedule.
