Honeywell FC-SAI-0410 Retrofit-Compatible SAI for Legacy Systems

Honeywell FC-SAI-0410 Retrofit-Compatible SAI for Legacy Systems

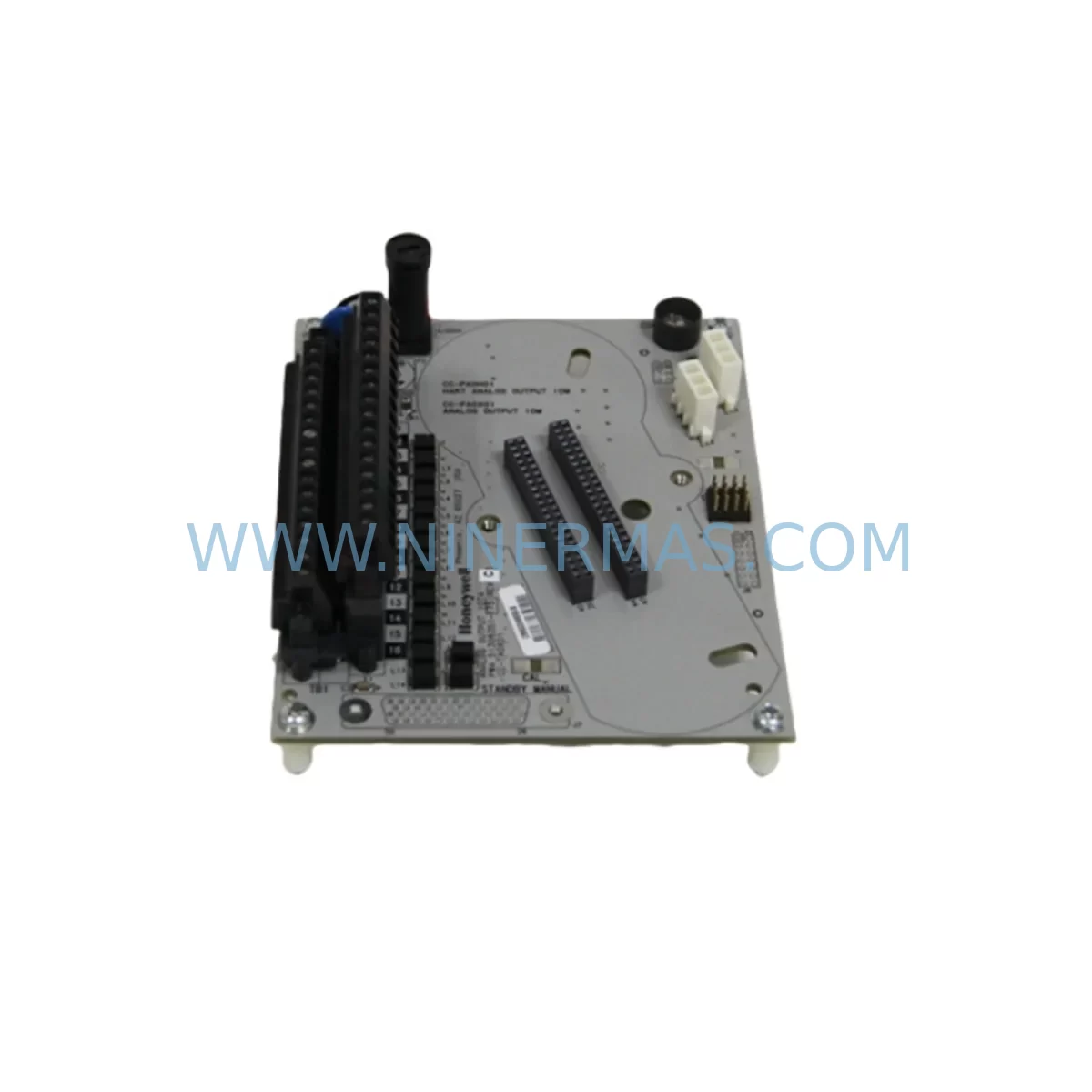

The Honeywell FC-SAI-0410 is a Safety Analog Input module designed for the Honeywell Safety Manager platform, widely deployed in process safety applications across oil and gas, petrochemical, power generation, and chemical manufacturing facilities. As legacy Safety Manager installations approach end-of-life hardware cycles, the FC-SAI-0410 remains a critical retrofit and replacement component for engineers tasked with sustaining SIL 2 and SIL 3 safety instrumented functions without full system replacement. This module supports up to four analog input channels and integrates directly into existing Safety Manager I/O chassis and backplane architectures, making it a preferred choice for brownfield upgrade projects where minimizing engineering rework and downtime is paramount.

When planning a retrofit or spare parts replenishment involving the FC-SAI-0410, engineers must verify several key parameters before installation: available power budget on the I/O chassis, terminal wiring compatibility with existing field cables, backplane slot addressing, module configuration within the Safety Manager engineering workstation, HMI faceplate mapping, communication link integrity to the safety controller, physical installation clearance within the control cabinet, and the commissioning sequence required to validate the replacement without triggering spurious trips.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the FC-SAI-0410 into an existing Safety Manager installation requires a structured approach that accounts for the full I/O subsystem context. The module is housed within the FC-IOCHAS-0002 I/O chassis, which accommodates multiple safety I/O modules sharing a common backplane. Engineers should audit adjacent modules in the same chassis — including FC-SDI-1624 Safety Digital Input modules and FC-SDO-0824 Safety Digital Output modules — to confirm that the chassis power supply, typically provided by the FC-PSU-UNI2450U, has sufficient headroom to support the replacement module without derating adjacent channels.

For installations where the analog input count must be expanded during the retrofit, the FC-SAI-1620 and FC-SAI-1620M offer higher channel density and may be evaluated as upgrade paths when the control cabinet layout permits additional chassis slots. In triple-redundant safety architectures, the FC-TSAI-1620M provides voted analog input capability and should be considered when the safety requirements analysis indicates that a single-module failure must not result in a loss of safety function.

The Safety Manager controller — referenced by part number 51309276-150 in many installed base configurations — must be confirmed compatible with the firmware version embedded in the replacement FC-SAI-0410. Mismatched firmware revisions between the I/O module and the safety controller can result in diagnostic faults that prevent the module from entering the run state. The Safety Manager engineering workstation software is used to download the I/O configuration and verify module addressing after physical installation.

Terminal wiring adaptation is a common challenge during FC-SAI-0410 replacement. Field cables terminated on the existing module’s terminal block must be carefully documented before removal, and the replacement module’s terminal assignment must be verified against the original loop drawings. In installations where signal isolation is required between the field device and the safety I/O, signal isolators or barriers installed upstream of the FC-SAI-0410 input terminals should be inspected and tested as part of the retrofit scope. Programming cables used to access the Safety Manager workstation for configuration download should be confirmed functional before the maintenance window begins to avoid delays during the commissioning phase.

Downtime Control During System Migration

Minimizing unplanned downtime during FC-SAI-0410 replacement is a primary concern for safety system engineers. A structured pre-outage checklist should include: export and backup of the current Safety Manager project from the engineering workstation, documentation of all active I/O module addresses and channel assignments, verification of spare terminal blocks and wiring labels, and confirmation that the replacement FC-SAI-0410 has been pre-tested and is ready for installation before the maintenance window opens.

During the replacement, the original program logic stored in the Safety Manager controller is preserved on the controller itself and does not require re-download unless a configuration change is being made simultaneously. This allows the replacement to proceed as a hardware swap with a targeted recommissioning sequence limited to the affected I/O channels. Field control continuity for non-affected loops is maintained throughout the procedure, reducing the scope of the safety function bypass required during the maintenance window.

Post-installation commissioning should follow the site’s functional safety management procedure, including a partial stroke test or full proof test of the affected safety instrumented function as required by the applicable IEC 61511 maintenance interval. NINERMAS supplies FC-SAI-0410 units with pre-shipment functional testing documentation to support the site acceptance test and reduce the time required for on-site verification.

Retrofit Support FAQ

Q1: Is the FC-SAI-0410 a direct drop-in replacement for an existing failed module in a Safety Manager chassis?
A: Yes, provided the replacement module matches the original part number and firmware revision. Verify the chassis slot address and confirm the Safety Manager controller recognizes the module after installation. No program download is required if the I/O configuration is unchanged.

Q2: What wiring checks are required before installing the FC-SAI-0410?
A: Document all field terminal connections on the existing module before removal. Confirm that the replacement module’s terminal block layout matches the original. Verify loop power supply polarity and signal type (4–20 mA or 1–5 V) for each channel. Inspect field cable insulation and terminal torque after reconnection.

Q3: Does NINERMAS perform pre-shipment testing on FC-SAI-0410 units?
A: Yes. All FC-SAI-0410 modules supplied by NINERMAS undergo functional testing prior to shipment. Test records are available upon request. Units are covered by a 12-month warranty from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions.

Q4: What is the typical lead time and inventory availability for the FC-SAI-0410?
A: NINERMAS maintains reserved inventory of FC-SAI-0410 modules to support urgent replacement requirements. Standard lead time for in-stock units is 3–7 business days for international shipment. Long-term supply commitments and reserved stock programs are available for customers with ongoing maintenance requirements across multiple Safety Manager installations.
