Honeywell FC-FE-USI-0002 Retrofit-Compatible USI for Legacy FSC

Honeywell FC-FE-USI-0002 Retrofit-Compatible USI for Legacy FSC Safety Systems

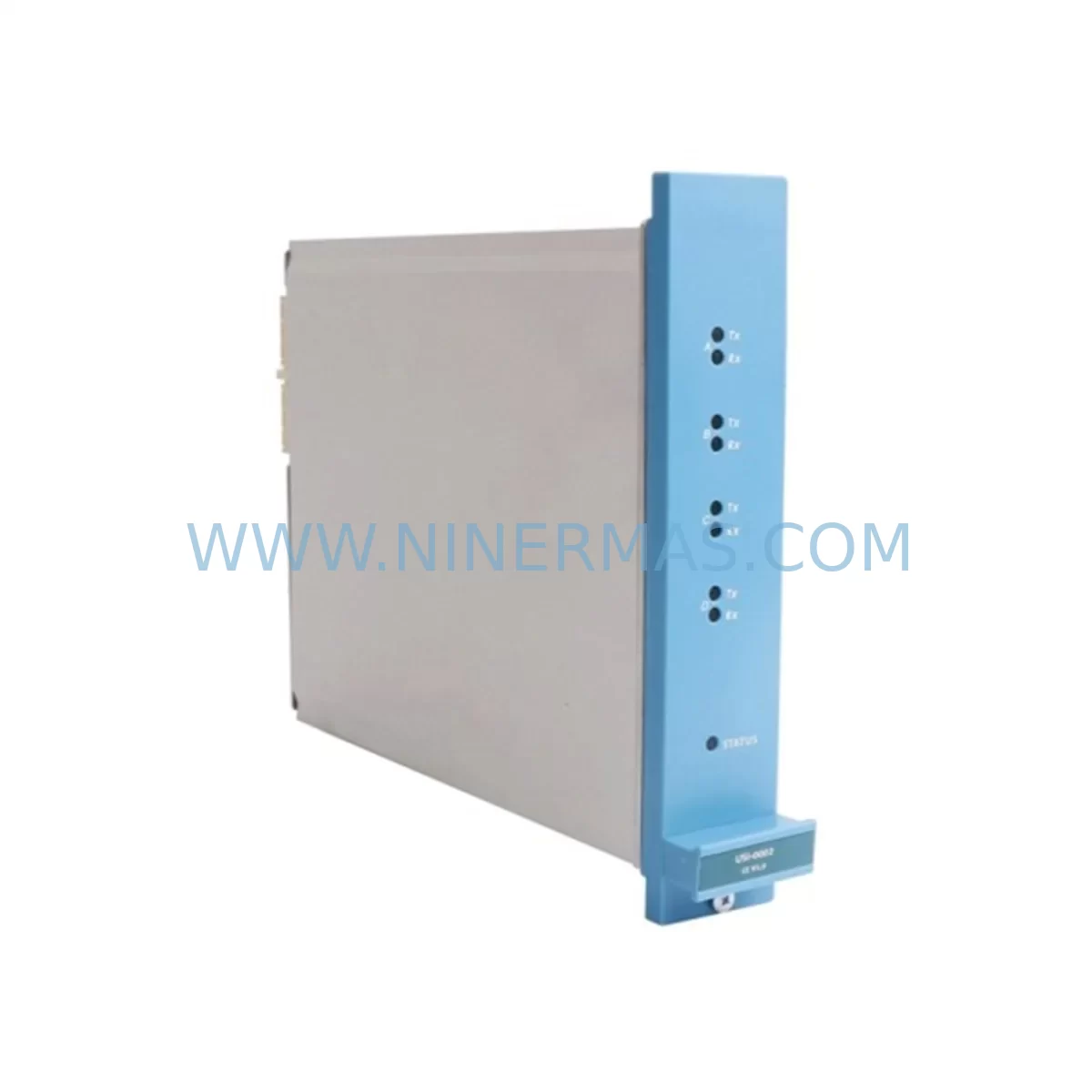

The Honeywell FC-FE-USI-0002 is a Universal Safety Interface (USI) module engineered for the FSC (Fail-Safe Controller) Safety Manager series. As legacy safety instrumented systems (SIS) face end-of-life support challenges, the FC-FE-USI-0002 has become a critical component in plant-wide retrofit programs, enabling engineers to extend the operational life of existing FSC-based safety loops without requiring a full platform migration. NINERMAS maintains verified stock of this module with a 12-month warranty, supporting customers across refinery, petrochemical, offshore, and power generation sectors.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Integrating the FC-FE-USI-0002 into an existing FSC safety system requires a structured pre-engineering review. Before removing the legacy USI module, engineers should document the current rack slot assignment, verify that the FSC rack’s power supply module — such as the FC-PSU-0024 or equivalent 24 VDC redundant power supply — has sufficient headroom to support the replacement module without triggering an undervoltage alarm on adjacent I/O cards.

Field wiring connected to the outgoing USI must be carefully labeled at the terminal block level. In many FSC installations, the USI interfaces with discrete input modules such as the FC-DI-0808 (8-channel digital input) and analog input modules like the FC-AI-0404 (4–20 mA HART-capable), which feed process variables into the safety logic. These upstream I/O modules remain in place during a USI swap, but their channel-to-tag mapping in the FSC configuration database must be validated post-replacement to ensure no address offset has occurred.

For plants running a hybrid architecture — where the FSC Safety Manager communicates upstream to a Honeywell Experion PKS DCS or a third-party SCADA via an FC-COM-MODBUS gateway or FC-COM-PROFIBUS coupler — the communication link must be tested independently after the USI is seated. A brief interruption to the Modbus RTU or PROFIBUS DP polling cycle is expected during the hot-swap window; operators should coordinate with the control room to suppress nuisance alarms on the HMI during this period.

In control cabinets where space is constrained, the physical dimensions of the FC-FE-USI-0002 should be confirmed against the available rack slot. FSC racks such as the FC-RACK-14 (14-slot) and FC-RACK-07 (7-slot) are commonly found in older SIS installations, and slot availability varies depending on how the original system was populated. If the target slot is occupied by a legacy module that is no longer in service, that module should be formally decommissioned in the FSC configuration tool before the new USI is inserted to avoid duplicate address conflicts.

Signal isolators — particularly loop-powered isolators installed between field transmitters and FSC analog input cards — should be inspected during the retrofit window. Replacing the USI is an opportune moment to audit any aging MTL5541 or P+F KFD2-STC4 isolators in the same cabinet, as degraded isolators can introduce signal drift that is incorrectly attributed to the new module during post-installation testing.

For sites that require a programming cable connection to the FSC processor during commissioning, the FC-PROG-CABLE-USB or the legacy RS-232 programming cable should be prepared in advance. The FSC configuration software must be used to perform a full I/O force test on all channels associated with the replaced USI before the safety loop is returned to service.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern when replacing a USI module in an operating FSC safety system. NINERMAS recommends a pre-tested, bench-verified replacement strategy: the FC-FE-USI-0002 is powered up and functionally tested on a spare FSC rack or test bench before it is brought to the field, confirming that the module passes its internal self-diagnostics and communicates correctly with the FSC processor.

Before the scheduled maintenance window, the existing FSC application program — including all safety function blocks, cause-and-effect matrices, and interlock logic — should be backed up from the FSC processor using the FSC configuration tool. This backup protects against any inadvertent program loss during the module swap and provides a restore point if the commissioning sequence reveals unexpected behavior.

During the swap itself, the safety loop associated with the USI should be placed in bypass mode in accordance with the site’s Management of Change (MOC) and Safety Instrumented System bypass procedures. Field devices connected to the USI — including solenoid valve outputs, shutdown valve position switches, and process transmitters — should be confirmed in their safe state before the module is removed. The replacement FC-FE-USI-0002 can then be inserted, the rack powered, and the FSC processor allowed to complete its startup diagnostic cycle.

Post-installation, the commissioning engineer should perform a channel-by-channel I/O verification, confirming that each field signal reads correctly in the FSC configuration tool and that the corresponding HMI faceplate in the Experion PKS or third-party SCADA reflects the correct process value. Communication links to upstream systems should be re-established and verified before the safety loop bypass is lifted. Total planned downtime for a single USI replacement, when pre-engineering is complete, is typically achievable within a 2–4 hour maintenance window.

Retrofit Support FAQ

Q1: Is the FC-FE-USI-0002 a direct replacement for the FC-FE-USI-0001?
Yes. The FC-FE-USI-0002 is the current revision of the FSC Universal Safety Interface and is designed as a direct drop-in replacement for the FC-FE-USI-0001 and earlier USI variants within the same FSC rack. No rack modification or backplane adapter is required. NINERMAS recommends confirming the firmware revision of the FSC processor to ensure compatibility with the USI-0002 revision level before installation.

Q2: Does NINERMAS provide pre-shipment testing for the FC-FE-USI-0002?
Yes. All FC-FE-USI-0002 modules supplied by NINERMAS undergo functional power-on testing and visual inspection prior to shipment. Each unit is shipped with a test report confirming that the module passed its internal self-diagnostic routine. The module is covered by a 12-month warranty from the date of shipment.

Q3: What should I verify regarding terminal wiring before installing the FC-FE-USI-0002?
Engineers should verify the terminal block pitch, wire gauge compatibility, and field cable labeling before removing the legacy USI. In FSC installations where the USI interfaces with both digital and analog I/O modules, each field wire should be documented against the FSC I/O list before disconnection. NINERMAS technical support can provide wiring guidance based on the specific FSC rack configuration upon request.

Q4: How quickly can NINERMAS ship the FC-FE-USI-0002 for an emergency breakdown?
NINERMAS maintains ready stock of the FC-FE-USI-0002 to support emergency breakdown and unplanned outage scenarios. Express shipment arrangements are available. Contact our sales team at sale@ninermas.com or call +0086 187 5021 5667 to confirm current stock availability and lead time.
