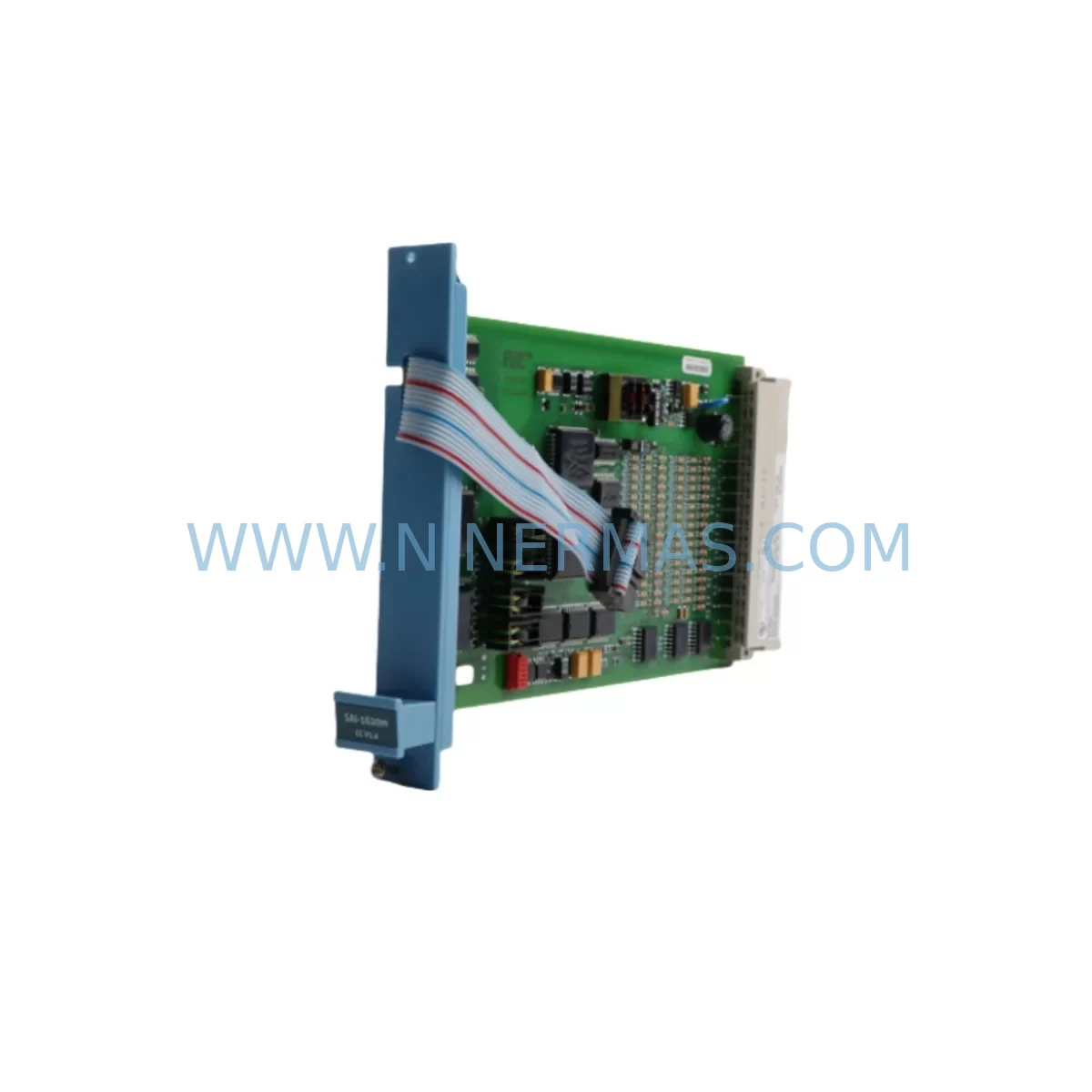

The Honeywell FA-SAI-1620M is a 16-channel safety analog input module designed for use within Honeywell’s Safety Manager platform — one of the most widely deployed Safety Instrumented Systems (SIS) in the process automation and petrochemical industries. As original equipment manufacturers discontinue support for aging control architectures, the FA-SAI-1620M has become a critical retrofit component for facilities seeking to extend the operational life of their existing safety logic solvers without undertaking a full system replacement. This module provides direct compatibility with legacy Safety Manager backplanes and I/O racks, making it the preferred choice for maintenance engineers and system integrators managing end-of-life SIS infrastructure.

Each FA-SAI-1620M unit shipped by NINERMAS undergoes pre-shipment functional testing to verify channel integrity, signal conditioning accuracy, and communication handshake with the Safety Manager CPU. All units are covered by a 12-month warranty from the date of delivery, supporting your procurement team’s need for long-term spare parts availability and supply chain continuity.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Integrating the FA-SAI-1620M into an existing Safety Manager installation requires a structured approach that accounts for both hardware compatibility and software configuration. Before removing the legacy module, maintenance teams should document the current channel assignments, engineering unit scaling, and alarm setpoints stored in the Safety Builder project file. The FA-SAI-1620M shares the same backplane form factor as other FA-series I/O modules, including the FA-SAI-0820M (8-channel analog input variant) and the FA-SAO-0820M (8-channel analog output), which simplifies mixed-module rack configurations during phased upgrades.

Power budget verification is a mandatory step in any FA-series retrofit. The FA-SPB-01 safety power base supplies regulated DC power to all modules in the rack; engineers must confirm that adding or replacing the FA-SAI-1620M does not exceed the power base’s rated output capacity, particularly in high-density I/O configurations. Similarly, the FA-SDI-1624 (16-channel safety digital input) and FA-SDO-0824 (8-channel safety digital output) modules installed in adjacent slots must be accounted for in the total rack power calculation.

Communication continuity is equally critical. The FA-SCM-0810 safety communication module manages the data highway between the I/O rack and the FA-SCP-1620M safety controller processor. During module replacement, the communication link must remain stable to avoid nuisance trips or safety function interruptions. Where the control architecture includes a Honeywell Experion PKS integration layer, the HMI display faceplates associated with the replaced analog input channels should be verified post-commissioning to confirm that process variable readings, alarm banners, and trend displays reflect the new module’s output correctly.

For facilities running parallel DCS and SIS architectures, the FA-SAI-1620M retrofit often coincides with broader control cabinet upgrades. In such cases, signal isolators and Zener barriers protecting the 4–20 mA loops feeding the analog input channels must be inspected for compatibility with the module’s input impedance. Where legacy barriers are approaching end-of-life, replacement with modern galvanic isolators can improve signal fidelity and reduce maintenance overhead. Programming cable compatibility should also be confirmed — the Safety Builder engineering workstation must maintain a live connection to the FA-SCP-1620M processor throughout the module swap to monitor system status and acknowledge any diagnostic alarms generated during the hot-replacement sequence.

For sites where the Safety Manager platform interfaces with a Yokogawa CENTUM VP or Siemens SIMATIC S7 distributed control system via Modbus or PROFIBUS, the FA-SAI-1620M’s analog input data is typically mapped through the FA-SCM-0810 gateway. After module replacement, the gateway configuration should be re-validated to ensure that process variable scaling and data type mappings remain intact across the communication boundary.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational constraint in any safety system retrofit. The FA-SAI-1620M supports hot-swap replacement in Safety Manager architectures that have been configured for redundant I/O operation, allowing the module to be replaced without de-energizing the entire rack. However, even in non-redundant configurations, careful pre-staging of the replacement module — including pre-loading the correct firmware revision and verifying the module address in Safety Builder before physical installation — can reduce the active replacement window to under 30 minutes for experienced technicians.

To protect original program logic, a full backup of the Safety Builder project file must be exported and stored offline before any hardware change is initiated. This backup preserves the SIL-rated function block logic, cause-and-effect matrix, and proof test interval settings that define the safety function. If the replacement module requires a firmware update to match the CPU version, this update should be performed on the bench prior to installation to avoid extending the maintenance window on the live system.

Field control continuity can be maintained during the replacement window by placing the affected safety loops in manual bypass mode through the Safety Manager’s bypass management function. Bypass activation must be formally authorized, documented, and time-limited in accordance with the site’s Management of Change (MOC) procedure. Once the FA-SAI-1620M is installed and the Safety Builder configuration is downloaded, each bypassed loop should be individually re-enabled and verified against the process transmitter signal before the bypass is formally closed out.

Retrofit Support FAQ

Q1: Is the FA-SAI-1620M a direct drop-in replacement for the original module?
Yes. The FA-SAI-1620M is designed as a form-fit-function replacement for the original Honeywell Safety Manager analog input module of the same part number. No mechanical modifications to the backplane or terminal wiring are required. However, the module address and channel configuration must be verified in Safety Builder after installation to confirm alignment with the existing project file.

Q2: What pre-shipment testing does NINERMAS perform on the FA-SAI-1620M?
Each unit undergoes functional channel verification, backplane communication handshake testing, and signal conditioning accuracy checks across the full 4–20 mA input range before shipment. A test report is available upon request. All units are covered by a 12-month warranty from the shipment date.

Q3: How do I confirm wiring compatibility before installing the replacement module?
Compare the terminal block pinout of the replacement FA-SAI-1620M against the as-built wiring drawings for the existing installation. Pay particular attention to channel polarity, shield grounding points, and any intrinsic safety barriers or galvanic isolators in the field wiring loop. If the original module revision differs from the replacement, request the revision-specific wiring diagram from NINERMAS before proceeding.

Q4: What is the lead time and inventory availability for the FA-SAI-1620M?
NINERMAS maintains service-ready stock of the FA-SAI-1620M to support urgent maintenance requirements. Standard lead time for in-stock units is 3–7 business days for international shipments. For critical plant shutdowns or emergency procurement, contact our team directly to confirm real-time availability and expedited shipping options.
