Honeywell CC-PDIL51 51454405-175 Safety-Reliable Digital Input Module

Honeywell CC-PDIL51 51454405-175 Safety-Reliable Digital Input Module for Critical Control Sites

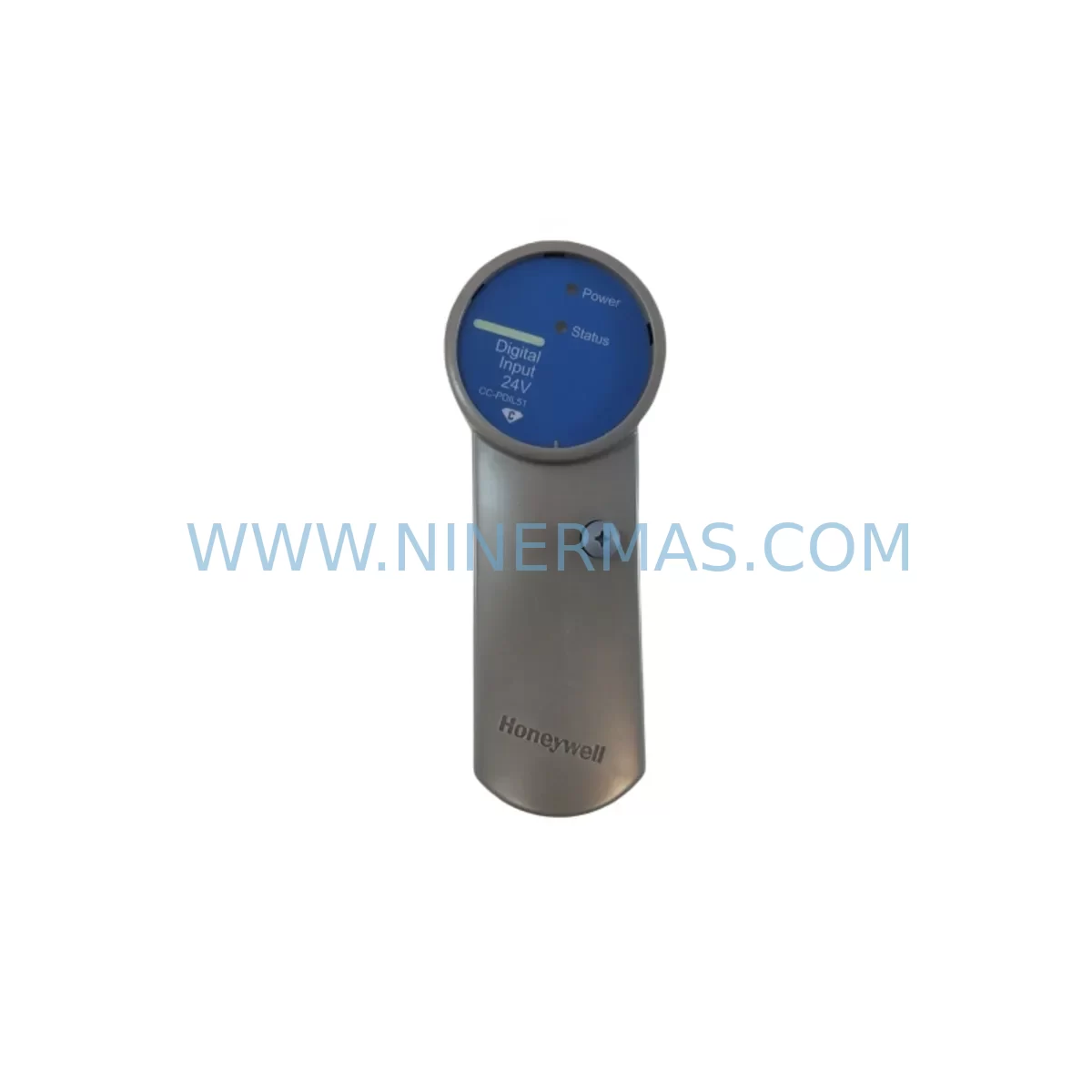

The Honeywell CC-PDIL51 (Part No. 51454405-175) is a ruggedized digital input module engineered for deployment in the most demanding industrial control environments. Designed as a core I/O component within the Honeywell Experion PKS C300 DCS architecture, this module delivers deterministic signal acquisition, high-density channel isolation, and robust immunity to electromagnetic interference — making it a trusted choice for safety-critical and continuous-process applications where control interruption is not an option.

At NINERMAS, we maintain verified stock of the CC-PDIL51 / 51454405-175 with full pre-shipment functional testing and a 12-month warranty, supporting long-term spare parts programs for global industrial customers across petrochemical, power generation, mining, water treatment, metallurgy, and port logistics sectors.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In high-stakes control cabinets serving continuous production lines, a single failed digital input can cascade into a full process shutdown, spurious trip, or — in worst cases — a safety system bypass. The CC-PDIL51 addresses this risk through channel-level optical isolation, which prevents ground loops and cross-channel interference from propagating across the I/O bus. When paired with the Honeywell CC-PAIM01 Analog Input Module and CC-PDOB01 Digital Output Module, the control cabinet achieves a balanced, redundant I/O architecture capable of sustaining reliable signal integrity even under heavy electromagnetic load from variable frequency drives (VFDs) and high-current motor starters.

Power stability is equally critical. The CC-PDIL51 operates on a 24 VDC rail, and its performance is directly dependent on the quality of the upstream power supply. Deploying a Honeywell CC-PWR001 or equivalent Series C power supply module with surge suppression ensures that voltage transients — common in facilities with large inductive loads — do not corrupt digital input states or trigger false alarms. For sites with known surge exposure, supplementing the power rail with a Phoenix Contact QUINT-PS or TRIO-PS series DIN-rail power supply provides an additional layer of overvoltage protection.

Communication integrity between the CC-PDIL51 and the C300 controller is maintained via the Series C I/O Link backplane. In environments with high vibration or thermal cycling — such as compressor stations or steel rolling mills — the Honeywell CC-LINK001 I/O Link Interface Module (IOLIM) should be inspected periodically alongside the digital input module to ensure backplane connector integrity. Signal drift or intermittent I/O faults in these environments are frequently traced to connector oxidation rather than module failure, making periodic spare-part rotation a sound maintenance strategy.

For safety interlock circuits, the CC-PDIL51 is commonly deployed to monitor the status of Pilz PNOZ safety relays, Schmersal AZM safety interlocks, and Telemecanique XY2C emergency pull-cord switches. The module’s fast scan rate and deterministic response ensure that safety input state changes are captured within the controller’s scan cycle, supporting SIL-rated interlock logic without introducing latency that could compromise the safety function. Complementing this, the Honeywell CC-PDOB01 Digital Output Module handles the corresponding actuator commands, closing the safety loop from detection to response.

In dusty, humid, or chemically aggressive environments — typical of cement plants, wastewater treatment facilities, and offshore platforms — the ruggedized construction of the CC-PDIL51 provides meaningful protection against particulate ingress and moisture-induced leakage currents. When the full I/O chassis is housed in a Rittal TS 8 or AE series stainless steel enclosure with positive-pressure purging, the combined system achieves the environmental protection levels required for Zone 2 hazardous area installations.

Critical Industrial Safety Applications

Petrochemical & Refinery: The CC-PDIL51 is widely deployed in crude distillation units, hydrocracker control rooms, and LNG terminal safety systems. It monitors valve position feedback, pressure switch states, and emergency shutdown (ESD) input signals, feeding the C300 controller with the real-time field data needed to execute safe operating procedures and prevent runaway reactions.

Power Generation: In coal-fired, gas turbine, and hydroelectric power plants, digital input modules like the CC-PDIL51 are integral to turbine protection systems, boiler interlock circuits, and grid synchronization control. The module’s immunity to high-frequency electrical noise — generated by large generators and transformer switching — ensures that protection relay signals are captured accurately without spurious trips.

Mining & Mineral Processing: Conveyor belt safety interlocks, crusher overload protection, and ventilation fan status monitoring in underground and open-pit mining operations rely on ruggedized digital input modules. The CC-PDIL51’s tolerance for vibration and wide operating temperature range makes it suitable for surface-mounted control panels exposed to harsh outdoor conditions.

Water & Wastewater Treatment: Municipal and industrial water treatment plants use the CC-PDIL51 to monitor pump run/fault status, valve open/close confirmation, and level switch inputs across distributed pump stations. Its resistance to humidity and condensation is particularly valuable in wet well environments where control panel conditions are difficult to maintain.

Metallurgy & Steel: In electric arc furnace (EAF) control systems and continuous casting lines, the CC-PDIL51 handles high-density digital input acquisition from temperature switches, position sensors, and hydraulic pressure monitors. The module’s optical isolation prevents the massive ground currents generated by EAF operations from corrupting input signals or damaging the controller backplane.

Port & Marine Logistics: Ship-to-shore crane control systems, automated stacking crane (ASC) safety circuits, and vessel mooring interlock systems increasingly rely on Honeywell DCS platforms. The CC-PDIL51 provides the reliable digital input infrastructure needed to monitor limit switches, anti-collision sensors, and emergency stop circuits in these high-throughput, safety-critical environments.

Safety and Quality FAQ

Q1: What warranty does NINERMAS provide for the CC-PDIL51 / 51454405-175?
All CC-PDIL51 modules supplied by NINERMAS carry a 12-month warranty from the date of shipment. This covers functional defects under normal operating conditions. Each unit undergoes pre-shipment functional verification to confirm channel integrity, communication handshake with the C300 backplane, and power consumption within specification before dispatch.

Q2: How is the CC-PDIL51 tested before shipment?
Each module is subjected to a structured functional test protocol that includes power-on self-test (POST) verification, channel-by-channel input state simulation, I/O Link communication confirmation, and visual inspection for physical damage or connector wear. Test records are retained and can be provided upon request for quality-critical procurement programs.

Q3: Is the CC-PDIL51 compatible with all Honeywell C300 controller revisions?
The CC-PDIL51 (51454405-175) is designed for use with the Honeywell Experion PKS Series C I/O platform and is compatible with C300 controller revisions supporting the standard I/O Link interface. Customers are advised to confirm their specific firmware revision and backplane configuration with their Honeywell system integrator or NINERMAS technical support prior to installation to ensure seamless integration.

Q4: Can NINERMAS support long-term spare parts programs for the CC-PDIL51?
Yes. NINERMAS specializes in long-lifecycle spare parts supply for industrial automation systems, including Honeywell Experion PKS components. We offer stock-commitment agreements, priority allocation for critical SKUs, and scheduled delivery programs to support planned maintenance shutdowns and emergency replacement requirements. Contact our team to discuss a tailored spare parts program for your facility.
