Honeywell CC-PAIN01 51410069-176 Retrofit Analog Input

Honeywell CC-PAIN01 51410069-176 Retrofit-Compatible Analog Input for Legacy Systems

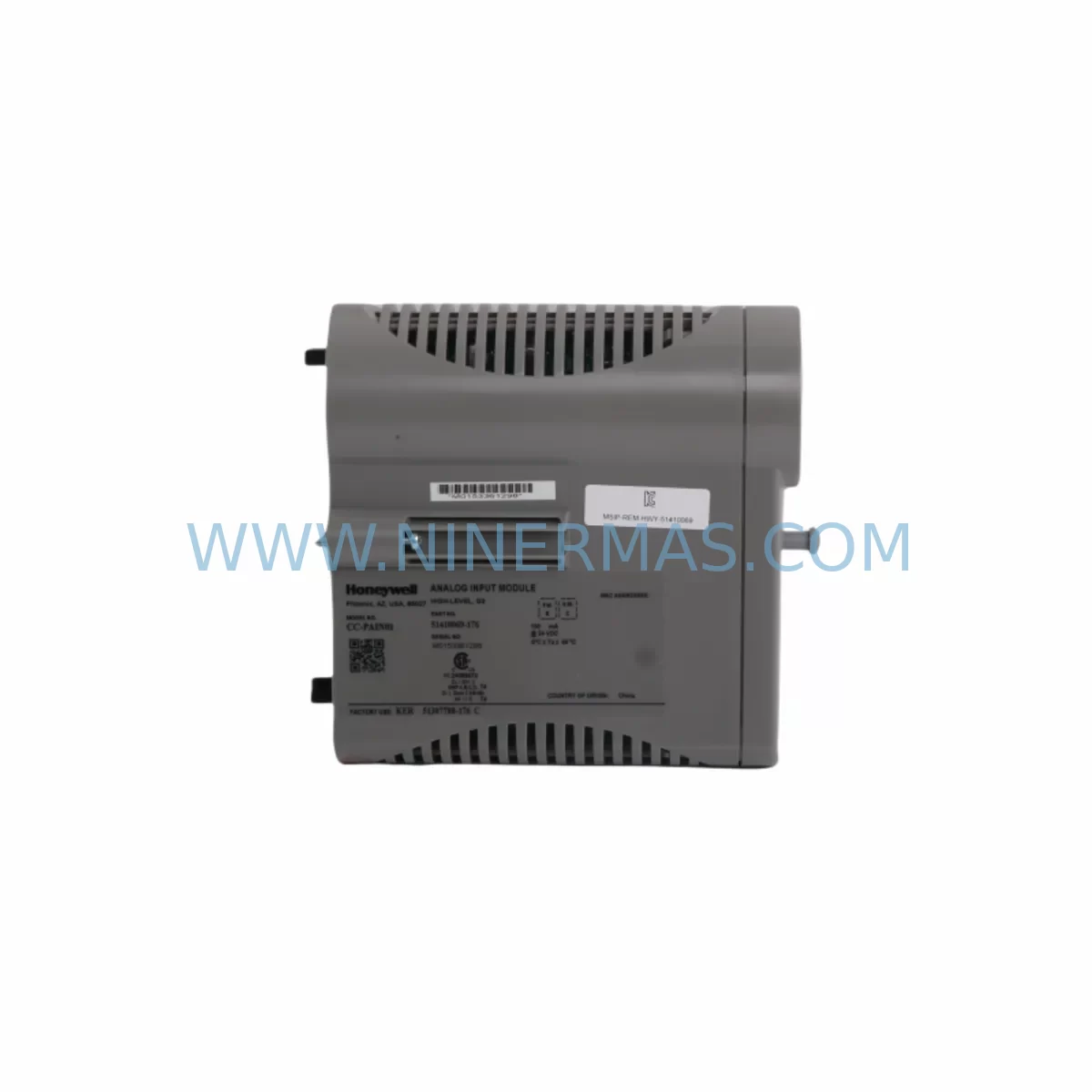

The Honeywell CC-PAIN01 (Part No. 51410069-176) is a high-precision analog input module engineered for the Experion PKS distributed control system platform, specifically designed to interface with the C300 Controller series. As legacy Honeywell TDC 3000 and PlantScape systems reach end-of-life, the CC-PAIN01 serves as a critical retrofit and replacement component, enabling facilities to extend operational continuity without full system overhauls. Whether you are upgrading an aging control cabinet, migrating from an older I/O architecture, or restoring a failed module in a continuous production environment, the CC-PAIN01 delivers the signal integrity and platform compatibility required for seamless integration.

NINERMAS maintains verified in-stock inventory of the CC-PAIN01 51410069-176, with each unit subject to pre-shipment functional testing and backed by a 12-month warranty. Our supply chain is structured to support both emergency replacement orders and planned retrofit projects across petrochemical, power generation, mining, water treatment, and heavy manufacturing sectors.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the CC-PAIN01 within an existing Experion PKS installation requires a structured approach to avoid configuration drift and unplanned downtime. Before physical module swap, engineers should audit the current C300 Controller firmware revision and confirm that the replacement CC-PAIN01 51410069-176 matches the required hardware revision level. The CC-TCNT01 termination assembly must be inspected to ensure field wiring continuity is maintained during the changeover — in many retrofit scenarios, the termination panel remains in place while only the I/O module is replaced, significantly reducing rewiring time.

Power budget verification is essential. The CC-PWR01 power supply module feeding the I/O chassis should be confirmed to have sufficient headroom for the replacement module, particularly in cabinets where additional I/O expansion has occurred over the years. If the existing chassis is near capacity, a CC-REM01 remote I/O enclosure may be introduced to distribute the load without disrupting the primary control loop.

For facilities migrating from older TDC 3000 architectures, the transition often involves parallel operation of legacy HPM (High-Performance Manager) nodes alongside the new Experion PKS C300 infrastructure. During this phase, the CC-PAIN01 handles analog signal acquisition on the new platform while legacy modules remain active, allowing engineers to validate signal mapping, HMI tag assignments, and alarm setpoints before full cutover. The Experion PKS Configuration Studio software is used to define module addresses, channel scaling, and HART pass-through settings where field instruments support it.

Communication link integrity must be verified across the FTE (Fault Tolerant Ethernet) network connecting the C300 controller to the server. Any switch or media converter in the FTE path — including Cisco IE series industrial Ethernet switches commonly deployed in Honeywell FTE architectures — should be confirmed operational before commissioning the replacement module. Signal isolation between the CC-PAIN01 and field transmitters can be enhanced using MTL or P+F signal isolators where ground loop interference is a concern in older cable infrastructure.

HMI screen validation is a frequently overlooked step in retrofit projects. After module replacement, all Experion Station operator displays referencing the affected analog input tags should be tested for correct engineering unit display, trend continuity, and alarm acknowledgment behavior. Where the original system used GUS (Global User Station) displays from the TDC 3000 era, tag migration to Experion HMI requires careful cross-referencing of point names and database entries.

Finally, programming cable and laptop access to the C300 via Experion Engineering Tools should be arranged in advance of the maintenance window. Having a pre-configured spare CC-PAIN01 51410069-176 on the shelf — tested and ready — is the single most effective measure for minimizing mean time to repair (MTTR) in critical process control applications.

Downtime Control During System Migration

Minimizing control interruption during a CC-PAIN01 module replacement begins with pre-staging. NINERMAS ships each unit with a pre-shipment functional test report, allowing site engineers to confirm module health before the maintenance window opens. In most Experion PKS installations, the C300 controller supports redundant I/O paths, meaning a single analog input module can be replaced without taking the controller offline — provided the replacement is executed within the controller’s fault-tolerant window.

The recommended procedure is to place the affected control loops in manual mode at the Experion Operator Station before removing the failed CC-PAIN01. This preserves the last known output state to field actuators and prevents process upsets caused by signal loss during the swap. Once the replacement module is seated and powered, the controller automatically detects the new hardware and restores communication within seconds, after which the operator can verify signal values and return loops to automatic control.

For facilities where redundant I/O is not configured, a cold-swap procedure is required. In this case, the maintenance window should be coordinated with production scheduling to align with planned shutdowns or low-throughput periods. NINERMAS can support expedited shipping for emergency replacement orders, with same-day dispatch available for in-stock CC-PAIN01 51410069-176 units.

Original program logic stored in the C300 controller is unaffected by module replacement, as Experion PKS maintains the control database independently of physical I/O module presence. This means that after a successful swap, no re-programming is required — only module address confirmation and signal verification are needed before returning to normal operation. This architecture significantly reduces the skill level required for field replacement and shortens the overall migration timeline.

Retrofit Support FAQ

Q1: Is the CC-PAIN01 51410069-176 a direct drop-in replacement for older Experion PKS analog input modules?
A: Yes, the CC-PAIN01 51410069-176 is designed as a direct replacement within the Experion PKS C300 I/O architecture. It uses the same backplane interface and termination assembly as earlier revisions, making physical installation straightforward. We recommend confirming the firmware revision of your C300 controller to ensure full compatibility before installation.

Q2: What pre-shipment testing does NINERMAS perform on the CC-PAIN01?
A: Every CC-PAIN01 unit shipped by NINERMAS undergoes functional power-on testing and channel signal verification prior to dispatch. A test report is available upon request. All units are covered by a 12-month warranty from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions.

Q3: Can the CC-PAIN01 be used in a system still running TDC 3000 alongside Experion PKS?
A: The CC-PAIN01 is native to the Experion PKS platform and is not directly compatible with TDC 3000 hardware. However, in hybrid migration environments where both platforms coexist, the CC-PAIN01 operates on the Experion side of the architecture. NINERMAS can advise on the appropriate interface modules and migration path for your specific system configuration.

Q4: What is NINERMAS’s long-term supply commitment for the CC-PAIN01 51410069-176?
A: NINERMAS maintains ongoing inventory of the CC-PAIN01 51410069-176 to support both planned retrofit projects and emergency replacement needs. We source from verified supply channels and can provide lead time estimates for bulk orders. Our 12-month warranty and pre-shipment testing policy apply to all units regardless of order volume.
