Honeywell CC-PAIH01 | HART Analog Input Module for DCS Process Control

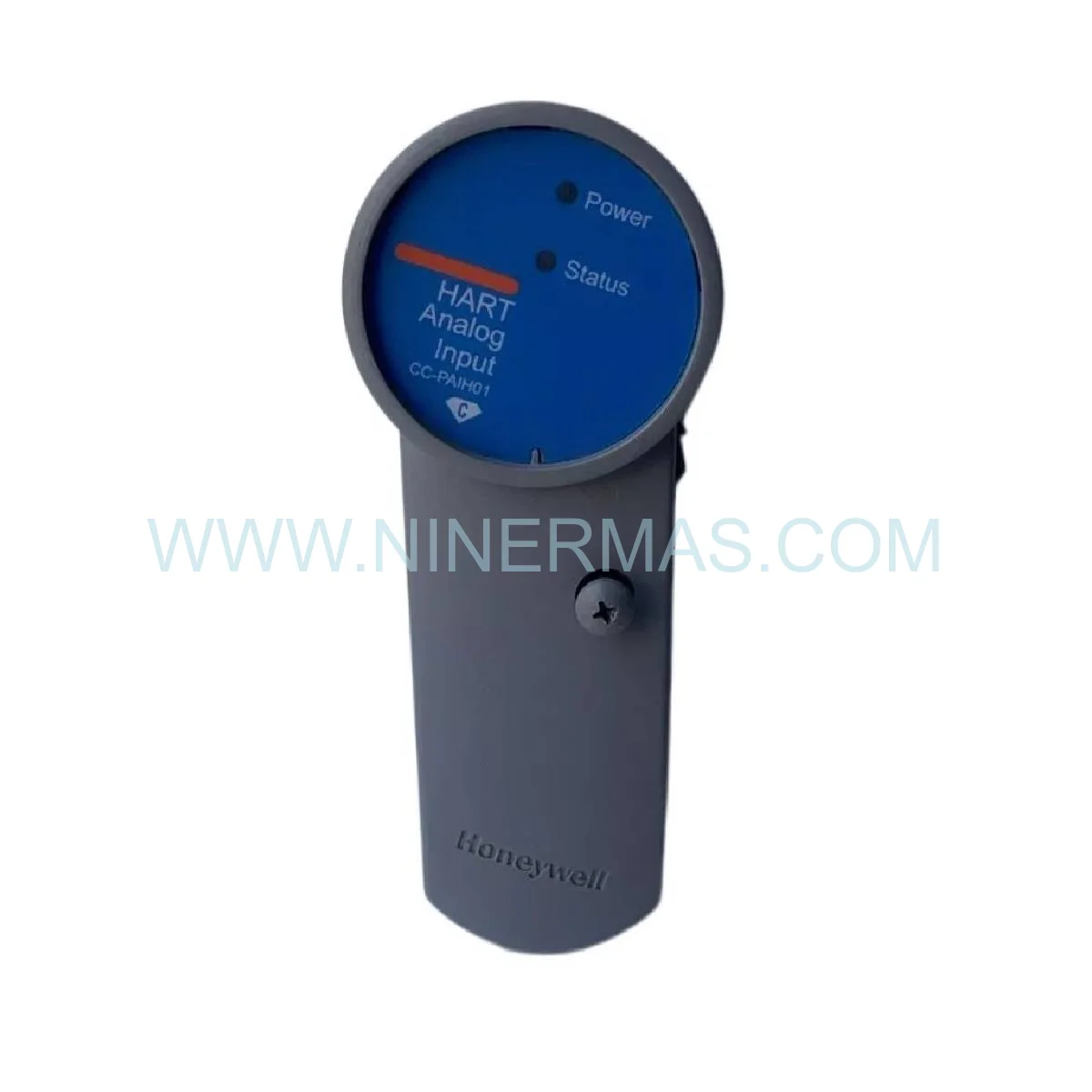

Honeywell CC-PAIH01 High-Level Analog Input Module – Industrial Process Solution

Technical Overview & First Impression

From the perspective of a seasoned Industrial Solution Architect, few components carry as much operational weight as a high-fidelity analog input module embedded within a Distributed Control System. The Honeywell CC-PAIH01 is precisely that kind of mission-critical asset — a high-level analog input module engineered for the Honeywell Experion PKS and C300 DCS platforms, where it serves as the primary interface between intelligent field instruments and the process control logic layer. In environments where a single erroneous reading can cascade into a costly shutdown, the Honeywell CC-PAIH01 delivers the measurement integrity that engineers and plant managers depend on.

What distinguishes this module from generic analog I/O alternatives is its native HART (Highway Addressable Remote Transducer) protocol integration — a Fieldbus-compatible communication layer that rides atop the conventional 4-20 mA signal without disrupting it. This dual-channel architecture allows simultaneous analog process variable acquisition and bidirectional digital communication with smart transmitters, enabling remote diagnostics, secondary variable access, and device configuration — all without breaking the control loop. For facilities managing aging DCS Hardware across multi-decade plant lifecycles, this level of backward compatibility and forward-looking intelligence is not a luxury; it is a strategic necessity.

Original factory-sealed stock of the CC-PAIH01 is increasingly difficult to source as Honeywell’s production cycles evolve. As a Legacy Component that remains deeply embedded in thousands of active Experion PKS installations worldwide, its availability on the open market is finite. Procurement teams managing Maintenance Stock programs or executing Emergency Repair scenarios will recognize the urgency of securing verified, authentic units before supply windows close permanently.

Key Technical Highlights

8 Differential Analog Input Channels — Accepts 4-20 mA current and 1-5 VDC voltage signals; each channel independently configurable via software, eliminating the need for external signal conditioners.
16-Bit A/D Resolution at ±0.1% Accuracy — Delivers laboratory-grade measurement precision across the full process range, supporting tight regulatory control loops in critical applications.
Integrated HART Protocol Support — Full bidirectional HART communication per channel; access secondary variables, device diagnostics, and transmitter configuration without additional wiring infrastructure.
Galvanic Channel Isolation — Channel-to-channel and channel-to-backplane isolation eliminates ground loop interference and protects against electrical transients common in industrial environments.
Hot-Swap Field Replacement — Designed for live system maintenance; modules can be replaced without controller shutdown, preserving process continuity during corrective maintenance.
Comprehensive Built-In Diagnostics — Open-wire detection, HART device health monitoring, and self-test routines provide continuous system integrity verification, reducing unplanned downtime.
Redundancy-Ready Architecture — Fully compatible with redundant C300 controller configurations, supporting seamless failover for high-availability process environments.

Vertical Industry Applications

Petrochemical & Refining: In continuous refining operations, the CC-PAIH01 monitors reactor temperatures, distillation column pressures, and feed flow rates with the precision required for yield optimization and safety interlock systems. Its HART capability enables remote transmitter diagnostics during live production, eliminating the need for costly loop interruptions.

Oil & Gas — Upstream & Midstream: From wellhead pressure monitoring to pipeline custody transfer measurement, this module provides the signal fidelity and communication depth that upstream and midstream operators require. HART-enabled smart transmitters can be interrogated remotely, reducing field technician exposure in hazardous zones and cutting inspection costs significantly.

Mining & Mineral Processing: Harsh environments with high electrical noise, vibration, and temperature extremes demand robust I/O hardware. The CC-PAIH01’s galvanic isolation and wide operating temperature range make it well-suited for ore processing, slurry handling, and conveyor control systems where signal integrity directly impacts throughput and safety.

Marine & Offshore Platforms: Offshore installations operating under ATEX and IECEx certification requirements rely on hardware that meets stringent safety standards. The CC-PAIH01’s certified design supports integration into safety-rated control architectures aboard FPSOs, drilling rigs, and LNG carriers, where system downtime carries extreme financial and safety consequences.

Power Generation — Thermal & Combined Cycle: Boiler drum level, turbine exhaust temperature, and emissions monitoring all demand high-accuracy analog acquisition. The CC-PAIH01 integrates seamlessly into Experion PKS-based power plant DCS architectures, providing the measurement backbone for both regulatory control and environmental compliance reporting.

Data Sheet & Specifications

Quality Assurance & Supply Chain

Every CC-PAIH01 unit supplied through our inventory is 100% original Honeywell manufacture, sourced through verified distribution channels and maintained in factory-sealed condition. No refurbished, remanufactured, or counterfeit units are offered — a commitment backed by full traceability documentation available upon request.

Each module is covered by a 12-Month Comprehensive Warranty against defects in materials and workmanship, with rapid replacement service and certified technical support from DCS specialists. For facilities facing unplanned outages, our Emergency Delivery program dispatches verified units via DHL Express, FedEx International Priority, or UPS Worldwide Expedited — with same-day processing available for orders confirmed before regional cutoff times. Global logistics coverage spans North America, Europe, the Middle East, Southeast Asia, and beyond, ensuring that a critical part shortage does not become a prolonged production crisis.

The CC-PAIH01 is a Critical Part for Industry Safety. In SIS-adjacent and high-availability DCS architectures, the failure of a single analog input module can compromise process visibility and trigger safety system responses. Maintaining verified spare stock is not optional — it is a fundamental element of responsible plant asset management.

Buyer’s FAQ — Selection Guide

Q: How can I verify that a CC-PAIH01 unit is 100% original Honeywell manufacture?
A: Authentic units carry Honeywell’s factory label with a traceable serial number, date code, and country of origin marking. The module housing should display no signs of repainting, re-labeling, or tampered seals. Request a Certificate of Conformance and cross-reference the serial number with Honeywell’s authorized distribution records. We provide full traceability documentation with every shipment.

Q: Where can I obtain the official Datasheet and Installation Guide for the CC-PAIH01?
A: The official Honeywell CC-PAIH01 datasheet and Experion PKS I/O module installation documentation are available through Honeywell’s Process Solutions technical library. Contact our technical team and we will assist in locating the correct revision of the documentation aligned with your system’s firmware version.

Q: Which Experion PKS and C300 system versions are compatible with the CC-PAIH01?
A: The CC-PAIH01 is compatible across multiple generations of the Honeywell Experion PKS platform and C300 controller firmware releases. Compatibility is generally maintained across major software revisions, but we recommend confirming your specific controller firmware version and IOTA chassis revision against Honeywell’s compatibility matrix before procurement. Our engineering team can assist with this verification.

Q: Is the CC-PAIH01 suitable for use in SIL-rated Safety Instrumented Systems?
A: The CC-PAIH01 is a standard process control I/O module designed for Experion PKS DCS applications. For SIL-rated SIS applications, Honeywell offers dedicated Safety Manager I/O modules certified to IEC 61511. However, the CC-PAIH01 is frequently deployed in process control layers adjacent to SIS architectures, where its diagnostic capabilities contribute to overall plant safety integrity.

Q: What is the lead time for emergency orders, and which shipping carriers are supported?
A: In-stock units can be dispatched within 24 hours of order confirmation. Emergency shipments are processed via DHL Express, FedEx International Priority, and UPS Worldwide Expedited. Estimated transit times range from 1-5 business days depending on destination. Contact our logistics team for real-time availability and cutoff time confirmation.

Q: Can the CC-PAIH01 replace older Honeywell analog input modules in legacy TDC 3000 or HPM systems?
A: The CC-PAIH01 is specifically designed for the Experion PKS and C300 platform architecture and is not a direct drop-in replacement for TDC 3000 or HPM I/O modules, which use different backplane interfaces and communication protocols. For legacy TDC 3000 or HPM systems, dedicated replacement modules are required. Contact our team for guidance on the correct Legacy Component for your specific system configuration.
