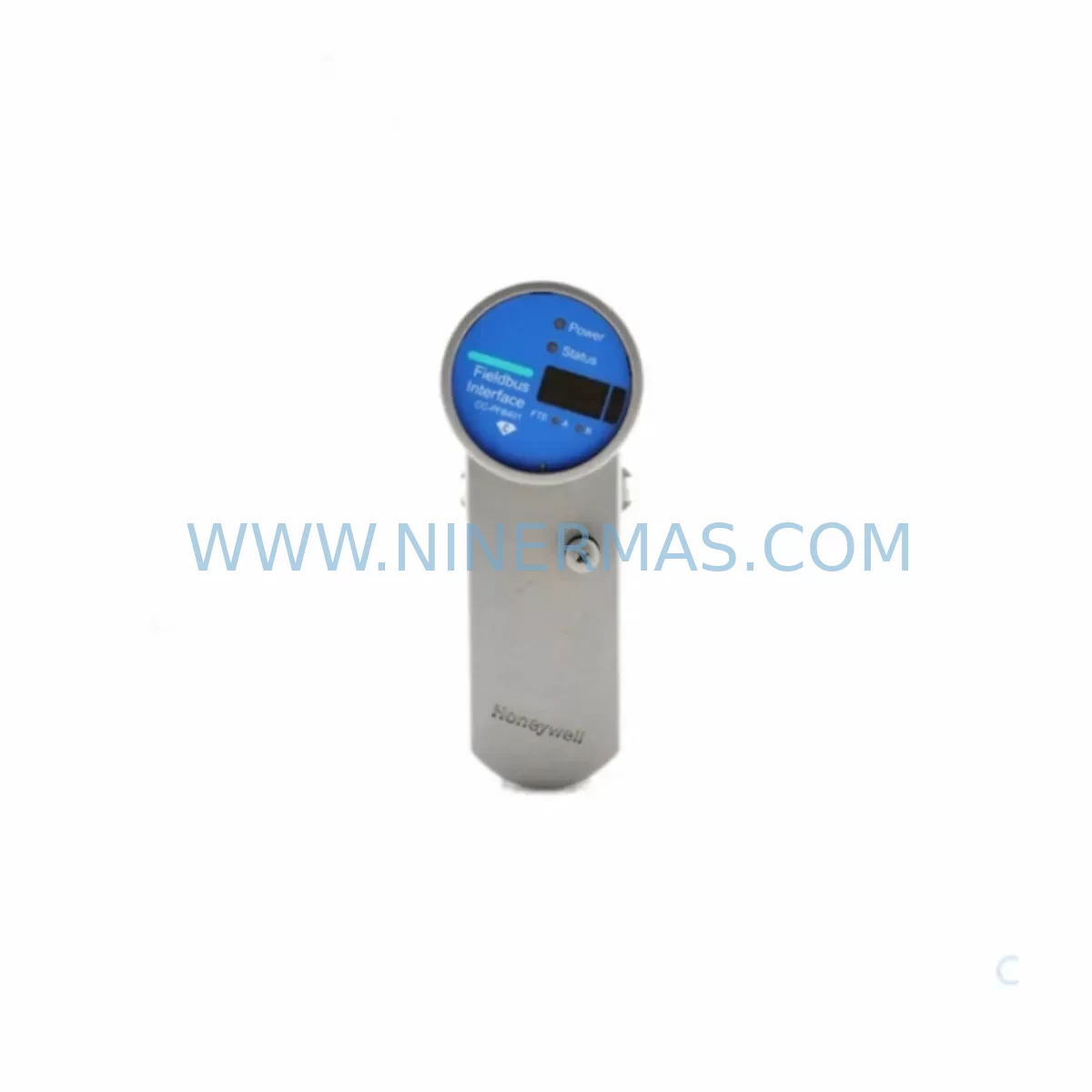

Honeywell CC-PAIH01 CC-PAIX01 Retrofit Analog Input Module

Honeywell CC-PAIH01 CC-PAIX01 Retrofit-Compatible Analog Input Module for Legacy Systems

When a legacy Honeywell Experion PKS or TDC 3000 system faces an aging analog input infrastructure, the CC-PAIH01 and CC-PAIX01 high-level analog input modules represent one of the most reliable retrofit paths available to maintenance and controls engineers. These C300 controller-compatible modules accept standard 4–20 mA and 1–5 V high-level analog signals, making them a direct functional replacement for earlier-generation HLAI modules used across process industries including refining, petrochemical, power generation, and pulp and paper.

Sourced from verified inventory and pre-tested prior to shipment, each CC-PAIH01 and CC-PAIX01 unit supplied by NINERMAS undergoes functional verification to confirm channel integrity, signal accuracy, and backplane communication before leaving our facility. A 12-month warranty is included as standard, providing procurement engineers with the confidence needed to commit to long-term spare parts planning without exposure to early-failure risk.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit involving the CC-PAIH01 or CC-PAIX01 requires more than a simple module swap. Maintenance engineers planning a C300 analog input upgrade should begin by auditing the existing I/O carrier and IOLINK cable assembly to confirm physical compatibility with the replacement module. The CC-PAIH01 and CC-PAIX01 share the same carrier footprint as other C300 I/O modules, but the carrier itself — typically a 16-channel HLAI carrier — must be inspected for pin corrosion, locking tab integrity, and backplane connector seating before the new module is installed.

Field wiring termination is handled through the associated field termination assembly (FTA), such as the CC-TAIX11 or CC-TAIX51 terminal blocks, which remain in place during a module swap. This design significantly reduces rewiring time and minimizes the risk of miswiring during the replacement procedure. Engineers should confirm that the FTA model matches the signal type — high-level versus low-level — before proceeding.

Power distribution within the control cabinet should also be reviewed. The C300 I/O subsystem draws power from the IOTA power bus, and adding or replacing modules may affect the total load on the CC-PWR001 or CC-PWR002 power supply modules. If the cabinet is operating near its power budget, a power audit is recommended before the retrofit is finalized.

Communication continuity is another critical factor. The C300 controller communicates with I/O modules via the IOLINK protocol, and any interruption to the CC-LINK001 or CC-LINK002 IOLINK cable during module replacement will cause a temporary loss of I/O data to the controller. Coordinating the swap during a planned maintenance window — and pre-configuring the replacement module in Experion Configuration Studio — ensures that the controller recognizes the new module immediately upon reinsertion without requiring a full controller restart.

For sites running parallel TDC 3000 and Experion PKS architectures, the CC-PAIH01 and CC-PAIX01 are frequently used as part of a phased migration strategy. Legacy UCN-connected HLAI modules are retired loop by loop, with C300-based replacements taking over signal acquisition while the upstream control strategy is migrated from the Application Module (AM) to the C300 controller. During this transition, signal isolators and marshalling panels may be required to bridge legacy field wiring to the new C300 FTA format.

Additional components commonly reviewed during a CC-PAIH01 or CC-PAIX01 retrofit include the CC-SCMB02 system cabinet module bus, CC-TAIX11 field termination assemblies, CC-PDIL51 digital input modules for discrete signal cross-referencing, and the Experion PKS Station HMI for alarm and trend verification after module commissioning. Ensuring that the HMI display points are correctly mapped to the new module’s channel addresses prevents false alarms and data gaps during the post-retrofit validation period.

Downtime Control During System Migration

Minimizing unplanned downtime during a C300 analog input module replacement requires a structured approach that begins well before the maintenance window opens. The first step is to export the current I/O configuration from Experion Configuration Studio and verify that all 16 channel assignments, engineering unit ranges, alarm setpoints, and HART device tags are documented. This configuration backup serves as the reference for post-installation verification and significantly reduces the time required to confirm that the replacement module is operating correctly.

During the physical swap, the IOLINK carrier should remain powered if the site’s safety procedures permit a hot-swap operation. The CC-PAIH01 and CC-PAIX01 are designed for online replacement within the C300 architecture, meaning the controller can continue executing its control strategy using the last known good values for the affected channels while the module is being replaced. This capability is particularly valuable in continuous process environments where even a brief loss of analog input data can trigger unnecessary shutdowns or process upsets.

After reinsertion, the replacement module will perform a self-diagnostic sequence and re-establish communication with the C300 controller via the IOLINK backplane. Engineers should monitor the Experion system status display to confirm that all 16 channels return to normal status within the expected initialization time. Any channels that remain in fault state after initialization should be investigated for FTA wiring issues, signal source problems, or address configuration mismatches before the maintenance window is closed.

For sites where a hot-swap is not permitted, the recommended approach is to pre-stage the replacement module with its configuration loaded, coordinate a brief process hold with the operations team, perform the swap, and restore normal operation within a defined time window. NINERMAS can support this process by providing pre-tested modules with configuration documentation upon request, reducing the on-site preparation time required by the maintenance team.

Retrofit Support FAQ

Q1: Is the CC-PAIH01 a direct drop-in replacement for the CC-PAIX01, and vice versa?
The CC-PAIH01 and CC-PAIX01 are closely related high-level analog input modules within the Honeywell C300 I/O family. While both accept high-level analog signals and share the same carrier footprint, there are minor hardware revision differences between them. NINERMAS recommends confirming the exact part number required for your system revision before ordering. Our technical team can assist with cross-reference verification based on your system’s build level and Experion software version.

Q2: What pre-shipment testing does NINERMAS perform on CC-PAIH01 and CC-PAIX01 modules?
Every module supplied by NINERMAS undergoes functional testing that includes power-on self-diagnostic verification, channel signal integrity checks across the full 4–20 mA input range, and backplane communication confirmation. Modules that fail any test criterion are quarantined and not shipped. A test report is available upon request for customers with quality documentation requirements.

Q3: Can NINERMAS support long-term supply of CC-PAIH01 and CC-PAIX01 for multi-year maintenance contracts?
Yes. NINERMAS maintains reserved inventory agreements for customers with ongoing spare parts requirements. For sites operating multiple C300 cabinets or managing a fleet of Experion PKS systems, we can establish a dedicated stock allocation with agreed lead times and pricing. Contact our sales team at sale@ninermas.com to discuss a long-term supply arrangement.

Q4: What is covered under the 12-month warranty for these modules?
The NINERMAS 12-month warranty covers manufacturing defects, functional failures under normal operating conditions, and any faults identified during the incoming inspection period. Warranty claims are processed with priority turnaround, and replacement units are dispatched from stock to minimize the impact on your maintenance schedule. The warranty period begins from the date of shipment confirmation.
