Honeywell 8C-TAIX51 Retrofit-Compatible I/O for Legacy Systems

Honeywell 8C-TAIX51 Retrofit-Compatible I/O for Legacy Systems

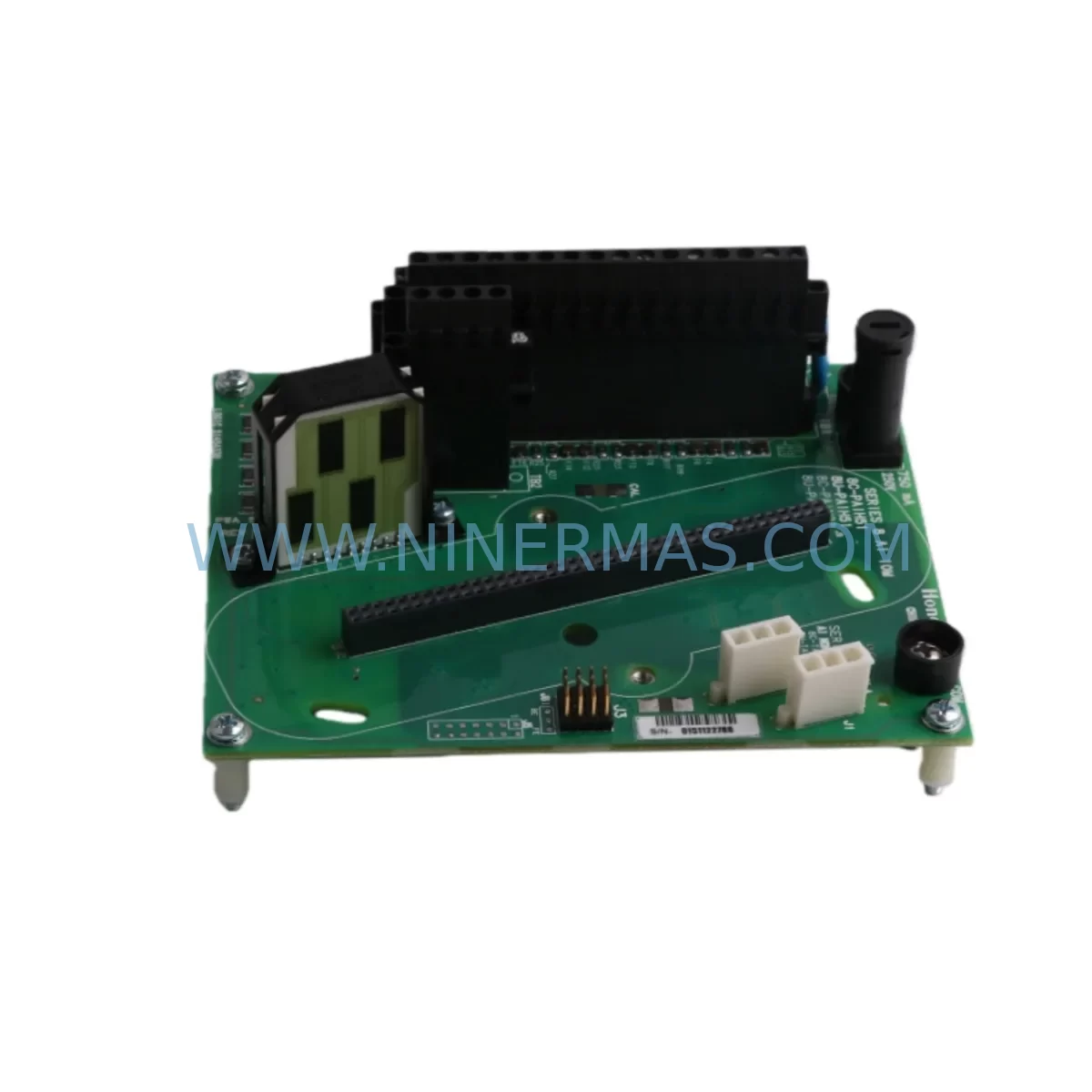

The Honeywell 8C-TAIX51 is an 8-channel thermocouple/millivolt input module designed for the Experion PKS C300 Series controller platform. As legacy distributed control systems (DCS) age beyond their supported lifecycle, the 8C-TAIX51 has become one of the most sought-after retrofit components for plants seeking to extend operational continuity without committing to a full system overhaul. Whether you are replacing a failed module in an existing C300 cabinet, expanding I/O capacity during a partial migration, or sourcing a long-lead discontinued spare, the 8C-TAIX51 delivers the signal accuracy and backplane compatibility required for seamless integration into your existing control architecture.

At NINERMAS, we maintain verified inventory of the 8C-TAIX51 and support customers through the full retrofit cycle — from pre-shipment functional testing to post-installation commissioning guidance. Every unit ships with a 12-month warranty and full documentation support.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Integrating the 8C-TAIX51 into an existing plant environment requires careful pre-engineering to avoid configuration conflicts and unplanned downtime. The first step is confirming available slot positions within the C300 I/O chassis. The C300 controller communicates with I/O modules through the I/O Link Interface Module (IOLIM), and each chassis supports a defined number of module slots. If the target chassis is fully populated, engineers may need to evaluate whether an additional C300 I/O Expansion Chassis can be added to the cabinet, or whether a module consolidation strategy is appropriate.

Terminal wiring is a critical checkpoint. The 8C-TAIX51 uses a dedicated field termination assembly — typically the 8C-TAIS51 or equivalent terminal block — that must be matched to the module revision. Mismatched termination assemblies are a common source of commissioning delays in retrofit projects. Before ordering, verify the existing termination hardware in the cabinet and confirm compatibility with the replacement module revision.

For plants running a mixed I/O environment, the 8C-TAIX51 coexists in the same chassis with analog output modules such as the 8C-PAOX01, digital input modules like the 8C-TDID51, and digital output modules such as the 8C-TDOD51. This modular architecture allows engineers to selectively replace only the failed or end-of-life input channels without disturbing adjacent I/O assignments. The C300 controller itself — whether a single or redundant pair — does not require firmware changes when a like-for-like module replacement is performed.

In projects involving a broader migration from TDC-3000 or PlantScape systems to Experion PKS, the 8C-TAIX51 is frequently specified as the target analog input module for thermocouple loops previously handled by legacy HPM (High-Performance Process Manager) cards. This migration path requires remapping I/O addresses in the Experion Configuration Studio, updating the associated Control Builder function blocks, and verifying that HMI faceplates in the Experion Station reflect the new tag assignments. The IOLIM module address and the physical slot position must be consistent with the configuration database to avoid alarm floods at startup.

Power budget verification is another mandatory step. The C300 chassis power supply — such as the CC-PWR01 or redundant CC-PWR02 — must have sufficient headroom to support the additional module load. Each 8C-TAIX51 draws a defined current from the backplane; adding multiple modules simultaneously without recalculating the power budget can cause intermittent resets or module faults. NINERMAS recommends requesting the chassis load calculation worksheet as part of the pre-engineering package for any multi-module retrofit.

Signal isolation requirements should also be reviewed. In environments with high common-mode noise or ground loops — common in older petrochemical and power generation facilities — a signal isolator or barrier may be required upstream of the 8C-TAIX51 input terminals. This is particularly relevant when migrating thermocouple loops from older systems that used isolated input cards with higher common-mode rejection ratings.

Downtime Control During System Migration

Minimizing production impact during a C300 I/O retrofit requires a structured hot-cutover or scheduled maintenance window strategy. For non-redundant I/O configurations, the replacement of a single 8C-TAIX51 module typically requires a brief loop-out procedure: placing all associated PID controllers in manual mode, documenting current setpoints and output values, and isolating the field signals at the marshalling panel before removing the module.

In redundant I/O configurations — where the C300 platform supports redundant module pairs — the replacement can often be performed online by failing over to the redundant module, replacing the faulted unit, and allowing the system to re-synchronize automatically. This approach eliminates process interruption entirely for critical loops and is the preferred method for high-availability applications such as boiler control, compressor surge protection, and reactor temperature monitoring.

Before reinserting the replacement 8C-TAIX51, engineers should confirm that the module firmware revision is compatible with the current C300 controller firmware. Revision mismatches can prevent the module from being recognized by the IOLIM and will generate a hardware fault alarm in the Experion Station. If a firmware update is required, this should be planned as a separate activity prior to the cutover window to avoid extending the maintenance period.

After module insertion, the commissioning sequence includes: confirming module status in the Experion Configuration Studio hardware tree, verifying channel-by-channel input readings against field reference instruments, checking alarm limits and engineering unit scaling in the associated Control Builder parameter blocks, and confirming that HMI displays are updating correctly. A structured loop check sheet — signed off by both the control engineer and the field technician — is recommended as the final acceptance record before returning loops to automatic control.

NINERMAS supports customers through this process with pre-shipment functional test reports, revision documentation, and technical consultation on wiring and configuration questions. Our goal is to ensure that the replacement 8C-TAIX51 arrives ready to install, reducing the time your team spends on-site during the maintenance window.

Retrofit Support FAQ

Q1: Is the 8C-TAIX51 a direct drop-in replacement for an existing module of the same part number?
A: In most cases, yes. The 8C-TAIX51 is designed for slot-compatible replacement within the C300 I/O chassis. However, you should verify the module hardware revision and the associated field termination assembly part number before installation. Minor revision differences may affect firmware compatibility or terminal pinout. NINERMAS provides full revision documentation with every shipment.

Q2: Can the 8C-TAIX51 be used to replace thermocouple input cards from older Honeywell TDC-3000 or PlantScape systems?
A: Not as a direct electrical replacement — the TDC-3000 and PlantScape platforms use different backplane architectures. However, the 8C-TAIX51 is the standard target module when migrating thermocouple loops to the Experion PKS C300 platform. This migration requires re-terminating field wiring to C300-compatible terminal assemblies and remapping I/O addresses in the Experion configuration database.

Q3: What pre-shipment testing does NINERMAS perform on the 8C-TAIX51?
A: Every 8C-TAIX51 unit undergoes a functional burn-in test prior to shipment. This includes power-on verification, channel input response testing across the supported thermocouple type range, and communication handshake confirmation. A test report is available upon request and can be included with the shipment documentation.

Q4: What does the 12-month warranty cover, and what is the process for a warranty claim?
A: The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions. If a unit fails within the warranty period, NINERMAS will arrange a replacement shipment after receiving the returned defective unit and confirming the fault. Warranty claims are handled directly through our sales team at sale@ninermas.com. We maintain buffer stock of the 8C-TAIX51 to support rapid warranty replacements and minimize your plant’s exposure to extended downtime.
