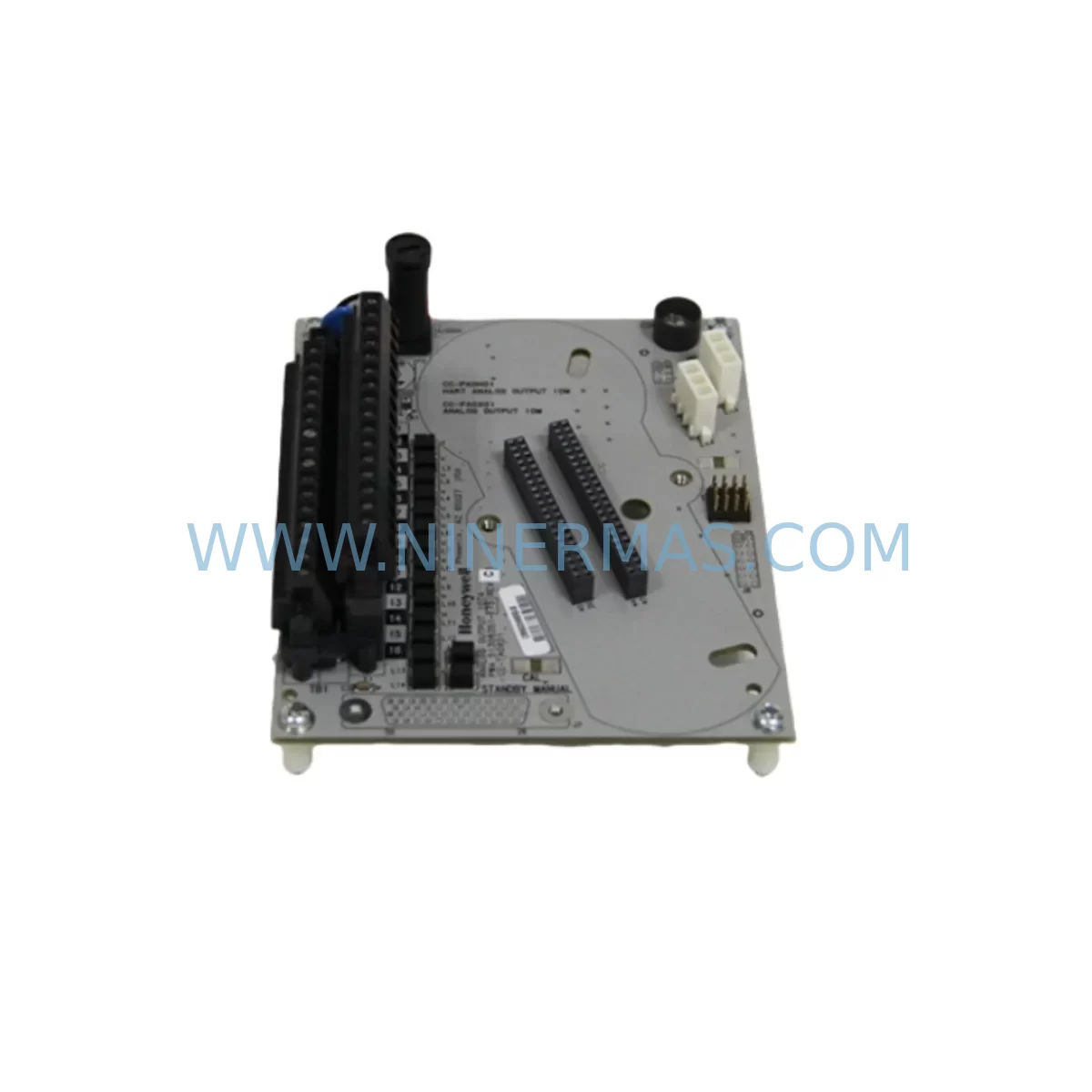

The Honeywell 83957-061-003 is a Digital Output Relay Module designed for use within the Honeywell TDC 3000 Process Manager (PM) distributed control system architecture. As legacy TDC 3000 installations continue to operate across refineries, chemical plants, and power generation facilities worldwide, the demand for verified retrofit-compatible replacement modules has never been more critical. NINERMAS maintains ready inventory of the 83957-061-003 to support planned maintenance shutdowns, emergency replacements, and phased DCS modernization projects — each unit pre-shipment tested and covered by a 12-month warranty.

The 83957-061-003 module provides relay-based digital output capability within the TDC 3000 I/O subsystem, interfacing directly with the Process Manager I/O Link and communicating upstream to the Universal Control Network (UCN). Its relay contact outputs are suited for driving solenoid valves, motor starters, alarm annunciators, and other field devices that require dry-contact switching. When replacing a failed or end-of-life unit, engineers must verify the relay contact rating, coil voltage compatibility, and the module’s slot address assignment within the I/O carrier assembly before energizing the replacement.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the 83957-061-003 within an operating TDC 3000 system requires a structured approach that accounts for the interdependencies between I/O modules, the Process Manager controller, and the plant’s UCN communication backbone. Before scheduling the replacement, the maintenance team should audit the I/O carrier assembly to confirm that the adjacent modules — such as the 51304337-150 Digital Input Module and the 51304362-150 Analog Input Module — are functioning correctly and that their wiring terminations are secure. A failed relay output module can sometimes cause cascading diagnostic alarms that implicate neighboring I/O points, so isolating the fault to the 83957-061-003 specifically is an important first step.

Power supply integrity is a foundational concern in any TDC 3000 retrofit. The 51309218-175 Power Supply Module feeds the I/O subsystem, and its output voltage rails must be within specification before inserting a replacement output module. An undersized or aging power supply can cause intermittent module faults even after a successful hardware swap. Similarly, the 51401583-100 I/O Carrier Backplane should be inspected for bent connector pins, oxidation, or physical damage that could prevent reliable module seating.

Communication continuity is maintained through the TDC 3000 I/O Link, which connects the Process Manager to its I/O subsystem. The 51305348-100 I/O Link Module manages this communication path, and its status should be confirmed as healthy before and after the module replacement. If the plant is also undertaking a broader migration from TDC 3000 to Honeywell Experion PKS, the 51304485-100 Communication Module and the 51304516-200 Serial Interface Module may be involved in bridging legacy I/O to the new control platform, and their configuration files must be preserved and validated as part of the migration plan.

For facilities managing a mixed I/O environment, the 51304453-150 CPU Module governs the execution of control strategies that reference the digital output points driven by the 83957-061-003. Any change to the module’s slot address or I/O Link node assignment must be reflected in the PM’s I/O configuration database before the replacement module is brought online. Failure to update the database will result in the controller reporting the new module as an unrecognized device, triggering a loss-of-module alarm and potentially placing associated control loops in manual mode.

Where the retrofit scope includes expanding digital output capacity — for example, adding new solenoid valve control points to an upgraded control cabinet — the 621-0020 Relay Output Module and the 620-0036 Digital Input Module from the same TDC 3000 I/O family can be used to extend the system’s field interface without requiring a controller upgrade. This approach preserves the existing UCN architecture and avoids the cost and risk of a full platform migration while still delivering the additional I/O capacity the modernized process requires.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational constraint in any legacy DCS module replacement. For the 83957-061-003, the replacement procedure can typically be completed within a planned maintenance window of two to four hours, provided that all preparatory steps — spare module verification, I/O configuration backup, field device isolation, and wiring documentation review — are completed in advance.

The TDC 3000 Process Manager supports hot-standby redundancy configurations in many installations, which means that a redundant PM controller can maintain process control continuity while the primary I/O subsystem is taken offline for the module swap. Before initiating the replacement, the control engineer should confirm that the redundant controller is synchronized and that the switchover logic is functioning correctly. This eliminates the risk of a process upset during the hardware change.

Preserving the original control program logic is non-negotiable. The PM’s control strategy database — including all function blocks, setpoints, alarm limits, and interlock logic referencing the digital output points served by the 83957-061-003 — must be backed up to a secure location before any hardware work begins. NINERMAS recommends retaining a copy of the I/O configuration file, the UCN node map, and the HMI point tag database as a complete restoration package. If the replacement module requires a firmware revision update to match the installed PM version, this should be performed offline and verified before the module is inserted into the live system.

Post-replacement commissioning should include a point-by-point output verification test, confirming that each relay contact operates correctly in response to commands issued from the HMI or engineering workstation. Field technicians should verify contact closure at the terminal block level using a continuity tester before re-energizing connected field devices. This step catches wiring errors introduced during the replacement and prevents damage to solenoid valves, motor starters, or other actuators connected to the relay outputs.

Retrofit Support FAQ

Q1: Is the Honeywell 83957-061-003 a direct drop-in replacement for the original module?
A: Yes, the 83957-061-003 is designed as a direct replacement within the TDC 3000 I/O subsystem. No modifications to the backplane, wiring terminations, or control program are required for a like-for-like swap. However, engineers should verify the module revision level against the installed PM firmware to confirm full compatibility before installation.

Q2: How do I verify the I/O Link address assignment before installing the replacement module?
A: The I/O Link address is configured via hardware switches or jumpers on the module itself, depending on the revision. The correct address can be confirmed by referencing the TDC 3000 I/O configuration database in the Engineering Workstation (EWS). The address must match the slot assignment defined in the PM’s I/O configuration file to ensure the controller recognizes the replacement module without generating a loss-of-module alarm.

Q3: Does NINERMAS perform pre-shipment testing on the 83957-061-003?
A: Yes. Every 83957-061-003 unit shipped by NINERMAS undergoes functional pre-shipment testing to verify relay contact operation, backplane interface integrity, and communication link response. Units are shipped with a test report and are covered by a 12-month warranty from the date of delivery. Expedited shipping is available for emergency replacement requirements.

Q4: What is the lead time and inventory availability for the 83957-061-003?
A: NINERMAS maintains service-ready stock of the 83957-061-003 to support both planned maintenance and emergency replacement scenarios. Standard lead time is 1–3 business days for in-stock units. For large-quantity orders or long-term supply agreements covering multiple TDC 3000 sites, please contact our sales team directly to discuss reserved inventory arrangements and volume pricing.
