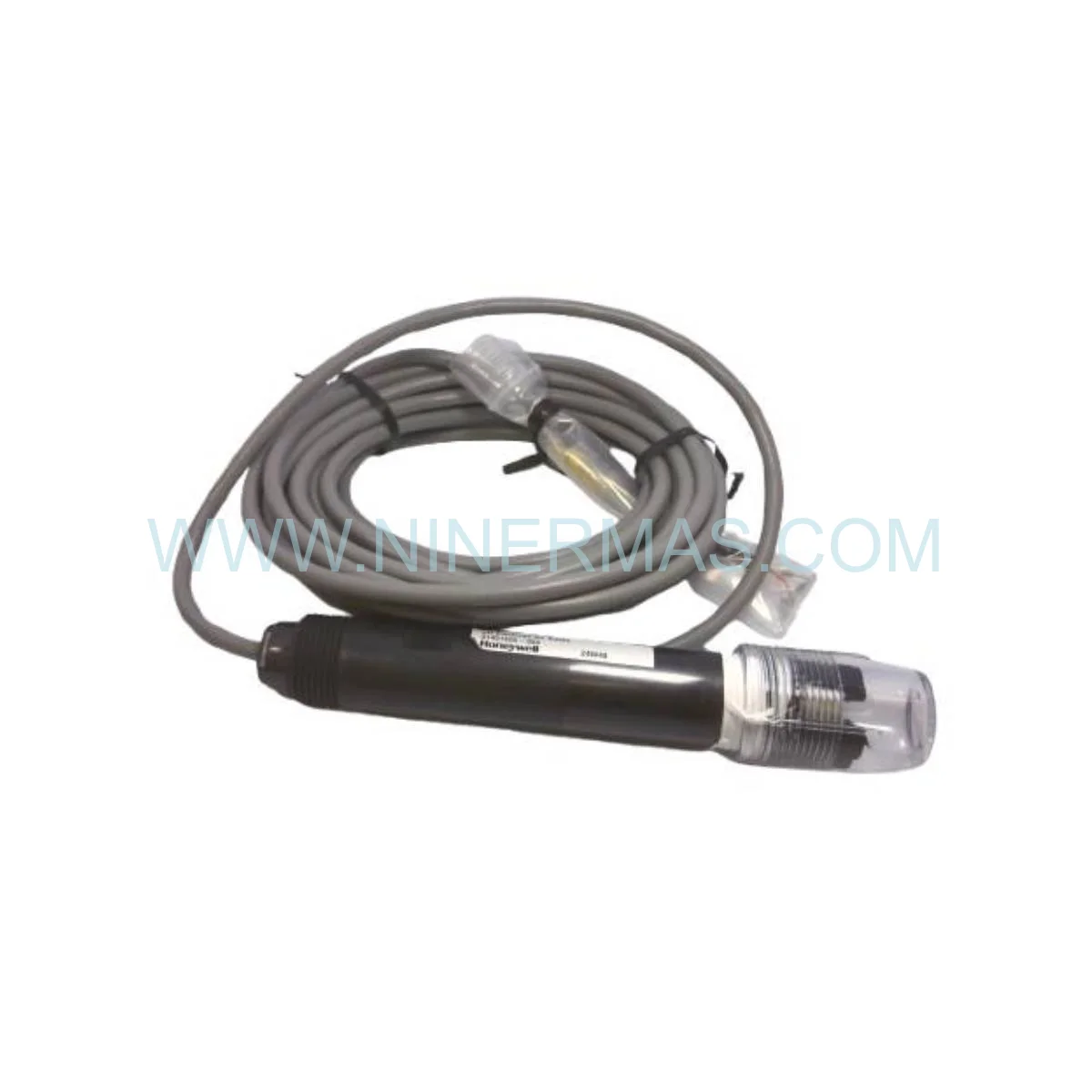

Honeywell 51451326-503 Meredian II pH Electrode Assembly – Industrial Process Solution

As a Global Sourcing Manager with over a decade of experience in distributed control system procurement, I can state with confidence that the Honeywell 51451326-503 Meredian II pH Electrode Assembly occupies a uniquely critical position in modern industrial process control infrastructure. This component is not merely a sensor — it is the primary data-acquisition node for pH measurement within Distributed Control System (DCS) architectures, where measurement integrity directly governs process safety and product quality. The Honeywell 51451326-503, engineered under Honeywell’s Meredian II platform, delivers a level of electrochemical stability that legacy components in this class rarely achieve, making it an indispensable asset for facilities operating continuous or batch processes under strict regulatory oversight.

From a technical compatibility standpoint, this electrode assembly integrates seamlessly with a broad range of pH/ORP transmitters and analyzers operating across 4-20 mA and digital Fieldbus communication protocols. Its double-junction reference cell architecture significantly reduces cross-contamination risk in aggressive media, while the CPVC body construction provides robust chemical resistance — a decisive advantage over standard polysulfone or polypropylene housings. For facilities managing legacy upgrades or transitioning from end-of-life (EOL) instrumentation platforms, the 51451326-503 offers a validated drop-in replacement path that avoids costly system re-engineering.

Factory Sealed stock of the Honeywell 51451326-503 is increasingly scarce in the global supply chain. As Honeywell continues to evolve its Meredian product line, original-condition units with full traceability documentation represent a finite and diminishing resource. Securing verified inventory now is a strategic imperative for maintenance planners and reliability engineers responsible for uninterrupted plant operations.

Key Technical Highlights

Full-Range pH Measurement (0-14 pH): Covers the complete pH spectrum required for both acidic and alkaline process streams without sensor substitution.
Automatic Temperature Compensation (ATC): Eliminates manual correction errors across the 0-80°C operating range, ensuring data integrity in thermally dynamic processes.
Double Junction Reference Design: Provides superior stability and extended service life by isolating the reference electrolyte from process media — critical for high-fouling or chemically aggressive applications.
CPVC Body Construction: Delivers exceptional resistance to chlorinated solvents, acids, and oxidizing agents; rated to 100 PSI operating pressure.
20-Foot Tinned Copper Lead Cable: Enables flexible transmitter placement while maintaining low-noise signal transmission across extended cable runs.
Response Time <30 Seconds: Supports high-speed process feedback loops where delayed pH response could trigger safety interlocks or product non-conformance events.

Vertical Industry Applications

Petrochemical Refining: In crude oil refining and petrochemical synthesis, pH control within reactor and neutralization units is a non-negotiable process parameter. The 51451326-503’s pressure rating and chemical-resistant body make it suitable for inline deployment in high-pressure wash and caustic treatment circuits, where sensor failure translates directly to unplanned shutdown events and significant revenue loss.

Mining & Mineral Processing: Heap leach operations and tailings pond management demand continuous pH monitoring to comply with environmental discharge regulations. This electrode assembly withstands the abrasive, high-solids slurries common in copper, gold, and lithium extraction processes, reducing sensor replacement frequency and associated maintenance downtime.

Marine & Offshore Platforms: Seawater desalination systems and ballast water treatment units aboard offshore platforms require corrosion-resistant instrumentation capable of operating in high-humidity, salt-laden environments. The CPVC construction and sealed cable assembly of the 51451326-503 address these environmental stressors directly.

Pharmaceutical & Biotech Manufacturing: GMP-compliant pH monitoring for fermentation, buffer preparation, and CIP/SIP cleaning validation requires traceable, calibrated instrumentation. The Meredian II platform’s measurement repeatability supports 21 CFR Part 11 data integrity requirements when integrated with validated DCS Hardware platforms.

Municipal Water Treatment: Continuous pH adjustment in coagulation, flocculation, and disinfection stages of drinking water treatment relies on fast-responding, low-maintenance electrodes. The 51451326-503’s sub-30-second response time and ATC capability ensure regulatory compliance with EPA and WHO pH discharge standards.

Data Sheet & Specifications

Quality Assurance & Supply Chain

Every unit of the Honeywell 51451326-503 supplied through our inventory is 100% Original — sourced directly from authorized Honeywell distribution channels or verified factory-sealed surplus stock. Each assembly undergoes a multi-point inspection protocol prior to dispatch, covering physical integrity, seal condition, label authenticity, and date-code verification against Honeywell’s manufacturing records.

Our 12-Month Comprehensive Warranty covers all defects in materials and workmanship from the date of shipment, providing procurement teams and plant engineers with the assurance required for critical spare parts budgeting. In the event of a warranty claim, replacement units are prioritized for dispatch within 48 hours to minimize process disruption.

For facilities facing Emergency Repair scenarios — where an unplanned pH sensor failure has triggered a process shutdown or safety interlock — we maintain dedicated emergency inventory allocation. Expedited global delivery is available via DHL Express, FedEx International Priority, and UPS Worldwide Express, with same-day dispatch for orders confirmed before 14:00 UTC. Customs documentation, including commercial invoices, packing lists, and certificates of origin, are prepared in parallel with shipment to eliminate clearance delays at destination ports.

Buyer’s FAQ — Selection Guide

Q1: How can I verify that the Honeywell 51451326-503 I receive is a genuine original and not a counterfeit or refurbished unit?
A: Authentic units carry Honeywell’s original factory label with a legible date code, part number 51451326-503 printed in Honeywell’s standard font, and an unbroken factory seal on the cable entry point. We provide a Certificate of Authenticity and, upon request, photographic documentation of the unit prior to shipment. Customers may also cross-reference the serial number with Honeywell’s authorized distributor verification service.

Q2: Where can I obtain the official Datasheet and installation manual for the 51451326-503?
A: The official Honeywell Meredian II pH Electrode Assembly datasheet and installation guide are available through Honeywell’s Process Solutions technical documentation portal. We can also provide copies of the relevant technical documents upon order confirmation as part of our standard documentation package.

Q3: Is the 51451326-503 compatible with my existing Honeywell pH analyzer or third-party transmitter?
A: The Meredian II electrode uses a standard BNC-type connector and analog signal output compatible with the majority of Honeywell pH/ORP analyzers and most third-party transmitters supporting conventional glass electrode inputs. For DCS Hardware integration via Fieldbus protocols (HART, FOUNDATION Fieldbus), a compatible pH transmitter with the appropriate communication stack is required as an intermediary. Please provide your transmitter model number for a compatibility confirmation before ordering.

Q4: What is the recommended calibration procedure and frequency for this electrode in a continuous process environment?
A: Honeywell recommends a two-point calibration using NIST-traceable pH 4.0 and pH 7.0 buffer solutions for acidic processes, or pH 7.0 and pH 10.0 for alkaline applications. Calibration frequency depends on process conditions: weekly for clean water streams, and daily or per-batch for high-fouling or chemically aggressive media. Slope degradation below 85% of theoretical (59.16 mV/pH at 25°C) indicates electrode replacement is required.

Q5: Can the 51451326-503 be used as a direct replacement for EOL (End-of-Life) Honeywell Meredian I electrodes?
A: In most installations, the Meredian II series maintains backward compatibility with Meredian I mounting hardware and transmitter connections. However, minor dimensional differences in the process fitting may require an adapter fitting. We recommend confirming the process connection type (NPT, flanged, or submersion) before finalizing the replacement order to ensure a seamless fit.

Q6: What is the lead time for standard and emergency orders of the 51451326-503?
A: Standard orders ship within 1-3 business days from our warehouse. Emergency orders with same-day dispatch are available for confirmed orders received before 14:00 UTC, with delivery to major industrial hubs in North America, Europe, and Asia-Pacific within 2-5 business days via DHL/FedEx/UPS express services. Contact our team directly for time-critical requirements.
