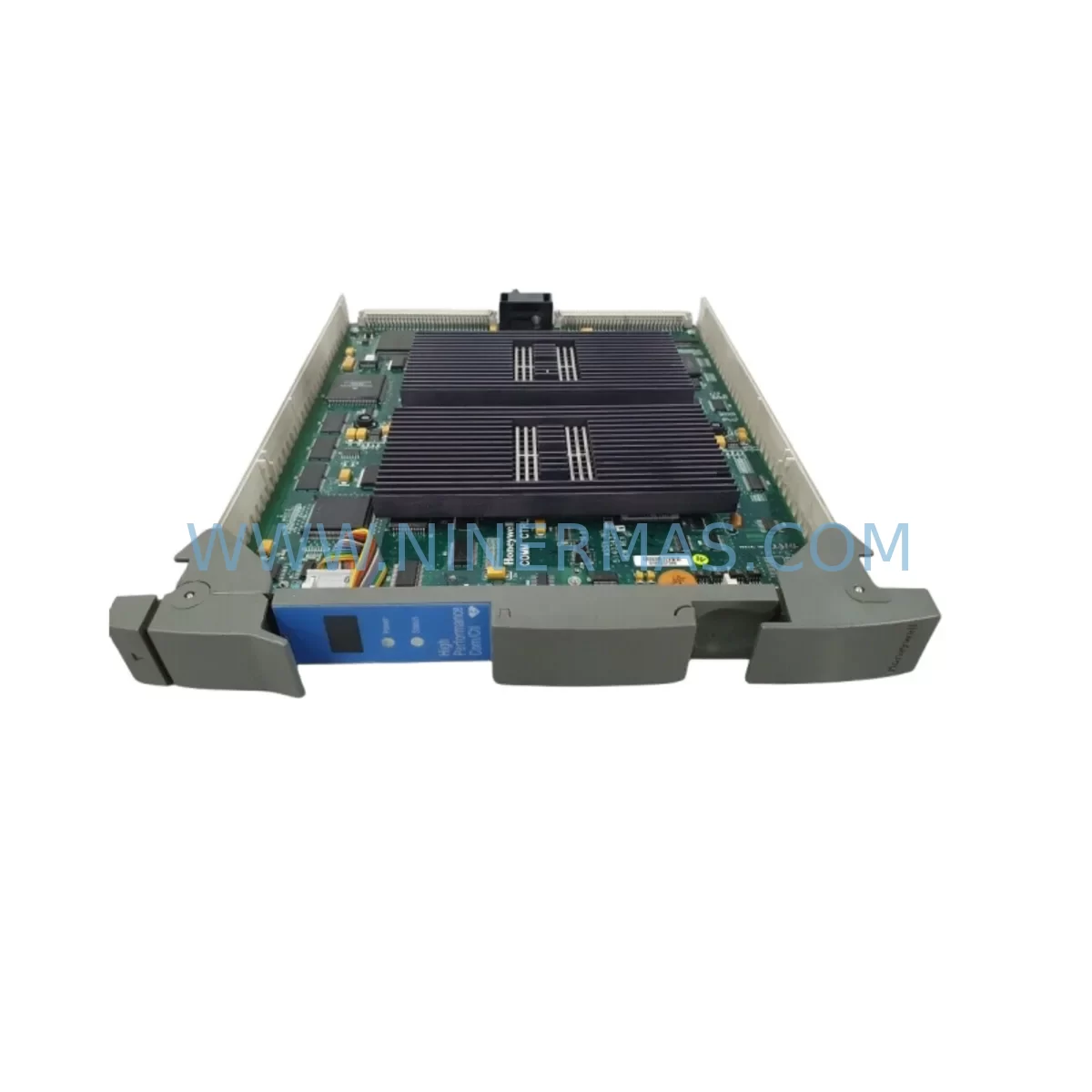

The Honeywell 51403422-150 is a ruggedized Communication/Control Safety Module engineered for demanding industrial environments where system uptime and personnel safety are non-negotiable. Designed as an integral component within Honeywell’s TDC 3000 and Safety Manager platform ecosystems, this module provides reliable data communication and control logic execution in harsh process environments including oil & gas, petrochemical, power generation, and heavy manufacturing facilities. As a service-ready original spare part, the 51403422-150 is stocked and tested to support rapid field replacement, minimizing unplanned downtime and restoring production continuity with confidence.

Maintenance engineers and procurement teams managing legacy Honeywell DCS and safety instrumented systems (SIS) recognize the 51403422-150 as a critical line-replaceable unit (LRU). Its ruggedized construction tolerates wide temperature ranges, vibration, and EMI exposure typical of control cabinet environments in process plants. When this module is flagged during a routine control cabinet inspection or fault diagnostic, a verified replacement unit must be available on-site or sourced within the shortest possible lead time to avoid extended process shutdowns.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the Honeywell 51403422-150 during a scheduled turnaround or emergency corrective maintenance event, a thorough inspection of the surrounding control architecture is essential to prevent repeat failures and ensure full system restoration. Maintenance engineers should begin by verifying the integrity of the Honeywell 51401642-100 Power Supply Module, which provides regulated DC power to the card cage housing the 51403422-150. A degraded or undersized power supply is a common root cause of communication module faults and must be ruled out before the replacement module is commissioned.

Next, inspect the Honeywell 51304516-100 UCN Tap and associated coaxial trunk cabling for continuity and termination integrity. UCN bus signal degradation can cause intermittent communication faults that mimic module hardware failure. Similarly, the Honeywell 51401584-100 I/O Link Interface Module should be checked for proper seating and firmware revision compatibility, as mismatched firmware between the communication module and I/O link interface can prevent successful system re-initialization after a card swap.

For safety-critical loops, verify the status of Honeywell 51196563-100 Digital Output Modules and associated field wiring terminations. Loose or corroded terminal blocks on the Honeywell 51304453-100 Termination Assembly are a frequent source of spurious trips and should be re-torqued and inspected for oxidation during any safety module replacement event. If the plant operates relay-based interlock logic, the condition of intermediate relay modules and their coil voltage ratings should be confirmed against the current control narrative.

Communication health across the Local Control Network (LCN) should be validated using the Honeywell Universal Station or equivalent diagnostic tool. Check that the Honeywell 51401195-100 Network Interface Module shows no error flags after the 51403422-150 is reseated or replaced. For facilities running hybrid DCS-SIS architectures, the Honeywell SM Integration Module linking the Safety Manager to the TDC 3000 supervisory layer should also be inspected for configuration consistency.

Procurement engineers building annual spare parts lists for TDC 3000 or Safety Manager systems should consider stocking at minimum one unit of the 51403422-150 per control node, alongside companion modules such as the Honeywell 51401494-200 Analog Input Module and Honeywell 51304362-175 Multifunction Processor. Establishing a blanket purchase agreement for these high-criticality modules reduces emergency sourcing risk and supports predictable maintenance budgeting across multi-year plant operating cycles.

Site Replacement Workflow

Replacing the Honeywell 51403422-150 in the field follows a structured procedure to minimize control system disruption and ensure safe module swap-out. Before beginning, confirm that the replacement unit carries the same revision suffix (-150) and that firmware compatibility has been verified against the current system build documentation. Substituting an incorrect revision can introduce configuration mismatches that require additional engineering intervention to resolve.

Step 1 — Pre-Replacement Verification: Download and archive the current module configuration using the Honeywell Engineering Workstation. Confirm that the process loop controlled by this module is in a safe state or has been transferred to manual control at the DCS operator station.

Step 2 — Safe Isolation: Follow the plant’s Permit to Work (PTW) and Lock-Out/Tag-Out (LOTO) procedures. De-energize the card cage slot if hot-swap is not supported for this module revision. Verify zero-energy state before card extraction.

Step 3 — Module Extraction and Inspection: Remove the faulty 51403422-150 and inspect the backplane connector for bent pins, contamination, or heat damage. Clean the slot with approved electronics-grade contact cleaner if required.

Step 4 — Replacement Installation: Insert the verified replacement module firmly until the ejector latches engage. Restore power to the card cage and observe the module’s LED status indicators during the boot sequence. A solid green status LED confirms successful initialization.

Step 5 — Configuration Restore and Loop Check: Reload the archived configuration if required by the system. Perform a point-by-point loop check on all I/O channels associated with this module. Confirm that all safety function outputs respond correctly before returning the loop to automatic control.

Step 6 — Documentation: Update the plant’s maintenance management system (CMMS) with the replacement date, new module serial number, and any observations noted during the swap. Retain the removed module for failure analysis or refurbishment evaluation.

Spare Parts Support FAQ

Q1: Is the Honeywell 51403422-150 still available as a new original spare part?
Yes. NINERMAS maintains stock of the 51403422-150 as both new original and fully tested refurbished units. All units undergo functional verification prior to shipment. For long-term supply commitments, blanket order agreements are available to guarantee allocation across multi-year maintenance programs.

Q2: How do I confirm compatibility between the 51403422-150 and my existing TDC 3000 system revision?
Compatibility is determined by the system build level and firmware revision documented in your Honeywell Engineering Workstation. Provide your system build number and current module revision when placing an order, and our technical team will cross-reference compatibility before shipment. We do not ship units without confirming revision alignment for safety-critical applications.

Q3: What does the 12-month warranty cover for this spare part?
All units supplied by NINERMAS carry a 12-month warranty from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions. Warranty claims are supported by our technical team with replacement dispatch prioritized to minimize plant downtime. Warranty does not cover damage resulting from incorrect installation, overvoltage events, or unauthorized modification.

Q4: Can NINERMAS support emergency or expedited orders for the 51403422-150?
Yes. For unplanned shutdown events, NINERMAS offers expedited order processing with same-day dispatch for in-stock units. Contact our sales team directly at sale@ninermas.com or +0086 187 5021 5667 to confirm stock availability and arrange priority shipment. We support global delivery to major industrial hubs across the US, EU, UK, and Asia-Pacific regions.
