Honeywell 51401546-100 Safety-Reliable I/O File Chassis

Honeywell 51401546-100 Safety-Reliable I/O File Chassis for Critical Control Sites

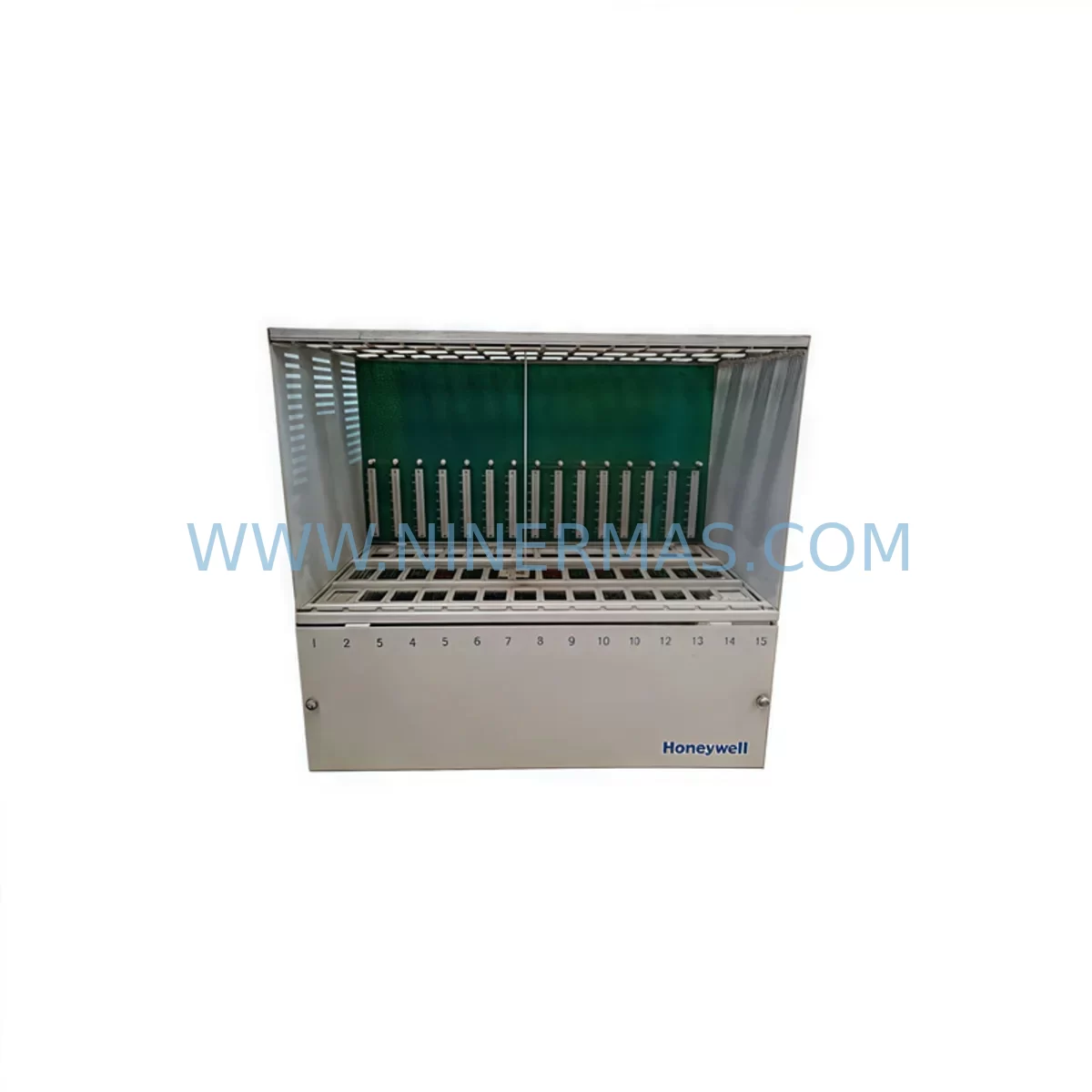

The Honeywell 51401546-100 Rev.B is a proven I/O File Chassis designed for the TDC 3000 Distributed Control System (DCS) platform — one of the most widely deployed process automation architectures in continuous production environments worldwide. In critical industrial facilities where unplanned downtime carries severe safety and financial consequences, the structural integrity and signal reliability of the I/O chassis layer is non-negotiable. The 51401546-100 delivers exactly that: a robust, field-tested backplane chassis that anchors I/O module assemblies within high-density control cabinets, maintaining stable communication pathways between field instruments and the DCS controller under demanding operational conditions.

Engineered to Honeywell’s TDC 3000 hardware standards, this chassis supports the secure seating and interconnection of I/O modules such as the Honeywell 51304485-100 and 51304485-150 series I/O cards, ensuring consistent signal integrity across analog input, analog output, digital input, and digital output channels. In environments where signal drift, ground loops, or electromagnetic interference can trigger spurious trips or missed alarms, the mechanical and electrical stability of the I/O file chassis directly contributes to control loop protection and process safety.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In a TDC 3000 control cabinet serving a continuous production process — whether in a refinery, power generation facility, or chemical plant — the I/O file chassis is the structural and electrical backbone of the I/O subsystem. A degraded or failed chassis can cause multiple I/O modules to lose communication simultaneously, resulting in a cascade of lost field signals, controller faults, and potential process shutdowns. Replacing or upgrading to a verified Honeywell 51401546-100 chassis eliminates this single point of failure risk.

To build a fully protected and resilient TDC 3000 control cabinet, the chassis works in conjunction with a range of complementary components. The Honeywell 51309288-175 and 51309288-225 power supply modules provide stable, regulated DC power to the I/O file, protecting against voltage sags and power transients that could otherwise corrupt module operation or trigger nuisance trips. Pairing the chassis with a quality Honeywell 51190947-100 or 51190947-200 I/O Link Interface module ensures that the high-speed data highway between the I/O file and the TDC 3000 Highway Gateway Module (HGM) remains stable under high electromagnetic interference conditions common in heavy industrial environments.

For sites with elevated surge risk — such as those near large motor drives, arc furnaces, or high-voltage switchgear — supplementing the cabinet with dedicated surge protection devices on field wiring inputs is strongly recommended. Similarly, the Honeywell 51401196-100 termination assembly and associated field termination panels should be inspected and replaced alongside the chassis during any major cabinet refurbishment to ensure that field wiring connections remain secure and corrosion-free. In high-vibration environments such as compressor stations or marine vessel engine rooms, proper chassis mounting hardware and anti-vibration cabinet design are essential to prevent mechanical loosening of I/O module connectors over time.

For facilities managing safety instrumented systems (SIS) alongside the basic process control system (BPCS), maintaining a verified spare inventory of critical TDC 3000 hardware — including the 51401546-100 chassis, associated I/O cards, and communication interface modules — is a recognized best practice for minimizing mean time to repair (MTTR) and sustaining SIL-rated loop availability. NINERMAS maintains ready stock of these components to support emergency replacement requirements with minimal lead time.

Critical Industrial Safety Applications

The Honeywell 51401546-100 I/O File Chassis is deployed across some of the most demanding and safety-critical industrial sectors globally:

Petrochemical & Refining: In crude distillation units, hydrotreaters, and catalytic cracking plants, the TDC 3000 DCS manages thousands of control loops simultaneously. The I/O file chassis anchors the analog and digital I/O modules that monitor temperatures, pressures, flow rates, and valve positions in real time. A reliable chassis ensures that no field signal is lost during critical process transitions, preventing runaway conditions and protecting personnel.

Power Generation: Coal-fired, gas turbine, and combined-cycle power plants rely on TDC 3000 systems for boiler control, turbine sequencing, and emissions monitoring. The 51401546-100 chassis supports the I/O infrastructure that feeds real-time data to the operator workstation, enabling rapid response to abnormal conditions and reducing the risk of forced outages.

Mining & Mineral Processing: In ore processing plants and underground mining operations, control systems face extreme dust loading, humidity, and vibration. The robust construction of the TDC 3000 I/O file chassis, when housed in appropriately rated enclosures, maintains reliable I/O communication even in these harsh conditions, supporting safe operation of crushers, conveyors, and flotation circuits.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities use DCS platforms to manage chemical dosing, filtration, and effluent monitoring. Reliable I/O chassis operation ensures that critical safety interlocks — such as high-level shutoffs and chemical overfeed protection — remain active and responsive at all times.

Metallurgy & Steel Production: Electric arc furnaces, continuous casting lines, and rolling mills generate intense electromagnetic interference. The TDC 3000 I/O file chassis, properly grounded and shielded within the control cabinet, maintains signal integrity in these high-EMI environments, protecting the control loops that govern temperature, speed, and tension in metal forming processes.

Port & Marine Applications: Shipboard automation systems and port terminal control systems increasingly rely on proven DCS hardware for cargo handling, ballast management, and propulsion control. The 51401546-100 chassis supports reliable I/O operation in the vibration-rich, salt-air environments characteristic of marine installations.
