Honeywell 51305072-300 Safety-Reliable I/O Card for Critical Control Sites

Honeywell 51305072-300 Safety-Reliable I/O Card for Critical Control Sites

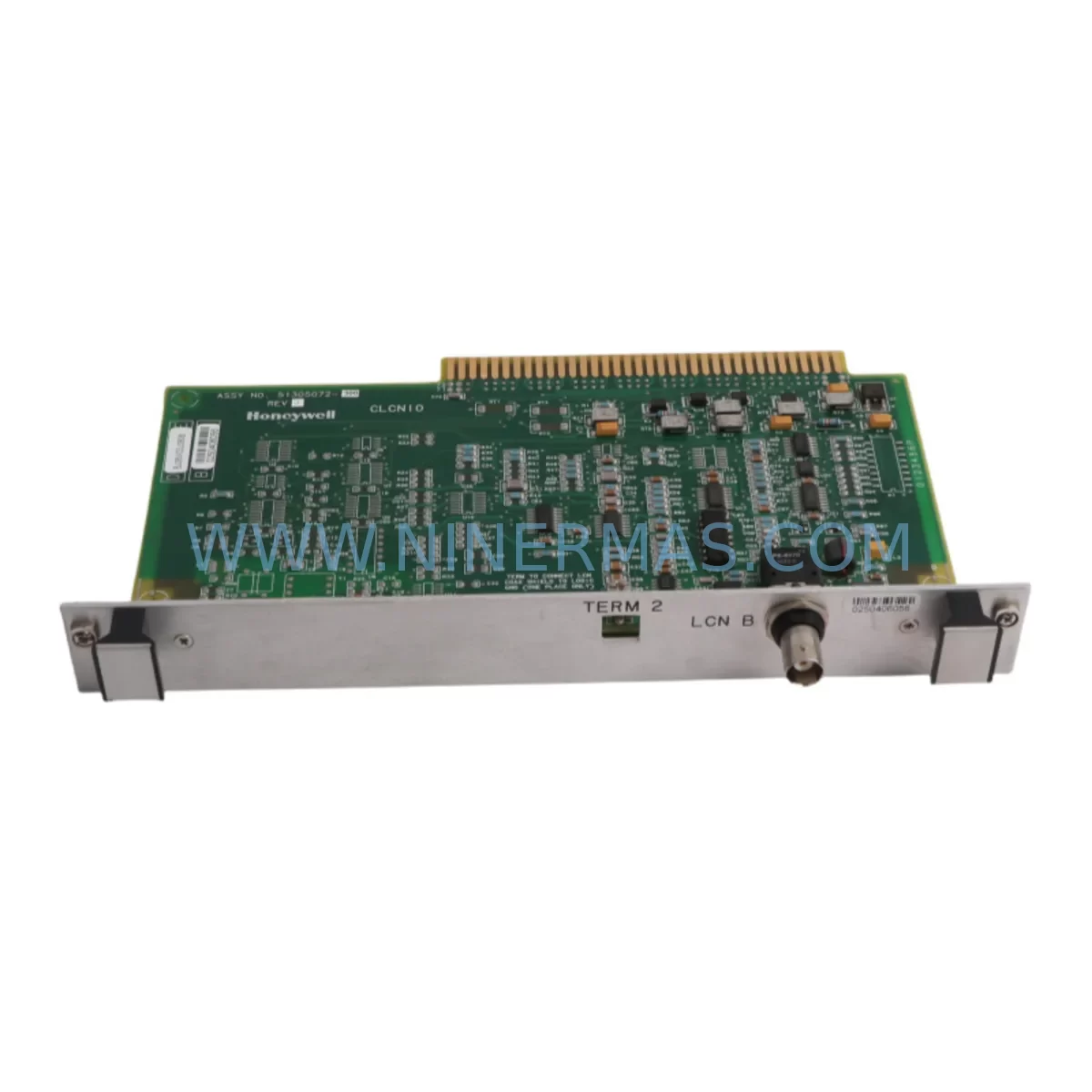

The Honeywell 51305072-300 is a TDC-series I/O card engineered for continuous, uninterrupted operation in safety-critical distributed control system (DCS) environments. Designed to integrate seamlessly within Honeywell TDC 3000 and compatible TotalPlant control architectures, this I/O card delivers the signal integrity, electrical isolation, and channel-level fault tolerance demanded by petrochemical plants, power generation facilities, metallurgical operations, and continuous process manufacturing sites where unplanned downtime carries severe operational and safety consequences.

Every unit supplied by NINERMAS undergoes pre-shipment functional verification, including channel-by-channel I/O signal testing, power rail stability checks, and communication bus handshake validation. This ensures that the 51305072-300 arrives at your facility ready for immediate installation without the risk of latent defects triggering nuisance trips or control loop interruptions during commissioning or live production.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In a TDC 3000 control cabinet, the reliability of every I/O card directly determines the integrity of the entire safety and control loop. The Honeywell 51305072-300 I/O card operates as the critical interface between field instruments and the DCS processor, making its signal fidelity non-negotiable in applications where a single channel failure can cascade into a process trip or safety system activation.

To build a fully protected control architecture around the 51305072-300, site engineers typically pair it with the Honeywell 51304485-100 Power Supply Module to ensure stable, conditioned DC power delivery to the I/O backplane — eliminating voltage sag and transient surge events that can cause spurious output changes or communication timeouts. Upstream surge protection is further reinforced by installing Honeywell 51196694-100 surge suppressor assemblies on field wiring terminals, particularly in outdoor or lightning-exposed installations.

For process signal conditioning, the 51305072-300 is commonly deployed alongside Honeywell 51309276-175 Analog Input Modules and 51309276-225 Analog Output Modules, which handle 4–20 mA loop signals from pressure transmitters, flow meters, and temperature sensors in refinery and chemical plant control loops. In safety instrumented system (SIS) architectures, the I/O card interfaces with Honeywell FSC (Fail-Safe Controller) safety relay modules to ensure that any detected I/O fault triggers a defined safe-state output rather than an undefined or dangerous condition.

Communication integrity between the I/O card and the TDC Highway is maintained through the Honeywell 51401288-100 Highway Interface Module (HIM), which manages data arbitration and bus timing. In high-EMI environments — such as those near large variable frequency drives (VFDs), arc furnaces, or high-voltage switchgear — the Honeywell 51190494-100 Data Hiway Cable Assembly with shielded twisted-pair construction is recommended to prevent signal corruption on the control bus.

For cabinet-level thermal management, the 51305072-300 is typically installed in enclosures equipped with Honeywell 51198947-100 fan tray assemblies, which maintain airflow across densely populated I/O racks and prevent thermal derating of sensitive analog circuits. In dusty or humid environments such as cement plants, mining operations, or coastal facilities, additional IP-rated enclosure sealing and periodic preventive maintenance of the I/O card slots are recommended to sustain long-term signal accuracy and prevent contact oxidation.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: The 51305072-300 is widely deployed in crude distillation units, hydrocracker control systems, and flare gas management loops where continuous I/O availability is mandatory for process safety management (PSM) compliance. Any I/O card failure in these environments risks uncontrolled pressure buildup, incorrect valve positioning, or loss of burner management system (BMS) feedback — all of which carry catastrophic safety implications.

Power Generation & Utilities: In coal-fired, gas turbine, and combined-cycle power plants, the TDC 3000 platform manages boiler drum level control, turbine speed governing, and generator excitation feedback. The 51305072-300 provides the reliable analog I/O backbone for these loops, where a missed signal or channel dropout can trigger emergency turbine trips and grid instability events.

Mining & Mineral Processing: Conveyor interlocking, crusher load monitoring, and flotation cell level control in mining operations demand I/O cards that withstand extreme vibration, dust ingress, and wide temperature swings. The 51305072-300’s robust PCB construction and conformal coating make it a dependable choice for these demanding field conditions.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities rely on DCS I/O cards for pump sequencing, chemical dosing control, and effluent quality monitoring. The 51305072-300 supports the precise analog signal handling required for pH, turbidity, and flow control loops in these continuous-process environments.

Metallurgy & Steel Production: Electric arc furnace (EAF) control, rolling mill automation, and continuous casting process control generate intense electromagnetic interference that challenges standard I/O hardware. The 51305072-300’s EMI-hardened design ensures stable signal transmission even in close proximity to high-current switching equipment.

Port & Marine Automation: Ship loading systems, bulk material handling conveyors, and marine vessel automation platforms operating in salt-air, high-humidity environments benefit from the 51305072-300’s corrosion-resistant construction and proven reliability in Honeywell TDC-based control systems.
