Honeywell 51304754-150 MC-PAIH03 Service-Ready Spare Part

Honeywell 51304754-150 MC-PAIH03 Service-Ready Spare Part for Industrial Maintenance

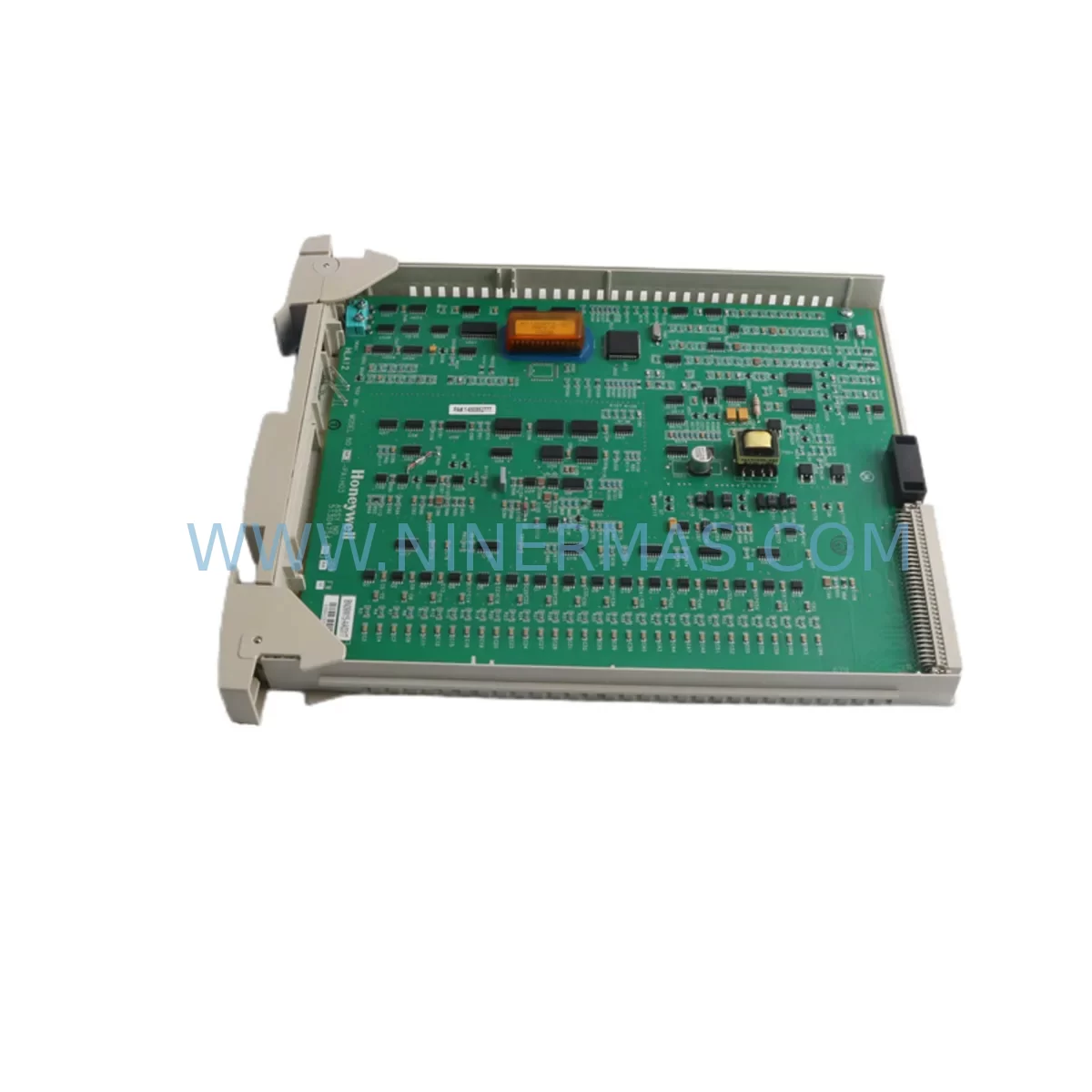

The Honeywell 51304754-150 MC-PAIH03 is a ruggedized analog safety input module engineered for use within Honeywell’s Safety Manager (SM) series — a widely deployed Safety Instrumented System (SIS) platform across oil & gas, petrochemical, power generation, and heavy process industries. Designed to meet IEC 61508 SIL 2/3 requirements, this module serves as a critical front-end interface for analog field signals feeding into safety logic solvers. When this module fails or degrades, the entire safety loop is compromised, making rapid spare part availability a non-negotiable element of any plant maintenance strategy.

At NINERMAS, we supply the MC-PAIH03 as a fully tested, service-ready spare part backed by a 12-month warranty. Each unit undergoes pre-shipment functional verification to ensure it meets original Honeywell factory specifications before leaving our facility. Whether you are responding to an unplanned trip, executing a scheduled turnaround, or building out your critical spare inventory, the 51304754-150 is available for immediate dispatch.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the MC-PAIH03 in a live Safety Manager system is rarely an isolated task. Maintenance engineers and reliability teams working on Honeywell SM or FSC platforms understand that a single analog input module failure often signals broader stress across the safety loop. A thorough site inspection during replacement should encompass the following associated components and subsystems:

Begin with the MC-PSIM01 Safety Manager Power Supply Module — an unstable or aging power supply is one of the leading causes of analog input module degradation. Verify output voltage stability under load before commissioning the replacement MC-PAIH03. Alongside this, inspect the MC-TAMR04 or MC-TAMR08 terminal assembly modules, which provide the field wiring interface to the analog input channels; corroded or loose terminations at these assemblies can introduce signal errors that mimic module faults.

For systems where the MC-PAIH03 interfaces with HART-enabled field instruments such as pressure transmitters or flow meters, confirm that the MC-PDIY22 digital input module and associated MC-PDOY22 digital output modules in the same chassis are operating within specification — a degraded I/O module in an adjacent slot can cause cross-talk or backplane communication errors. Review the Safety Manager backplane (MC-PBAY08 or MC-PBAY16) for physical damage, oxidation on connector pins, or signs of thermal stress, as backplane integrity is fundamental to reliable module communication.

On the communication side, verify the MC-ESMF01 or MC-ESMF02 Safety Manager Fieldbus Communication Module is correctly configured and that the safety network (typically Modbus RTU or Profibus DP) is free of CRC errors or timeout faults. If the plant uses a Honeywell Experion PKS DCS integration, confirm that the Safety Builder configuration reflects the correct I/O mapping for the replacement module’s channel assignments.

Do not overlook signal isolators and barriers installed between the field instruments and the MC-PAIH03 input terminals — Zener barriers or galvanic isolators from brands such as MTL or P+F that are past their service life can introduce impedance mismatches that cause the new module to report out-of-range readings. Similarly, inspect fuse terminals and miniature circuit breakers on the 24 VDC distribution rail feeding the module chassis; a marginal fuse can cause intermittent power dips that trigger nuisance trips even after the module is replaced.

For sites running extended maintenance cycles, consider stocking the MC-PAOY22 analog output module alongside the MC-PAIH03, as both modules share similar environmental stress profiles and tend to degrade on comparable timelines in high-vibration or high-humidity environments. Proactive dual-stocking of these modules significantly reduces mean time to repair (MTTR) during unplanned outages.

Site Replacement Workflow

Step 1 — Pre-Replacement Verification: Before removing the faulty MC-PAIH03, use the Safety Manager diagnostic interface or Honeywell Safety Builder software to confirm the exact fault code and affected channel range. Document all channel configurations, engineering unit ranges, and SIL assignments. Export the current Safety Manager configuration as a backup.

Step 2 — Safe Isolation: Follow your site’s Management of Change (MOC) and Permit to Work (PTW) procedures. Place the affected safety loop in bypass mode via the Safety Manager bypass management function. Notify the control room and confirm that the process is in a safe state before proceeding.

Step 3 — Module Removal: Power down the module slot if hot-swap is not supported on your chassis revision. Carefully disconnect the terminal assembly (MC-TAMR series) from the module face, label all field wiring, and remove the MC-PAIH03 from the backplane slot.

Step 4 — Replacement Installation: Insert the new 51304754-150 MC-PAIH03 into the correct backplane slot. Reconnect the terminal assembly and verify that all field wiring terminations are secure and correctly positioned. Power up the slot and observe the module status LEDs for normal initialization behavior.

Step 5 — Configuration Restore and Loop Test: Using Safety Builder, download the saved configuration to the replacement module. Perform a full loop test on all 8 analog input channels — inject a known 4 mA and 20 mA signal at each channel and verify that the Safety Manager reports the correct engineering unit values within the expected tolerance. Confirm SIL diagnostics pass before releasing the bypass.

Step 6 — Return to Service: Remove the bypass, confirm normal safety loop operation in the DCS/HMI, and update the maintenance management system (CMMS) with the replacement record, including the new module serial number and the 12-month warranty start date.
