Honeywell 51304338-100 Service-Ready Spare Part

Honeywell 51304338-100 Service-Ready Spare Part for Industrial Maintenance

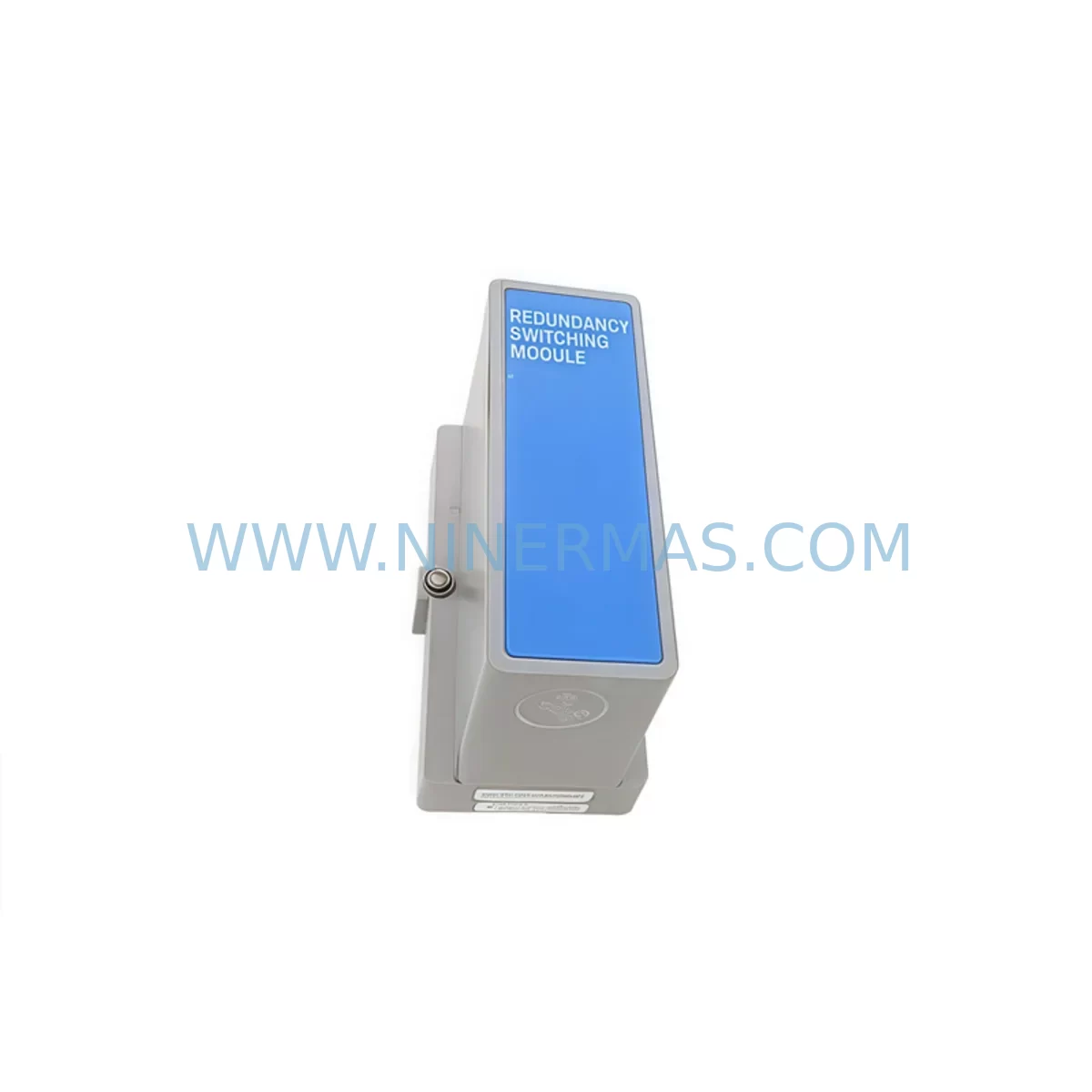

The Honeywell 51304338-100 is a Redundancy Switching Module designed for the TDC 3000 Distributed Control System (DCS) platform — one of the most widely deployed process automation architectures in refining, petrochemical, power generation, and continuous manufacturing environments. As a service-ready original spare part, the 51304338-100 is engineered to restore system redundancy, eliminate single points of failure, and support uninterrupted process control operations. Whether you are responding to an unplanned fault, executing a scheduled annual turnaround, or building a strategic spare parts inventory, this module delivers the compatibility and reliability that maintenance and procurement engineers depend on.

Redundancy switching is a critical function in high-availability DCS architectures. When a primary controller, I/O module, or communication path fails, the redundancy switching module ensures seamless failover to the backup path — preventing process upsets, protecting equipment, and maintaining regulatory compliance. A failed or degraded 51304338-100 can compromise the entire redundancy scheme, leaving the control system exposed to undetected faults and potential unplanned shutdowns. Proactive replacement and verified spare stock are essential elements of any mature maintenance strategy.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 51304338-100 Redundancy Switching Module in a TDC 3000 system, a thorough site inspection of the surrounding control architecture is strongly recommended. Maintenance engineers should treat this replacement as an opportunity to audit the full redundancy loop and associated electrical infrastructure.

Begin by verifying the condition of the TDC 3000 High-Performance Process Manager (HPM) controller cards, as the redundancy switching module works in direct coordination with the primary and backup HPM modules. Any degradation in the HPM controller — such as the 51401288-100 or 51304485-100 processor modules — can mask or trigger false redundancy events. Simultaneously, inspect the Universal I/O (UIO) modules and Analog Input (AI) / Analog Output (AO) modules connected to the same I/O bus, as signal integrity issues in these components can generate spurious failover events that stress the switching module.

The TDC 3000 Power Supply modules — including the 51109684-100 and related DC power distribution assemblies — should be load-tested and inspected for capacitor aging, output voltage drift, and ripple. An unstable power supply is one of the leading causes of premature redundancy module failure and unexpected controller resets. Ensure that the backplane and card cage connectors are clean, properly seated, and free from corrosion, as poor backplane contact can cause intermittent redundancy faults that are difficult to diagnose without a known-good spare module on hand.

Communication infrastructure also warrants attention during this maintenance window. The Local Control Network (LCN) interface modules and Highway Gateway (HG) modules that bridge the TDC 3000 to plant-wide SCADA or historian systems should be inspected for firmware currency and physical connector integrity. If the site uses Data Hiway (DH) coaxial cable segments, verify termination resistors and cable continuity, as signal reflections on the DH can cause controller communication errors that are sometimes misattributed to redundancy switching faults.

For sites operating legacy TDC 3000 systems beyond their original design life, procurement engineers should consider establishing a minimum on-hand spare quantity of at least two 51304338-100 modules per control node cluster. Given the age of the TDC 3000 platform and the reduced availability of OEM new stock, sourcing from qualified industrial spare parts suppliers with documented testing and warranty programs is the most effective risk mitigation strategy. Pairing the 51304338-100 with verified spares of the 51304453-150 Redundancy Cable Assembly and 51109684-175 Power Entry Module ensures that a complete redundancy restoration can be executed without waiting for multiple part deliveries.

Site Replacement Workflow

Replacing the 51304338-100 in a live TDC 3000 environment requires careful sequencing to avoid process disruption. Before beginning, confirm that the backup controller path is healthy and that the system is in a stable redundant state. Document the current redundancy status via the Honeywell Universal Station (US) or Global User Station (GUS) HMI console, capturing any active alarms or diagnostic messages related to the redundancy switching function.

Power down the affected card cage slot following site-specific lockout/tagout (LOTO) procedures. Remove the failed or suspect 51304338-100 module and inspect the backplane connector for bent pins or contamination. Install the replacement module, ensuring full seating and proper latch engagement. Restore power and observe the redundancy status indicators — the system should automatically re-establish the redundant path within the normal synchronization window. Verify via the HMI that both primary and backup paths are reporting healthy status before returning the loop to automatic control.

This replacement workflow is compatible with both hot-standby and warm-standby redundancy configurations used in TDC 3000 HPM and BPM architectures. No firmware re-flashing is required for direct module substitution, making the 51304338-100 a true drop-in replacement that minimizes downtime and reduces the skill level required for field execution.

Spare Parts Support FAQ

Q1: Is the 51304338-100 compatible with both HPM and BPM redundancy configurations in TDC 3000?
A: Yes. The 51304338-100 Redundancy Switching Module is designed for use within the TDC 3000 platform and is compatible with High-Performance Process Manager (HPM) and Basic Process Manager (BPM) redundancy architectures. Always verify the specific revision level against your system documentation before installation, as minor hardware revisions may apply to very early or very late production systems.

Q2: What testing is performed before shipment?
A: Every 51304338-100 unit is functionally tested prior to shipment to verify switching response, signal integrity, and connector condition. Units are shipped with a 12-month warranty covering defects in materials and workmanship under normal operating conditions. Test records are available upon request for quality-critical procurement programs.

Q3: How should we manage long-term spare parts inventory for legacy TDC 3000 systems?
A: For TDC 3000 systems operating beyond their original design life, we recommend maintaining a minimum of two redundancy switching modules per HPM cluster as on-hand critical spares. Pair this with documented spare lists covering power supply modules, I/O cards, and communication interface modules. Establishing a long-term supply agreement with a qualified industrial spare parts supplier ensures continuity even as OEM availability declines.

Q4: Can the 51304338-100 be used to replace older revision modules without system reconfiguration?
A: In most cases, yes. The 51304338-100 is designed as a direct replacement within the TDC 3000 redundancy architecture and does not require system reconfiguration for standard substitution. However, if your system is running a very early firmware baseline, consult your Honeywell system documentation or contact our technical support team to confirm revision compatibility before installation.
