Honeywell 51197155-600 Retrofit Safety I/O Module

Honeywell 51197155-600 Retrofit Safety I/O Module: Legacy-Compatible Safety System Upgrade

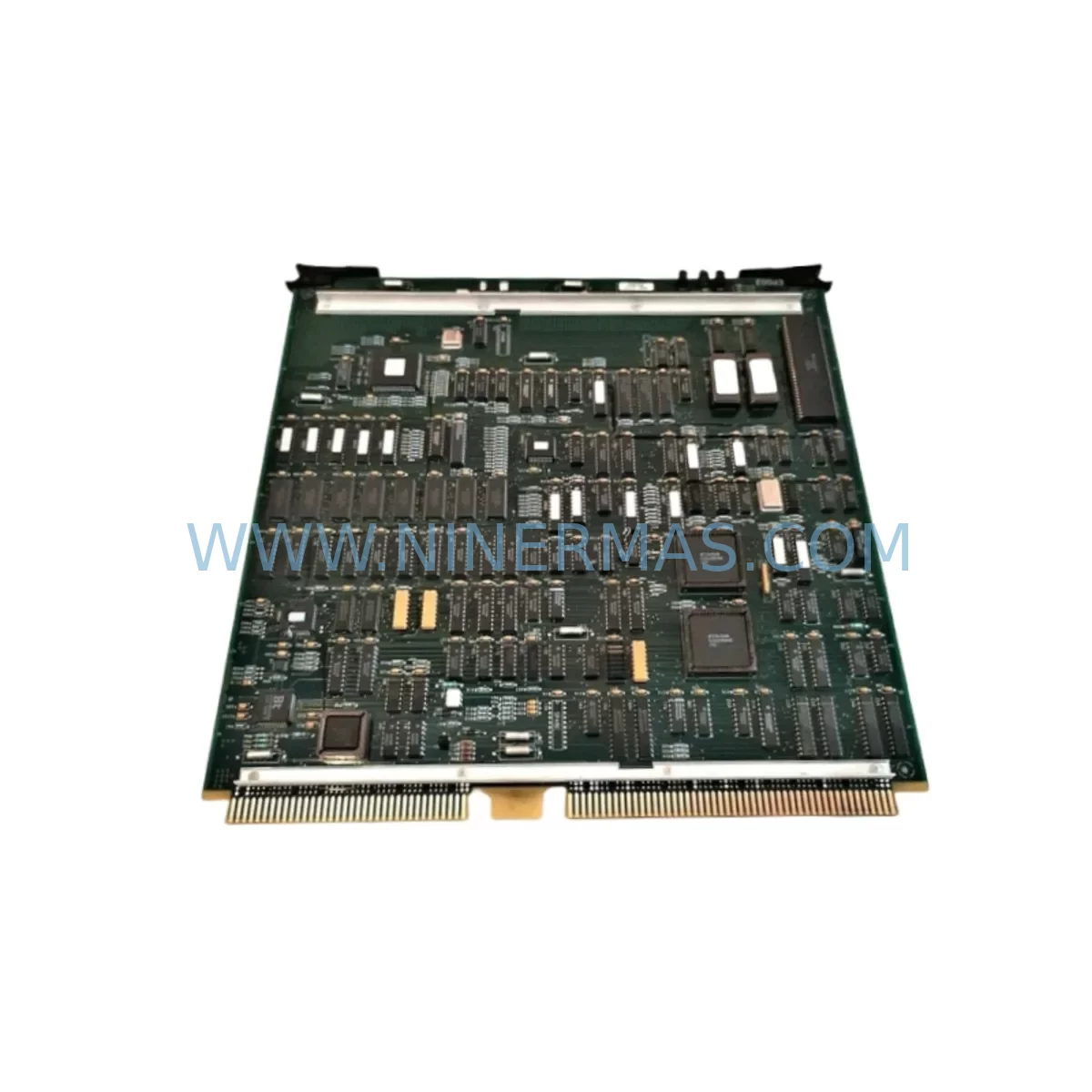

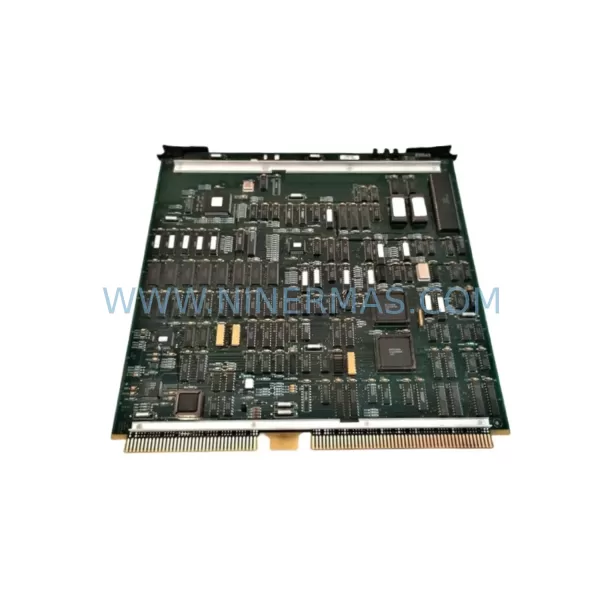

The Honeywell 51197155-600 is a ruggedized Safety I/O Module engineered for demanding process environments and designed to serve as a direct retrofit replacement within Honeywell’s FSC (Fail-Safe Controller) and Safety Manager platform ecosystems. As legacy safety systems approach end-of-life and OEM support windows close, the 51197155-600 provides a reliable, validated path for brownfield modernization without requiring a full safety system overhaul. This module is particularly relevant for facilities operating aging FSC racks, Safety Manager cabinets, and associated I/O infrastructure where maintaining SIL-rated loop integrity is non-negotiable.

NINERMAS maintains verified inventory of the 51197155-600 with pre-shipment functional testing and a 12-month warranty, supporting plant engineers and procurement teams who need a dependable spare parts supply chain for long-lifecycle safety instrumented systems.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the Honeywell 51197155-600 in an active safety system requires a structured approach that accounts for the full scope of the FSC or Safety Manager architecture. In most brownfield installations, the 51197155-600 occupies a defined slot within an FSC I/O rack or Safety Manager I/O enclosure. Before initiating a swap, engineers must confirm the rack’s power budget — the FSC Power Supply module (such as the 51195156-100 or equivalent) must have sufficient headroom to support the replacement module without triggering undervoltage faults on adjacent slots.

Terminal wiring is a critical checkpoint. Field wiring connected to the 51197155-600 typically interfaces through marshalling panels or directly via terminal blocks on the module face. Technicians should photograph and document all wiring before disconnection, cross-referencing against the as-built loop drawings and the FSC I/O assignment table. Mislabelled or undocumented field cables are a common source of commissioning delays during safety module replacements.

Backplane interface integrity must be verified before inserting the replacement module. Inspect the FSC backplane connector for bent pins or oxidation — a damaged backplane can cause the new 51197155-600 to report communication faults even when the module itself is fully functional. In Safety Manager installations, the I/O chassis backplane and associated Safety Manager Controller (SMC) must recognize the new module address; this is configured through the Safety Manager engineering workstation and requires a controlled application download.

Program compatibility is another key consideration. The FSC application logic referencing the 51197155-600’s I/O channels must be validated against the replacement module’s channel configuration. If the original module was configured with specific input filter times, output pulse widths, or diagnostic masks, these parameters must be re-entered or confirmed in the FSC engineering tool (typically FSC Engineering Tool or Safety Manager Studio) before the system is returned to service.

HMI screens connected to the safety system — whether Honeywell Experion PKS operator stations, third-party SCADA systems, or standalone HMI panels — should be reviewed to confirm that all I/O tags mapped to the 51197155-600 channels are correctly resolved after the module swap. Communication links between the FSC controller and the DCS or SCADA layer, often running over Modbus RTU, PROFIBUS DP, or Honeywell’s proprietary FTE (Fault Tolerant Ethernet) network, should be monitored during the first hours of post-commissioning operation to confirm no unexpected communication interruptions.

For facilities managing multiple FSC racks or Safety Manager cabinets, it is advisable to audit the full I/O module population during any planned maintenance window. Related modules commonly found alongside the 51197155-600 include the Honeywell 51197153-100 digital input module, the 51197154-100 digital output module, the 51196655-100 analog input module, and the 51309288-175 FSC Main Processor. Power distribution within the cabinet may also involve the Honeywell 51195156-100 power supply module and associated 51196653-100 bus termination units. Ensuring that all these components are within their service life and have available spare stock is essential for maintaining safety system availability.

For installations where the 51197155-600 is being replaced as part of a broader migration from FSC to Safety Manager or from Safety Manager to a newer SIS platform, the I/O signal list must be re-mapped to the new module addressing scheme. This process often involves updating the cause-and-effect matrix, re-validating SIL calculations, and coordinating with the process safety engineer to confirm that the functional safety assessment remains valid after the hardware change.

Downtime Control During System Migration

Minimizing unplanned downtime during a safety I/O module replacement is a primary concern for any operating facility. The 51197155-600 replacement process should be planned during a scheduled maintenance window with the safety system placed in bypass mode according to the site’s Management of Change (MOC) and Safety Instrumented System bypass procedures. Before the module is removed, the FSC or Safety Manager controller should be placed in a defined safe state, with all affected safety loops documented and the bypass authorization recorded in the permit-to-work system.

To protect original program logic, a full backup of the FSC application — including the compiled safety application, I/O configuration, and module parameter files — should be archived to a secure engineering workstation before any hardware is touched. This backup serves as the recovery baseline if the replacement module requires re-commissioning or if unexpected faults arise during the swap. Safety Manager installations should similarly archive the SMC project file and the I/O network configuration before proceeding.

Physical installation of the replacement 51197155-600 should follow the FSC module insertion procedure: power down the affected rack segment if hot-swap is not supported, seat the module firmly into the backplane slot, and verify the module address DIP switch or jumper settings match the original configuration. After power restoration, monitor the FSC diagnostic display or Safety Manager system status screen for module recognition and self-test completion before re-enabling field I/O channels.

Post-swap validation should include a channel-by-channel I/O test using the FSC engineering tool’s online diagnostic functions, confirmation of communication link status with the DCS or SCADA system, and a review of the safety system event log for any unexpected alarms or diagnostic messages. Once all channels are confirmed healthy and the safety application is running correctly, the bypass can be lifted and the safety loops returned to automatic mode. NINERMAS pre-shipment testing of the 51197155-600 reduces the risk of receiving a non-functional module, supporting faster on-site commissioning and shorter bypass windows.

Retrofit Support FAQ

Q1: Is the Honeywell 51197155-600 a direct drop-in replacement for the original module in my FSC rack?
A: In most cases, yes. The 51197155-600 is designed for slot-compatible installation within FSC I/O racks and Safety Manager I/O enclosures. However, you should verify the module address configuration, backplane slot assignment, and firmware compatibility with your FSC engineering tool before installation. NINERMAS can provide the module datasheet and configuration notes upon request.

Q2: What commissioning steps are required after installing the replacement 51197155-600?
A: After physical installation, you must re-download or validate the FSC safety application to confirm the replacement module is correctly recognized. Perform a channel-by-channel I/O test, verify communication link status with the DCS or SCADA layer, and review the system event log for diagnostic messages. All steps should be completed before lifting the safety loop bypass.

Q3: Does NINERMAS test the 51197155-600 before shipment, and what warranty is provided?
A: Yes. Every 51197155-600 unit shipped by NINERMAS undergoes pre-shipment functional testing to verify module integrity. All units are covered by a 12-month warranty from the date of shipment. In the event of a warranty claim, NINERMAS provides replacement or repair support with priority handling for safety-critical applications.

Q4: Can the 51197155-600 be used in a migration from FSC to Safety Manager or a newer SIS platform?
A: The 51197155-600 is primarily a like-for-like replacement within the existing FSC or Safety Manager architecture. For full platform migrations to a newer SIS, the I/O signal list, module addressing, and safety application logic must be re-mapped to the target platform’s I/O modules. NINERMAS can advise on compatible replacement modules and available spare stock for both the source and target platforms during the migration planning phase.
