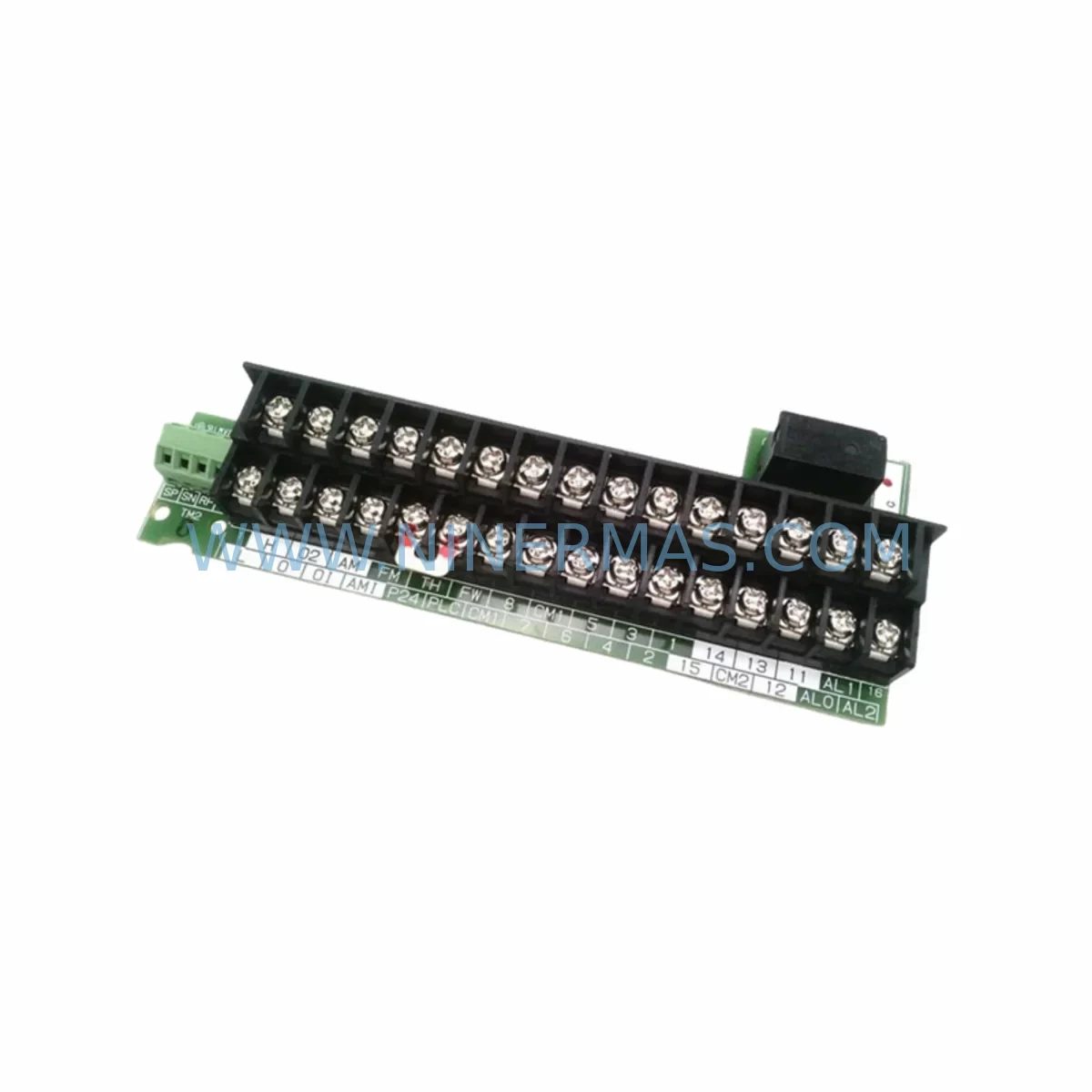

The Hitachi SJ300TM 3B295619-3 is a retrofit-compatible inverter control board engineered for the Hitachi SJ300 series variable frequency drive platform. As legacy SJ300 drives approach end-of-service life and OEM spare parts become increasingly scarce, this board provides a reliable, field-proven replacement path for plant engineers and maintenance teams managing aging automation infrastructure. Whether you are executing a targeted component swap in a single drive cabinet or coordinating a phased upgrade across an entire production line, the SJ300TM 3B295619-3 is designed to minimize engineering rework and reduce unplanned downtime.

This control board is applicable across a broad range of SJ300 frame sizes and power ratings, making it a versatile solution for facilities that standardized on the Hitachi SJ300 platform for conveyor drives, pump controls, fan speed regulation, and general-purpose motor control applications. The board interfaces directly with the SJ300 main power stage and retains compatibility with the original terminal block layout, reducing the need for rewiring during replacement.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the SJ300TM 3B295619-3 control board within an active production environment requires careful pre-work to avoid extended downtime and configuration loss. Before removing the faulty board, maintenance engineers should use the SJ300’s built-in parameter copy function or a compatible programming tool to back up all drive parameters, including motor constants, PID settings, multi-step speed references, and analog I/O scaling. This backup is critical because the replacement board ships with factory default settings and will not retain the previous drive configuration.

Terminal wiring on the SJ300 control board covers analog inputs (0–10 V and 4–20 mA), digital inputs for run/stop, forward/reverse, multi-speed selection, and fault reset, as well as relay output contacts for run status and fault indication. Engineers should photograph or document the existing wiring before disconnection, particularly where field-modified jumper settings or non-standard I/O assignments are in use. The SJ300 platform also supports an optional SJ-PB PROFIBUS-DP communication card and SJ-DN DeviceNet interface — if either is installed, confirm that the option card seating and address DIP switch settings are preserved during the board swap.

For facilities running the SJ300 alongside other Hitachi inverter generations, such as the Hitachi WJ200 series or the newer Hitachi WL200 series, it is worth noting that parameter structures differ between platforms. If the retrofit is part of a broader drive standardization project, plan for parameter re-mapping rather than direct parameter transfer. In mixed-fleet environments, maintaining a dedicated spare board such as the SJ300TM 3B295619-3 for legacy units avoids the need to prematurely retire functional drive hardware simply due to control board failure.

Power supply integrity is another key checkpoint. The SJ300 control board draws its logic supply from the drive’s internal SMPS. Before installing the replacement board, verify that the internal power supply rails are within specification using a multimeter — a degraded SMPS can damage a new control board within hours of operation. If the drive has been in service for more than eight years, consider inspecting the DC bus capacitors and the gate driver board alongside the control board replacement. Related components such as the Hitachi SJ300 gate driver board, SJ300 rectifier assembly, and SJ300 cooling fan module are commonly replaced as part of a comprehensive drive refurbishment to extend service life by an additional five to ten years.

Where the SJ300 is integrated into a PLC-controlled system — for example, using a Mitsubishi MELSEC Q series CPU or an Omron CJ2M PLC communicating via Modbus RTU — verify that the communication link is re-established after board replacement by checking the inverter’s station address, baud rate, and parity settings against the PLC’s serial communication parameters. A mismatch in any of these settings will prevent the drive from responding to remote run commands and may trigger a communication fault alarm on the PLC side. Similarly, if an HMI panel such as a Proface GP4000 series or Schneider Electric Magelis HMIGTO is used to display drive status and speed reference, confirm that the HMI tag addresses and register mappings remain valid after the board swap, as some firmware revisions alter the Modbus register map.

For installations where the SJ300 drive is mounted in a control cabinet alongside Schneider Electric TeSys D contactors, Phoenix Contact terminal blocks, or Weidmuller signal isolators, ensure that the cabinet’s internal temperature remains within the drive’s rated ambient range after reassembly. Blocked ventilation paths or failed cabinet cooling fans are a common secondary cause of repeated control board failures and should be addressed as part of the retrofit scope.

Downtime Control During System Migration

Minimizing production impact during a control board replacement on the SJ300 platform begins with preparation. Schedule the replacement during a planned maintenance window and ensure that the replacement SJ300TM 3B295619-3 board has been received, inspected, and confirmed functional before the drive is taken offline. Our pre-shipment functional test provides confidence that the board is operational before it reaches the site, but a bench-level power-up test using a known-good SJ300 chassis is recommended for critical applications before field installation.

The actual board swap on the SJ300 is a straightforward mechanical procedure — the control board is secured by a small number of screws and connects to the main board via a multi-pin connector. With the drive de-energized and DC bus voltage confirmed at zero using a voltmeter, the swap can typically be completed in under thirty minutes by a qualified technician. The majority of the downtime budget should be allocated to parameter restoration, I/O verification, and a controlled test run under no-load conditions before reconnecting the driven equipment.

To protect the original program logic, never rely solely on the drive’s internal parameter memory as the only backup. Maintain a parameter record in a spreadsheet or SCADA historian, and update it after any intentional parameter change. This practice ensures that even in the event of a catastrophic drive failure requiring full unit replacement rather than board-level repair, the motor control configuration can be restored quickly without relying on the memory of individual technicians.

For multi-drive systems where several SJ300 units control interdependent process stages — such as a conveyor infeed, accumulation zone, and discharge section — coordinate the replacement sequence to avoid creating a bottleneck at the repaired drive. Where possible, use the drive’s built-in jog function to verify motor rotation direction and speed response before returning the drive to automatic control mode. This step catches wiring errors and parameter mismatches before they cause a process fault or mechanical damage.

Retrofit Support FAQ

Q1: Is the SJ300TM 3B295619-3 a direct drop-in replacement for the original Hitachi SJ300 control board?
A: Yes, the SJ300TM 3B295619-3 is designed as a direct board-level replacement for the Hitachi SJ300 series control board. It uses the same connector interface and fits within the standard SJ300 enclosure without mechanical modification. However, all drive parameters must be re-entered after installation, as the replacement board ships with factory default settings.

Q2: What commissioning steps are required after installing the replacement board?
A: After installation, restore all previously backed-up parameters including motor nameplate data (rated voltage, current, frequency, speed), acceleration and deceleration times, analog I/O scaling, digital I/O function assignments, and communication settings (station address, baud rate, parity). Perform a no-load test run to verify correct motor rotation and speed response before reconnecting the load.

Q3: Does the board come with a warranty, and has it been tested before shipment?
A: Yes. Every SJ300TM 3B295619-3 board undergoes a full functional test prior to dispatch. The board is covered by a 12-month warranty from the date of shipment, covering defects in materials and workmanship under normal operating conditions.

Q4: What if the SJ300 drive requires additional components beyond the control board?
A: If the drive assessment indicates that additional components such as the gate driver board, DC bus capacitors, cooling fan, or power supply module also require replacement, we maintain stock of related SJ300 spare parts and can advise on a complete drive refurbishment bill of materials. Contact our technical team with the drive’s nameplate data and fault history for a tailored recommendation.
