Hitachi LPU650A Retrofit-Compatible CPU Module for Legacy Systems

Hitachi LPU650A Retrofit-Compatible CPU Module for Legacy Systems: Seamless Upgrade for HIACS DCS Environments

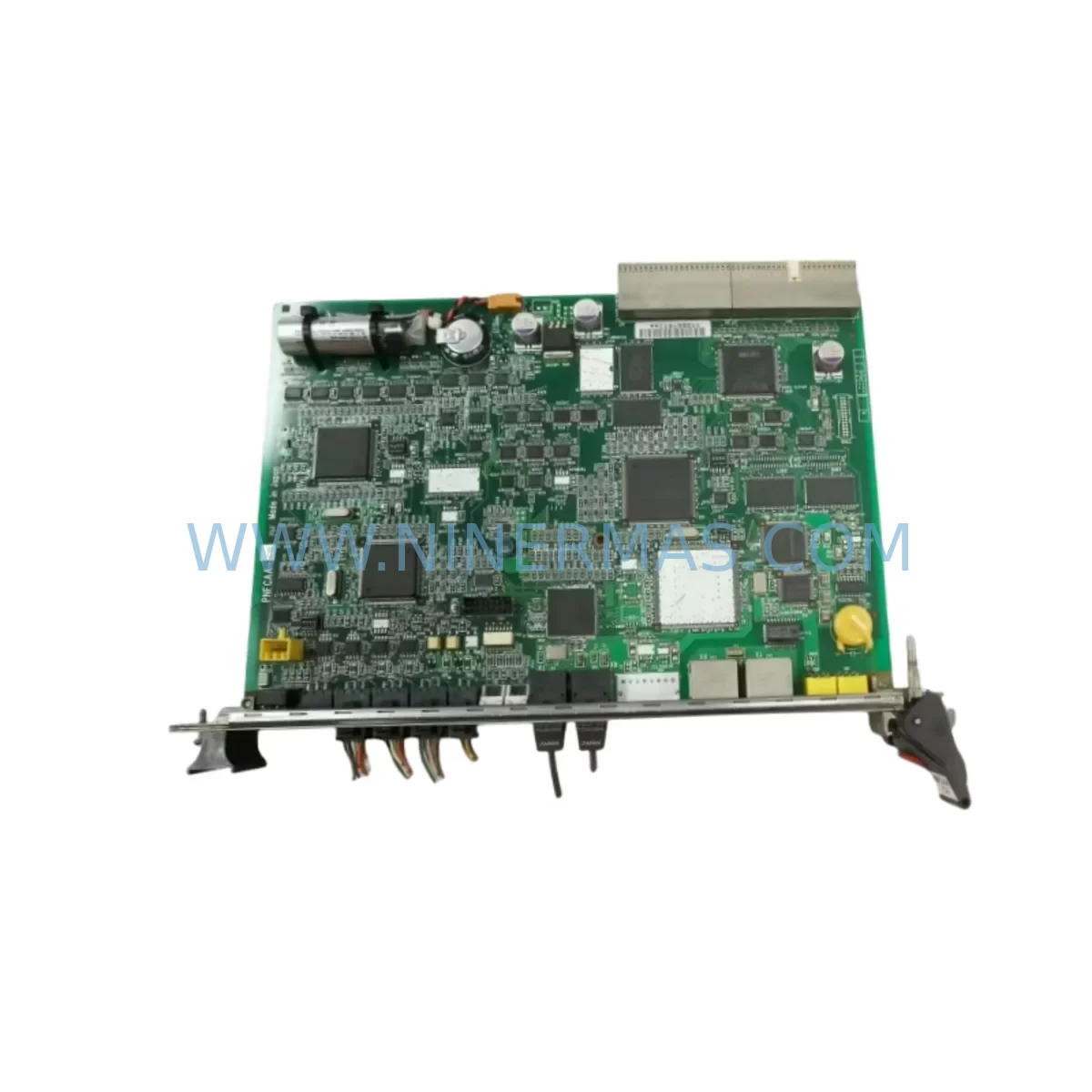

The Hitachi LPU650A is a high-performance processor module designed for use within Hitachi’s HIACS-3000 and HIACS-5000 series Distributed Control Systems. As a direct retrofit-compatible replacement for the discontinued LPU607-A, the LPU650A enables maintenance engineers and system integrators to restore full control system functionality without redesigning the existing control architecture. With verified compatibility across legacy backplane configurations, the LPU650A is a critical spare part for facilities operating aging DCS platforms that cannot afford unplanned downtime or full system replacement.

Industrial sites running legacy HIACS-based control systems frequently encounter the challenge of sourcing discontinued processor modules. The LPU650A addresses this directly by offering pin-compatible installation, equivalent instruction set support, and backward-compatible communication interfaces. Before proceeding with a retrofit, engineers must verify power supply capacity at the rack level — the PDU210 power distribution unit must be confirmed to deliver adequate voltage and current margins for the LPU650A’s operating requirements. Insufficient power headroom is one of the most common causes of post-installation instability in legacy DCS upgrades.

Terminal wiring and backplane interface compatibility are equally critical. The BSU010 bus station unit serves as the physical and logical bridge between the CPU module and the I/O subsystem. Engineers should inspect the BSU010 backplane connector for oxidation or mechanical wear before seating the LPU650A. Slot addressing must also be reconfigured if the LPU650A is installed in a position previously occupied by the LPU607-A, as module address mapping may differ between firmware revisions. Failure to update slot addressing in the system configuration tool can result in I/O scan errors or communication faults at startup.

Program compatibility is a key concern during any CPU module replacement. The LPU650A supports the same ladder logic and function block structures used in legacy HIACS engineering environments, but engineers should perform a full program backup using the S10 programming cable before removing the original module. Any custom function blocks or interrupt routines should be validated against the LPU650A’s instruction execution timing to ensure deterministic control behavior is preserved. HMI screen tag bindings — particularly those connected to the HID01 operator interface — should be verified post-swap to confirm that all process variable addresses remain correctly mapped.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful LPU650A retrofit begins well before the module arrives on site. System integrators should audit the full rack assembly, including the BSU010 bus station unit, the PDU210 power distribution unit, and all installed I/O modules such as the EAI020 analog input module and EAO020 analog output module. Each of these components interacts directly with the CPU module through the backplane bus, and any degraded connector or misconfigured module address can prevent the LPU650A from initializing correctly.

Communication architecture must also be reviewed. If the existing system relies on the CMU020 communication module for inter-controller data exchange or supervisory SCADA connectivity, engineers must confirm that the LPU650A’s communication scan cycle is compatible with the CMU020’s polling interval. Mismatched scan rates can introduce latency or data loss in critical process loops. Where Ethernet connectivity is required for remote monitoring or historian integration, the ETU020 Ethernet communication module can be added to the rack alongside the LPU650A to extend the system’s network capabilities without replacing the entire control platform.

I/O expansion planning should account for the IOS010 I/O scanner module, which manages distributed I/O nodes connected to the main rack. The LPU650A must be configured to recognize all active IOS010 nodes during the initial scan cycle. Engineers should document all node addresses and verify them against the original system configuration before powering up the upgraded rack. Installation space within the control cabinet must also be confirmed — the LPU650A shares the same form factor as the LPU607-A, but any additional modules added during the upgrade (such as the ETU020 or an expanded EAI020 array) will require available rack slots and adequate cabinet ventilation.

Downtime Control During System Migration

Minimizing production downtime during a CPU module replacement requires a structured pre-outage preparation process. Engineers should complete all configuration backups, spare part staging, and documentation reviews before the maintenance window begins. The S10 programming cable should be used to extract a full program image from the LPU607-A while the system is still online, and this image should be verified for completeness before the outage is scheduled.

During the outage, the sequence of operations should follow a defined procedure: power down the rack via the PDU210, remove the LPU607-A from the BSU010 backplane, seat the LPU650A in the same slot, restore power, and initiate the startup diagnostics sequence. Engineers should monitor the system status LEDs on the LPU650A and on adjacent I/O modules such as the EAI020 and EAO020 to confirm that all modules are recognized and communicating correctly. The HID01 HMI should be used to verify that all process variable displays are updating in real time before the system is returned to automatic control.

If communication faults are detected after startup, the CMU020 and ETU020 modules should be checked first, as these are the most common sources of post-replacement communication errors. In most cases, a module address conflict or a mismatched baud rate setting is the root cause, and these can be resolved without extending the maintenance window significantly. NINERMAS provides pre-shipment functional testing for all LPU650A units, reducing the risk of receiving a defective module and extending the planned outage.

Retrofit Support FAQ

Q: Is the LPU650A a direct replacement for the LPU607-A without hardware modification?
A: In most HIACS-3000 rack configurations, the LPU650A installs in the same CPU slot as the LPU607-A using the BSU010 backplane. However, engineers must verify slot address settings and power supply capacity via the PDU210 before powering up. A configuration review is always recommended prior to installation.

Q: Does NINERMAS test the LPU650A before shipment?
A: Yes. All LPU650A units supplied by NINERMAS undergo pre-shipment functional testing to verify processor initialization, backplane communication, and I/O scan capability. Each unit is shipped with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions.

Q: What should I do if the LPU650A does not communicate with the CMU020 or ETU020 after installation?
A: First, verify that the module address assigned to the LPU650A in the system configuration matches the physical slot position in the BSU010 rack. Next, check the baud rate and protocol settings on the CMU020 or ETU020 to ensure they match the LPU650A’s communication parameters. If the issue persists, contact NINERMAS technical support for remote commissioning assistance.

Q: Is long-term stock available for the LPU650A?
A: NINERMAS maintains reserved inventory of the LPU650A to support long-term spare parts programs for facilities operating legacy HIACS DCS systems. Customers with ongoing maintenance requirements are encouraged to contact our team to discuss reserved stock agreements and lead time commitments.
