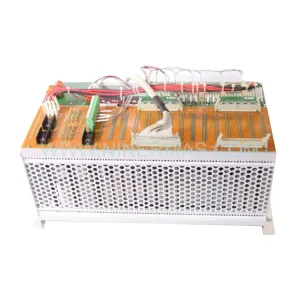

HIMA H15Q-HS B5233-1 Safety System Subrack — Industrial-Grade SIL 3 Platform (HIMA Original)

As a Procurement Manager sourcing critical safety infrastructure, you need components that leave zero margin for error. The HIMA H15Q-HS B5233-1 Safety System Subrack is a 100% Brand New and Factory Sealed mechanical and electrical backbone engineered for Safety Instrumented Systems (SIS) operating at the highest integrity levels. Certified to SIL 3 per IEC 61508, this 15-slot subrack supports dual and triple modular redundancy (TMR) architectures within HIMA’s proven HIMax and HIMatrix PLC System families, delivering uninterrupted protection across the most demanding process environments.

Facilities running Oil & Gas pipelines, chemical reactors, or power generation turbines cannot afford unplanned shutdowns caused by substandard Control Module infrastructure. The HIMA H15Q-HS B5233-1 resolves this challenge by providing a hot-swappable, fault-tolerant subrack platform where individual modules can be replaced during live operation — eliminating single points of failure and extending proof-test intervals up to 10 years. Whether you are upgrading an aging DCS backbone or expanding an existing SIS, this Original New spare part integrates seamlessly into your Industrial Automation architecture.

Backed by HIMA’s global engineering legacy, this subrack ships with full factory certification documentation. Contact our team today for pricing, lead time, and datasheet access.

Technical Specifications & Selection Guide

Selection Tip: Choose the H15Q-HS B5233-1 when your application demands SIL 3 compliance with hot-swap capability and TMR support. For lower-density installations, consult our team for alternative HIMA subrack configurations.

Core Features & Technical Advantages

• SIL 3 Certified (IEC 61508): Meets the most stringent functional safety requirements for process industries — no compromise on compliance.
• 15-Slot Robust Backplane: Accommodates a full range of HIMA safety I/O and controller modules within a single heavy-duty chassis.
• Hot-Swap Module Replacement: Modules are replaced under live conditions without process interruption — critical for continuous operations in refineries and power plants.
• Dual Redundant 24V DC Power: Automatic switchover between power feeds ensures the subrack remains energized even during a primary supply failure.
• Precision Fault Diagnostics: Onboard diagnostic LEDs and backplane monitoring continuously verify module health, providing early-warning alerts before failures escalate.
• Legacy System Compatibility: Backward compatible with H41Q and H51Q series modules — enabling phased migration from End-of-Life (EOL) platforms without full system replacement.
• Industrial-Grade Build: Rated for -20°C to +60°C operating range with ATEX Zone 2 and IECEx certification for hazardous area deployment.

Typical Application Scenarios

✅ Oil & Gas — Emergency Shutdown Systems (ESD): Offshore platforms and onshore terminals rely on SIL 3-rated subracks to execute rapid process isolation during pressure exceedances or gas leaks. The H15Q-HS B5233-1 provides the fault-tolerant foundation that ESD logic solvers demand.

✅ Power Generation — Burner Management Systems (BMS): Boiler and furnace operations require precise, fail-safe sequencing for startup, operation, and emergency shutdown. This subrack’s TMR architecture ensures BMS logic remains available even during partial hardware faults.

Chemical & Petrochemical — Reactor Safety Systems: High-consequence chemical processes demand continuous SIS availability. The hot-swap capability of this Control Module platform allows maintenance without halting production — directly reducing operational risk.

✅ Turbomachinery Protection — Compressors & Turbines: Vibration, temperature, and overspeed protection systems integrated into the HIMA PLC System benefit from the subrack’s high-speed backplane, enabling sub-millisecond response to critical parameter exceedances.

✅ Pharmaceutical & Food Processing — Hygienic Safety Systems: Regulated industries require documented, auditable safety platforms. The H15Q-HS B5233-1 ships with full factory certification, simplifying FDA and GMP compliance documentation.

Logistics & Professional Service

• ✅ 2-Day Express Shipping Available: Fast Global Shipping to North America, Europe, Middle East, and Asia-Pacific. DHL, FedEx, and UPS options supported.
• ✅ 1-Year Warranty: Every unit is covered by a 12-month warranty against manufacturing defects, with replacement or repair support.
• ✅ Factory Certification Included: Ships with original HIMA test reports, CE declaration, and configuration documentation — ready for your site audit.
• ✅ EOL Legacy System Support: We specialize in sourcing Spare Parts for discontinued and End-of-Life HIMA platforms, including H41Q and H51Q series.
• ✅ Technical Pre-Sales Support: Our engineers assist with compatibility verification, system integration planning, and datasheet provision before purchase.

FAQ — Frequently Asked Questions

Q1: What is the price of the HIMA H15Q-HS B5233-1?
A: Pricing for the H15Q-HS B5233-1 varies based on order quantity, delivery urgency, and current stock availability. We offer competitive pricing for both single-unit procurement and bulk orders. Contact sale@ninermas.com or call +0086 187 5021 5667 for a formal quotation within 24 hours.

Q2: What is the lead time for delivery?
A: In-stock units ship within 2 business days via express courier. For units sourced from our global supplier network, lead time is typically 5-15 business days. Expedited options are available for urgent shutdowns or maintenance windows.

Q3: Can you provide a Datasheet or technical documentation for the H15Q-HS B5233-1?
A: Yes. The official HIMA H15Q-HS B5233-1 datasheet, wiring diagrams, and IEC 61508 certification documents are available upon request. Email sale@ninermas.com with your inquiry and we will respond within one business day.

Q4: Is this unit 100% Original and Brand New?
A: Absolutely. Every HIMA H15Q-HS B5233-1 we supply is 100% Original and Brand New, sourced directly from authorized HIMA distribution channels or factory-sealed inventory. We do not supply refurbished, repaired, or counterfeit components. Certificate of Origin is available upon request.

Q5: Is the H15Q-HS B5233-1 compatible with legacy HIMA systems?
A: Yes. This subrack is backward compatible with H41Q and H51Q series modules, making it an ideal solution for phased migration from older Industrial Automation platforms without requiring a full system overhaul.

Q6: What Industrial Automation protocols does this subrack support?
A: The backplane uses HIMA’s proprietary SafeEthernet protocol. External communication is supported via Modbus TCP, PROFIBUS DP, and OPC UA through compatible HIMA communication modules installed in the subrack slots.
