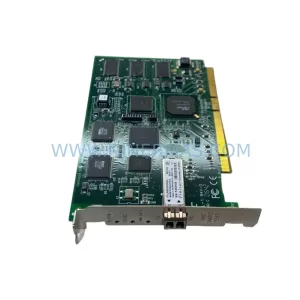

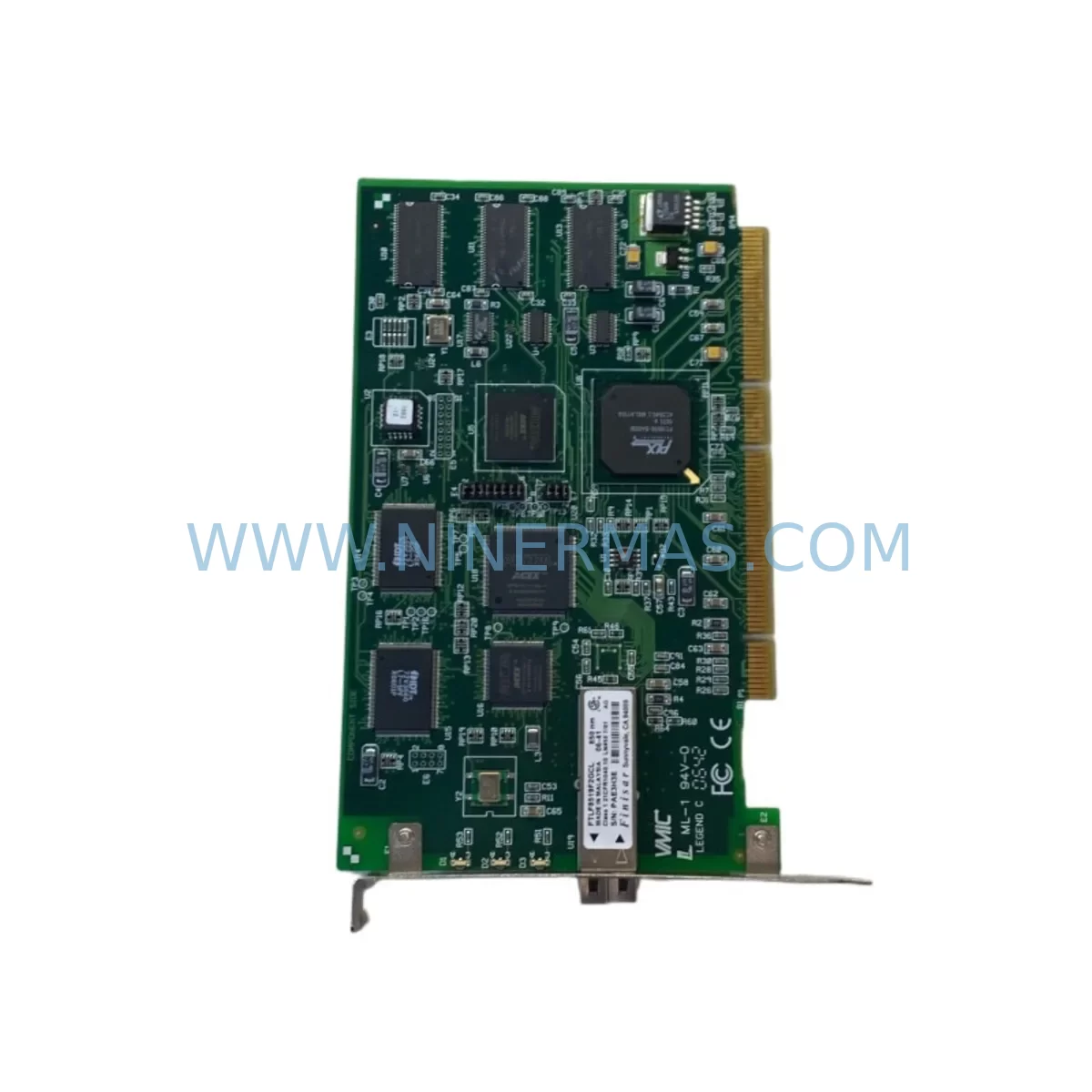

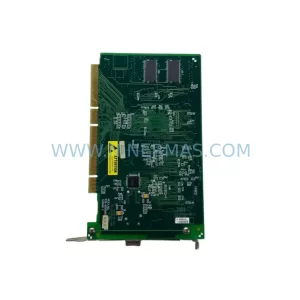

GE VMIPCI-5565-110000 Safety-Reliable Reflective Memory Module

GE VMIPCI-5565-110000 Safety-Reliable Reflective Memory Interface Module for Critical Industrial Control Sites

The GE VMIPCI-5565-110000 is a ruggedized PCI-based reflective memory interface module engineered for mission-critical industrial automation environments where control continuity, deterministic data sharing, and zero-tolerance for communication failure are non-negotiable. Designed under GE Fanuc’s proven VMIPCI-5565 series architecture, this module delivers high-speed, fiber-optic reflective memory networking that synchronizes shared memory across distributed control nodes in real time — without burdening the host CPU or introducing latency-sensitive bottlenecks into safety-critical control loops.

In continuous production facilities, petrochemical plants, power generation stations, and heavy metallurgical operations, the cost of a single control interruption can cascade into unplanned shutdowns, equipment damage, or personnel safety incidents. The VMIPCI-5565-110000 addresses these risks by maintaining a deterministic, interrupt-driven shared memory fabric across all connected nodes, ensuring that every PLC, DCS controller, or safety logic solver in the network sees identical, up-to-date process data at all times. This eliminates the signal drift, polling delays, and communication anomalies that plague conventional fieldbus or Ethernet-based inter-controller data exchange in high-EMI environments.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

Deploying the VMIPCI-5565-110000 within a critical control cabinet demands a holistic approach to system protection. The module’s fiber-optic ring architecture inherently eliminates the ground loop interference and conducted EMI that commonly corrupt copper-based inter-controller links in high-power drive cabinets housing components such as the GE IS200DSPXH1A DSP controller or GE IS215VCMIH2C VME communication interface cards. When paired with a GE VMIVME-7807RC ruggedized single-board computer acting as the primary control node, the VMIPCI-5565-110000 ensures that all shared process variables — including trip setpoints, interlock states, and analog feedback values — remain perfectly synchronized across redundant nodes without any polling overhead.

Power supply integrity is equally critical in safety-rated control architectures. Voltage sags, micro-interruptions, and switching transients from adjacent variable frequency drives or large contactor banks can destabilize PCI bus communication. Incorporating a GE SURT3000XLT-class uninterruptible power supply or a dedicated Phoenix Contact QUINT-PS series 24VDC redundant power supply upstream of the control rack ensures that the VMIPCI-5565-110000 and its host SBC receive clean, regulated power even during grid disturbances. Surge protection devices such as the Phoenix Contact TRABTECH series surge arresters on incoming AC feeds further reduce the risk of transient-induced memory corruption or node dropout events.

For communication architecture integrity, the reflective memory ring should be complemented by a deterministic fieldbus backbone. Integrating GE RX3i PACSystem controllers with PROFIBUS DP or EtherNet/IP adapter modules — such as the GE IC695PBM300 PROFIBUS master module — allows the VMIPCI-5565-110000 to serve as the high-speed inter-controller synchronization layer while conventional fieldbus handles field device I/O. This dual-layer communication strategy prevents a single network anomaly from propagating into a full control system failure.

In cabinets subject to dust ingress, condensation, or chemical vapor exposure — common in mining headframes, water treatment pump stations, and coastal port facilities — supplementary protection measures including Rittal TS 8 series sealed enclosures with filtered fan units and anti-condensation heaters maintain the thermal and particulate environment within the operating envelope of the VMIPCI-5565-110000. Thermal management modules and conformal coating on adjacent PCBs further extend mean time between failures in these demanding conditions.

Critical Industrial Safety Applications

The GE VMIPCI-5565-110000 has established a strong operational record across the most demanding industrial safety applications worldwide:

Petrochemical & Refinery Operations: In continuous catalytic cracking units and ethylene production trains, the module synchronizes emergency shutdown system (ESD) logic solvers with DCS operator stations in real time. Any deviation in reactor pressure, temperature, or flow that triggers a safety instrumented function (SIF) is immediately reflected across all control nodes, ensuring that the ESD system and the DCS respond in concert — eliminating the race conditions that can cause spurious trips or, more critically, missed shutdowns.

Power Generation & Grid Substations: Turbine control systems in combined-cycle gas plants and hydroelectric facilities rely on the VMIPCI-5565-110000 to maintain microsecond-level synchronization between the turbine controller, excitation system, and protection relay coordination logic. The fiber-optic medium’s immunity to the intense electromagnetic fields generated by high-voltage switchgear and bus bars makes it the preferred inter-controller link in substation automation architectures.

Mining & Mineral Processing: Conveyor interlock systems, crusher protection circuits, and hoisting machine safety controllers in underground and open-cut mining operations benefit from the module’s ruggedized design and deterministic data sharing. In environments where vibration from blasting, heavy machinery, and ore transport creates constant mechanical stress on control hardware, the VMIPCI-5565-110000’s robust PCI form factor and fiber-optic isolation provide the reliability margins required for SIL-rated safety functions.

Water & Wastewater Treatment: Large municipal water treatment facilities operating multiple pump stations, chemical dosing systems, and SCADA-integrated control nodes use reflective memory networks to maintain consistent process state across geographically distributed control rooms. The VMIPCI-5565-110000 enables sub-millisecond state synchronization that prevents the data staleness issues that can lead to overdosing events or pump cavitation damage.

Metallurgy & Steel Production: In electric arc furnace (EAF) control systems and continuous casting lines, the module coordinates the high-speed data exchange between electrode regulation controllers, hydraulic gap control systems, and mold level controllers. The deterministic latency of the reflective memory network is essential for maintaining casting quality and preventing breakout events caused by delayed control response.

Port & Marine Automation: Ship-to-shore crane control systems, automated stacking crane (ASC) networks, and vessel dynamic positioning systems operating in salt-laden, high-humidity coastal environments rely on the VMIPCI-5565-110000’s fiber-optic isolation and ruggedized construction to maintain control network integrity despite the corrosive and electromagnetically noisy conditions typical of port operations.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the VMIPCI-5565-110000?
The 12-month warranty covers all manufacturing defects, component failures, and functional performance issues under normal industrial operating conditions. If the module fails to perform its specified reflective memory synchronization functions within the warranty period, NINERMAS will provide repair or replacement at no additional cost. Warranty claims are supported by our technical team with documented failure analysis and expedited replacement dispatch to minimize your site downtime.

Q2: What outgoing inspection and testing is performed before shipment?
Every VMIPCI-5565-110000 unit undergoes a comprehensive functional test protocol prior to dispatch. This includes PCI bus enumeration verification, reflective memory read/write integrity testing across the full 64 MB address space, fiber-optic transceiver power level measurement, and node-to-node latency validation. Units that do not meet GE Fanuc’s original performance specifications are quarantined and not shipped. A test report is available upon request for quality-critical procurement processes.

Q3: Is the VMIPCI-5565-110000 compatible with my existing GE Fanuc reflective memory network?
Yes. The VMIPCI-5565-110000 is fully compatible with the VMIPCI-5565 series reflective memory network and can coexist on the same fiber-optic ring with other VMIPCI-5565 variant nodes, including VME-form-factor VMIVME-5565 modules. Mixed-node networks are supported, allowing you to expand or replace individual nodes without replacing the entire network infrastructure. Driver support is available for VxWorks, Windows (XP through 10), Linux, QNX, and LynxOS operating environments.

Q4: Can NINERMAS guarantee long-term supply and replacement support for this module?
NINERMAS maintains dedicated inventory of the VMIPCI-5565-110000 and related GE Fanuc reflective memory components to support long-term spare parts programs for industrial facilities with extended equipment lifecycles. We understand that critical infrastructure cannot be redesigned every time a component reaches end-of-life, and our procurement team actively sources and qualifies replacement stock to ensure continuity of supply. Contact our team to discuss blanket order arrangements or consignment stock programs tailored to your maintenance planning requirements.
