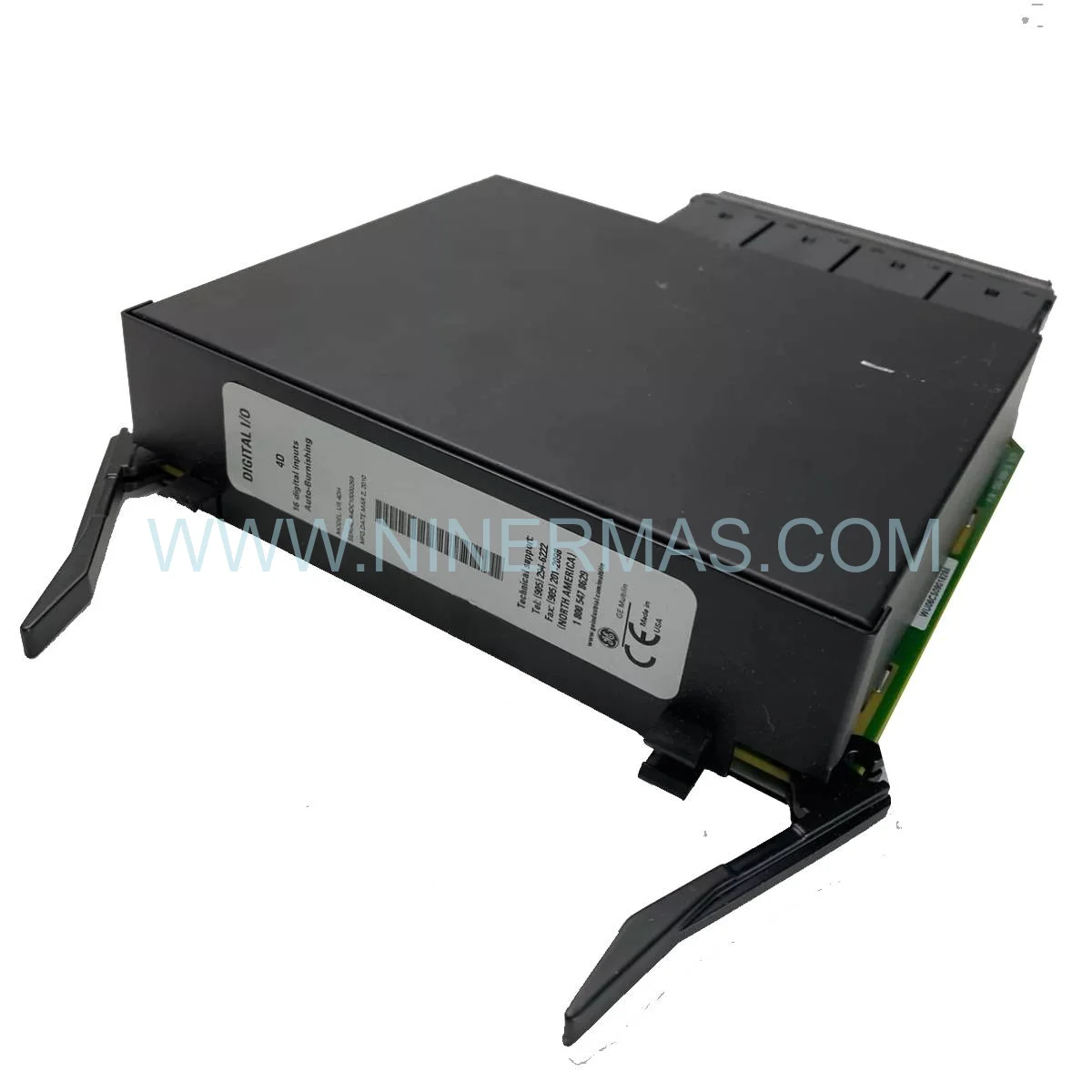

GE UR4DH Multilin Digital I/O Module | Retrofit & Upgrade Solution

GE UR4DH – Professional Retrofit & System Upgrade Component

System Modernization & Migration Analysis

As a Retrofit Project Lead overseeing industrial control system upgrades, the GE UR4DH stands out as a mission-critical enabler in the modernization of aging power protection infrastructures. Whether you are extending the operational lifespan of a legacy substation relay framework or integrating new digital I/O capacity into an existing UR Series chassis, the GE UR4DH delivers the hardware reliability and signal fidelity that retrofit architects demand. Its 16 configurable digital input/output channels provide the granular control resolution needed to bridge the gap between outdated analog control logic and modern IEC 61850-compliant digital architectures — without requiring a full system overhaul.

One of the most compelling advantages of the UR4DH in a migration context is its backward compatibility with the full GE Multilin UR Series platform. Legacy relay panels that were originally commissioned with first-generation UR modules can accept the UR4DH as a direct expansion or replacement component, preserving existing wiring infrastructure and minimizing re-engineering costs. This downward compatibility makes it an ideal upgrade path core for facilities operating mixed-generation relay fleets, where phased modernization — rather than wholesale replacement — is the preferred strategy.

From a risk and cost perspective, deploying the UR4DH as part of a structured retrofit program significantly reduces migration exposure. By reusing the existing UR chassis backplane and communication bus, engineering teams avoid the capital expenditure of full panel replacements while still achieving measurable performance gains. The result is a lower total cost of ownership, faster commissioning timelines, and a reduced window of operational vulnerability during the transition from legacy to modernized control architecture.

Upgrade Highlights & Compatibility

✅ Universal UR Series Compatibility: Plug-and-play integration with UR-F, UR-G, and UR-L relay platforms — no firmware patching or custom adapters required.
Wide Input Voltage Tolerance: Accepts 24-250V DC across all 8 digital input channels, accommodating both legacy 48V DC and modern 125V DC substation battery systems.
? High-Current Output Contacts: 7A @ 250V AC/DC output rating supports direct interfacing with legacy electromechanical trip coils and modern solid-state actuators alike.
Extended Temperature Range: Rated 40°C to +85°C, ensuring reliable operation in both climate-controlled control rooms and harsh outdoor switchgear enclosures.
? Future-Proof Architecture: IEC 61850, IEEE C37.2, UL/CSA compliance ensures the UR4DH remains standards-aligned as grid modernization mandates evolve.
Scalable I/O Expansion: Up to 6 expansion modules per UR chassis allow incremental capacity growth without disrupting existing protection logic or relay settings.

Modernization Use Cases & Success Stories

DCS Integration in Chemical Processing Plants: A regional petrochemical facility operating a legacy Distributed Control System (DCS) with aging hardwired I/O panels integrated the UR4DH to replace deteriorating relay output cards. The module’s 8 configurable digital outputs were mapped directly to existing DCS field terminals, eliminating the need for intermediate signal converters. The result was a 40% reduction in I/O wiring complexity and a measurable improvement in trip response latency — from 85ms to under 20ms — a critical performance enhancement for process safety interlock circuits.

Turbine Supervisory Instrumentation (TSI) Retrofit in Power Generation: A combined-cycle power plant undertaking a phased TSI modernization program deployed the UR4DH as the digital I/O backbone for its upgraded turbine protection relay panels. The module’s seamless integration with the existing UR Series CPU allowed engineers to retain proven protection logic while adding new vibration alarm and speed trip digital channels. This retrofit approach reduced outage duration by 60% compared to a full panel replacement scenario, delivering significant savings in both labor and lost generation revenue.

Substation Automation Upgrade for Utility Grid Operators: A transmission utility modernizing its 110kV substation protection scheme used the UR4DH to expand digital I/O capacity on existing UR Series line protection relays. The module enabled direct SCADA integration via the relay’s IEC 61850 GOOSE messaging framework, replacing legacy hardwired intertrip schemes with high-speed digital communications. This hardware upgrade reduced intertrip operating times by over 70% and eliminated the maintenance burden of aging pilot wire circuits.

Migration Technical Data Sheet

Supply Chain & Deployment Support

Original & Factory Sealed Stock: Every GE UR4DH unit supplied through our network is sourced as original manufacturer stock, factory sealed and accompanied by full traceability documentation. We do not supply refurbished, reconditioned, or third-party remanufactured units — ensuring that your retrofit project is built on verified, performance-guaranteed hardware.

Expedited Global Logistics: Recognizing that retrofit and emergency replacement projects operate under compressed timelines, we maintain strategic inventory positions to support rapid dispatch to industrial facilities across Asia-Pacific, Europe, the Middle East, and the Americas. Air freight and express courier options are available for critical-path deployments where every hour of downtime carries measurable financial impact.

Technical Support for Legacy & Obsolete Hardware: Our engineering support team specializes in legacy GE Multilin system architectures. Whether you need assistance with I/O mapping for an aging UR Series chassis, guidance on integrating the UR4DH into a mixed-generation relay panel, or documentation for a discontinued predecessor module, our team provides the technical depth that generic distributors cannot match. Pre-sales compatibility assessments and post-installation commissioning support are available upon request.

Retrofit FAQ (Upgrade Guide)

Q: Can the GE UR4DH be physically installed in older UR Series chassis without mechanical modification?
A: Yes. The UR4DH is designed to the standard UR module form factor and slots directly into any available expansion bay in a UR Series chassis without requiring mechanical adaptation. Existing backplane connectors and mounting hardware are fully compatible across all UR platform generations, making it an ideal drop-in solution for facilities looking to expand I/O capacity without panel redesign.

Q: How does the UR4DH handle communication between new IEC 61850 systems and legacy hardwired control circuits?
A: The UR4DH bridges this gap by providing physical digital I/O channels that can be mapped to IEC 61850 logical nodes within the UR Series relay’s configuration. Legacy hardwired signals — such as trip coil outputs or alarm contacts — connect to the module’s physical terminals, while the relay’s CPU translates these into GOOSE messages or MMS data sets for consumption by modern SCADA and protection coordination systems. No external protocol converters are required.

Q: What are the recommended spare part alternatives if the GE UR4DH becomes unavailable during a critical retrofit project?
A: The GE UR6NH and GE UR6SH Digital I/O Modules offer comparable channel configurations and are compatible with the same UR Series chassis backplane. For applications requiring higher output current ratings, the GE UR8ZH I/O Expansion Module provides an upward-compatible alternative. Our technical team can advise on the optimal substitution strategy based on your specific relay model and I/O mapping requirements.

Q: Is it possible to add the GE UR4DH to an operational relay without a full system shutdown?
A: The UR Series architecture supports module insertion with the chassis energized; however, GE’s official guidance recommends placing the relay in test mode and disabling protection functions before installing or removing any expansion module. For live substation environments, a planned maintenance window — even a brief one — is strongly advised to eliminate any risk of inadvertent trip signal generation during the installation process.

Q: How are the digital I/O channels on the GE UR4DH configured for a new retrofit application?
A: Channel configuration is performed entirely within the GE UR Setup software, which provides a unified graphical environment for I/O mapping, logic programming, and protection setting management. Each of the 8 digital input and 8 digital output channels can be independently assigned to protection functions, control logic elements, or SCADA communication points. No hardware jumpers or DIP switches are required — all configuration is software-defined and can be archived for future reference or replication across multiple relay panels.

Q: What documentation is available to support a GE UR4DH retrofit project?
A: GE Multilin publishes comprehensive installation and configuration manuals for the UR Series platform, including module-specific wiring diagrams, I/O specifications, and software configuration guides. Our team can provide access to relevant technical documentation, application notes, and — where available — legacy system integration guides that address common retrofit scenarios encountered in aging substation and industrial control environments.
