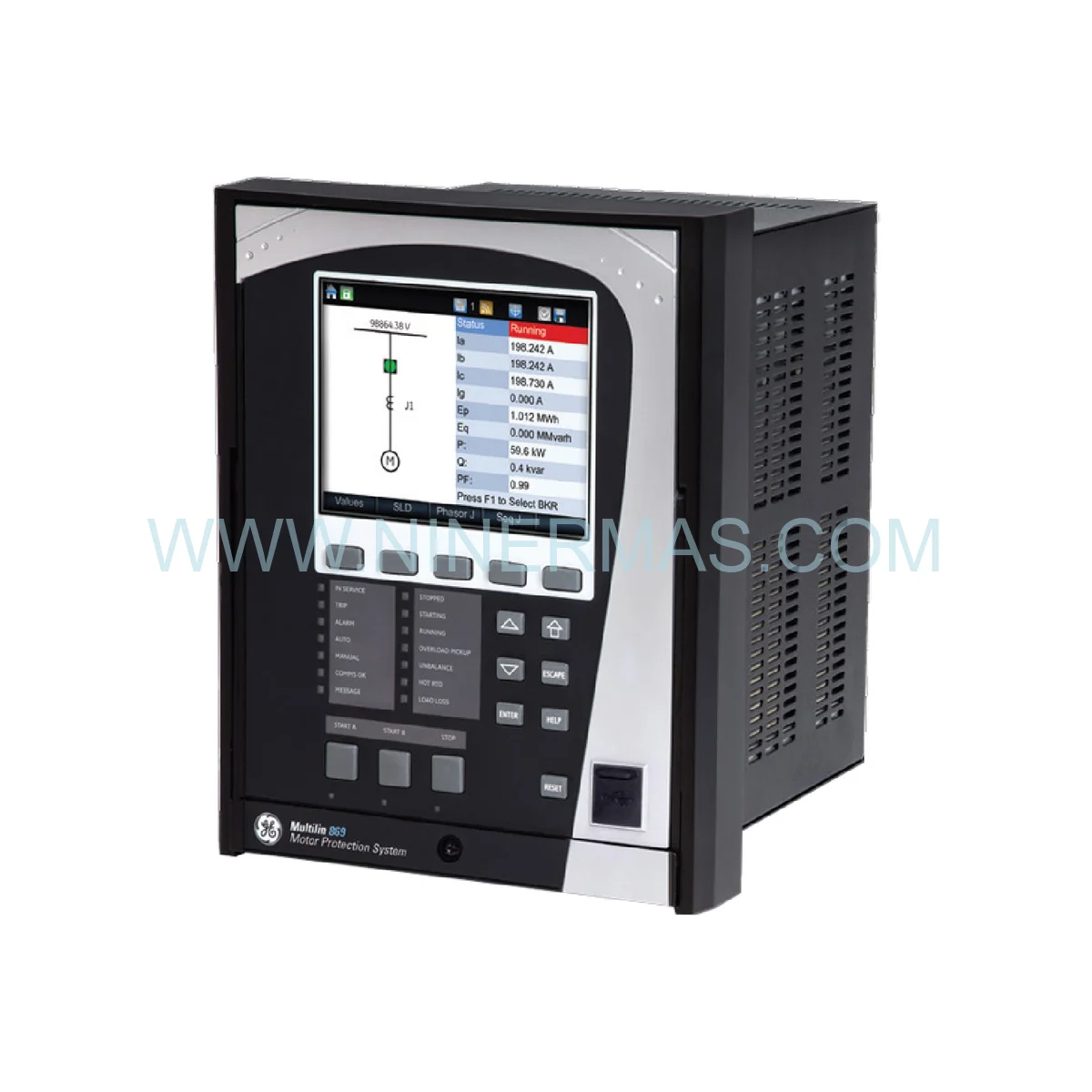

GE Multilin 869-E-P5-P5-B5-H-SN-A-N-N-M-M-S-F-B-SE-N-N-B-4 Motor Protection Relay

GE Multilin 869-E-P5-P5-B5-H-SN-A-N-N-M-M-S-F-B-SE-N-N-B-4 – Professional Retrofit & System Upgrade Component

System Modernization & Migration Analysis

As a Retrofit Project Lead overseeing industrial motor protection infrastructure, the GE Multilin 869-E-P5-P5-B5-H-SN-A-N-N-M-M-S-F-B-SE-N-N-B-4 stands as a cornerstone component in any serious system modernization initiative. Whether you are upgrading aging electromechanical relays or migrating from first-generation digital protection platforms, this relay delivers the performance enhancement and diagnostic depth that modern industrial operations demand. Its advanced thermal modeling, multi-protocol communication stack, and configurable protection logic make it the preferred hardware upgrade choice for facilities seeking to extend asset life while boosting operational reliability.

The GE Multilin 869-E-P5-P5-B5-H-SN-A-N-N-M-M-S-F-B-SE-N-N-B-4 is engineered with legacy compatibility at its core. Supporting Modbus RTU, DNP 3.0, and IEC 61850, it integrates seamlessly into existing DCS and SCADA architectures without requiring wholesale infrastructure replacement. This backward-compatible communication framework dramatically reduces the complexity of system migration projects, allowing engineers to phase in modernization incrementally rather than executing high-risk, full-cutover upgrades.

From a total cost of ownership perspective, deploying this relay as part of a structured retrofit solution minimizes migration risk by preserving existing wiring topologies and panel footprints. Facilities report measurable reductions in unplanned downtime and commissioning hours when standardizing on the GE Multilin 869 platform — translating directly into lower capital expenditure and faster return on modernization investment.

Upgrade Highlights & Compatibility

• ✅ Legacy Compatibility: Supports Modbus RTU, DNP 3.0 & IEC 61850 — drop-in integration with existing DCS/SCADA without protocol conversion overhead
• Performance Enhancement: Advanced thermal overload modeling with real-time RTD inputs replaces outdated bimetallic or single-curve protection schemes
• ✅ Seamless Integration: Standard panel cutout dimensions and flexible CT ratios (1A/5A nominal) enable direct replacement of legacy relay footprints
• Future-Proofing: IEC 61850 GOOSE messaging and dual Ethernet ports support next-generation substation automation and digital twin architectures
• ✅ Hardware Upgrade Value: Consolidates thermal, electrical, and mechanical protection functions previously requiring multiple discrete relays into a single intelligent device
• Operational Resilience: -40°C to +70°C operating range ensures reliable performance across harsh industrial environments without derating

Modernization Use Cases & Success Stories

DCS Modernization in Petrochemical Plants: Aging electromechanical motor protection relays in refinery pump trains are a leading cause of unplanned shutdowns. By deploying the GE Multilin 869-E-P5-P5-B5-H-SN-A-N-N-M-M-S-F-B-SE-N-N-B-4 as a direct retrofit replacement, engineering teams have achieved a performance leap from binary trip/no-trip logic to continuous thermal state estimation — enabling predictive maintenance workflows that reduce emergency maintenance events by up to 40%.

TSI System Upgrade in Power Generation: Turbine auxiliary motor protection in combined-cycle power plants demands microsecond-level fault discrimination. The 869 platform’s high-speed protection elements (configurable down to 1-cycle response) make it the preferred retrofit solution for replacing legacy electromechanical overcurrent relays in turbine lube oil pump and cooling fan circuits, where false trips carry significant generation revenue risk.

Water Treatment Facility Migration: Municipal water authorities managing aging motor control centers have standardized on the GE Multilin 869 series for their system migration programs. The relay’s undercurrent detection function — critical for pump cavitation protection — combined with IEC 61850 integration, enables seamless integration into modern SCADA platforms while maintaining backward compatibility with legacy 4-20mA analog infrastructure.

Manufacturing Line Retrofit: High-inertia conveyor and crusher motor applications in mining and cement plants benefit from the 869’s configurable locked rotor protection and motor starting supervision. Retrofit projects replacing older thermal-magnetic circuit breaker-based protection with this relay have demonstrated measurable improvements in motor lifespan and reduction in nuisance tripping incidents.

Migration Technical Data Sheet

Supply Chain & Deployment Support

• Original & Factory Sealed: All units are sourced as genuine GE Multilin OEM product — factory sealed with full traceability documentation, eliminating counterfeit risk in critical protection applications.
• Expedited Global Logistics: Priority air freight and DDP (Delivered Duty Paid) shipping options available to minimize project schedule risk for time-critical retrofit and emergency replacement scenarios worldwide.
• Technical Support for Legacy Hardware: Our engineering team provides application-specific commissioning guidance, legacy relay cross-reference analysis, and configuration file templates to accelerate your migration timeline.
• Obsolete & EOL Hardware Specialists: Beyond active products, we maintain inventory of discontinued GE Multilin legacy relays to support phased migration strategies where immediate full replacement is not feasible.
• Documentation Package: Full technical manuals, relay setting calculation worksheets, and IEC 61850 SCL configuration files available upon request to support your engineering team.

Retrofit FAQ — Upgrade Guide

Q: Is the 869-E-P5-P5-B5-H-SN-A-N-N-M-M-S-F-B-SE-N-N-B-4 physically compatible with existing panel cutouts from older GE Multilin relays?
A: The GE Multilin 869 series is designed with standardized panel cutout dimensions that align with previous-generation GE protection relay form factors. In most retrofit scenarios, the existing panel opening and mounting hardware can be reused, significantly reducing installation labor and panel modification costs. Always verify the specific legacy relay dimensions against the 869 installation drawing prior to ordering.

Q: How does the 869-E-P5-P5-B5-H-SN-A-N-N-M-M-S-F-B-SE-N-N-B-4 communicate with legacy DCS systems that only support Modbus RTU?
A: The relay natively supports Modbus RTU over RS-485, making it fully compatible with legacy DCS and SCADA platforms that predate IEC 61850 adoption. No protocol converter or gateway is required for Modbus-based system migration, preserving your existing communication infrastructure investment while adding modern protection capabilities.

Q: Can this relay serve as a direct spare or replacement for an older GE 369 or 469 series motor protection relay?
A: The 869 platform represents the current-generation successor to the GE Multilin 369 and 469 series. While it is not a pin-for-pin drop-in replacement due to enhanced I/O and communication capabilities, it is the recommended upgrade path. GE Multilin provides migration guides and relay setting conversion tools to facilitate the transition with minimal engineering effort.

Q: What is the recommended approach for migrating relay settings from a legacy system to the 869-E-P5-P5-B5-H-SN-A-N-N-M-M-S-F-B-SE-N-N-B-4?
A: GE Multilin’s EnerVista 869 Setup software provides a PC-based configuration environment that supports offline relay setting development and validation prior to site commissioning. Settings can be exported, archived, and cloned across multiple relays — a critical capability for large-scale system migration projects involving dozens of motor protection points.

Q: Does the relay support IEC 61850 GOOSE for interlocking with modern protection schemes?
A: Yes. The 869-E-P5-P5-B5-H-SN-A-N-N-M-M-S-F-B-SE-N-N-B-4 fully supports IEC 61850 Edition 2, including GOOSE messaging for high-speed peer-to-peer interlocking between protection devices. This enables seamless integration into modern digital substation architectures and future-proofs your protection scheme against evolving grid automation standards.

Q: What warranty and post-sale technical support is available for retrofit projects?
A: Each unit is covered by a 12-month warranty against manufacturing defects. Our technical support team provides application engineering assistance throughout the project lifecycle — from pre-sale relay selection and setting calculation review through post-commissioning troubleshooting — ensuring your retrofit project delivers the performance enhancement outcomes you require.
