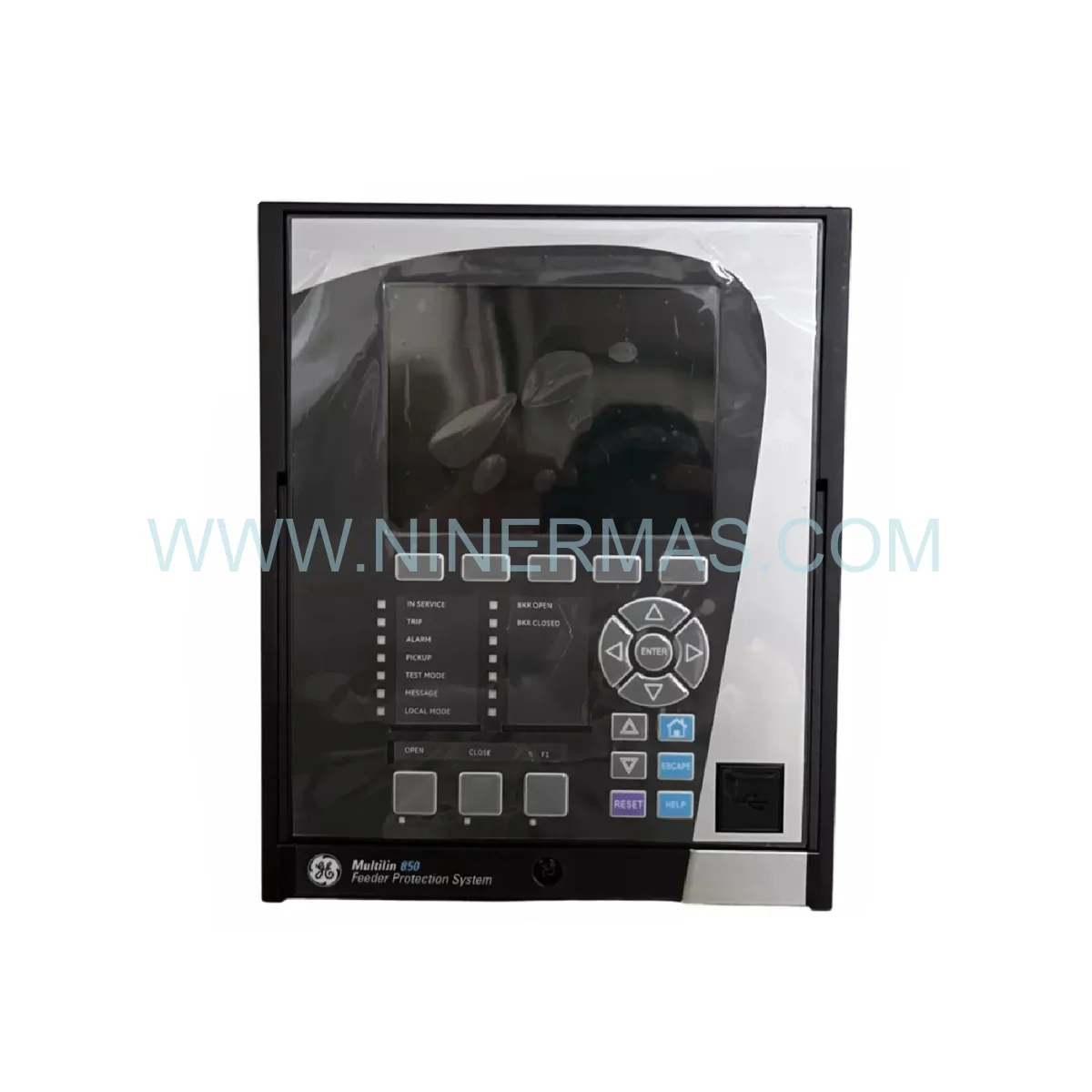

GE Multilin 850-E-P5-NN-G5-H-N-N-A-A-N-M-M-P-C-B-1E-T-C-N-A Feeder Protection Relay

GE Multilin 850-E-P5-NN-G5-H-N-N-A-A-N-M-M-P-C-B-1E-T-C-N-A — Lifecycle Excellence & Technical Performance

Operational Integrity & System Analysis

From the perspective of an Industrial Compliance Consultant, the GE Multilin 850-E-P5-NN-G5-H-N-N-A-A-N-M-M-P-C-B-1E-T-C-N-A represents a cornerstone asset in the lifecycle management of electrical distribution infrastructure. Its role extends beyond conventional overcurrent protection — it serves as a certified guardian of system integrity, ensuring that feeder circuits within utility substations, industrial plants, and mission-critical facilities operate within defined safety parameters throughout their operational lifespan. The relay’s architecture is engineered to uphold Compliance Standards mandated by IEC 60255 and IEEE C37.90, making it an indispensable component in any asset optimization strategy.

Within the framework of Industry 4.0 and digital substation evolution, the GE Multilin 850-E-P5-NN-G5-H-N-N-A-A-N-M-M-P-C-B-1E-T-C-N-A demonstrates exceptional long-term compatibility with modern SCADA architectures and IEC 61850-compliant automation platforms. Its multi-protocol communication stack — encompassing Modbus RTU, DNP3, and IEC 61850 — ensures seamless interoperability across heterogeneous control environments, supporting Asset Optimization objectives over a 15-25 year operational horizon. This forward-compatible design philosophy reduces total cost of ownership while preserving System Performance benchmarks across successive technology generations.

As a factory-sealed, Original Documentation-accompanied component sourced through certified supply channels, this relay delivers the highest assurance of Safety Integrity. Counterfeit or non-original components introduce latent failure risks that compromise protection coordination and regulatory compliance. Procuring the GE Multilin 850 series through verified distributors ensures that every unit meets the manufacturer’s stringent quality control criteria — a non-negotiable requirement for critical infrastructure operators.

Compliance & Safety Benchmarks

✅ IEC 60255 Certified: Meets international standards for measuring relays and protection equipment, ensuring consistent performance under fault conditions.

✅ IEEE C37.90 Compliant: Validated against North American relay standards for electrical and environmental durability, including surge withstand capability (SWC) and fast transient testing.

UL/CSA Listed: North American safety certification confirming adherence to electrical safety requirements for industrial control equipment.

✅ IEC 61850 Edition 2 Ready: Supports GOOSE messaging and sampled values for high-speed protection coordination in digital substation environments.

Extended Temperature Durability: Rated for operation from -40°C to +70°C, ensuring Standard Adherence in extreme industrial environments including arctic installations and high-ambient tropical facilities.

✅ EMC Immunity: Designed to withstand electromagnetic interference per IEC 61000 series, preserving relay integrity in high-noise industrial environments.

Vertical Industry Integration & Optimization

Semiconductor & Electronics Manufacturing: Precision fabrication environments demand zero-tolerance power quality management. The GE Multilin 850-E-P5-NN-G5-H-N-N-A-A-N-M-M-P-C-B-1E-T-C-N-A provides sub-cycle fault detection and high-resolution oscillography, enabling root cause analysis of power disturbances that could compromise yield rates in cleanroom operations. Its voltage monitoring functions (ANSI 27/59) protect sensitive process equipment from sag and swell events.

Pharmaceutical & Life Sciences: GMP-regulated facilities require documented, auditable protection systems. This relay’s comprehensive event logging — including sequence-of-events (SOE) recording with 1ms resolution — supports regulatory audit trails and validates that electrical systems maintained operational parameters within approved limits throughout production cycles.

Chemical & Petrochemical Processing: Hazardous area installations demand relays with proven reliability under continuous duty cycles. The 850 relay’s rugged construction and extended MTBF characteristics align with process safety management (PSM) requirements, supporting HAZOP-driven protection philosophies and enabling safe isolation of faulted feeders without cascading process shutdowns.

Oil & Gas Upstream Operations: Offshore platforms and remote onshore facilities benefit from the relay’s wide auxiliary power input range (110-240V AC/DC) and its ability to operate reliably under voltage fluctuations common in generator-fed microgrids. The integrated reclosing function (ANSI 79) minimizes production interruptions from transient faults on overhead distribution lines.

Data Centers & Mission-Critical Facilities: Tier III and Tier IV data centers leverage the 850’s advanced metering capabilities for real-time power consumption analytics, supporting PUE optimization initiatives while maintaining the protection coordination required by NFPA 70E and NEC Article 240.

Comprehensive Engineering Specifications

Fulfillment Strategy & Technical Support

Factory Sealed Condition: Every GE Multilin 850-E-P5-NN-G5-H-N-N-A-A-N-M-M-P-C-B-1E-T-C-N-A unit is dispatched in its original manufacturer packaging with tamper-evident seals intact. Factory sealing guarantees that the relay has not been subjected to unauthorized modification, recalibration, or environmental exposure prior to installation — a critical assurance for protection engineers responsible for system commissioning sign-off.

Rapid Global Logistics: Our fulfillment infrastructure supports expedited delivery to major industrial hubs across Asia-Pacific, Europe, the Middle East, and the Americas. Priority air freight options are available for emergency replacement scenarios, minimizing system downtime in critical operational contexts. All shipments include full export documentation, country-of-origin certification, and insurance coverage.

12-Month Quality Guarantee for Legacy Systems: Recognizing the extended service life of protection relay infrastructure, we provide a 12-month quality guarantee covering manufacturing defects and performance deviations from published specifications. This guarantee is specifically structured to support legacy system operators who depend on long-term component availability for maintenance planning and regulatory compliance documentation.

Technical Support & Original Documentation: Each unit is accompanied by the manufacturer’s original technical manual, wiring diagrams, and test reports where available. Our engineering support team provides pre-sales application consultation, commissioning guidance, and post-installation troubleshooting assistance to ensure that the relay is correctly integrated into your protection coordination scheme.

Expert Technical FAQ

Q: How does the 850-E-P5-NN-G5-H-N-N-A-A-N-M-M-P-C-B-1E-T-C-N-A comply with IEC 61850 for substation automation integration?
A: The relay implements IEC 61850 Edition 2, supporting GOOSE (Generic Object Oriented Substation Event) messaging for high-speed inter-relay communication and Sampled Values (SV) for process bus architectures. Its Logical Node structure conforms to IEC 61850-7-4, enabling seamless integration with IEC 61850-compliant RTUs, bay controllers, and substation HMI platforms without requiring protocol conversion gateways.

Q: What environmental certifications validate the relay’s suitability for harsh industrial installations?
A: The 850 series has been tested and certified to IEC 60068 environmental standards, covering temperature cycling, humidity exposure, vibration (IEC 60255-21), and shock resistance. Its EMC immunity is validated per IEC 61000-4 series, including EFT/burst (Level 4), surge immunity (Level 4), and conducted RF immunity — ensuring reliable operation in electrically noisy industrial environments such as motor control centers and arc furnace facilities.

Q: How should firmware version compatibility be verified before installation in an existing protection scheme?
A: Prior to installation, the relay’s firmware version should be cross-referenced against the site’s existing GE EnerVista configuration files and the protection coordination study documentation. GE Multilin publishes firmware release notes detailing functional changes and backward compatibility matrices. It is recommended to engage GE’s technical support or a certified protection engineer to validate firmware compatibility, particularly in IEC 61850 environments where GOOSE dataset mappings may differ between firmware generations.

Q: What is the recommended commissioning procedure to ensure compliance with protection coordination standards?
A: Commissioning should follow a structured sequence: (1) visual inspection and insulation resistance testing per IEC 60255-27; (2) secondary injection testing of all protection elements using a calibrated relay test set; (3) functional testing of all I/O, communication links, and HMI interfaces; (4) end-to-end GOOSE communication verification in IEC 61850 environments; and (5) documentation of all test results in the site’s protection maintenance register. All settings should be validated against the approved protection coordination study before energization.

Q: Can the 850-E-P5-NN-G5-H-N-N-A-A-N-M-M-P-C-B-1E-T-C-N-A be deployed in SIL-rated safety instrumented systems?
A: The GE Multilin 850 series is designed as a protection relay per IEC 60255 and is not independently SIL-rated under IEC 61508. However, it can form part of a broader safety architecture when combined with SIL-certified safety PLCs and validated safety logic. For applications requiring formal SIL assessment, a functional safety engineer should evaluate the relay’s PFD (Probability of Failure on Demand) data available from GE’s product documentation and incorporate it into the overall SIL verification calculation.

Q: What documentation is provided to support regulatory audits and asset lifecycle records?
A: Each unit is supplied with the manufacturer’s original technical manual, factory test certificate (where applicable), and country-of-origin documentation. Upon request, we can provide material traceability records supporting ISO 9001 audit requirements. The relay’s internal event log and fault records serve as operational evidence for regulatory inspections, supporting compliance with NERC CIP, IEC 62351, and site-specific electrical safety management systems.
